Single Axle Hanger Kit for Dexter D100G 10K GD - 2-1/2" Slipper Springs
Single axle hanger and hardware kit for Dexter D100G 10,000 lb General Duty trailer axle applications using 2-1/2" wide slipper springs. Important Note: front and rear hangers only; use with compatible HAP-258 series kits for tandem axle suspension layouts.
Overview

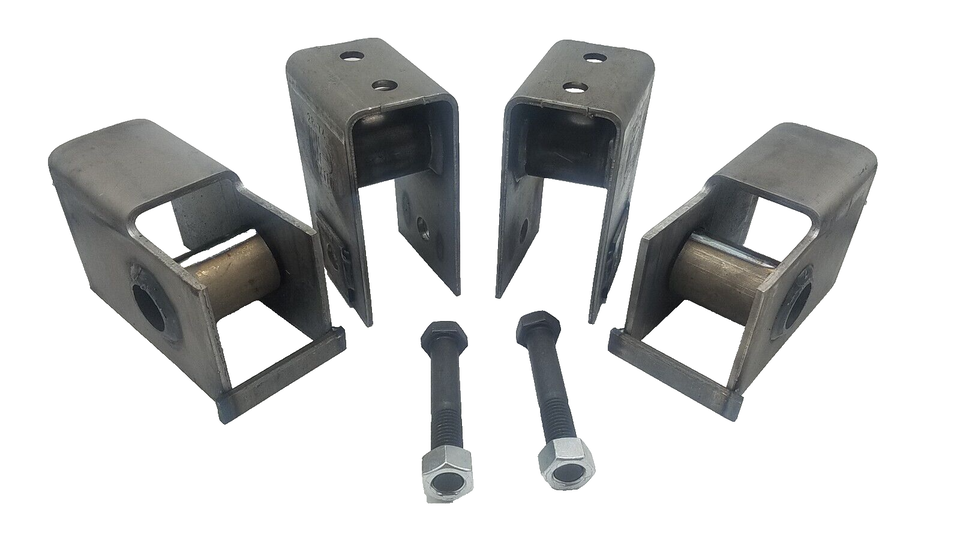

This single axle hanger and hardware kit is designed for trailer slipper spring suspension service on Dexter D100G 10,000 lb General Duty axle applications using 2-1/2 inch wide slipper springs. It includes the front hangers, rear hangers, spring eye bolts, and locknuts needed to service one single axle position.
R&P Service Insight
Slipper spring hanger kits need to be matched by axle series, spring width, hanger height, and suspension layout before ordering.
- Axle Series: Built around Dexter D100G 10,000 lb General Duty axle applications.
- Spring Type: For 2-1/2" wide slipper springs only.
- Axle Position: Services one single axle position with front and rear hangers.
R&P Knowledge Hub
Compatibility: Designed for Dexter D100G 10,000 lb General Duty trailer axle applications using 2-1/2" wide slipper springs.
Vehicle / System Fit: For single axle slipper spring suspension positions using Dexter 72-80 style 2-1/2" slipper springs.
Installation Notes: This kit includes front hangers, rear hangers, spring eye bolts, and locknuts for one axle position.
Performance Insight: Replacing worn hanger and bolt hardware helps restore proper suspension support and reduces excess movement at the spring mounting points.
Brand & Fitment Note
Selling Brand: R&P Carriages curated suspension service kit for compatible Dexter D100G applications.
Application Reference: Dexter D100G 10,000 lb General Duty axle suspension applications using 2-1/2" wide slipper springs.
What This Means: This listing is for the single axle hanger and attaching hardware kit only. It does not include an equalizer or center hanger.
Before Ordering: Confirm axle series, slipper spring width, hanger style, and whether your trailer uses a single axle or tandem axle suspension layout.
R&P Repair Insight
When servicing slipper spring suspension hardware, inspect the hangers, spring eye area, bolts, nuts, and spring seating points together. Worn mounting points can create suspension movement, noise, uneven tracking, and accelerated spring wear.
- Check Spring Width: This kit is for 2-1/2" wide slipper springs.
- Check Axle Setup: This kit services one single axle position and does not include an equalizer or center hanger.
- Check Suspension Type: This kit is not compatible with eye-to-eye spring configurations.
Features
Single Axle Hanger Kit
Includes the front and rear spring hangers needed to service one single axle slipper spring suspension position.
Dexter D100G Application
Designed for Dexter 10,000 lb General Duty D100G trailer axle suspension applications.
For 2-1/2" Slipper Springs
Fits 2-1/2" wide slipper spring suspension setups, including Dexter 72-80 spring reference applications.
Hardware Included
Includes spring eye bolts and 3/4"-10 locknuts for the hanger assembly.
Specifications
| Specification | Detail |
|---|---|
| Part Number | HAP-158-00 |
| Listing SKU | HAP-158-00 |
| Product Type | Single axle hanger and hardware kit |
| Spring Type | 2-1/2" wide slipper springs |
| Axle Rating Reference | 10,000 lb General Duty D100G |
| Quantity Included | One kit for one single axle position |
| Application | Dexter D100G 10K GD slipper spring suspension |
| Not Included | Equalizer or center hanger |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer slipper spring suspension |
| Primary Fit | Dexter D100G 10,000 lb General Duty axles |
| Spring Reference | 2-1/2" wide slipper springs, Dexter 72-80 reference |
| Notes | For slipper spring suspensions only; not compatible with eye-to-eye spring configurations. |

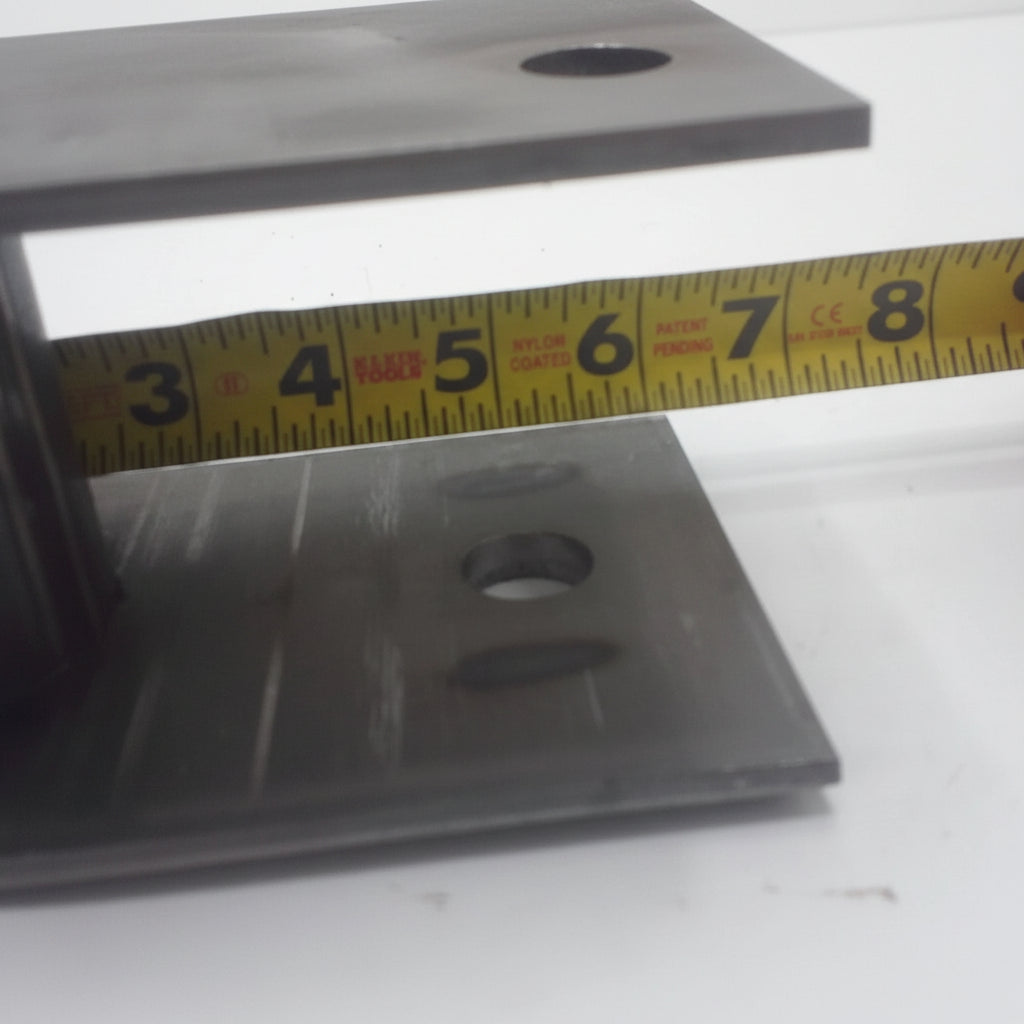

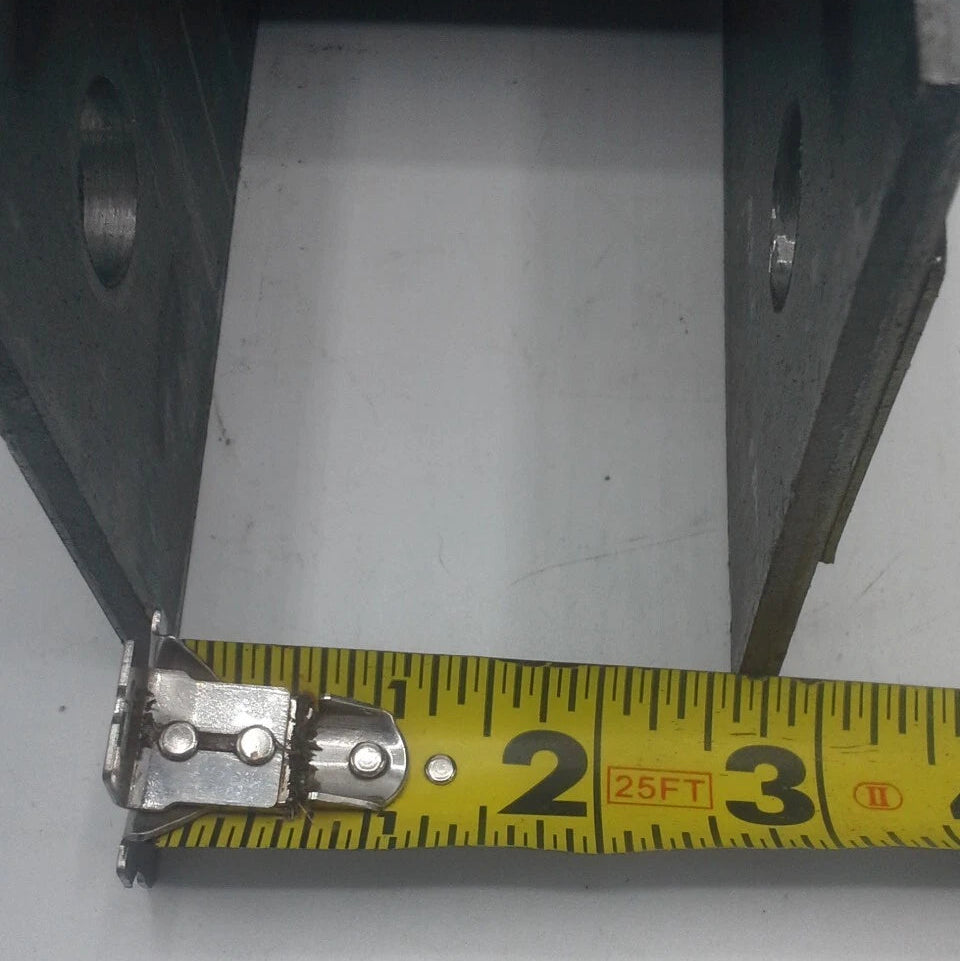

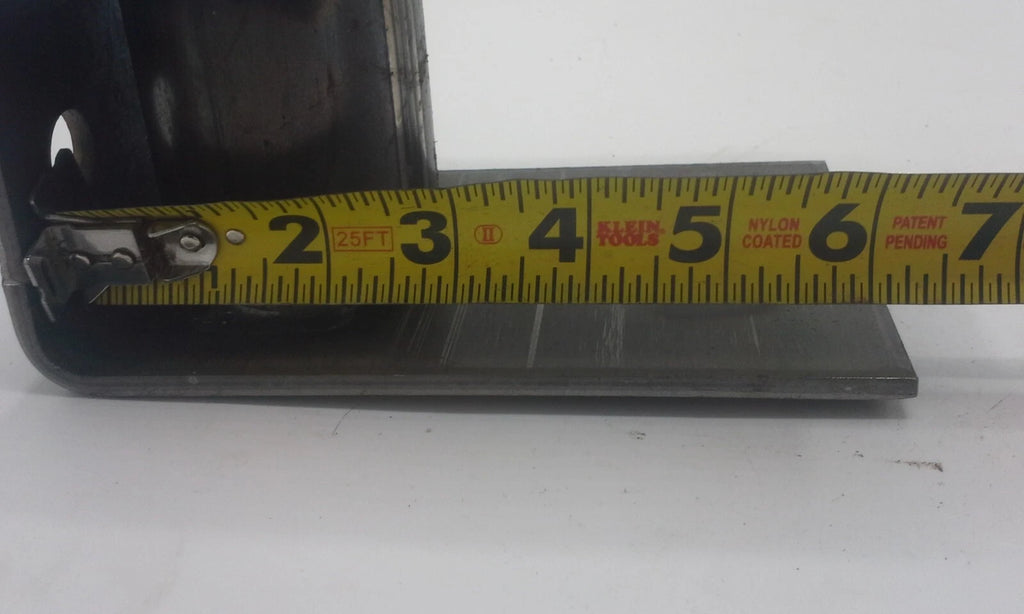

Detailed Measurements
| Key Dimension | Measurement |
|---|---|

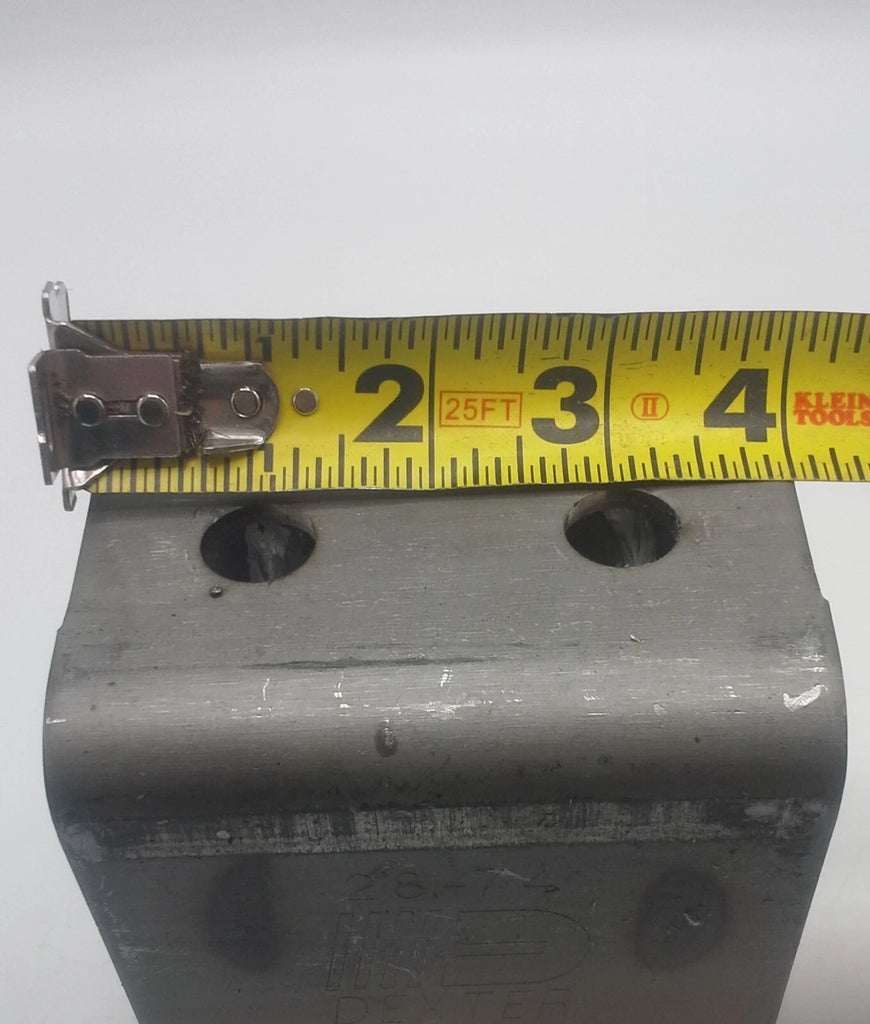

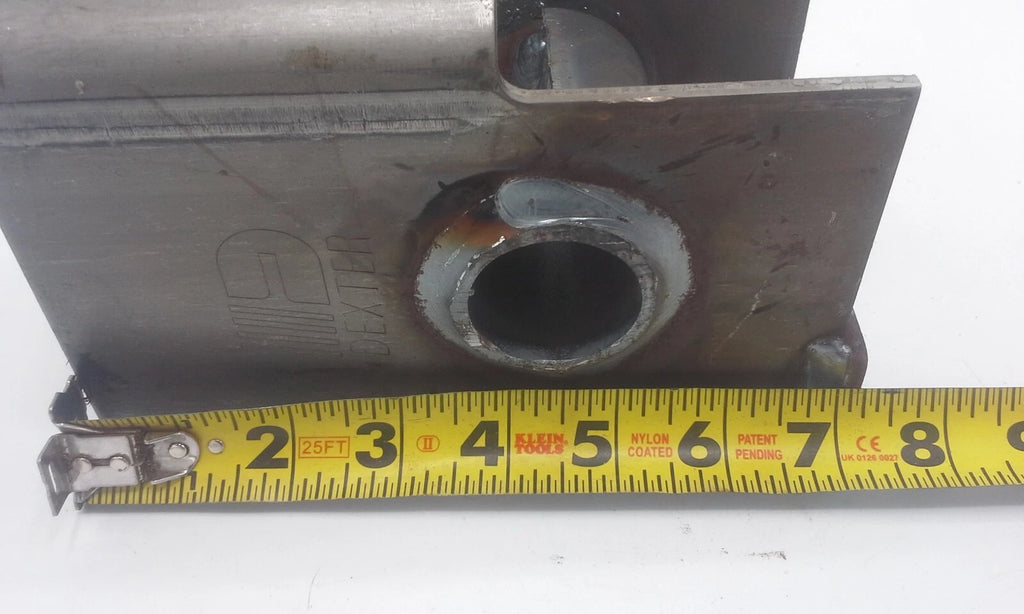

| Front Hanger Height | 5-1/4" tall |

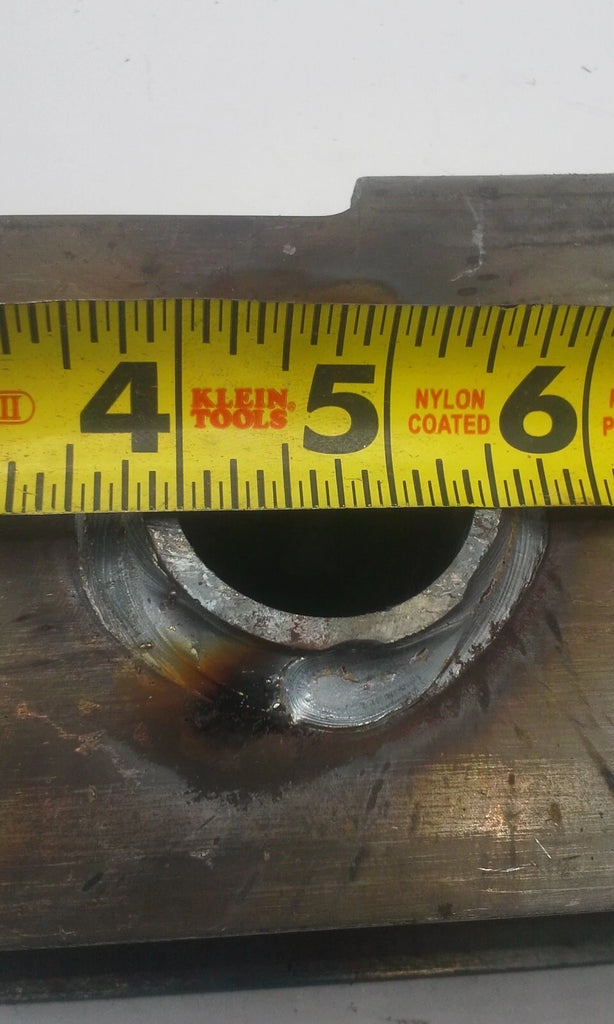

| Front Hanger Bolt Hole | 3/4" bolt hole |

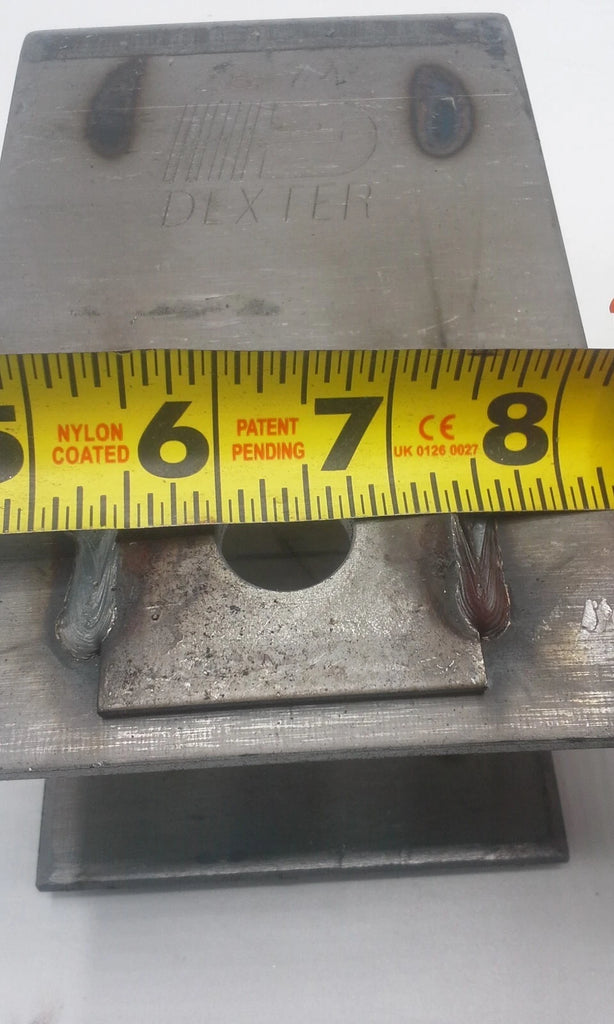

| Rear Hanger Height | 4-1/2" tall |

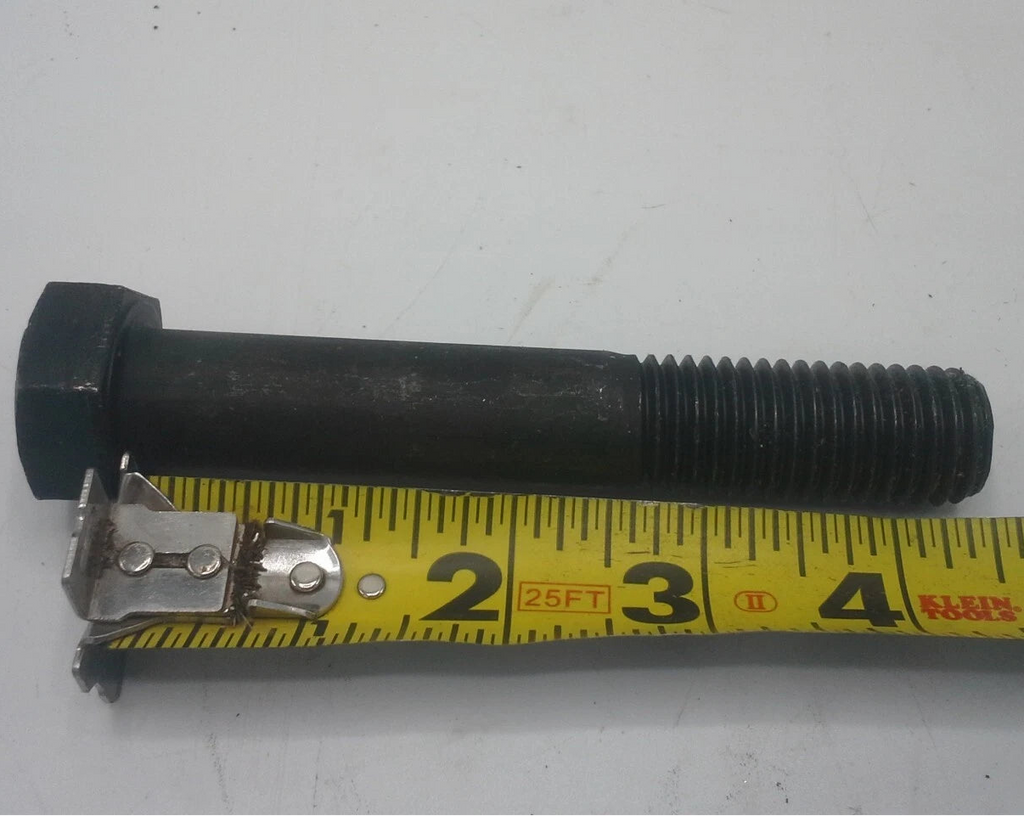

| Spring Eye Bolts | 3/4"-10 thread, 4-1/2" long, dry non-greaseable |

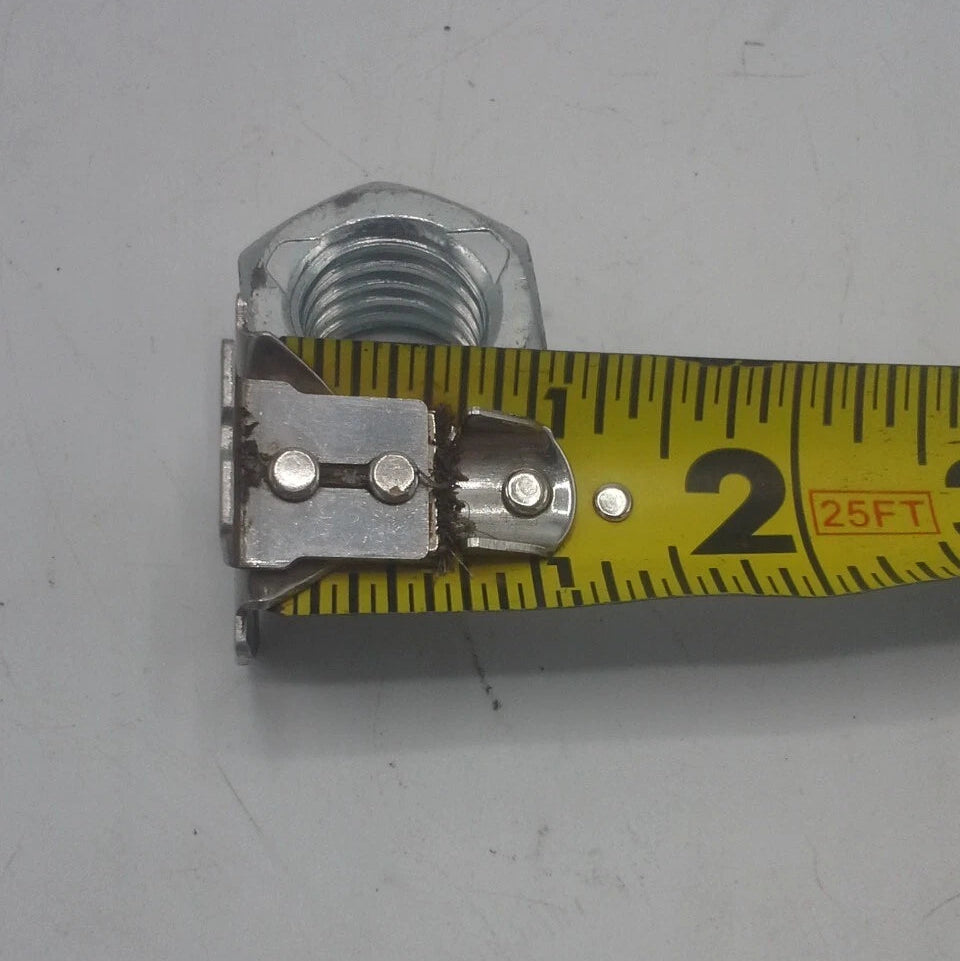

| Locknuts | 3/4"-10 locking nuts |
Included Components
| Quantity | Item | Part Reference |
|---|---|---|

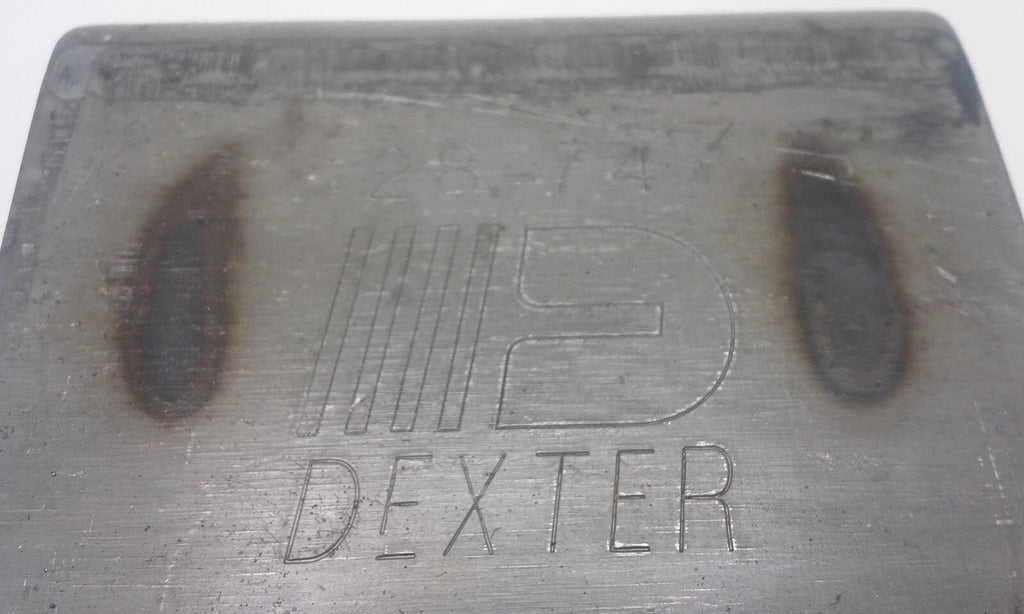

| 2 | Front hangers, 5-1/4" tall, 3/4" bolt hole | 028-074-02 |

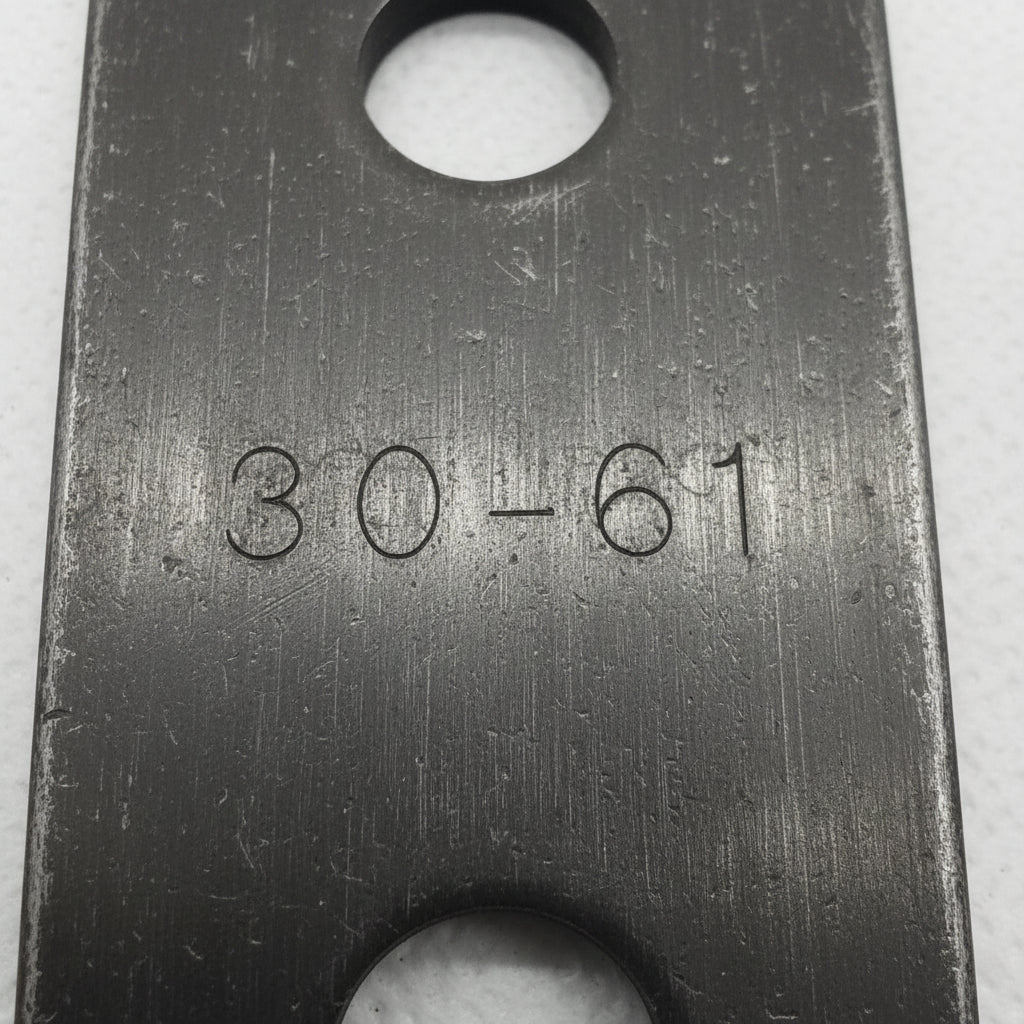

| 2 | Rear hangers, 4-1/2" tall, for 2-1/2" springs | 030-061-01 |
| 2 | Spring eye bolts, 3/4"-10 thread, 4-1/2" long, dry non-greaseable | 007-264-00 |
| 2 | 3/4"-10 locking nuts | 006-113-00 |
| Not Included | Equalizer or center hanger | Confirm tandem axle requirements before ordering. |
Tandem Axle Note
For tandem axle applications, this kit can be paired with compatible HAP-258-01, HAP-258-02, or HAP-258-03 equalizer and hanger kits to build a complete tandem suspension system for Dexter 10,000 lb General Duty axle applications. Confirm the exact suspension layout and hanger/equalizer configuration before ordering.
