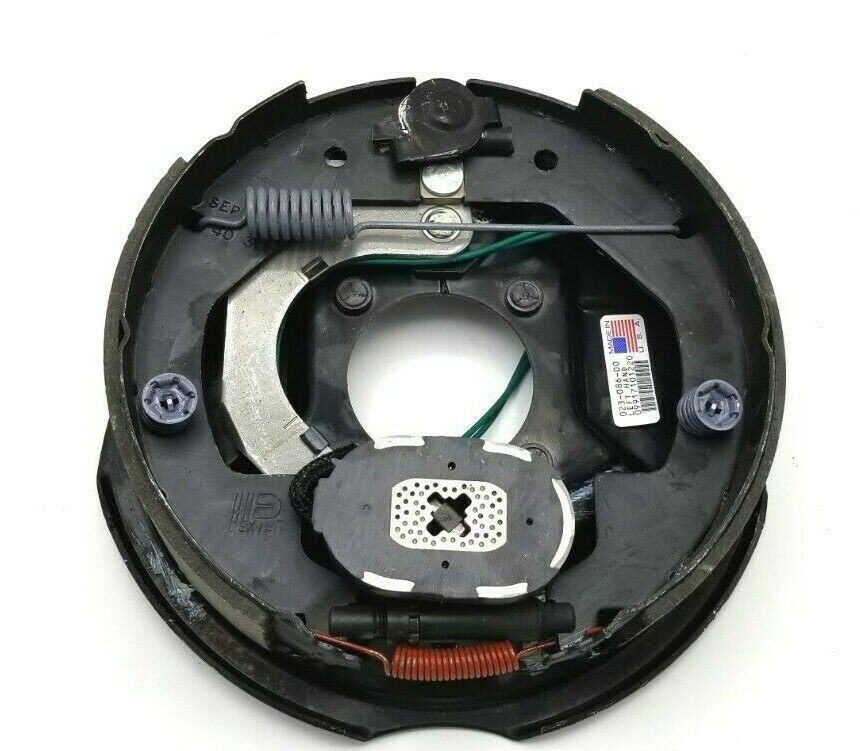

Dexter 10" Electric Trailer Brake Assembly with Parking Brake — Left Hand — 3,500 lb
USA-made left-hand Dexter electric trailer brake assembly featuring a manual parking brake lever, 10" x 2-1/4" brake dimensions and a four-bolt mounting configuration.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Brand | Dexter |
| Product Type | Electric trailer brake assembly with parking brake |
| Axle Rating | 3,500 lb |
| Brake Dimensions | 10" diameter x 2-1/4" wide |
| Mounting Pattern | Four-bolt mounting flange |
| Quantity Included | 1 left-hand brake assembly |
Fitment / Application
| Category | Details |
|---|---|
| Trailer Application | Electric-brake trailer axle applications |
| Axle Capacity | Designed for a 3,500 lb axle rating |
| Wheel Sizes | 13", 14" and 15" |
| Side Orientation | Left hand, commonly identified as the driver side |
| Fitment Method | Match the 10" x 2-1/4" brake size, four-bolt flange and left-hand orientation |
| Important Note | Verify axle rating, brake dimensions, mounting pattern and side orientation before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Parking Brake Feature | Includes a manual parking brake lever for compatible parking-brake applications. |
| Left-Hand Configuration | Provides the correct orientation for the driver side of the trailer. |
| Mounting Hardware Included | Supplied with mounting bolts and hardware for installation. |
| USA Made | Identifies the stated country of manufacture for the brake assembly. |
Overview
This listing is for one Dexter left-hand electric trailer brake assembly with a manual parking brake lever. The assembly measures 10" x 2-1/4", uses a four-bolt mounting flange and is identified for 3,500 lb axle applications using 13", 14" or 15" wheels.
R&P Service Insight
Trailer brake assemblies must be matched by more than axle capacity alone. Confirm the physical brake size, mounting-flange pattern and side orientation before removing the existing assembly.
- Measure First: Confirm that the existing brake measures 10" in diameter and 2-1/4" wide.
- Check the Flange: This assembly requires a compatible four-bolt brake mounting flange.
- Confirm the Side: This is the left-hand assembly, commonly installed on the driver side.
R&P Knowledge Hub
Compatibility: Intended for compatible 3,500 lb trailer axle applications using 10" x 2-1/4" electric brakes and a four-bolt mounting flange.
Wheel Application: Listed for use with 13", 14" and 15" trailer wheels.
Installation Notes: Confirm the left-hand orientation and verify that the trailer is equipped for the parking brake feature before installation.
Performance Insight: Correct brake size and side orientation are essential for proper brake-system operation and component fitment.
Brand & Fitment Note
Selling Brand: Dexter
Product Configuration: Left-hand electric trailer brake assembly with manual parking brake lever.
What This Means: This listing is for one Dexter-branded brake assembly configured for the left side of a compatible trailer axle.
Before Ordering: Verify the brake dimensions, four-bolt mounting configuration, axle rating, wheel size and left-hand orientation against the existing trailer components.
R&P Repair Insight
A brake assembly that appears similar may still be incorrect if the brake width, mounting pattern or side orientation does not match. Compare the original assembly directly with the listed specifications before installation.
- Brake Size: Verify both the 10" diameter and 2-1/4" width.
- Mounting Pattern: Count the mounting-flange bolts and confirm a four-bolt configuration.
- Parking Brake: Confirm that the trailer application uses a compatible manual parking brake system.
Features
3,500 lb Axle Application
Identified for compatible trailer axles with a 3,500 lb capacity rating.
10" x 2-1/4" Brake Size
Provides clearly defined brake dimensions for comparison with the existing brake and drum.
Manual Parking Brake Lever
Includes the manual parking brake lever required for compatible parking-brake applications.
Installation Hardware Included
Mounting bolts and hardware are included with the brake assembly.
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter 10" x 2-1/4" left-hand electric trailer brake assembly |
| Included | Manual parking brake lever |
| Included | Mounting bolts and hardware |
