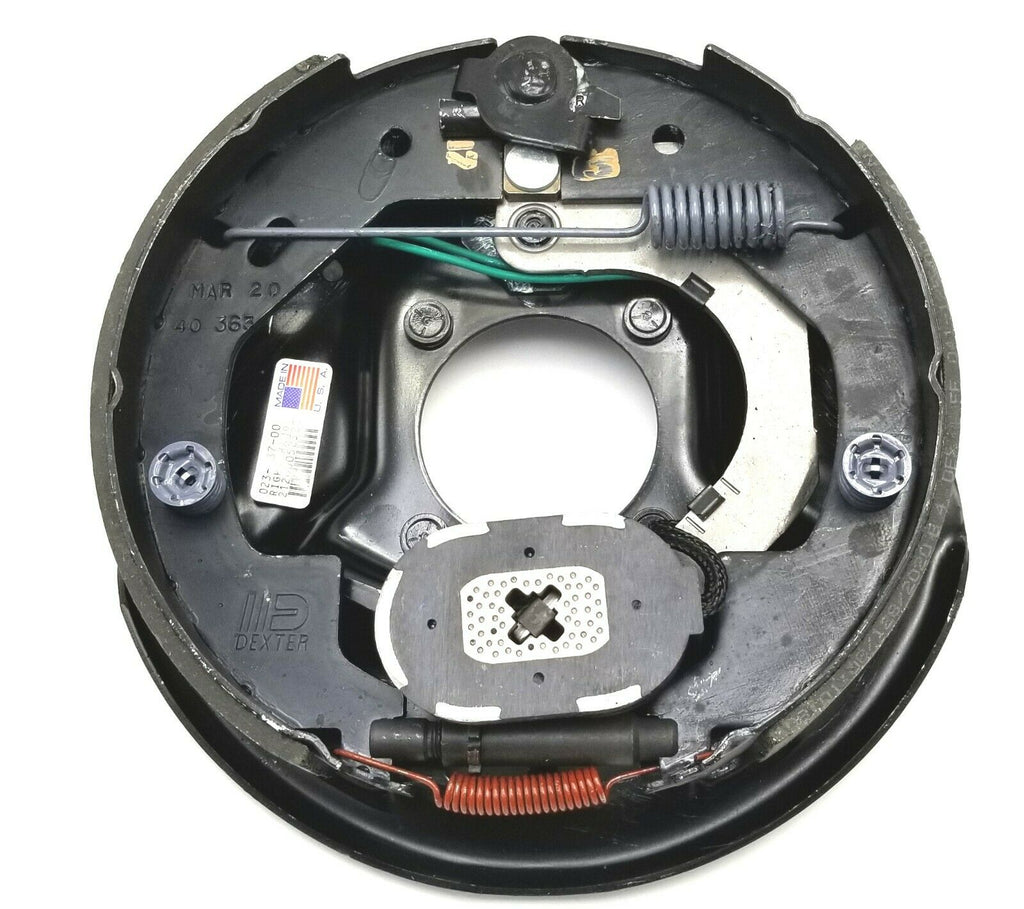

Dexter 10" x 2-1/4" Electric Trailer Brake Assembly with Parking Brake – Right Hand – 3,500 lb Axle
USA-made Dexter electric trailer brake assembly for the right-hand passenger side of compatible 3,500 lb trailer axle applications. Includes a manual parking brake lever and mounting hardware.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | K23-087-00 |
| Brand | Dexter |
| Product Type | Electric trailer brake assembly with parking brake |
| Brake Dimensions | 10" diameter x 2-1/4" wide |
| Axle Application Rating | 3,500 lbs / 3.5K |
| Mounting Flange Pattern | 4-bolt |
| Configuration | Right hand / passenger side |
| Country of Manufacture | Made in the USA |
| Quantity Included | 1 right-hand brake assembly |
Fitment / Application
| Category | Details |
|---|---|
| Trailer Application | Compatible 3,500 lb trailer axle brake systems |
| Installation Side | Right hand / passenger side |
| Wheel Sizes | 13", 14" and 15" |
| Primary Fit | Applications using a 10" x 2-1/4" electric brake assembly and 4-bolt mounting flange |
| Fitment Method | Compare the brake dimensions, mounting-flange pattern and side orientation with the existing assembly |
| Important Note | This is a right-hand assembly only. Verify the passenger-side orientation before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Right-Hand Configuration | Clearly identifies the assembly for passenger-side installation |
| Manual Parking Brake Lever | Provides the required lever for compatible parking-brake applications |
| Mounting Hardware Included | Includes the listed mounting bolts and hardware for installation |
| USA-Made Dexter Assembly | Provides a clearly identified Dexter-branded replacement component |
Overview
This listing is for one Dexter 10-inch x 2-1/4-inch electric trailer brake assembly configured for the right-hand passenger side. It is intended for compatible 3,500 lb axle applications using a 4-bolt brake mounting flange and 13-inch, 14-inch or 15-inch wheels.
R&P Service Insight
Brake assemblies must match the existing axle configuration, brake dimensions, mounting pattern and installation side.
- Confirm the Side: This assembly is for the right-hand passenger side.
- Measure the Brake: Verify a 10" diameter and 2-1/4" shoe width.
- Check the Flange: Confirm that the axle uses a compatible 4-bolt mounting flange.
R&P Knowledge Hub
Compatibility: Designed for compatible 3,500 lb trailer axle applications using 10" x 2-1/4" electric brakes and a 4-bolt mounting flange.
Wheel Fit: Listed for use with 13", 14" and 15" trailer wheels.
Installation Notes: Compare the dimensions, flange pattern and right-hand orientation with the brake assembly currently installed on the trailer.
Parking Brake Configuration: A manual parking brake lever is included for compatible parking-brake systems.
Brand & Fitment Note
Selling Brand: Dexter
Product Configuration: One right-hand electric trailer brake assembly with a manual parking brake lever.
Application Reference: The 3,500 lb rating identifies the listed axle application. Final fitment must also be verified by brake size, flange pattern, wheel size and installation side.
Before Ordering: Verify that the trailer requires a right-hand 10" x 2-1/4" electric brake assembly with a 4-bolt mounting flange.
R&P Repair Insight
Left-hand and right-hand brake assemblies are side-specific. Confirm all identifying measurements before removing the existing brake or beginning installation.
- Side Orientation: Install this assembly only in the right-hand passenger-side position.
- Mounting Pattern: Compare the four mounting holes with the axle brake flange.
- Brake Size: Confirm both the 10" diameter and 2-1/4" width rather than relying only on the axle rating.
Features
10" x 2-1/4" Brake Size
Clearly identified dimensions allow comparison with the trailer’s existing electric brake assembly.
Right-Hand Passenger Side
Side-specific configuration identifies the correct mounting position on compatible trailer axles.
Manual Parking Brake Lever
Includes the listed parking brake lever for compatible mechanically operated parking-brake systems.
Installation Hardware Included
Mounting bolts and hardware are included with the brake assembly.
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter 10" x 2-1/4" right-hand electric trailer brake assembly |
| 1 | Manual parking brake lever |
| 1 set | Mounting bolts and installation hardware |
