Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

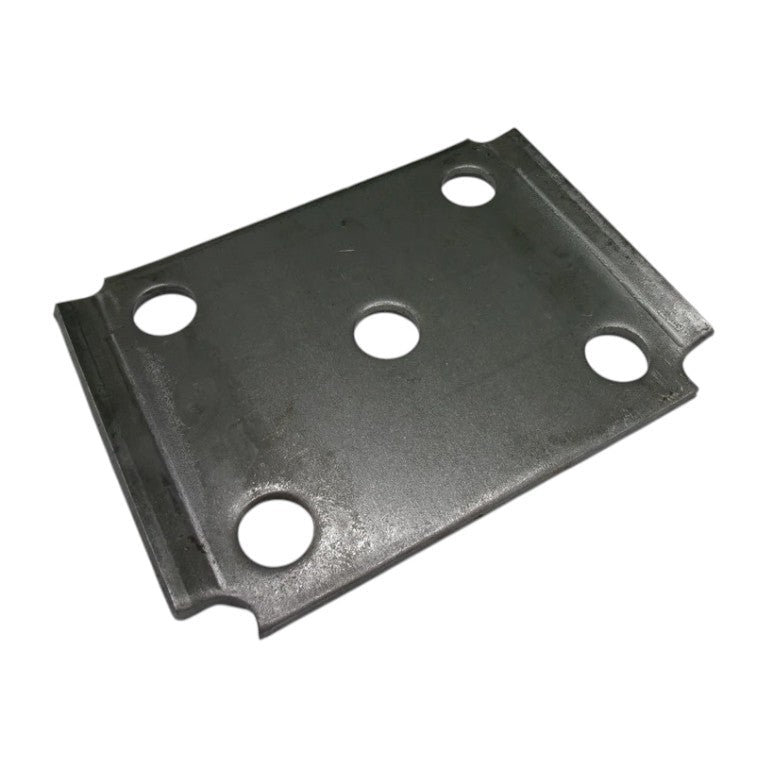

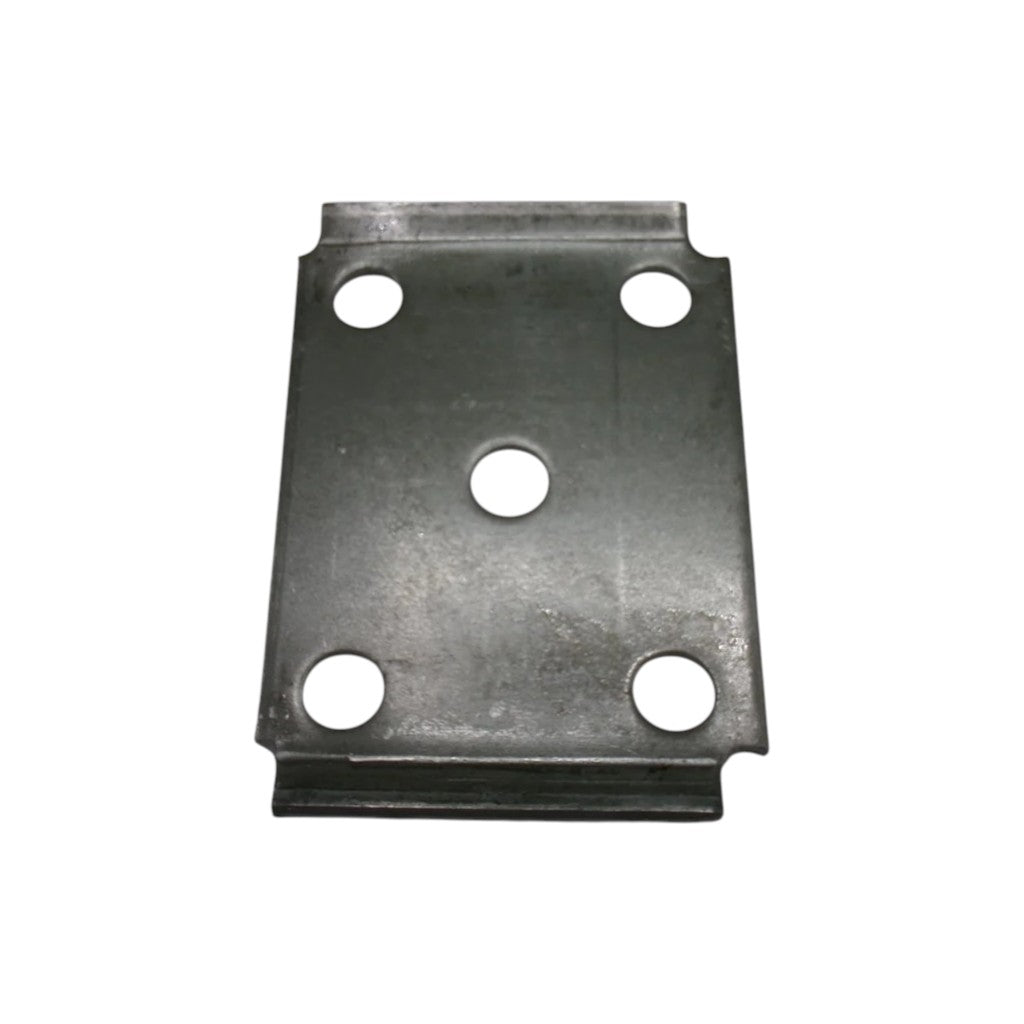

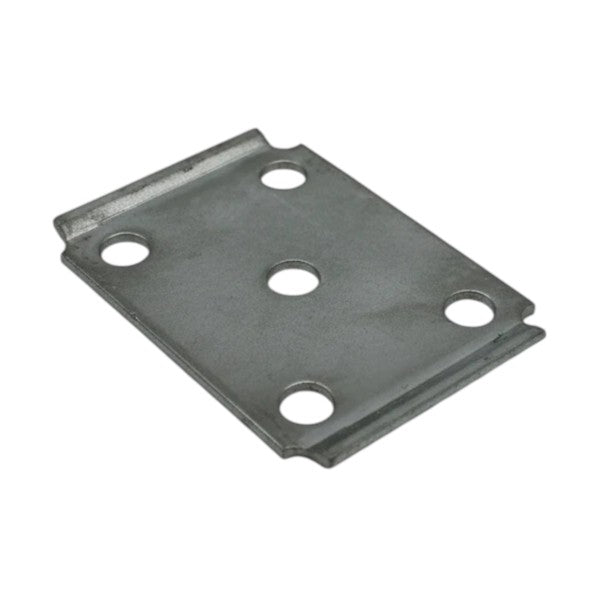

Heavy-duty trailer axle spring plate designed for high-capacity suspension systems. This plate provides a secure mounting point for a leaf spring on standard 3-inch round axle tubes.
This plate is specifically engineered for 3" axle tubes, which are typically found on 5,200#, 6,000#, and 7,000# axles.
It is designed to fit standard 1.75" wide springs. Always ensure your U-bolts match the plate's hole spacing and axle diameter for a safe, snug fit.
| Specification | Detail |
| Part Number | TP-4 |
| Axle Tube Compatibility | 3" Round Tube |
| Spring Width | 1.75" Wide |
| Axle Ratings | 5,200# - 7,000# |
Verify axle diameter and spring width before installation.
| Quantity | Item |
| 1 | Trailer Axle Spring Plate (TP-4) |
