At a Glance
- >Designed for round trailer axle tubes
- >Used to clamp axle securely to leaf spring packs
- >Common replacement hardware for worn or rusted u-bolts
- >Includes matching tie plate and lock nuts
- Brand: R & P Carriages
- SKU: UBK-7000-R-916
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Product Details
Round U-Bolt & Plate Kit for Leaf Spring Trailer Axles
Part Number: UBK-7000-R-916
Round u-bolt and tie plate hardware kit used to secure a trailer axle to leaf spring suspension assemblies. This style of kit is commonly found on tandem and single axle trailers where the axle is mounted above or below the leaf springs using round axle tubes.
Features
- Designed for round trailer axle tubes
- Used to clamp axle securely to leaf spring packs
- Common replacement hardware for worn or rusted u-bolts

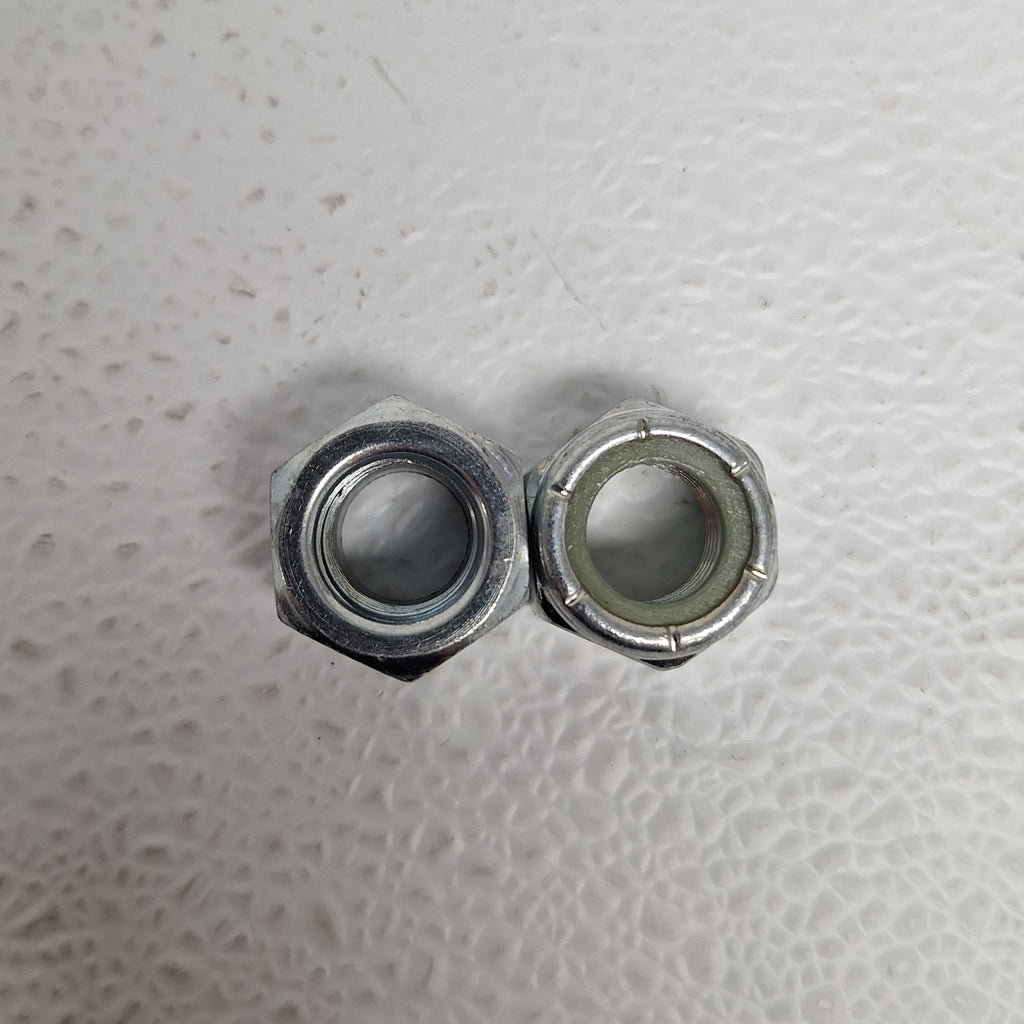

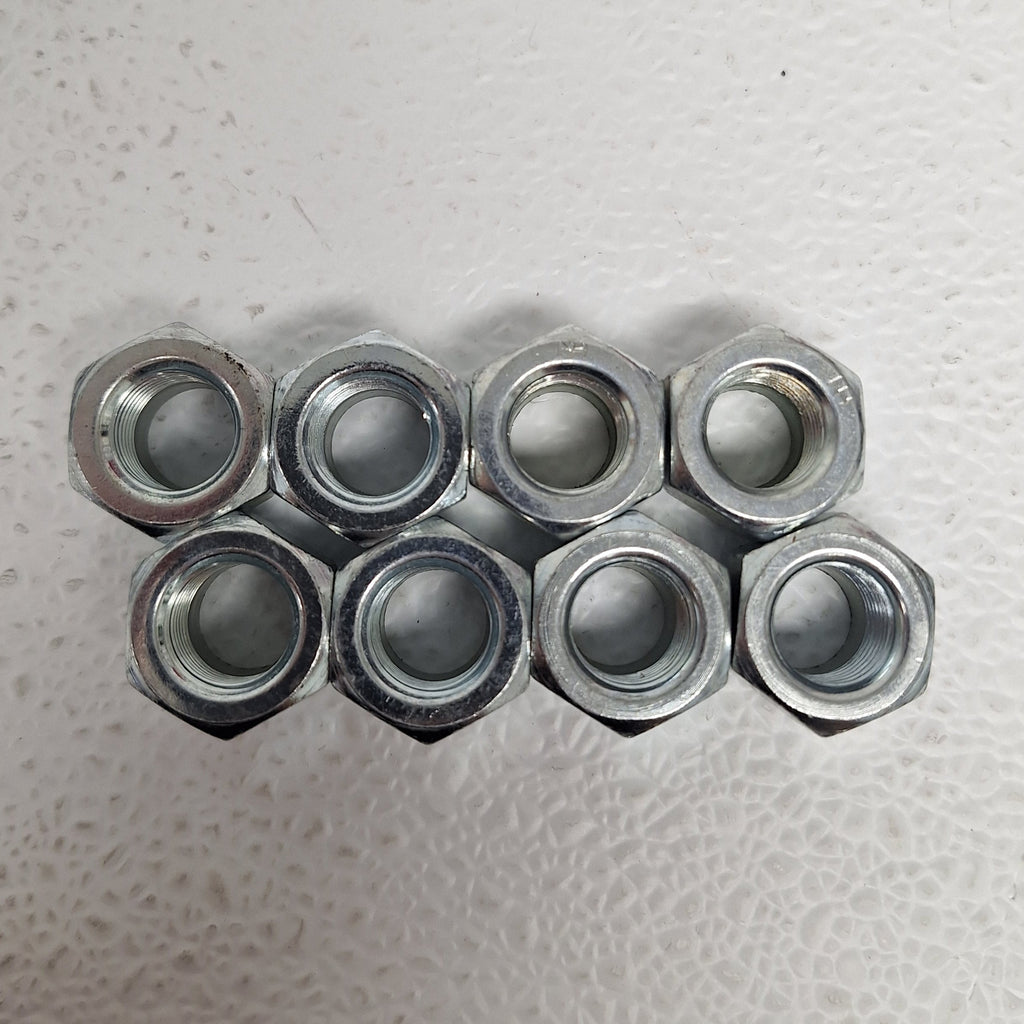

- Includes matching tie plate and lock nuts
Specifications
| U-Bolt Width | 3 in |
| U-Bolt Length | 7-1/4 in |

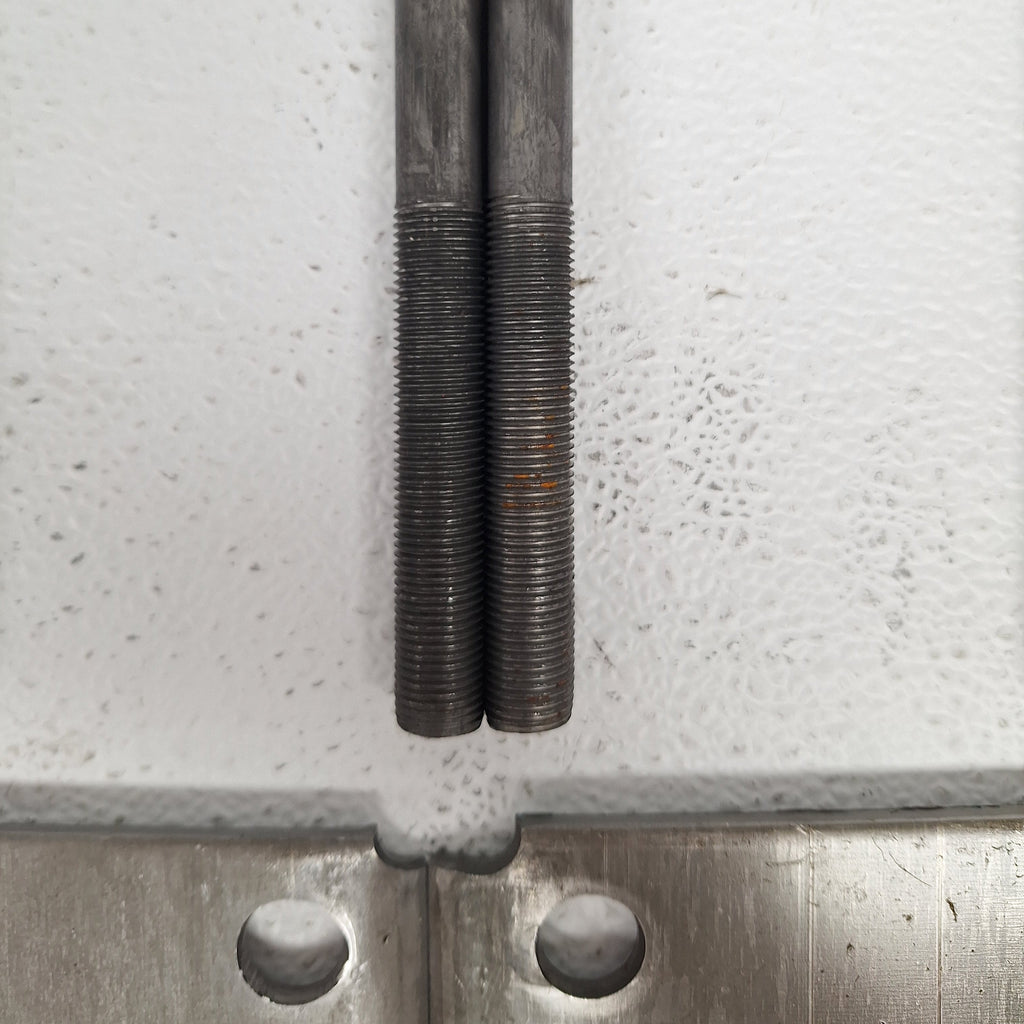

| Thread Diameter | 9/16 in |

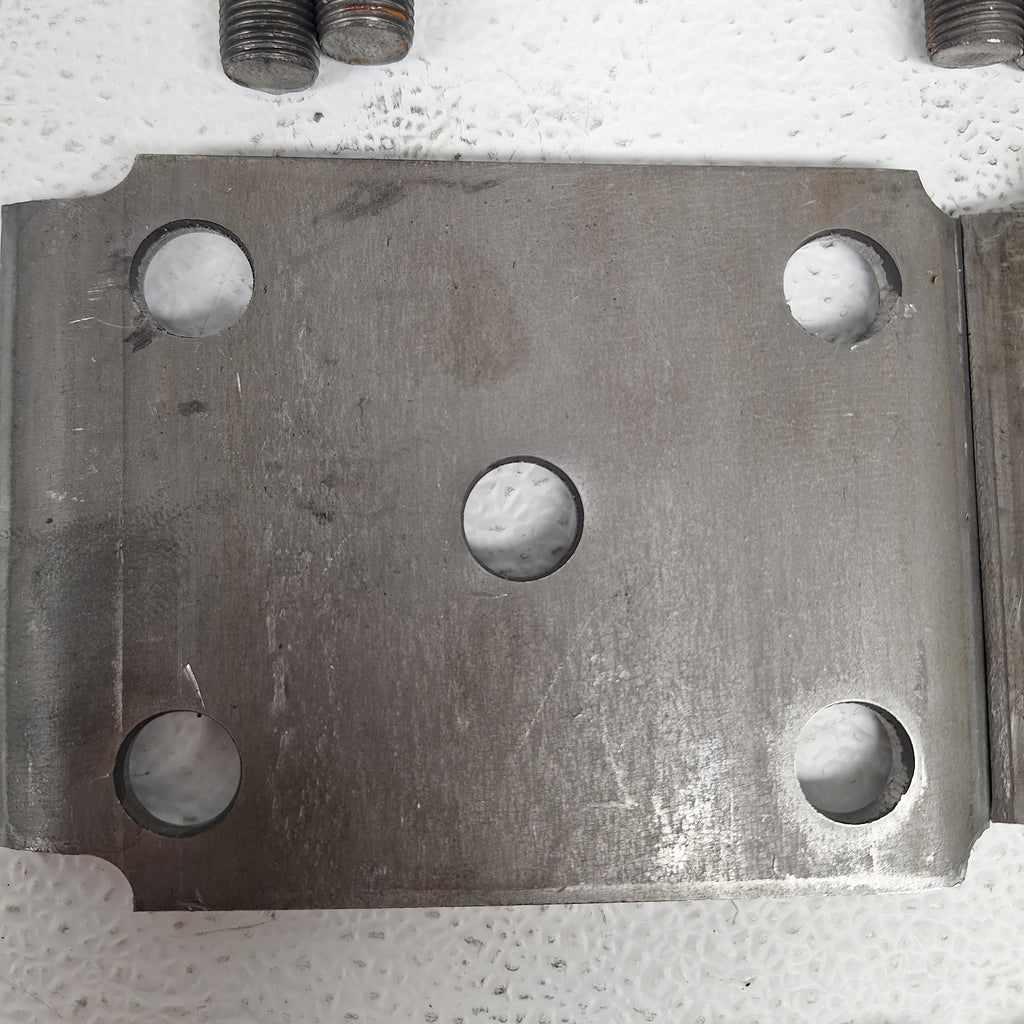

| Tie Plate Width | 4 in |
| Tie Plate Length | 5-5/8 in |

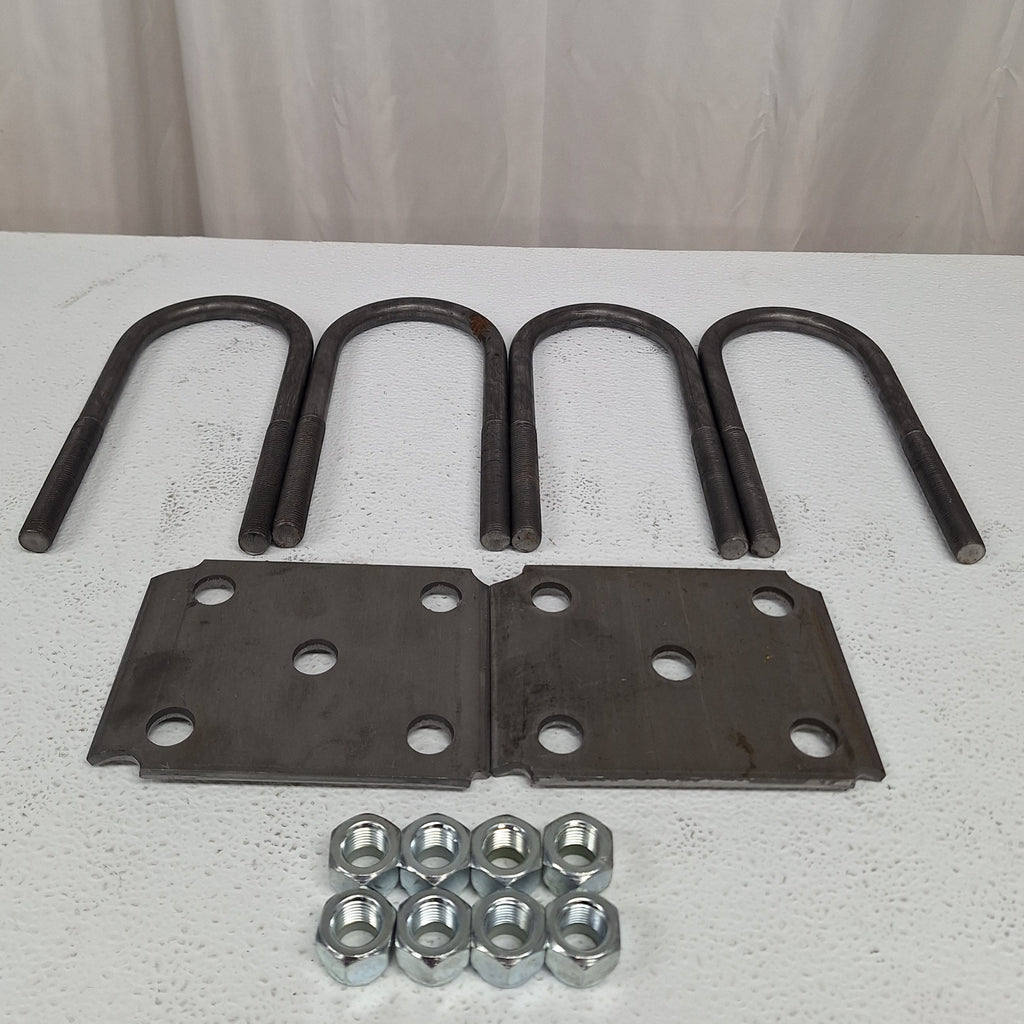

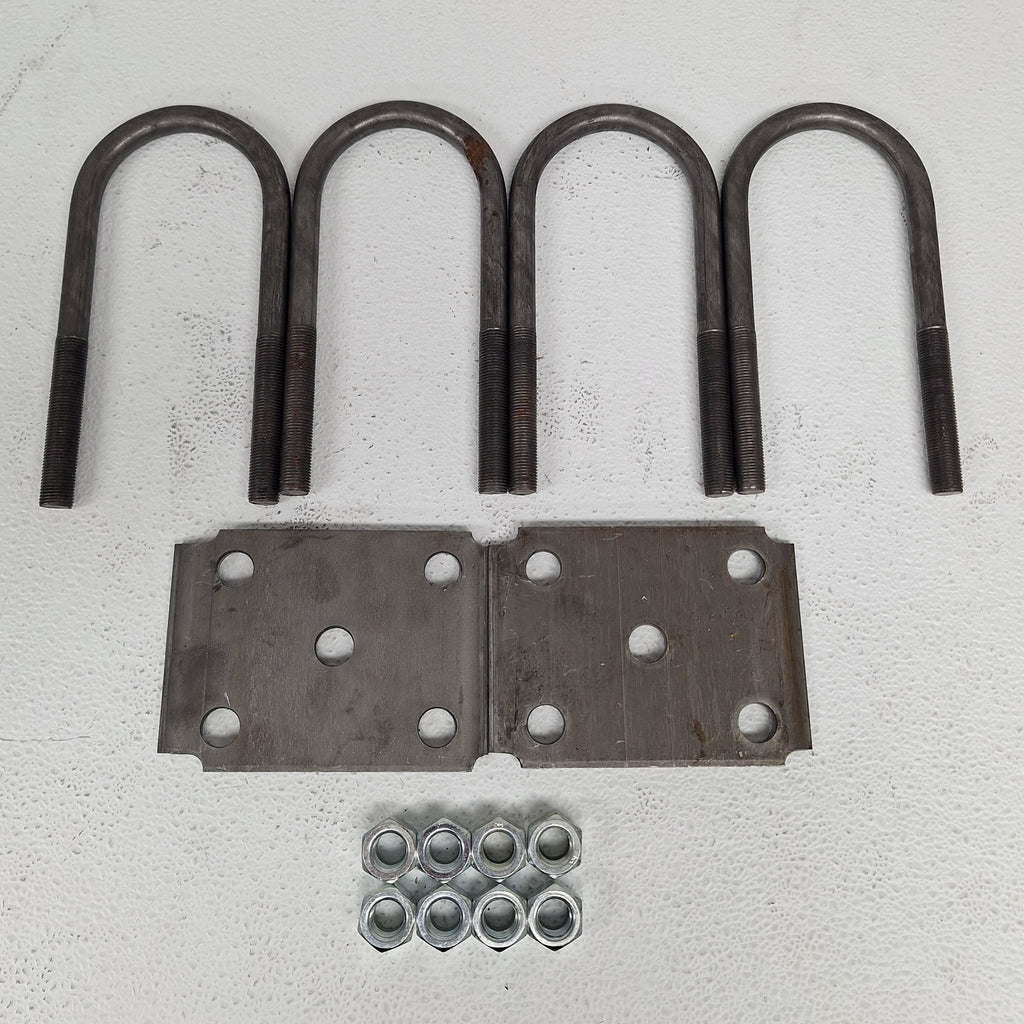

| Included Components | Round u-bolts, tie plate, lock nuts |
Commonly used on leaf spring trailer suspensions with round axle tubes. Verify axle diameter, spring width, and u-bolt dimensions before installation.
