Tandem Trailer Axle Hanger Kit with Long Equalizers and Double 2" Shackle Straps
Complete tandem axle suspension hardware kit for compatible trailers using 1-3/4" wide leaf springs, long equalizers, and 2" center-to-center shackle straps.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | SHK-TA-SB-LE-DOUBLE |
| Product Type | Tandem axle shackle, hanger, equalizer, bolt, and lock nut kit |
| Equalizer Length | 7-3/4" long |
| Shackle Strap Length | 2" center-to-center |
| Spring Width | Designed for compatible 1-3/4" wide leaf spring suspension setups |
| Bolt Thread | 9/16"-18 |
| Quantity Included | One complete tandem axle hardware kit |
Fitment / Application
| Category | Details |
|---|---|
| Trailer Type | Tandem axle utility, cargo, equipment, and service trailer applications |
| Suspension Type | Leaf spring suspension using long equalizers and 2" shackle straps |
| Primary Fit | Compatible setups with matching equalizer length, hanger height, spring width, and bolt size |
| Fitment Method | Measure existing equalizers, shackle straps, hanger bolt height, and spring width before ordering |
| Important Note | Suspension geometry must match the trailer. Verify all measurements before installation. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Complete Hardware Refresh | Includes equalizers, shackles, bolts, lock nuts, and hangers in one kit. |
| Long Equalizer Setup | Built for compatible tandem axle suspensions using 7-3/4" equalizers. |
| Double Shackle Strap Configuration | Includes 16 total 2" shackle straps for paired strap installation points. |
| Dry Bolt Design | Standard non-greaseable bolt setup for matching trailer suspension applications. |
Overview
This tandem axle shackle and hanger kit is a complete suspension hardware refresh package for compatible trailers using long equalizers, 2" center-to-center shackle straps, and 1-3/4" wide leaf springs. The kit includes the main wear-point hardware commonly replaced during tandem axle suspension service, including equalizers, shackle straps, shackle bolts, lock nuts, and front, rear, and center hangers.
R&P Service Insight
Trailer suspension hardware should be matched by measurement, not by appearance alone. Equalizer length, hanger height, shackle length, and bolt diameter all affect axle spacing and suspension movement.
- Measure First: Confirm the existing equalizer length and shackle strap center-to-center measurement.
- Check Hanger Height: Front, rear, and center hanger dimensions must match the suspension layout.
- Replace as a System: Worn shackles, bolts, and equalizers often wear together, making a full kit a cleaner service option.
R&P Knowledge Hub
Compatibility: Designed for compatible tandem axle leaf spring suspension systems using 1-3/4" wide springs, 7-3/4" long equalizers, and 2" center-to-center shackle straps.
System Fit: Commonly used on tandem axle utility trailers, cargo trailers, equipment trailers, and similar spring suspension builds where the hanger and equalizer geometry matches.
Installation Notes: Verify axle spacing, hanger placement, equalizer length, bolt size, and shackle length before removing the existing suspension hardware.
Performance Insight: Correct suspension geometry allows the equalizers and shackles to move properly as trailer load shifts between axles. Incorrect hanger or shackle dimensions can affect ride height, axle spacing, and spring travel.
Brand & Fitment Note
Selling Brand: R&P Carriages curated suspension hardware kit
Application Reference: This kit is intended for compatible trailer suspension applications where the listed measurements and included components match the trailer being serviced.
What This Means: This listing is for a complete R&P Carriages suspension hardware kit, not a guaranteed OEM-branded kit unless separately stated.
Before Ordering: Verify equalizer length, shackle strap length, bolt diameter, bolt length, hanger height, spring width, and included component count before installation.
R&P Repair Insight
Suspension rebuild kits are measurement-sensitive. The safest way to confirm fit is to compare the existing trailer hardware against the dimensions listed in this product description.
- Equalizer Check: Confirm the trailer uses 7-3/4" long equalizers before ordering.
- Shackle Check: Confirm the current straps measure 2" from hole center to hole center.
- Hanger Check: Confirm the center hanger and front/rear hanger bolt heights match the trailer layout.
Features
Complete Tandem Axle Kit
Includes the major suspension hardware pieces needed for a full tandem axle shackle, hanger, and equalizer refresh.
Long Equalizer Configuration
Supplied with two 7-3/4" long equalizers for compatible tandem axle suspension setups.
Double 2" Shackle Straps
Includes 16 total shackle straps measuring 2" center-to-center for paired strap installation points.
Matching Bolt & Lock Nut Hardware
Includes 9/16"-18 shackle bolts and lock nuts for the listed suspension hardware configuration.

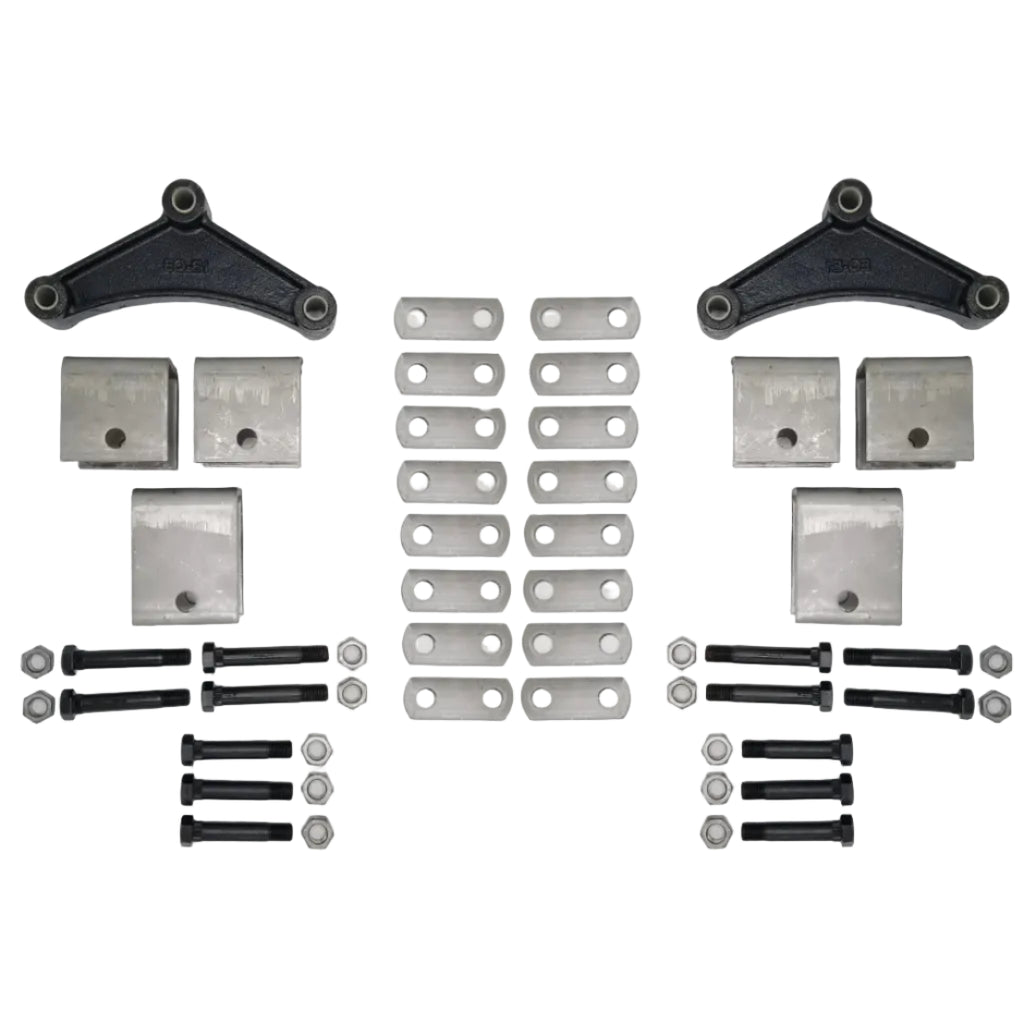

Included Components
| Quantity | Component | Details |
|---|---|---|

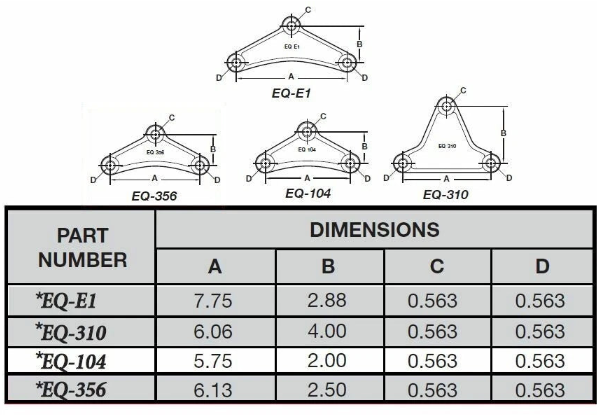

| 2 | Equalizers | EQ-E1 · 7-3/4" long |
| 16 | Shackle Straps | 2" center-to-center |

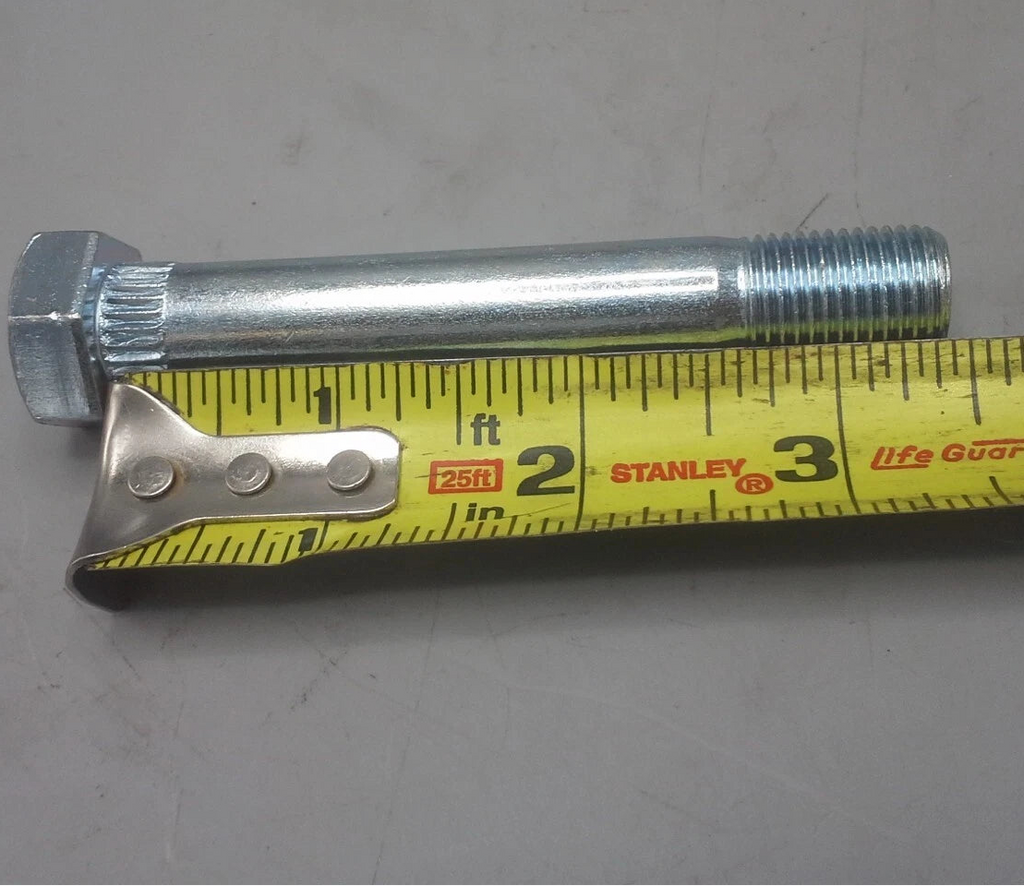

| 6 | Shackle Bolts | 9163B · 9/16"-18 thread · 3" long · 3/4" thread length |

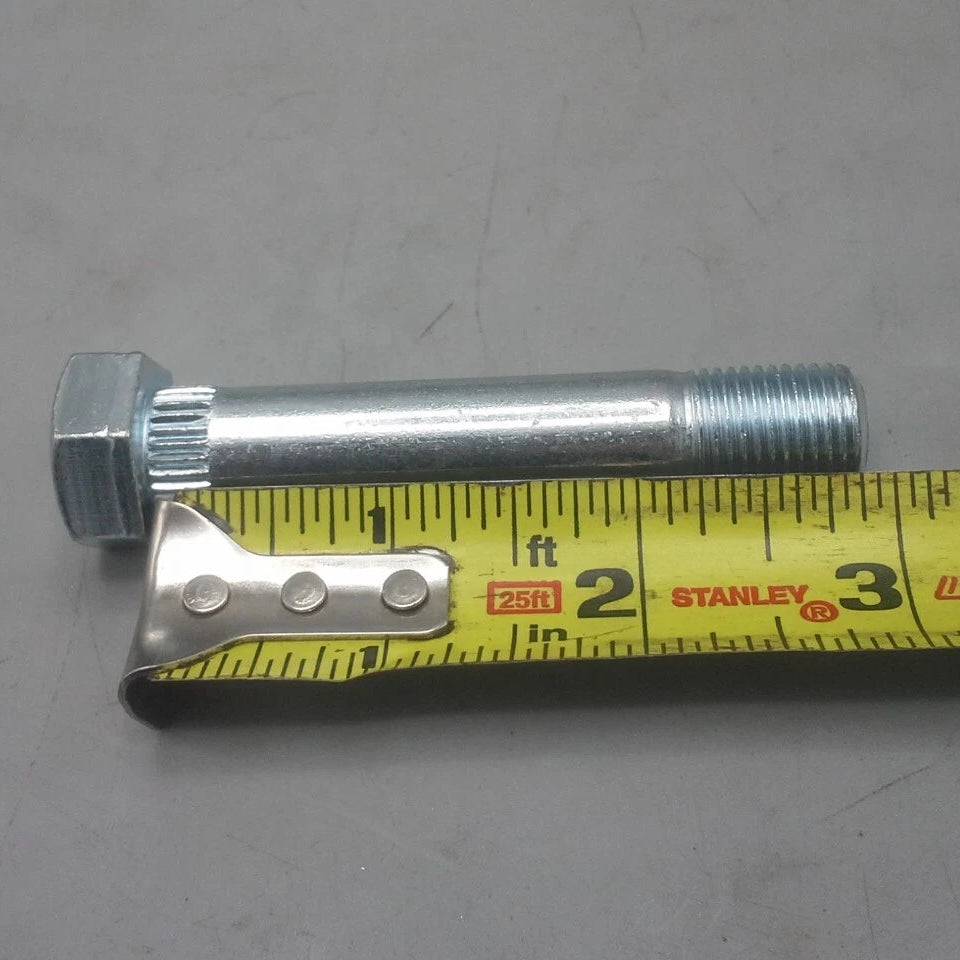

| 8 | Extra-Long Shackle Bolts | 91635B · 9/16"-18 thread · 3-1/2" long |
| 14 | Lock Nuts | SB-LN-9 · 9/16"-18 thread |

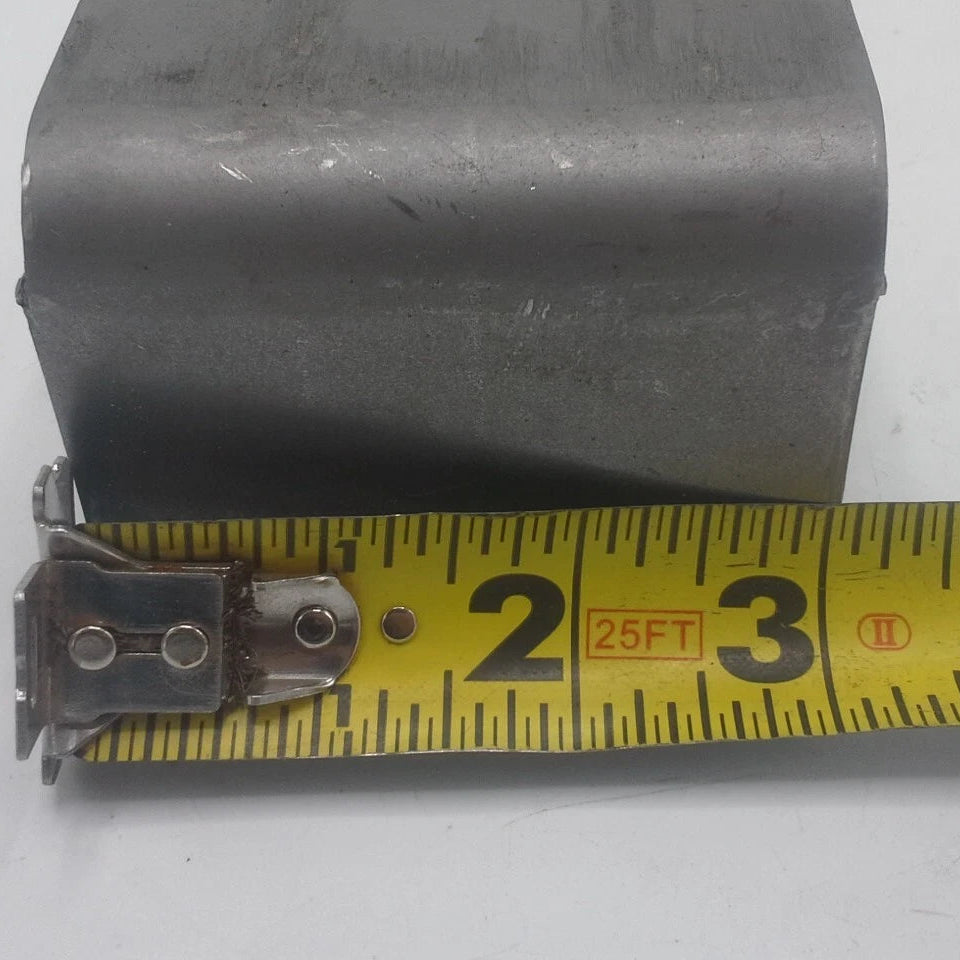

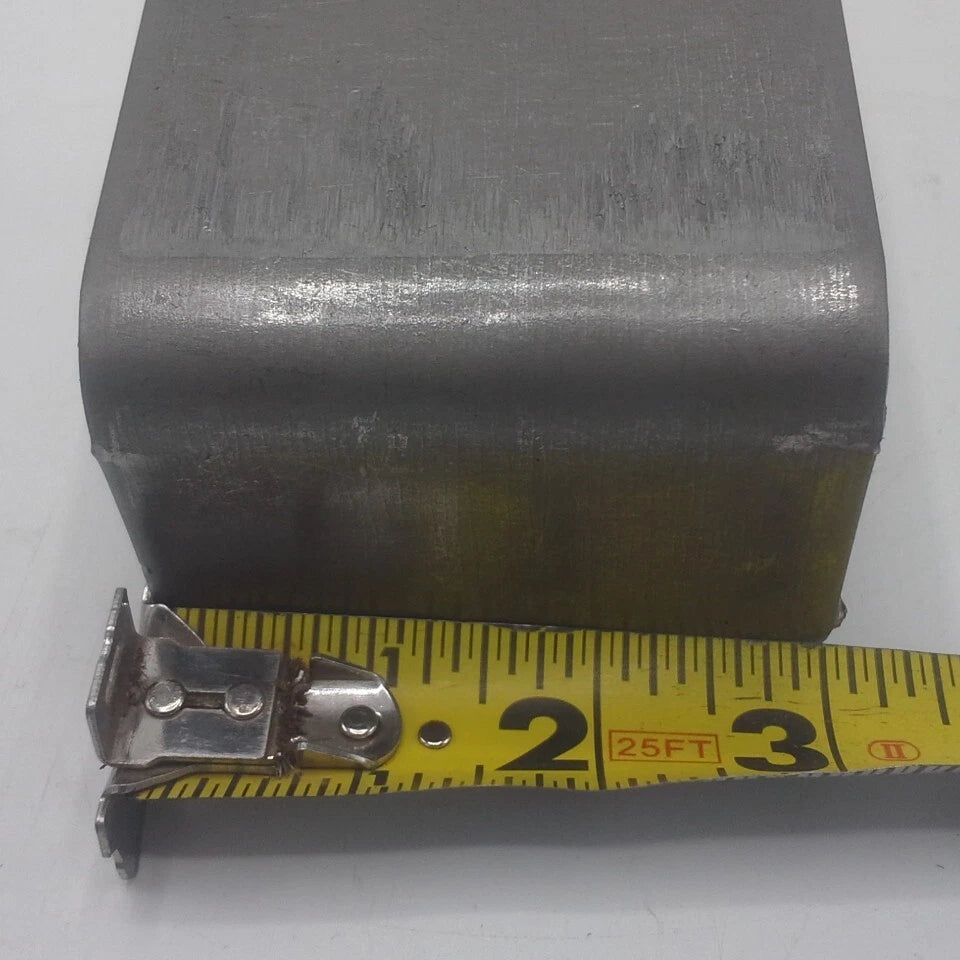

| 2 | Center Hangers | H-3.875 · 3.25" bolt height · 3.875" overall height · 0.56" round holes · for 1.75" springs |

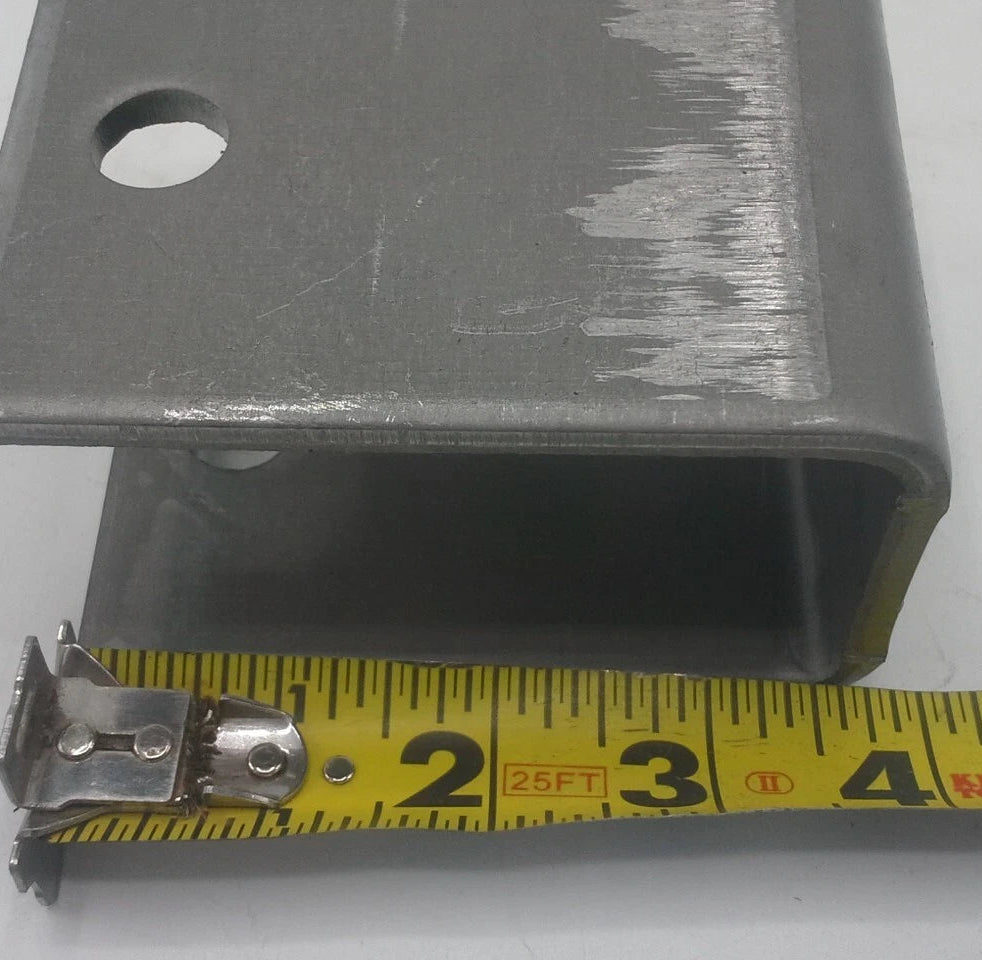

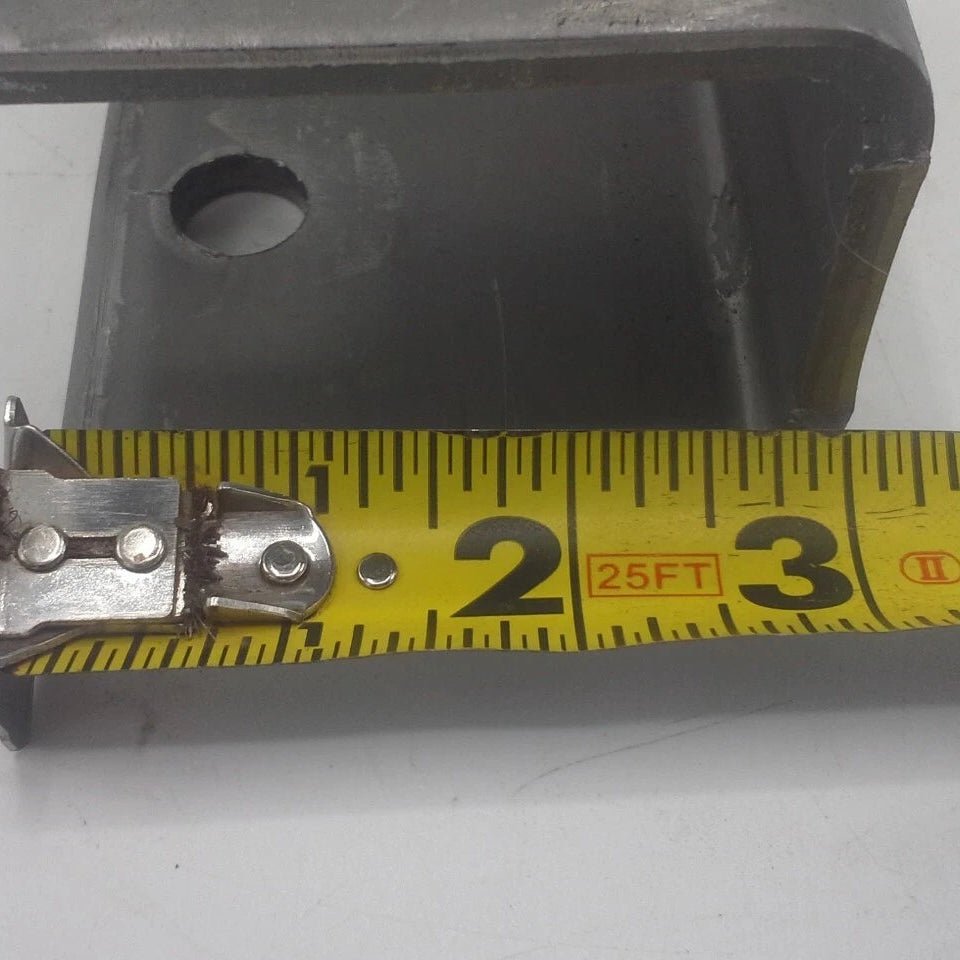

| 4 | Front / Rear Hangers | H-3.090 · 2.46" bolt height · 3.085" overall height · 0.56" round holes · alternate PN 115918 · for 1.75" springs |
```
