Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

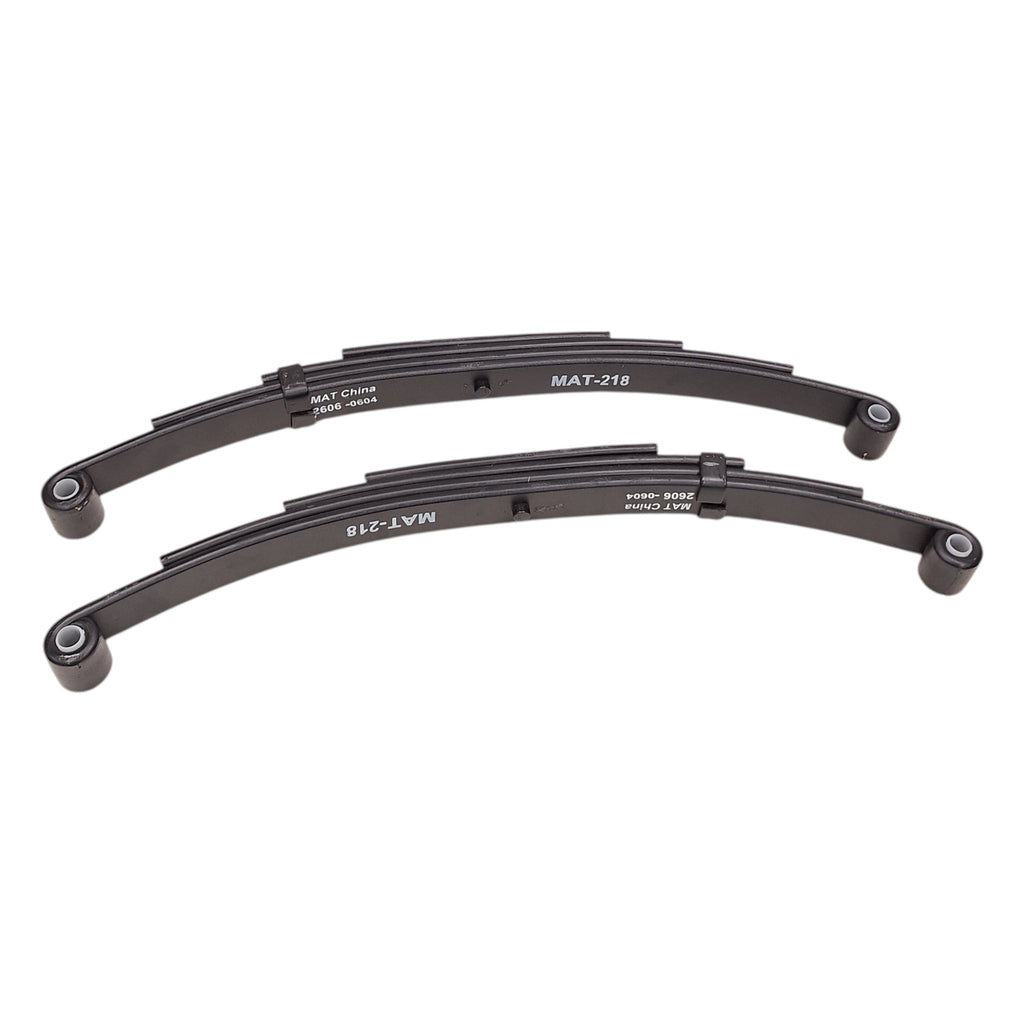

TWO- 4 Leaf Spring for 5000# Axles (Rated to 2500# per Spring)
Specifications:
- Number of Leaves: 4
- Free Length: 25.25"
- Free Arch: 3"
- Width: 1.75"
This is the common trailer axle spring in use today. It is the standard leaf spring found on the 5000# trailer axle from most manufacturers. Rated 2500 pounds per spring, for a 5000# combine capacity per axle. Also a Direct Replacement for the weaker 1750# spring used on 3500# axles, if you need a stronger spring. Measures 25.25" from bolt center to bolt center, and 1.75" wide.
