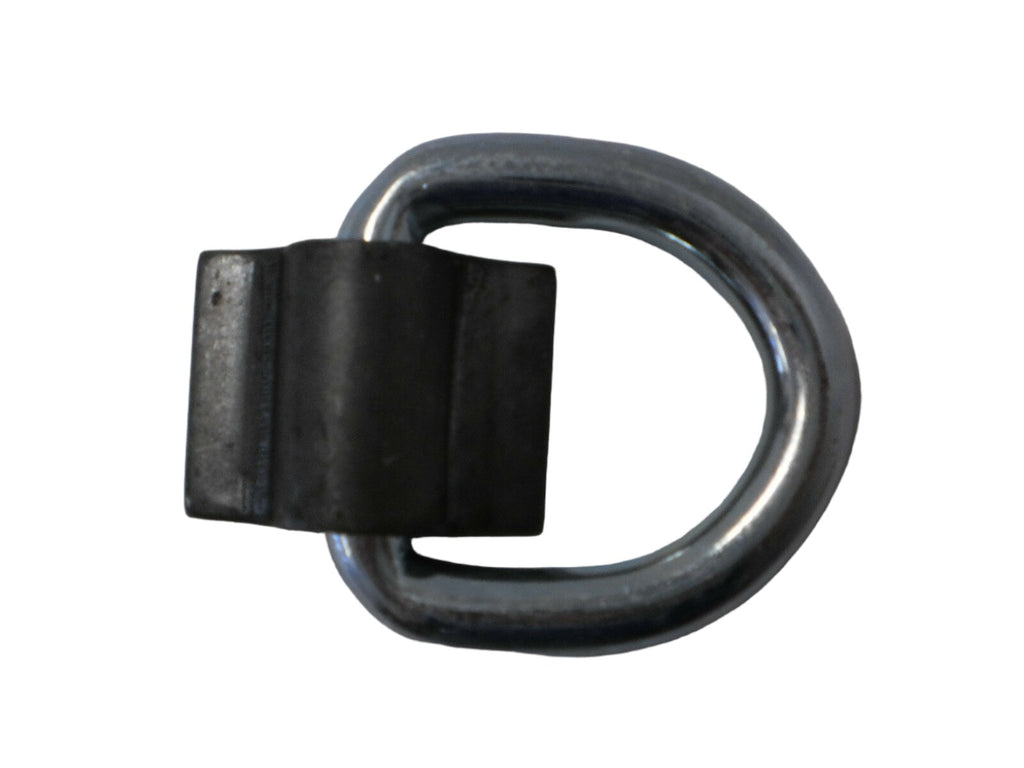

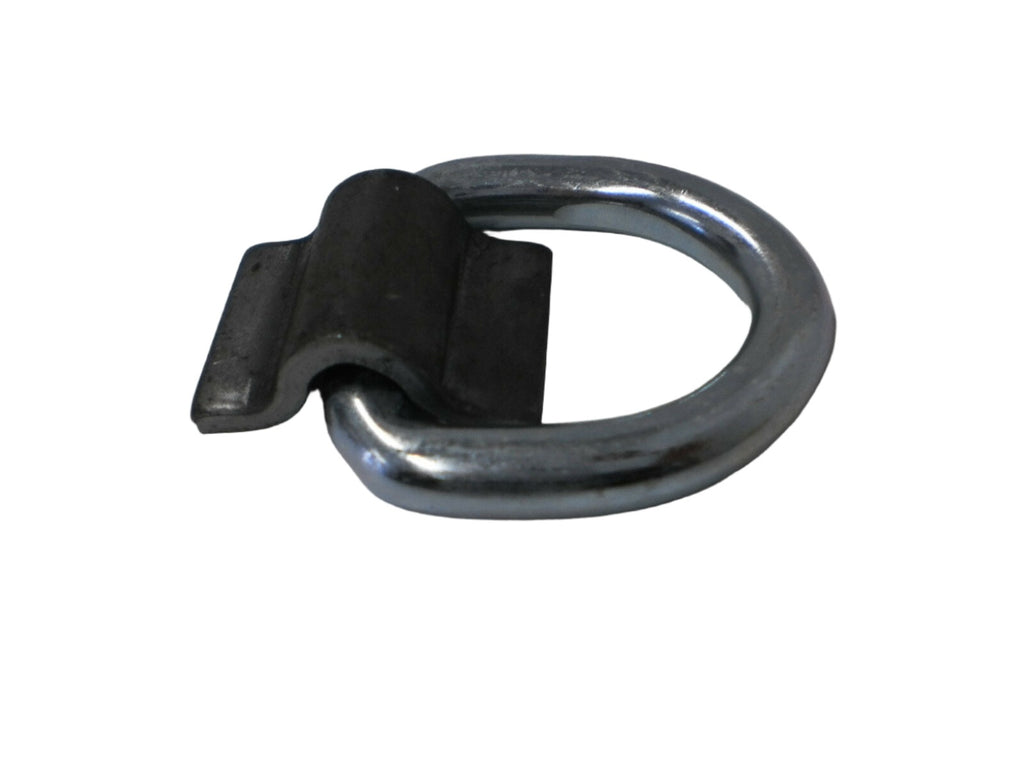

3/8 in Weld-On D-Ring Tie Down — 5,000 lb Rating (12-Pack)
Part Number: WR15-LOT12
This listing is for twelve (12) heavy-duty weld-on D-ring tie downs. These are the same commercial-grade D-rings used on trailers we build and sell. Designed for securing cargo using straps, chains, or rope, they provide a strong, permanent anchor point when welded to a trailer frame or crossmember.
Features
- Heavy-duty weld-on D-ring tie-downs
- 3/8 in thick steel loop
- Zinc plated D-ring for corrosion resistance

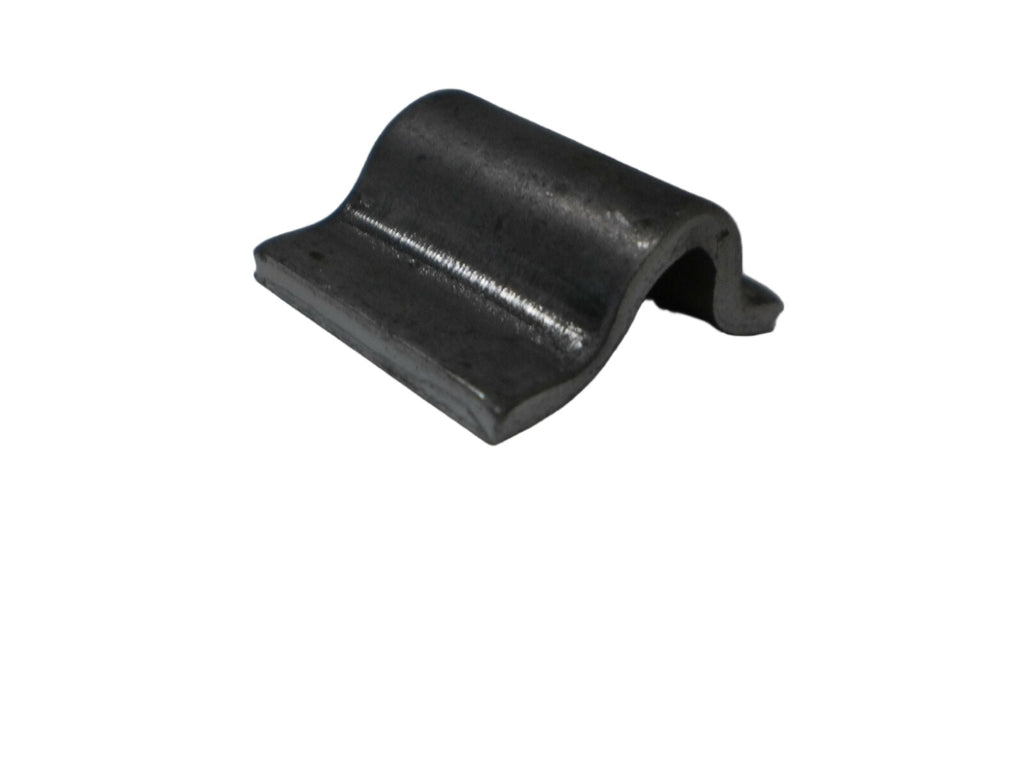

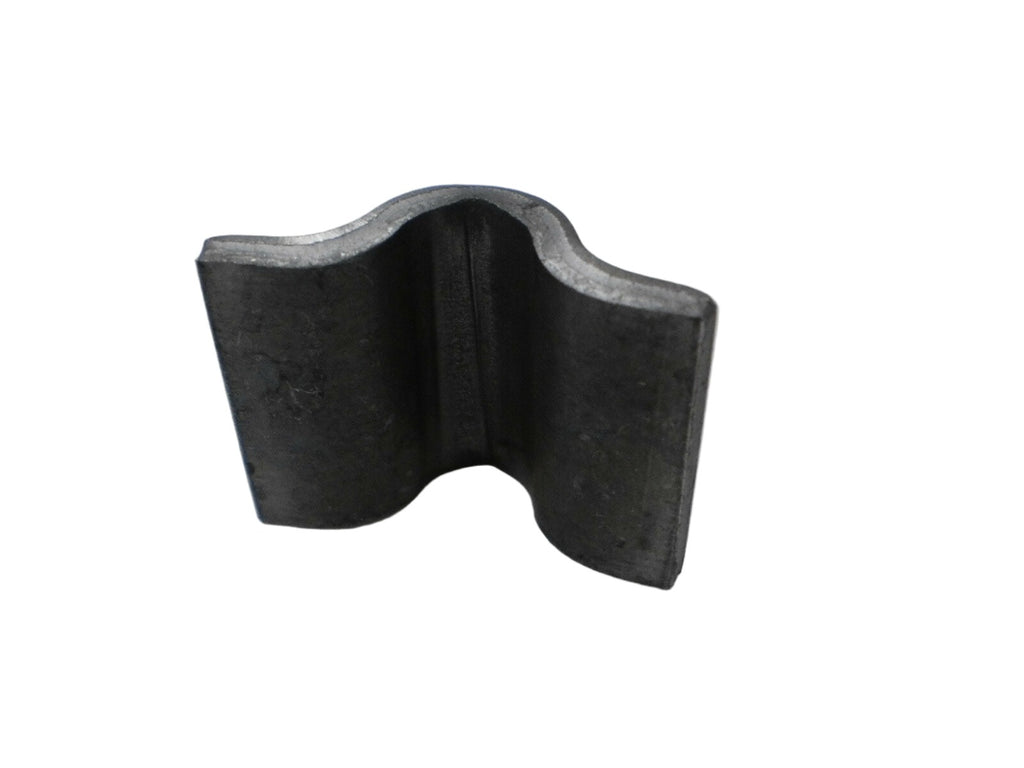

- Raw steel mounting bracket for welding
- Rated 5,000 lbs minimum breaking strength per ring
- Sold as a 12-piece set
Specifications
| Part Number | WR15-LOT12 |
| Quantity | 12 D-rings |
| Working Load Limit (WLL) | 2,000 lbs per ring |
| Minimum Breaking Strength | 5,000 lbs per ring |
| Loop Thickness | 3/8 in |
| Finish | Zinc plated loop / raw steel bracket |
| Mount Type | Weld-on |
Dimensions

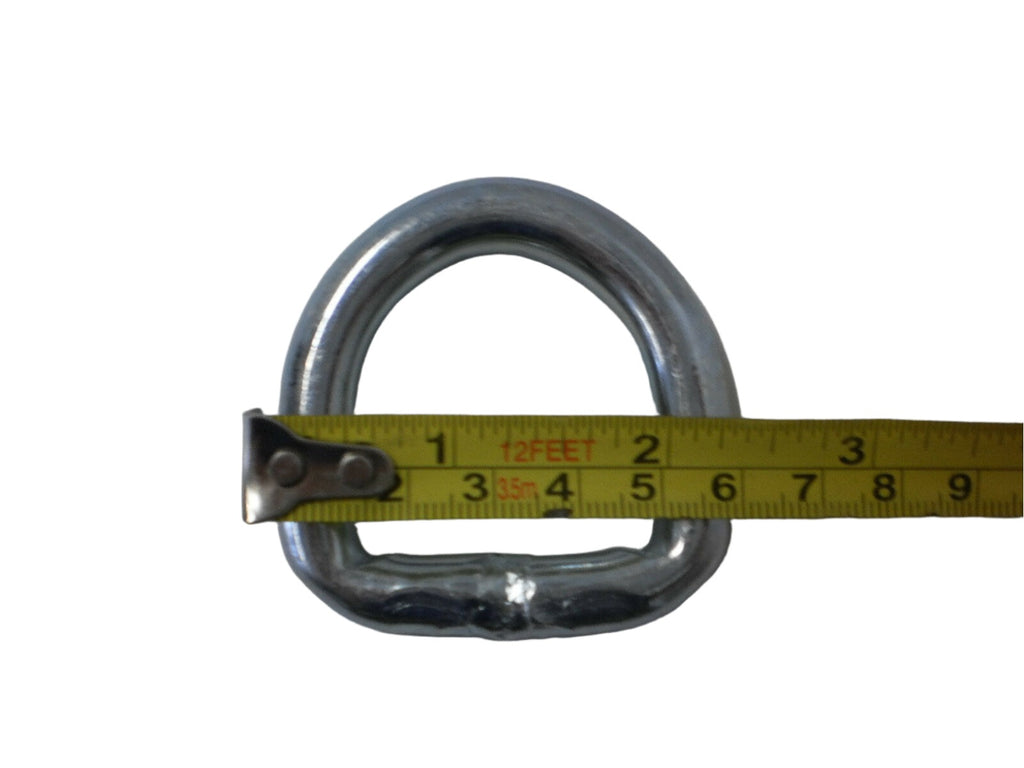

| Inside Width (A) | 2-1/4 in |
| Inside Height (B) | 2-1/4 in |
| Outside Width | 2-2/3 in |
| Outside Height | 2-3/4 in |

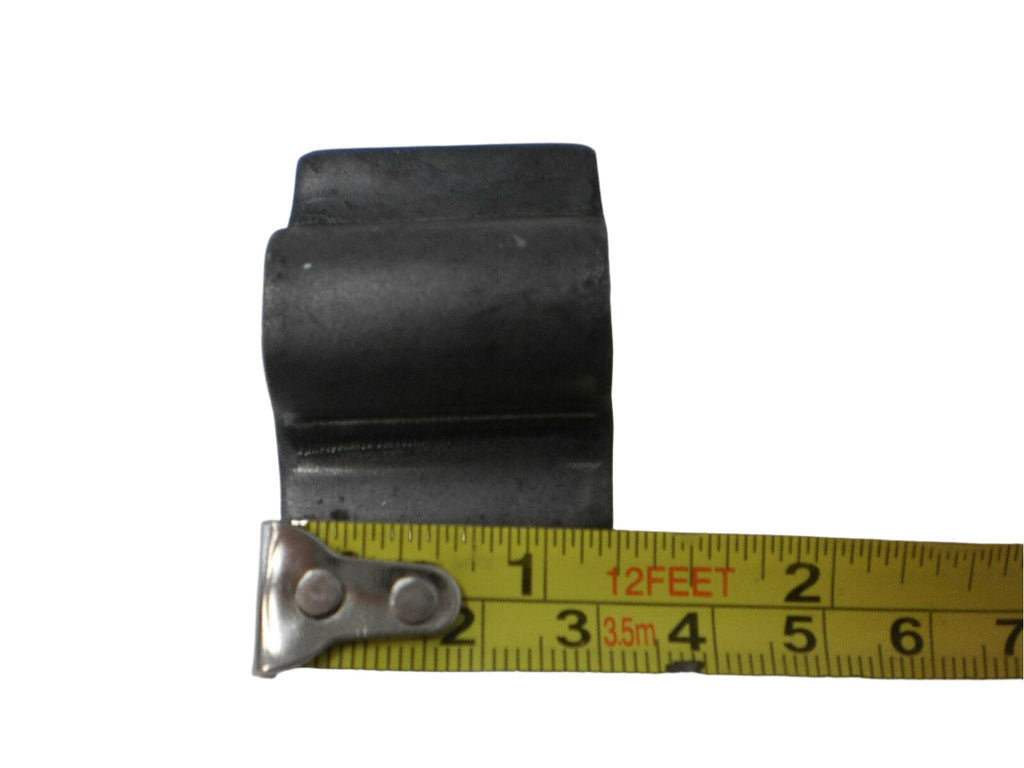

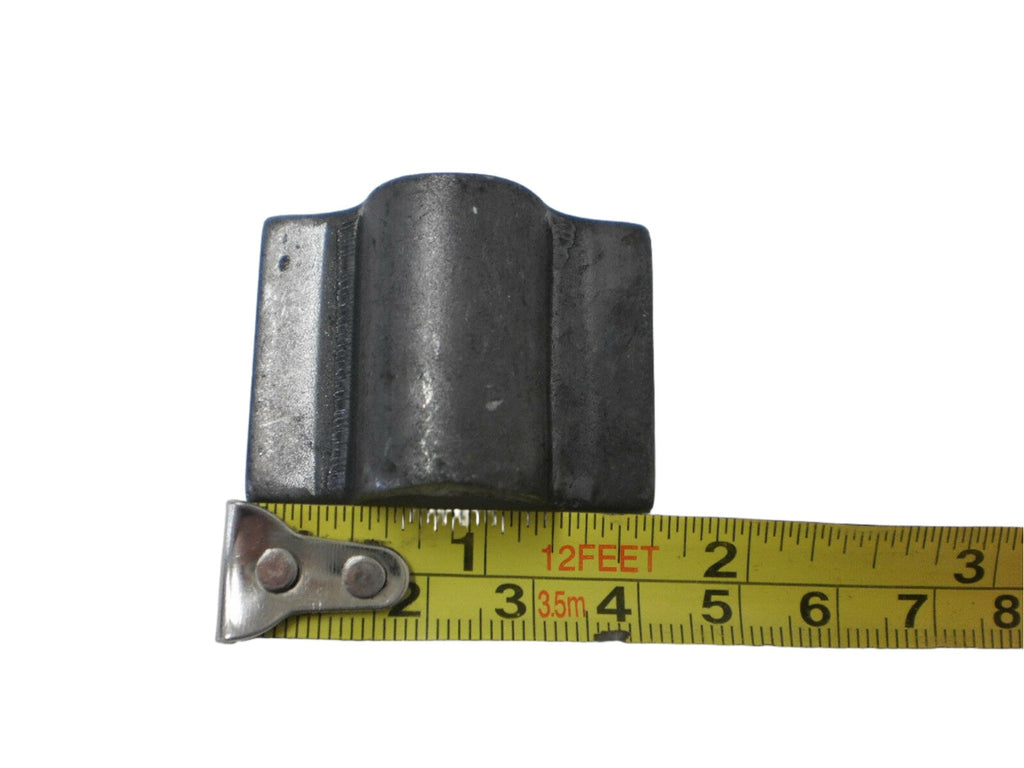

| Bracket Size | 1-3/16 in wide × 1-1/2 in long × 1/8 in thick |
Common Applications
Frequently used on car hauler trailers, utility trailers, service trucks, wreckers, flatbeds, boats, docks, ATVs, RVs, barns, and cargo platforms. Designed to be welded to steel frames or crossmembers.
Installation requires welding by a qualified installer. Always verify load requirements and securement method before use.
