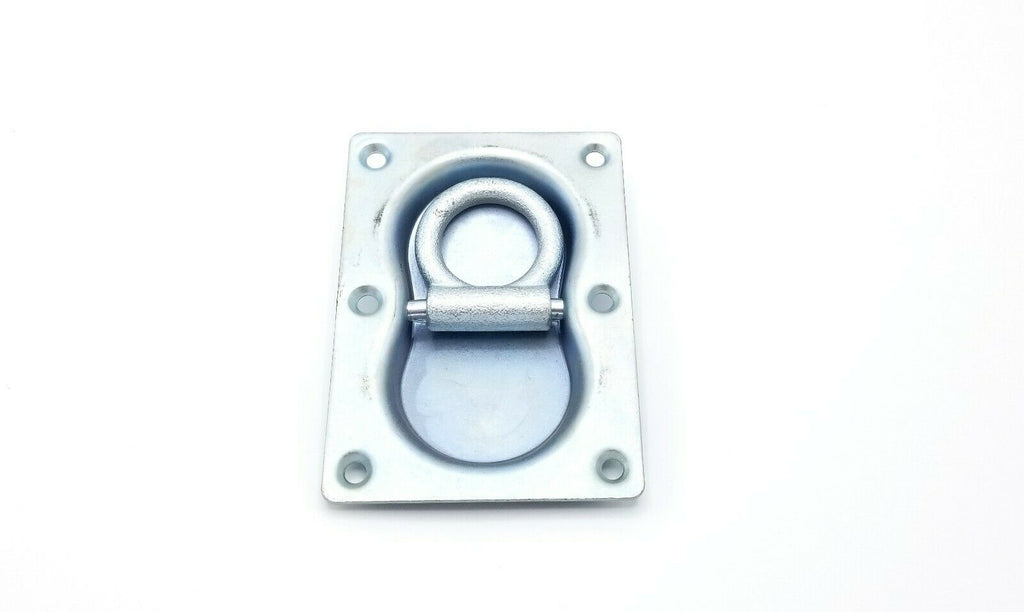

3/8" Zinc Plated Bolt-On D-Ring Trailer Tie Down – 3,300 lb Max. Capacity
Rectangular recessed D-ring tie down mount for trailer decks, cargo floors, utility trailers, enclosed trailers, and general cargo securement points where the listed dimensions and mounting style match.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | RR12 |
| Product Type | Rectangular recessed D-ring tie down mount |

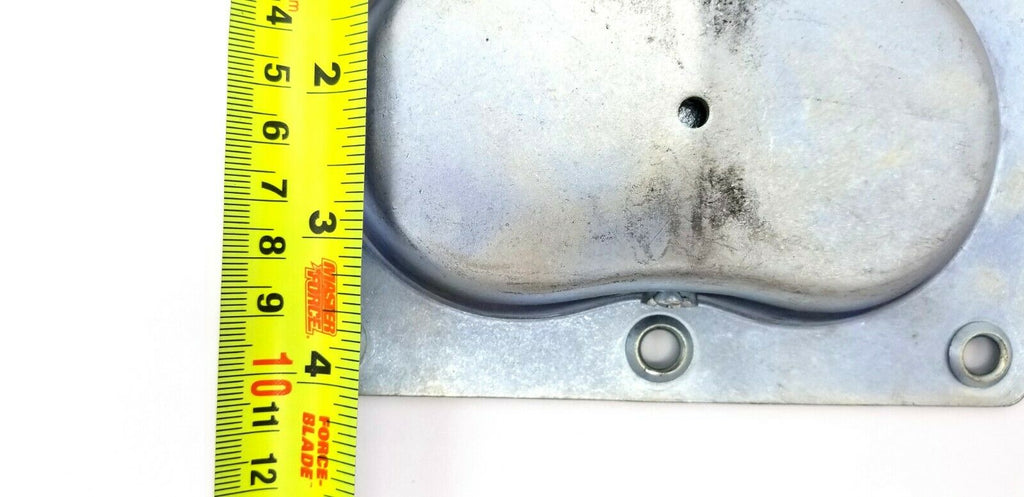

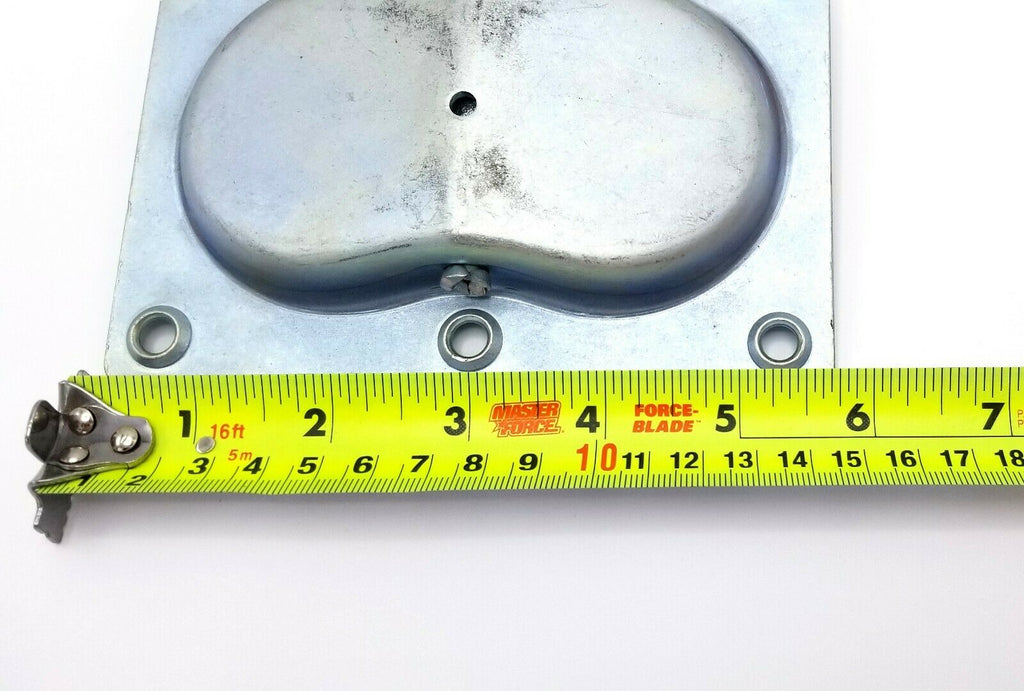

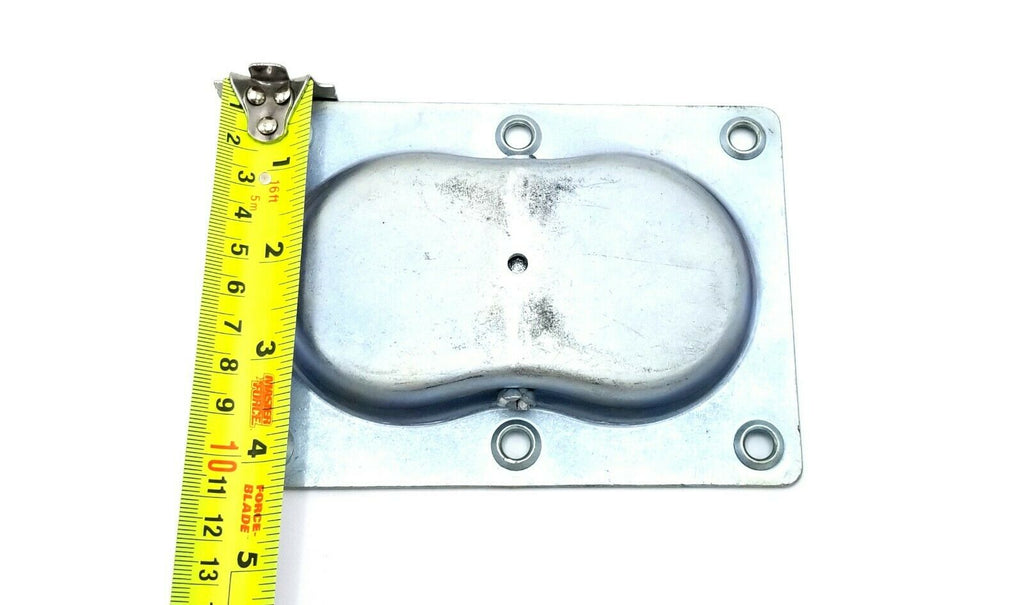

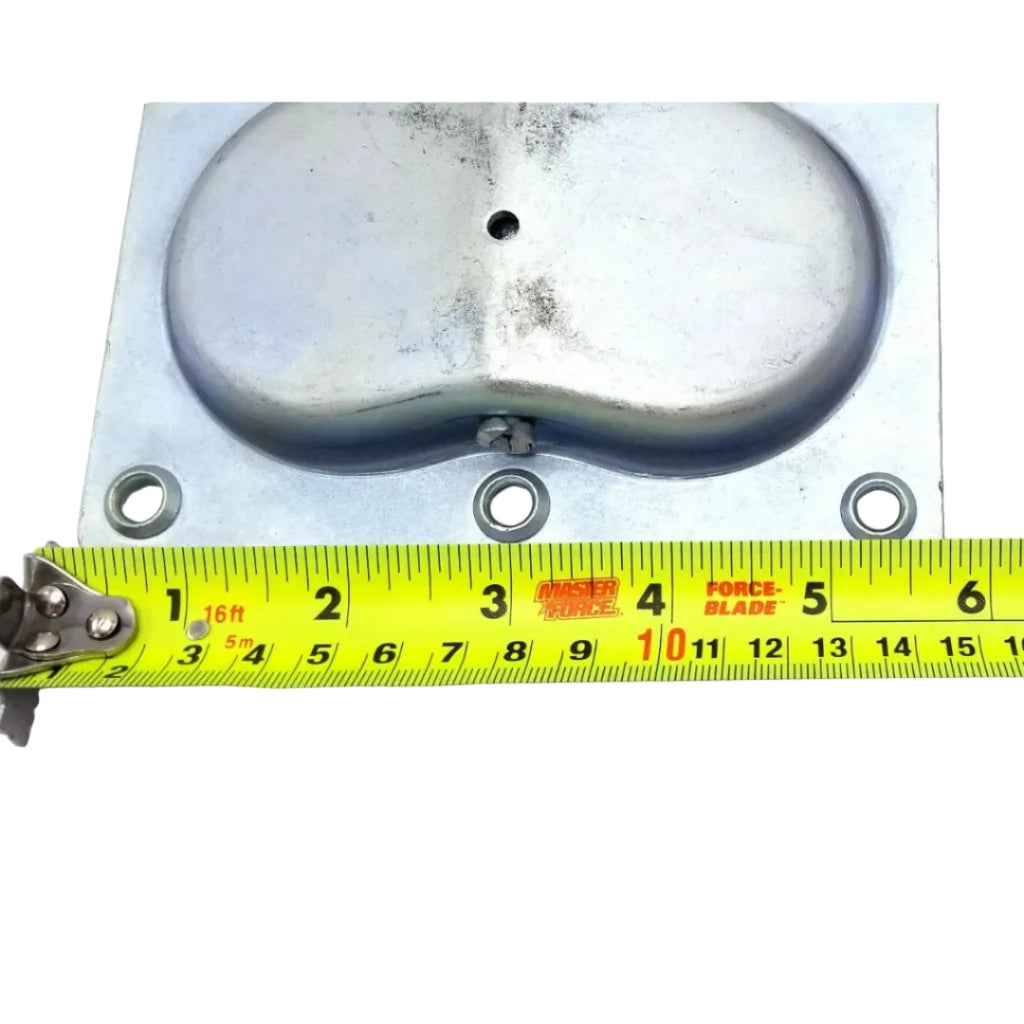

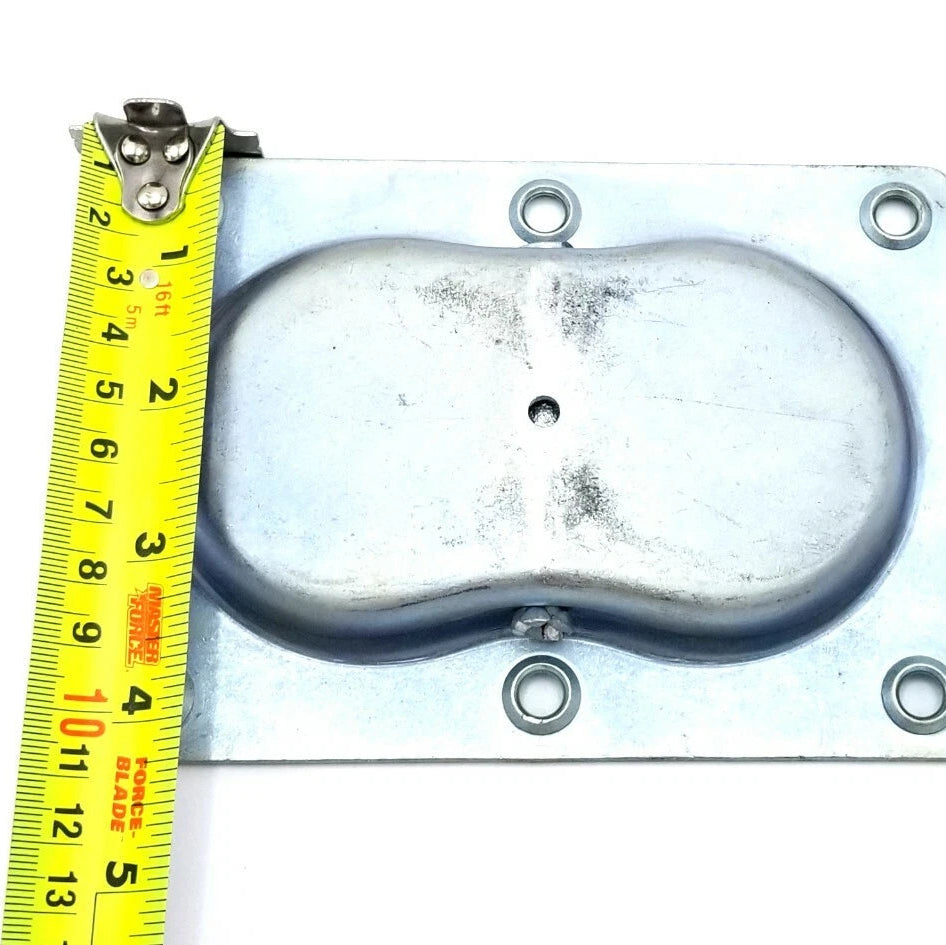

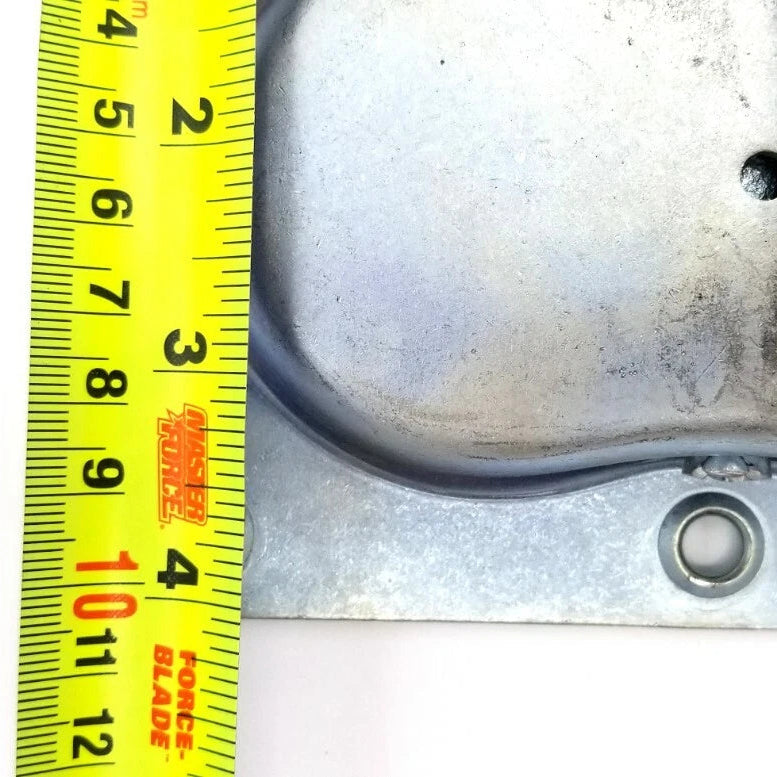

| Base Dimensions | 5-3/4" L x 4-1/8" W x 1" D |

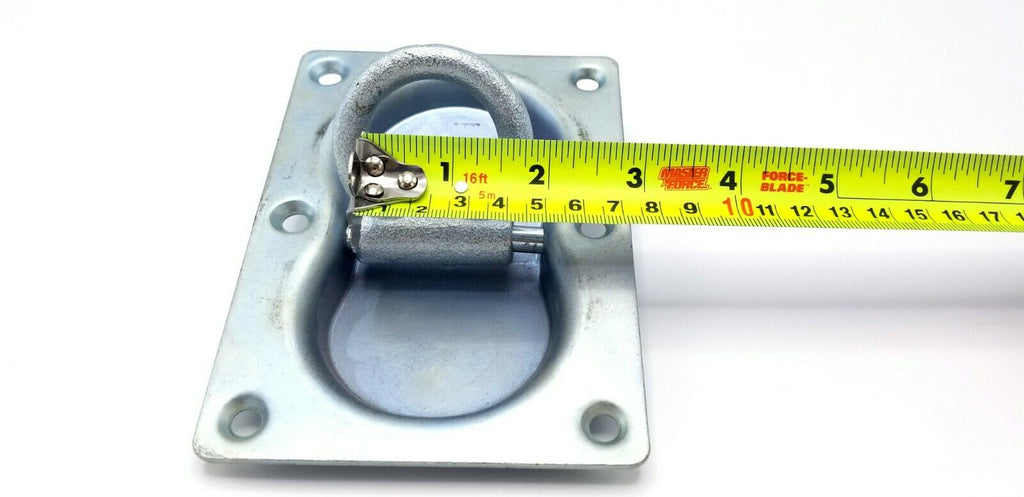

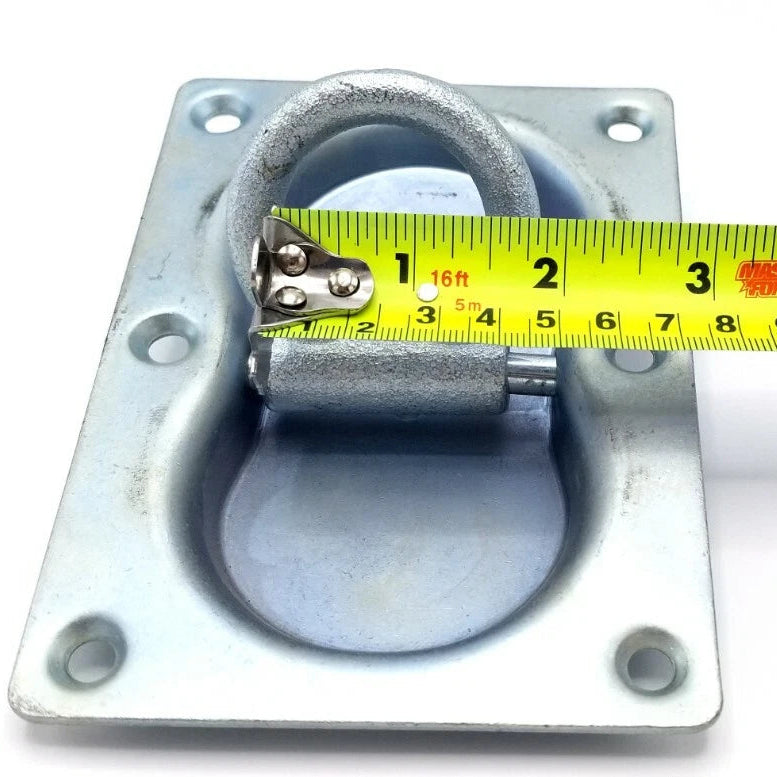

| D-Ring Dimensions | 3/8" thick with 1-3/8" inner diameter |
| Required Recessed Opening | 5" L x 3" W x 1" D |
| Finish | Zinc plated |
| Working Load Limit | 1,080 lb |
| Maximum Capacity | 3,300 lb |
| Quantity Included | 1 recessed D-ring mount |
Fitment / Application
| Category | Details |
|---|---|
| Trailer / Cargo System | Cargo tie-down point for trailers, equipment trailers, utility trailers, enclosed trailers, and deck applications |
| Primary Fit | Applications with room for a 5-3/4" x 4-1/8" base and a recessed opening of 5" x 3" x 1" |

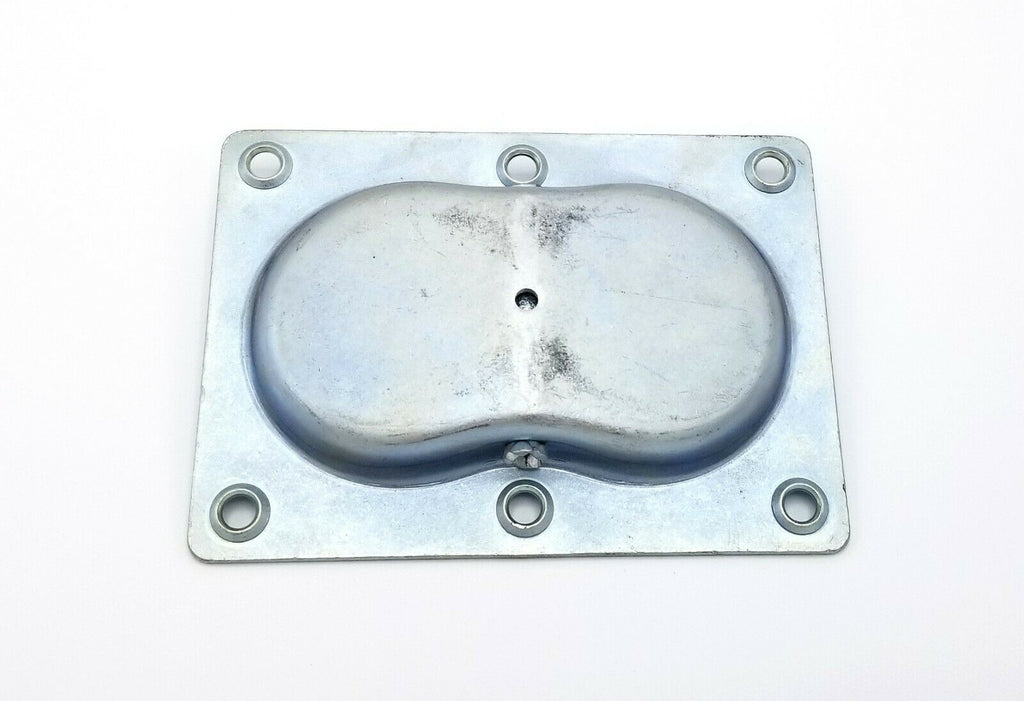

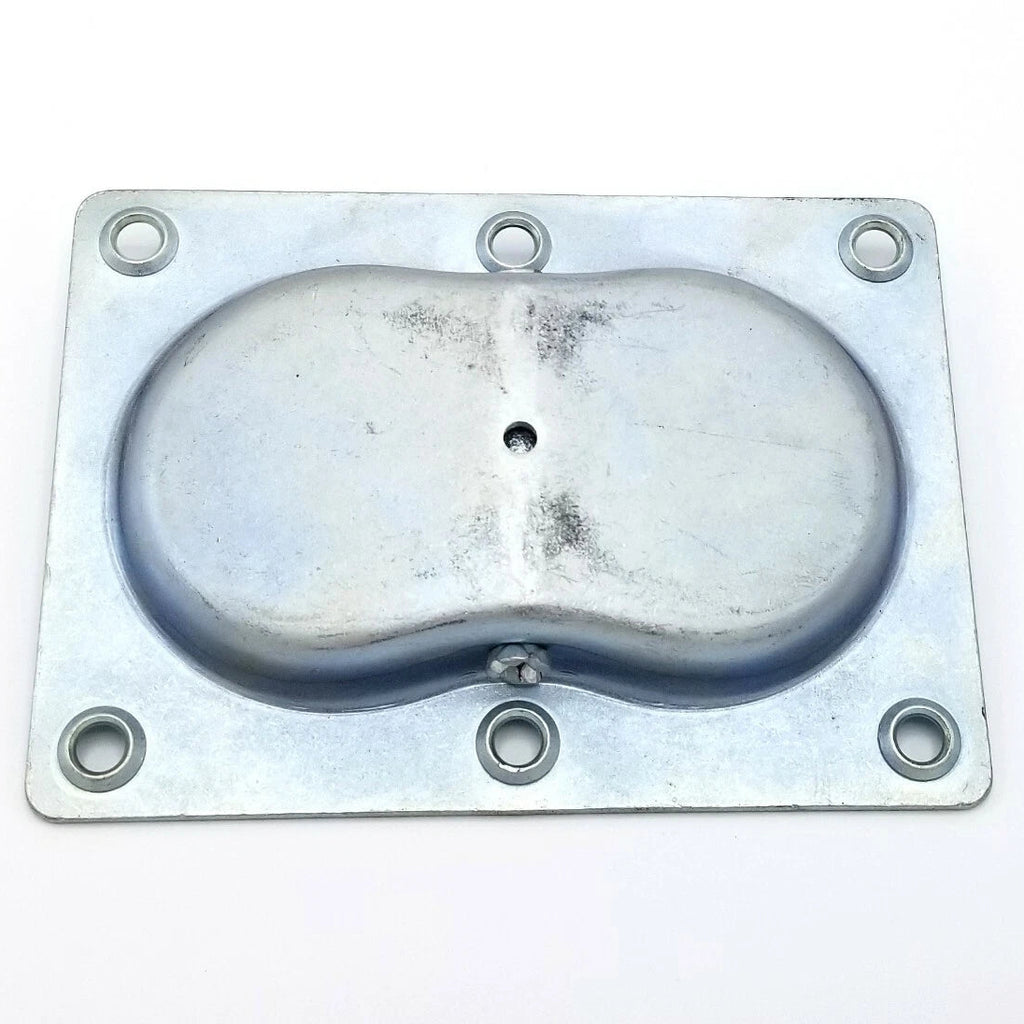

| Mounting Style | Bolt-on mount with 6 mounting holes |
| Hardware Note | Mounting bolts are not included |
| Before Ordering | Verify cutout size, base clearance, mounting surface strength, and required fastener style before installation |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Recessed Design | Helps keep the tie-down point low-profile when installed into a compatible trailer deck or cargo floor |
| 3/8" D-Ring | Provides a sturdy anchor point for rope, chain, hooks, and compatible tie-down straps |
| Zinc Plated Finish | Offers a clean corrosion-resistant finish for general trailer and cargo use |
| Bolt-On Mounting | Installs with 6 bolts so the mount can be secured to a properly prepared surface |
Overview

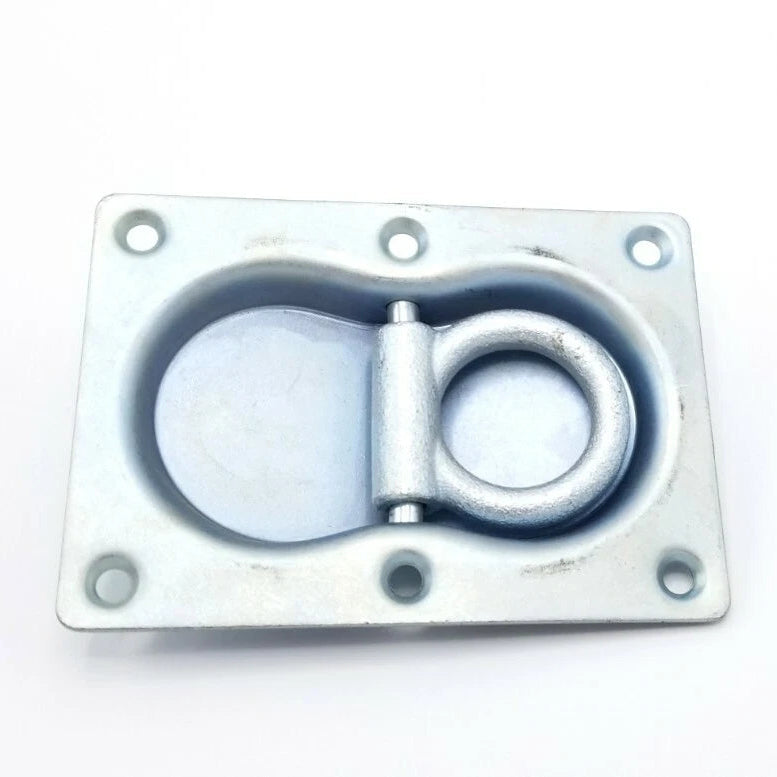

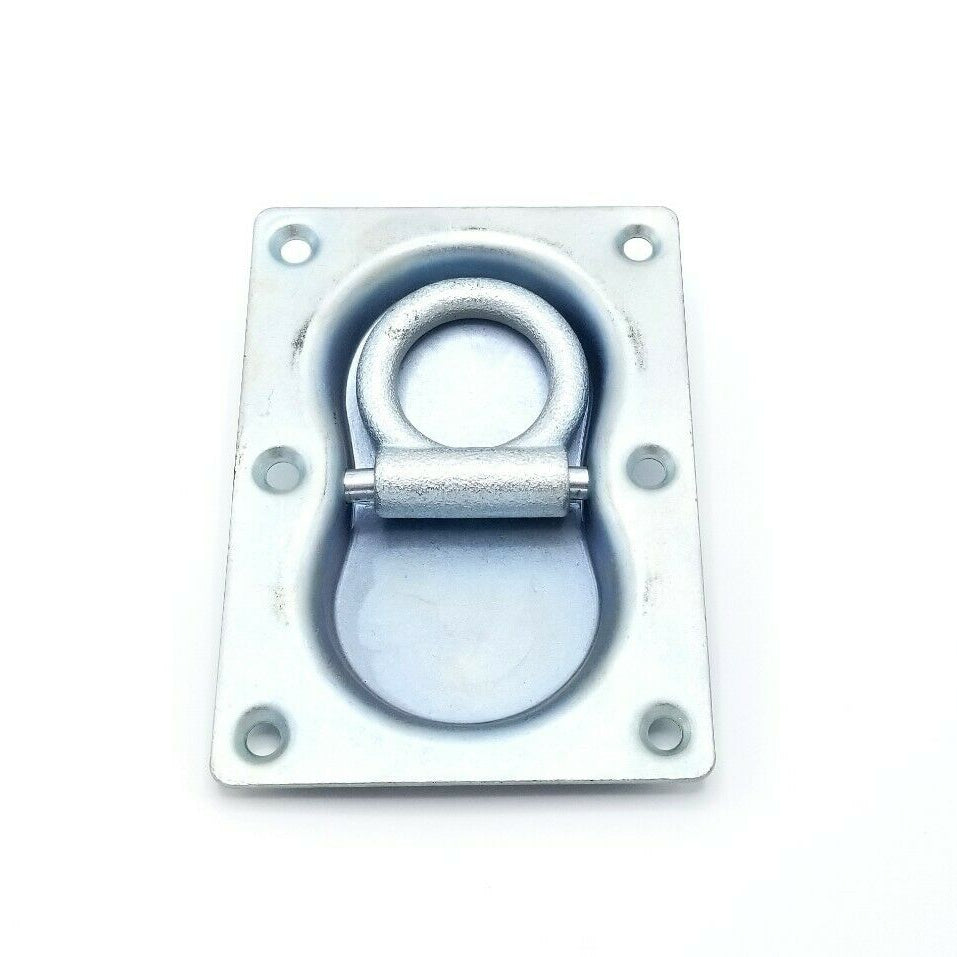

The RR12 is a zinc plated rectangular recessed D-ring tie down mount designed for adding or replacing a cargo securement point on compatible trailer decks and cargo floors. It features a 3/8" D-ring, a rectangular recessed base, bolt-on mounting with 6 bolt holes, a 1,080 lb working load limit, and a 3,300 lb maximum capacity.
R&P Service Insight
Recessed tie-down mounts are useful when you need a strong anchor point without leaving a tall obstruction above the deck surface. Proper installation depends on both the mount dimensions and the strength of the structure it is bolted into.
- Cutout Check: Confirm the trailer floor can accept a 5" x 3" x 1" recessed opening.
- Fastener Check: Bolts are not included, so select hardware appropriate for your mounting surface and load use.
- Load Check: Do not exceed the listed 1,080 lb working load limit during cargo securement.
R&P Knowledge Hub
Compatibility: Fits applications where the listed base dimensions, recessed opening, depth, and bolt-on mounting style match the trailer or cargo deck.
Trailer / System Fit: Commonly used for cargo control on trailers, enclosed trailers, utility trailers, equipment trailers, and other flat-deck hauling applications.
Installation Notes: Measure the deck area before cutting. Verify there is clearance below the floor for the 1" recessed depth and that the mounting surface is structurally sound.
Performance Insight: The recessed rectangular design helps keep the anchor point compact while still providing a usable D-ring for rope, chain, hook, or strap attachment.
Brand & Fitment Note
Selling Brand: R&P Carriages trailer hardware
Application Reference: Trailer, cargo, and deck references describe general fitment use only. Fit depends on matching the listed measurements and mounting requirements.
What This Means: This listing is for one RR12 rectangular recessed D-ring tie down mount, not a kit with mounting hardware unless specifically stated.
Before Ordering: Verify base size, recessed cutout size, deck thickness, mounting surface strength, hardware requirements, and working load needs before installation.
R&P Repair Insight
When replacing an existing recessed D-ring, the most important match points are the outside base size, recessed cutout size, depth, and mounting hole layout. A tie-down mount should be secured only to a surface capable of handling the intended cargo load.
- Match the Opening: Confirm the existing or planned recessed hole is 5" L x 3" W x 1" D.
- Check the Deck: Inspect the mounting area for rot, cracking, thin metal, or weak structure before installing.
- Use Correct Hardware: Since bolts are not included, choose proper fasteners, washers, backing plates, or reinforcement as needed for the application.
Features
Rectangular Recessed Mount
Designed to sit into a compatible trailer or cargo floor opening for a lower-profile tie-down point.
3/8" Tie-Down D-Ring
Works as an anchor point for compatible rope, chain, hooks, and tie-down straps.
Zinc Plated Finish
Provides a clean plated finish for general-duty trailer and cargo securement applications.
Six-Hole Bolt-On Design
Mounts with 6 bolts, allowing the tie-down to be secured to a properly prepared trailer deck or cargo surface.
Included Components
| Quantity | Item |
|---|---|
| 1 | RR12 rectangular recessed D-ring tie down mount |
| Not Included | Mounting bolts / installation hardware |
