BRK-EB10-KIT Complete Electric Trailer Brake Backing Plate Kit
10" × 2.25" for 3500 lb Axles

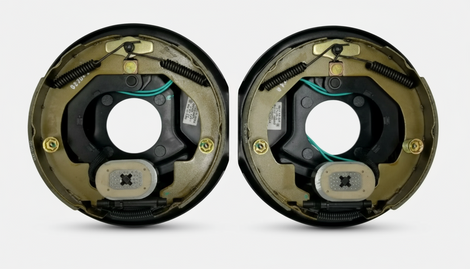

Heavy-duty electric brake backing plate kit designed for standard 3500-lb trailer axles. This complete left-and-right assembly comes pre-boxed with all hardware installed and ready to mount. Built for reliable stopping power and long-term service across standard 4-bolt trailer brake flanges.
Performance & Installation
Each assembly is non-self-adjusting and uses a green-wire magnet rated at approximately 3.0 A @ 12 V. Simply remove your old plates and bolt these in place—no shoe swaps or spring kits required. Fits most 10" × 2-1/4" brake setups used on Dexter, Lippert, AL-KO, Rockwell, and AXIS 3500 lb axles.
| Specifications | |
|---|---|
| Part Number | BRK-EB10-KIT |
| Brake Type | Electric, Non-Self-Adjusting |
| Axle Capacity | 3500 lb |

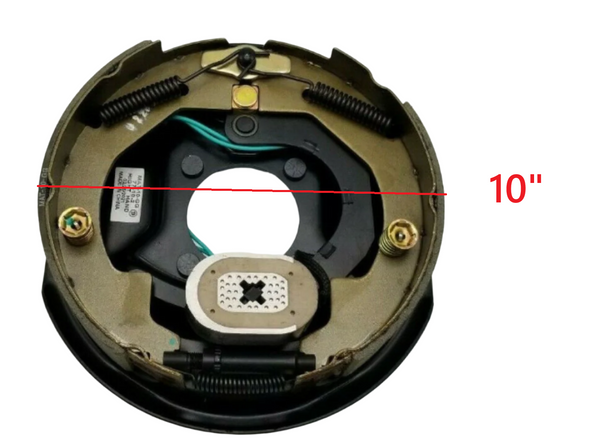

| Brake Diameter | 10 inches |
| Brake Pad Width | 2-1/4 inches |
| Mounting Pattern | 4-bolt, 2-7/8" center-to-center |
| Magnet Draw | ≈ 3.0 A @ 12 V (standard green-wire) |
| Included Hardware | LH & RH backing plates, bolts, nuts, washers |
| Replaces | Dexter #023-026-00 (LH) & #023-027-00 (RH) |
| Finish | Painted steel – boxed and ready to ship |
| Country of Origin | USA or OEM-grade import |
Compatibility
Designed for use with Dexter, AL-KO, Lippert, AXIS, Quality, Rockwell, and other 3500 lb axle assemblies. Note: Some AL-KO 3500 lb axles use 10" × 1-3/4" brakes — always confirm your dimensions before ordering.
