Add Brakes to Your Trailer Kit with a
6 x 5.5 Bolt Pattern and Never Adjust Brakes
Part#: 92655-B-FSA-IMP
Complete Trailer Brake Setup, with drums, seals, Brake shoes, Bearings, new hardware, backing plates, EVERYTHING for one axle! for 6000# axles from Dexter, AL-KO, AXIS, Quality, and others
In order for these brakes to work, you must have a brake controller and a 7 way plug installed in your truck
If you have a trailer without brakes, and you want to add them, this kit has EVERYTHING you will need. This kit fits standard 7000# axle, either Spring or Torsion, EZ lube or Standard. You MUST have the 5 hole flange welded on your axle!
Most 6 bolt wheel trailers are 6000# axles. Some small trailers will have the smaller spindles, and for those you will need a smaller brake kit Look at the measurements below if you are not sure.
Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate

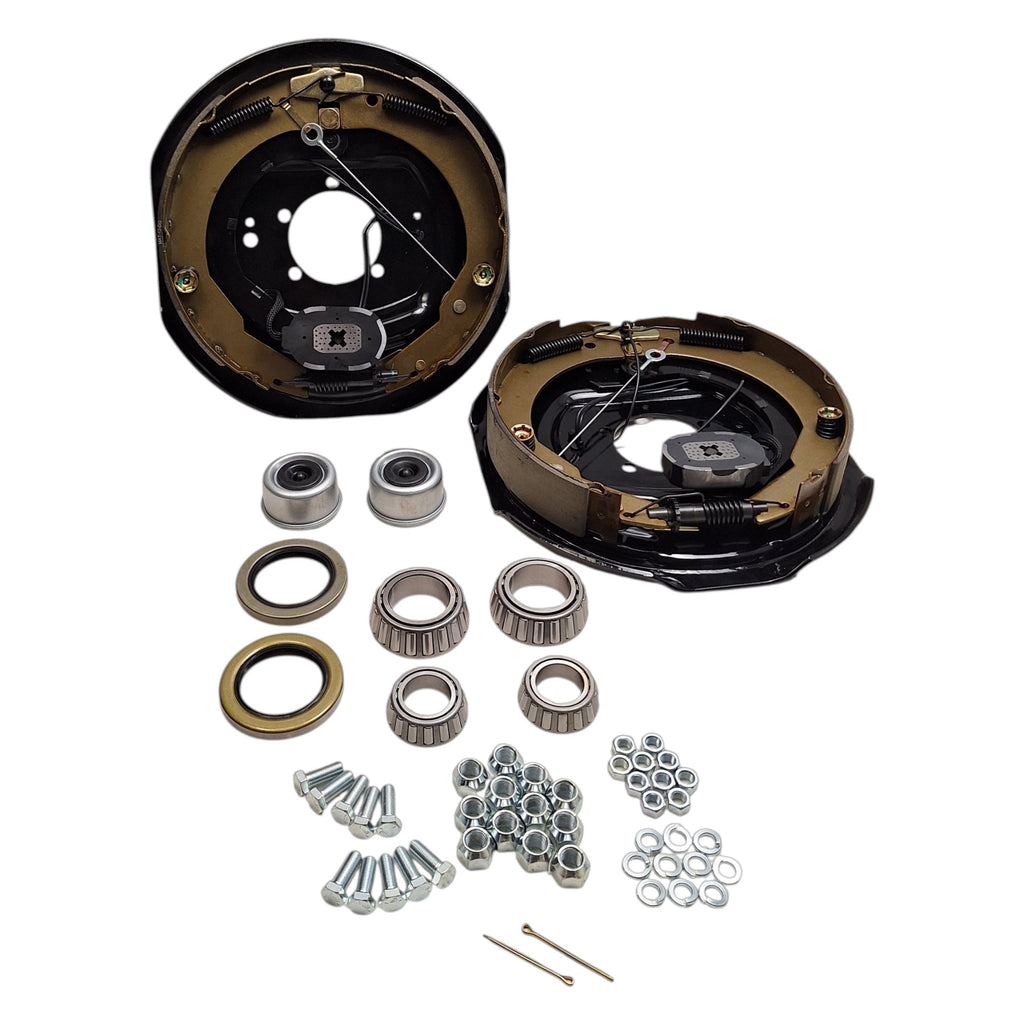

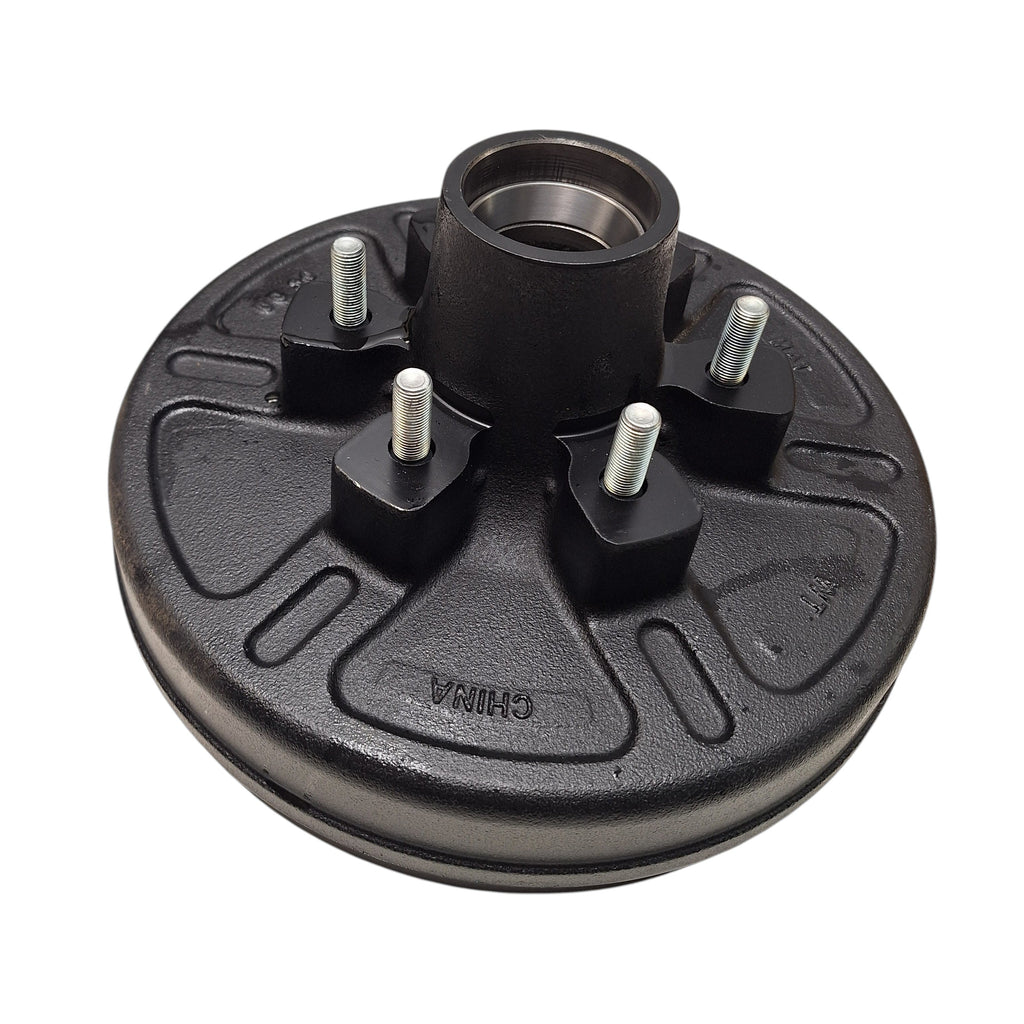

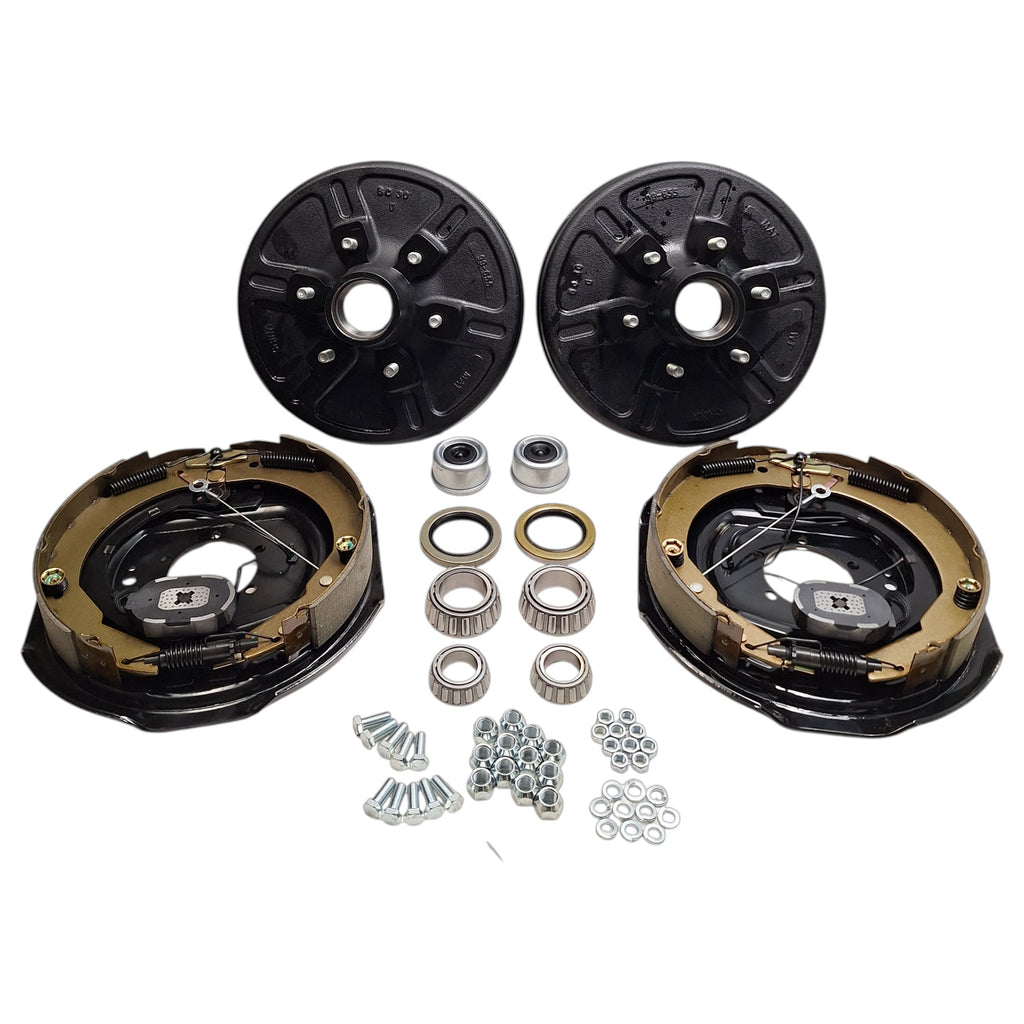

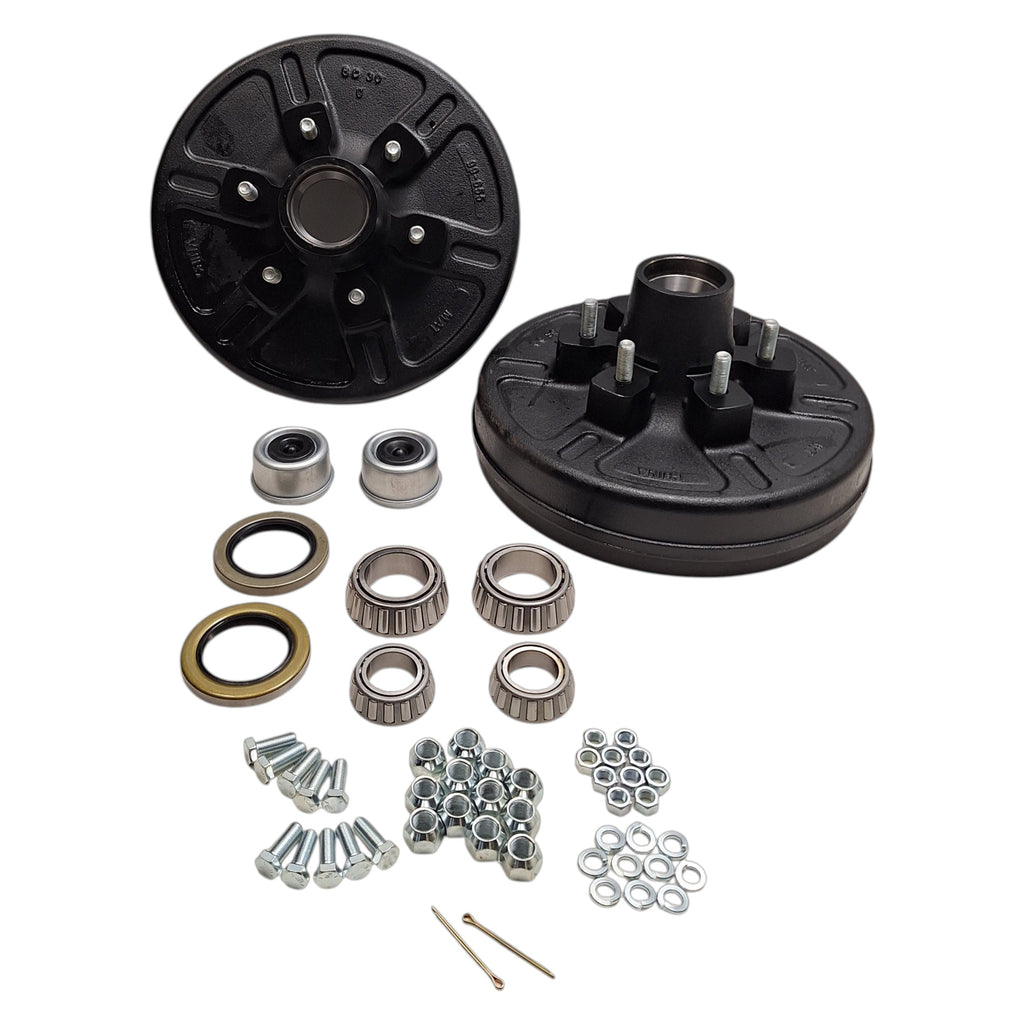

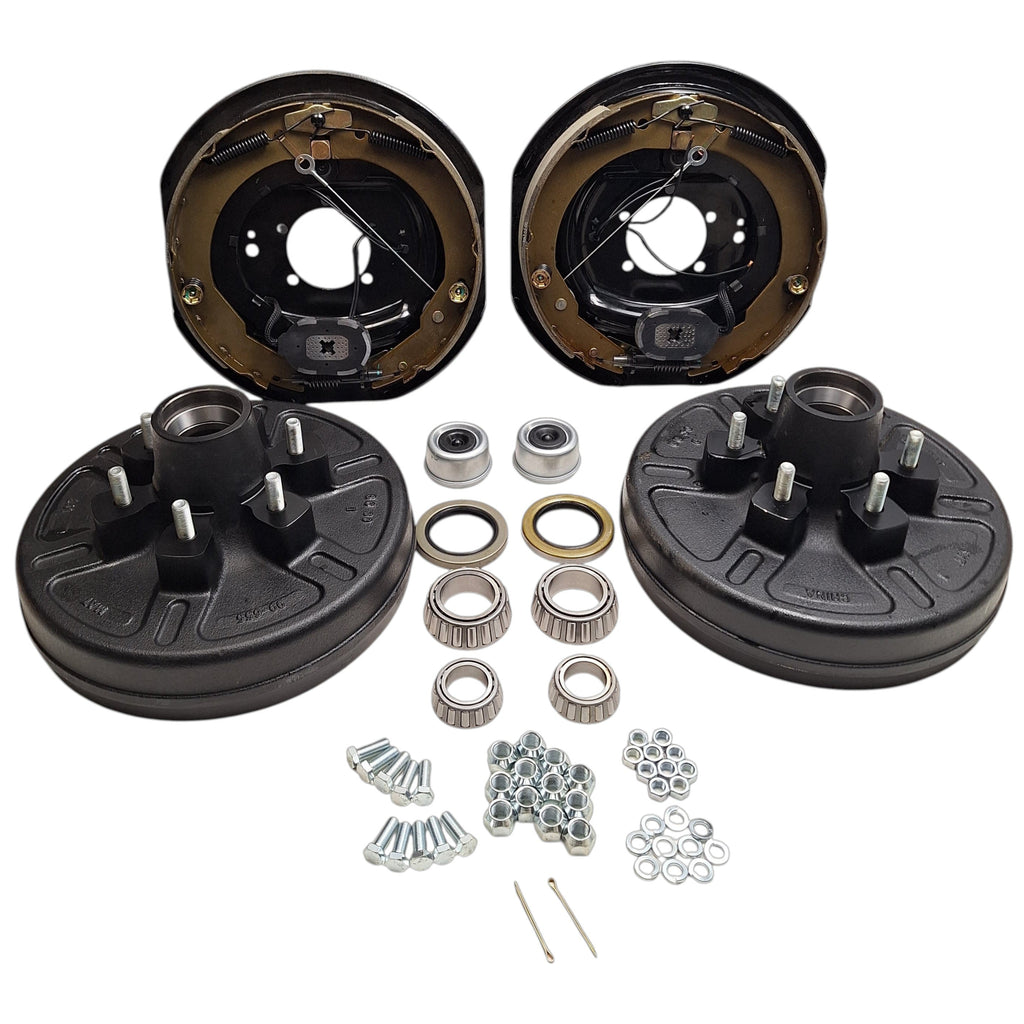

This Kit Includes:TWO - New 12" brake drums, 6 x 5.5" bolt pattern with races already pressed
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).

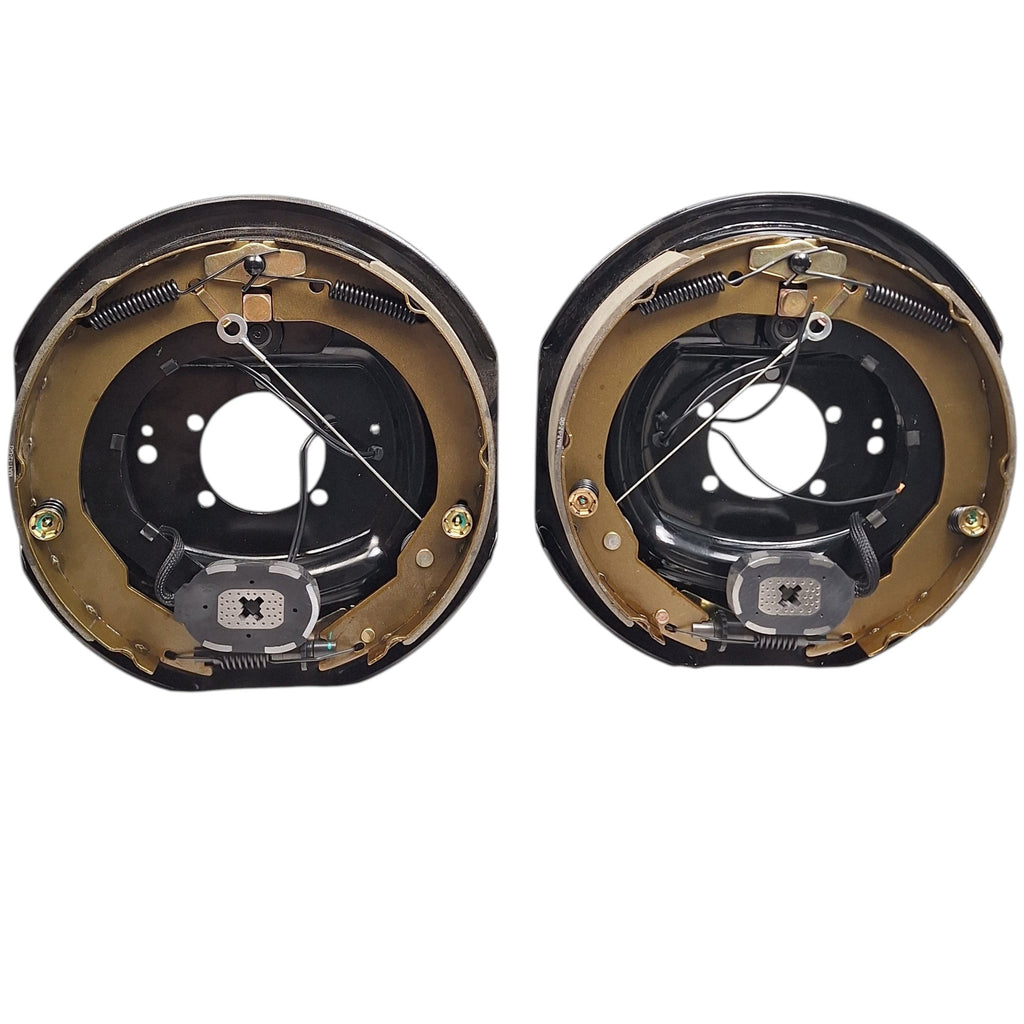

All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals

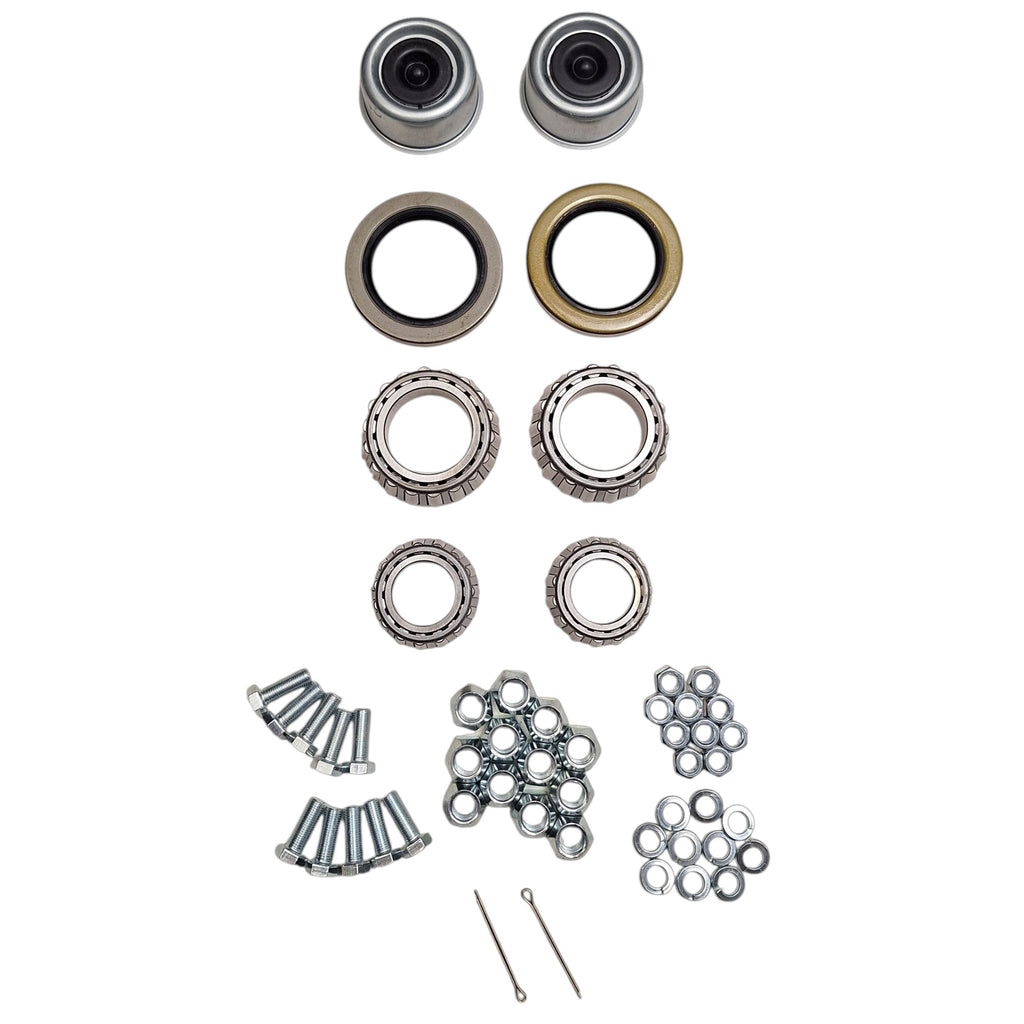

All New Wheel Bearings (Shipping loose with kit):
TWO - 2.25" 10-46 seals
TWO - 14125A bearings
TWO - 25580 bearings
TWELVE - Matching lug nuts, 1/2-20
TWO - New EZ Lube Dust Caps
In addition, you should see a small plate welded to the axle tube (to bolt the brake plate to)
If you have a 3500# axle the tube tube will be about 2 1/4" OD. If you have a 3" axle tube, it is the larger 5200, 6000, or 7000# axle, and if you have the smaller 1-5/8" axle tube, it has the smaller 2000/2200# axle
This auction is for a trailer with a 6 bolt, 5.5 " bolt pattern! I stock all sizes, so please check my other auctions or specify you want a different size!
Note: We offer two different types of brake kits. Basic Kits & Complete Kits
Complete Kits are for adding brakes for the first time
Basic Kits are for adding brakes to a second axle or replacing them.
Make sure you double check that you are ordering the right bolt pattern before you pay
