At a Glance

> Left Hand Orientation: Specifically for the Driver's Side; magnet arm must point toward the front of the trailer.
> Self-Adjusting: FSA technology ensures the brakes don't lose effectiveness as the shoe lining wears down.
> Heavy-Duty Build: Weighing nearly 28 lbs, this is built to handle the heat and stress of 15,000 lb axle loads.
> Contamination Check: Never use grease or oil on shoes. Use only dedicated Brake Cleaner spray.
> Magnet Wear: Inspect the magnet face regularly. If copper coils are visible, the magnet has reached its wear limit.
Brand: R & P Carriages
SKU: BK-12HDE-01

Before You Order

Match the part number, measurements and connection points that apply to your trailer.

Hub Face	Measure hub face to hub face.
Spring Center	Measure mounting centers and confirm perch configuration.
Capacity	Match the required axle rating.
Brakes	Confirm brake type and flange configuration.

Product Details

TRAILER BRAKE ASSEMBLIES / ELECTRIC / HEAVY DUTY

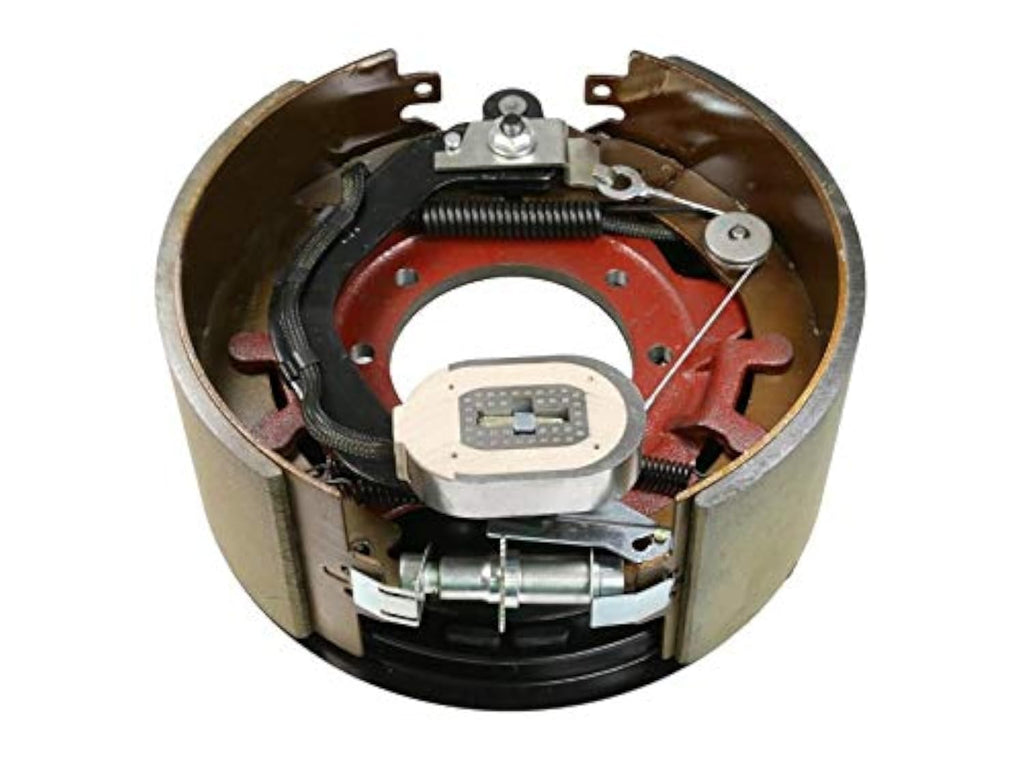

12.25" x 5" Left Hand Electric Trailer Brake Assembly - 12K-15K Capacity

A heavy-duty, forward self-adjusting (FSA) electric brake backing plate designed for 12,000 lbs to 15,000 lbs axle applications with a 7-bolt flange mounting pattern.

Part Number: BK-12HDE-01 12.25" x 5" Size 12K-15K Capacity

Overview

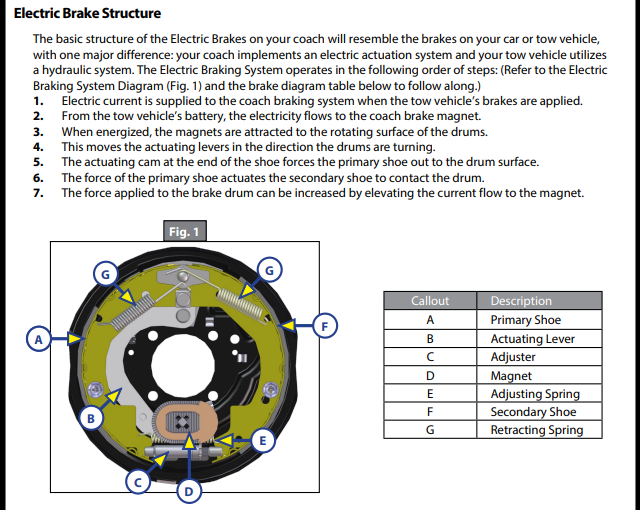

This BK-12HDE-01 electric brake assembly is a high-quality aftermarket solution designed for heavy-duty trailer applications where high-capacity stopping power is required. Engineered with an electromagnetic actuator, this assembly expands the 5-inch wide shoes against the drum for consistent performance under load. As a Forward Self-Adjusting (FSA) model, it eliminates the need for manual adjustment, maintaining optimal shoe clearance automatically during forward operation.

R&P Service Insight

This 7-bolt configuration is the industry standard for 12K and 15K axles. Proper orientation is critical for safety.

Left Hand Orientation: Specifically for the Driver's Side; magnet arm must point toward the front of the trailer.
Self-Adjusting: FSA technology ensures the brakes don't lose effectiveness as the shoe lining wears down.
Heavy-Duty Build: Weighing nearly 28 lbs, this is built to handle the heat and stress of 15,000 lb axle loads.

R&P Knowledge Hub

Compatibility: Replacement for industry standard 23-446. Works with standard 12.25" drums designed for 5" shoes.

Vehicle / System Fit: Heavy-duty trailers utilizing 12,000 lb to 15,000 lb axles (Goosenecks, Dual-tandem equipment trailers, etc.).

Installation Notes: Requires a 7-bolt mounting flange. Bolts to the axle with a 60–90 ft-lb torque requirement.

Performance Insight: Electric magnets are non-polarity sensitive, making wiring straightforward, though heat-shrink connectors are highly recommended to prevent road salt corrosion.

Brand & Fitment Note

Selling Brand: R&P Carriages Aftermarket Replacement

Application Reference: References to part numbers such as 23-446 describe compatibility and application style for industry-standard 12K-15K running gear.

What This Means: This is a high-grade aftermarket assembly designed to match the fitment and function of original equipment on trailers with 12.25" x 5" brake systems.

Before Ordering: Verify you have a 7-bolt flange. Standard 7K axles use 5 bolts and will NOT accept this assembly.

R&P Repair Insight

Maintenance is the key to longevity for electric drum brakes. Always keep the friction surfaces "dry."

Contamination Check: Never use grease or oil on shoes. Use only dedicated Brake Cleaner spray.
Magnet Wear: Inspect the magnet face regularly. If copper coils are visible, the magnet has reached its wear limit.
The Burnishing Step: New shoes must be seated. Perform 20–30 controlled stops (40mph to 20mph) after installation to "mate" the shoes to the drum.

Features

FSA Self-Adjusting

Automatically adjusts the shoe position as they wear, ensuring consistent stopping power without manual clicking.

15,000 lb Rating

High-capacity construction designed specifically for the rigors of heavy 12K and 15K axle loads.

7-Bolt Mounting

Standard heavy-duty mounting pattern for secure attachment to high-capacity axle flanges.

Left-Side Specific

Optimized shoe engagement for the driver-side (Left) rotation to provide maximum leverage.

Specifications

Specification	Detail
Part Number	BK-12HDE-01
Brake Type	Electric / Electromagnetic

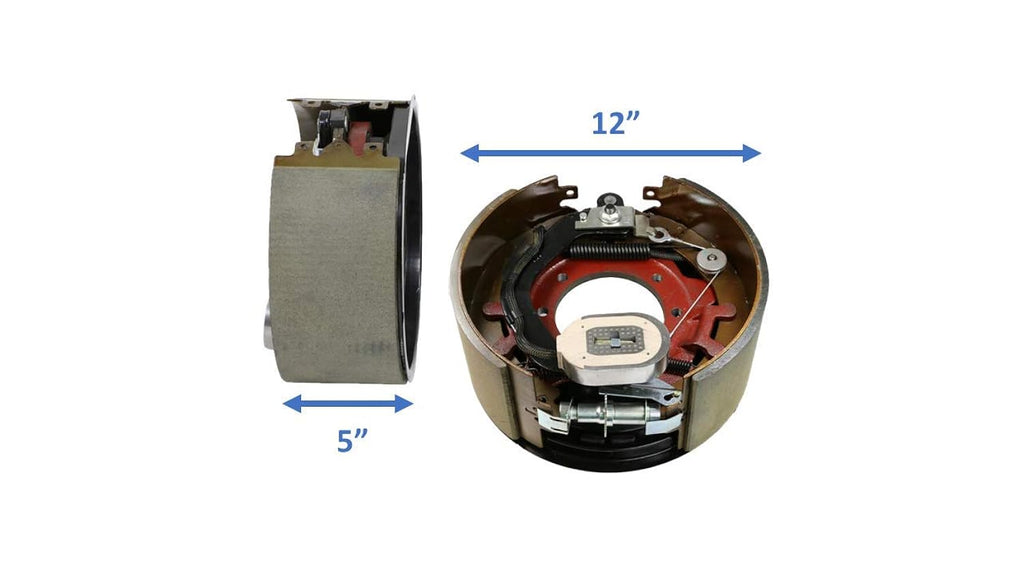

Shoe Dimensions	12.25" x 5"
Axle Capacity	12,000 lbs - 15,000 lbs
Bolt Pattern	7-Bolt Flange
Side	Left (Driver Side)
Weight	Approx. 25–28 lbs
Adjustment	Forward Self-Adjusting (FSA)

Fitment / Application

Category	Details
Axle Type	12K to 15K Heavy Duty

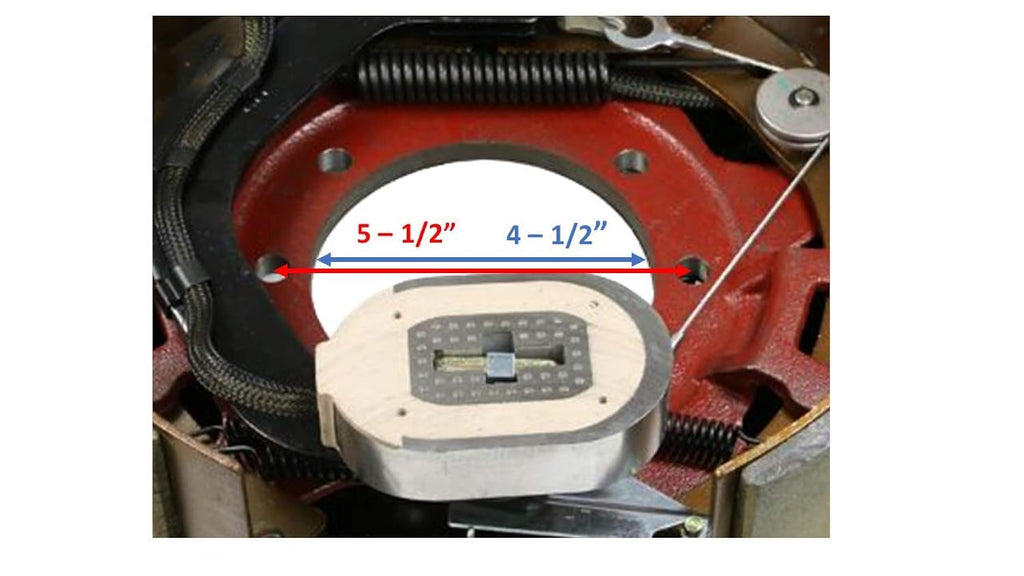

Flange Bolt Circle	3.75" center-to-center (adjacent)
Center Hole	4.75" (Standard Heavy Spindle)
Notes	Verify orientation: Magnet arm must face the front of the trailer for proper shoe expansion.

Included Components

Quantity	Item
1	Complete Backing Plate Assembly (Left Hand)
2	Electric Brake Shoe & Lining (Pre-installed)
1	Electric Magnet Actuator (Pre-installed)
1	FSA Self-Adjusting Hardware Kit (Pre-installed)
Set	Internal Springs and Actuator Lever (Pre-installed)

IMPORTANT SAFETY NOTE: Ensure the trailer is properly supported by heavy-duty jack stands before removing the drum. Verify the 7-bolt mounting pattern matches your axle flange before installation. Burnishing the brakes (20-30 stops) is required to seat the new shoes to the drum for full braking power.

Shop Right Hand Assemblies & Parts

12.25" x 5" Left Hand Electric Trailer Brake Assembly - 12K-15K Capacity (BK-12HDE-01)
