Match the part number, measurements and connection points that apply to your trailer.
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |

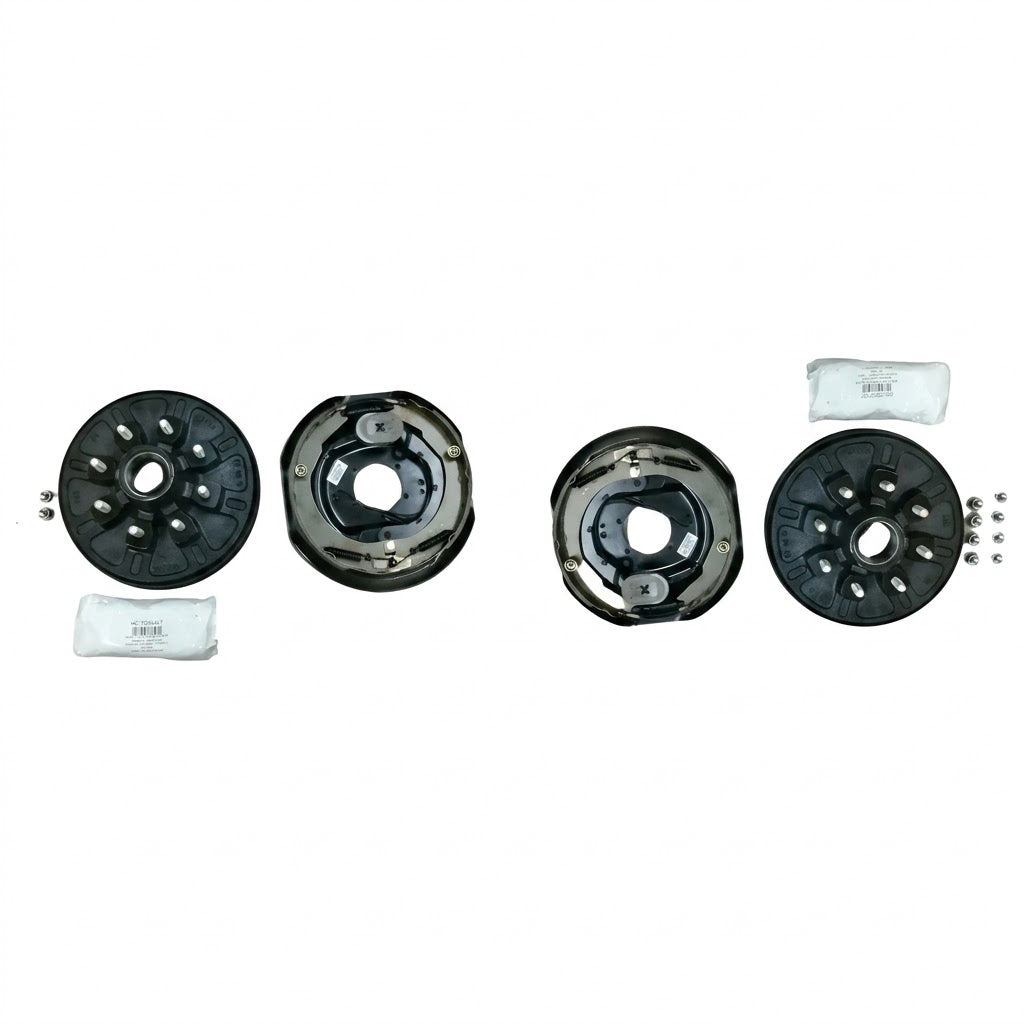

Complete one-axle trailer brake and hub service kit with 12" x 2" brake drum assemblies, bearings, seals, brake components, backing plates, and listed hardware for compatible 5,200 lb, 6,000 lb, and 7,000 lb trailer axles.
This R&P Carriages one-axle service kit is built for trailer owners repairing or refreshing a compatible 8-lug electric brake axle. It includes the major brake, hub, bearing, seal, and backing plate components listed below, making it a practical repair solution when worn bearings, grooved drums, weak magnets, or tired brake hardware have affected trailer braking performance.
Compatibility: Listed for compatible 5,200 lb, 6,000 lb, and 7,000 lb trailer axles using 12" x 2" brakes, 8-bolt wheels, and #42 spindle dimensions.
Vehicle / System Fit: Trailer electric brake axles, including compatible torsion and leaf spring axle setups where all measurements and mounting points match.
Installation Notes: Verify brake size, wheel bolt pattern, spindle type, inner and outer bearing numbers, seal size, brake flange mounting, and axle rating before ordering or installing.
Performance Insight: Refreshing the drum, bearings, seals, brake shoes, magnets, springs, and backing plate assembly together helps correct multiple wear points in one service job.
Includes the major drum, hub, bearing, seal, brake shoe, magnet, spring, hardware, and backing plate components listed for one compatible trailer axle.
Designed around 12" x 2" electric trailer brake assemblies for compatible 5,200 lb, 6,000 lb, and 7,000 lb axle applications.
Kit includes two brake drum and hub assemblies for 8-bolt wheel applications where the spindle, bearings, seals, and brake size match.
Useful when worn bearings, grooved drums, weak magnets, or tired brake hardware make a full assembly refresh more practical than replacing one small part at a time.
| Specification | Detail |
|---|---|
| Part Number | 568183-B-IMP |
| Brand | R&P Carriages |
| Product Type | Trailer brake drum, hub, bearing, seal, and backing plate service kit |
| Application | Compatible trailer electric brake axles |
| Brake Size | 12" x 2" |
| Wheel Configuration | 8-bolt wheel / 8-lug drum applications |
| Spindle Fit | #42 spindle |
| Outer Bearing | 14125A, 1.25" ID |
| Inner Bearing | 25580, 1.75" ID |
| Dust Cap | 2.72" OD |
| Seals Listed | #10-36 / 2.25" ID and 2.125" ID seals listed; verify the correct seal size for your axle |
| Lug Nuts Listed | 9/16-18 lug nuts |
| Brake Mounting Bolts Listed | (10) 3/8" fine thread bolts |
| Category | Details |
|---|---|
| Vehicle / System | Trailer electric brake axle system |
| Primary Fit | 5,200 lb, 6,000 lb, and 7,000 lb axles where the listed brake size, spindle, bearing, seal, and wheel configuration match |
| Secondary Fit | Compatible torsion and leaf spring axle applications |
| Notes | Verify 12" x 2" brake size, 8-lug drum fit, #42 spindle, bearing numbers, seal size, brake flange mounting, and axle rating before ordering. |
| Quantity | Item |
|---|---|

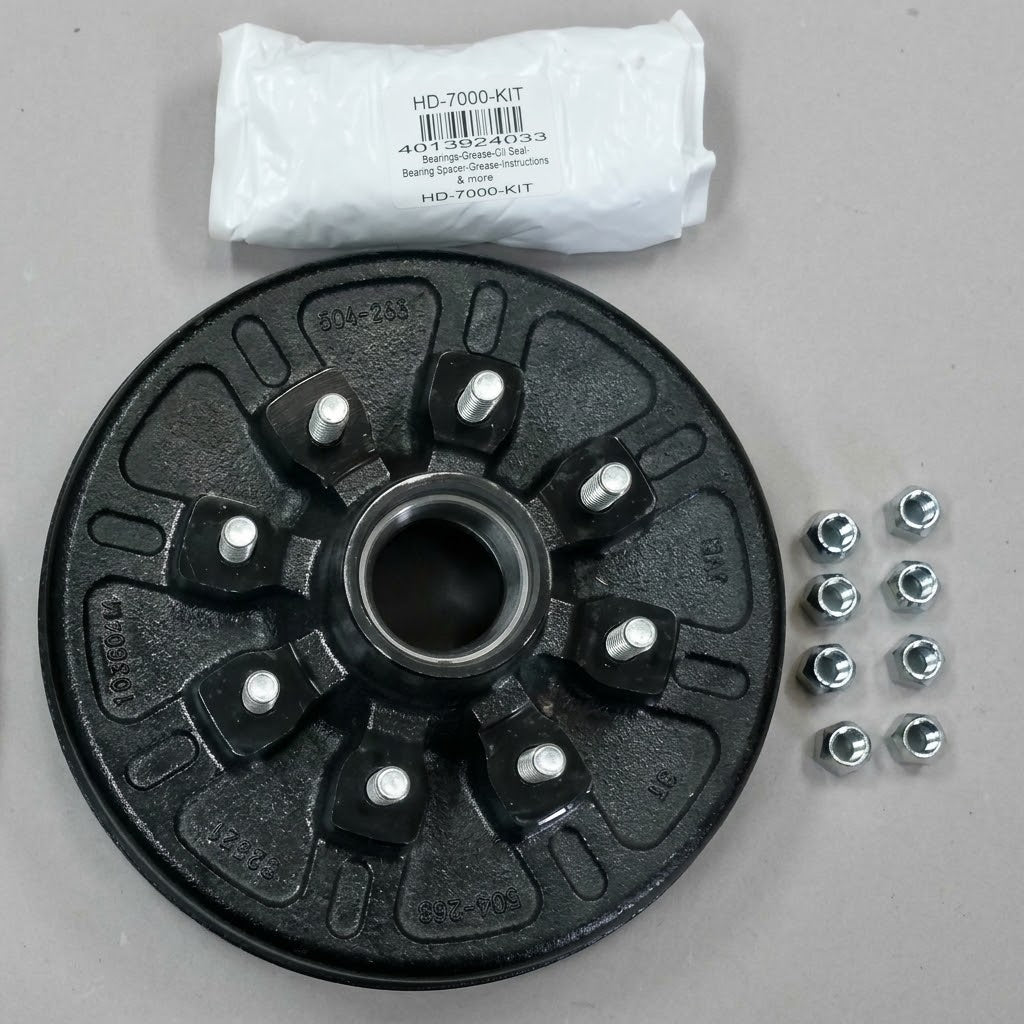

| 2 | Complete brake drum and hub assemblies for one axle |
| Included | 14125A outer bearings, 1.25" ID |
| Included | 25580 inner bearings, 1.75" ID |
| Included | Seals, including 2.25" ID and 2.125" ID seal options listed for axle fit verification |
| Included | Dust caps, 2.72" OD |
| Included | 12" x 2" brake shoes |
| Included | New brake magnets |
| Included | Brake springs and brake hardware |
| Included | New brake backing plates |
| 10 | 3/8" fine thread brake mounting bolts |
| Listed | 9/16-18 lug nuts; confirm quantity before installation |
Selected from R&P customer feedback for Hub / Drum products and related trailer service.
“I've ordered lots of trailer repair parts from them, always fast service, well packed, and the right parts. I highly recommend.”
“Would like to say thanks to everyone at R and P Carriages parts were delivered fast and with the very helpful staff, the right parts were sent the first time. Thanks Happy Holiday's.”
“Received swivel d-ring tie down 4 days after my wife ordered them , great price and came with backing plates. I received exactly what I paid for, thanks for the great service. Chris Davis , Mooresville NC”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
