Gas Spring SPD-GSNI-5200-20 or LGP6-170-20 Strut Prop Rod RV Camper Hatch Door

LaVanture

Regular price $21.99

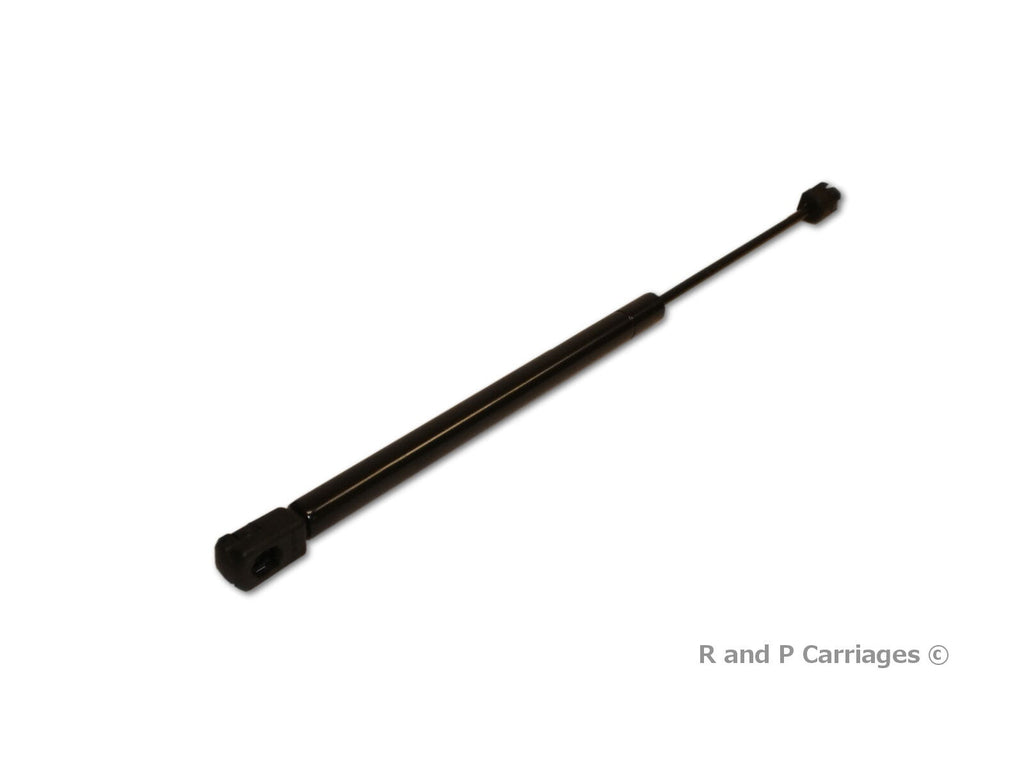

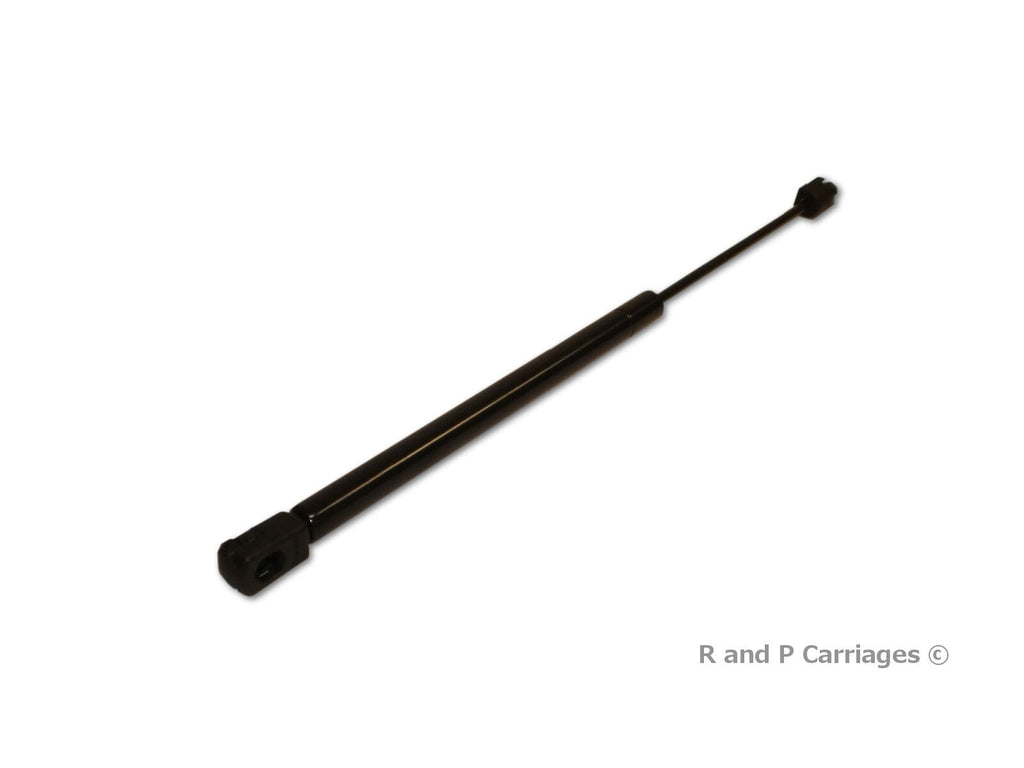

Black Nitride Shaft Gas Spring Strut Rod
SPD GSNI-5200-20 or LGP6-170-20
( 17" Long, 6-3/4" stroke and 20# force)


Direct Replacement for SPD's & many other brands

Used for hatches, covers, RVs, Campers

Strut has standard 10mm ends

This gas spring combines all the proven reliability you have come to expect from a gas spring along with the added feature of a nitride shaft. The gas spring incorporates a strong annealed steel rod with a Nitride coating for added corrosion resistance - especially when used with the all composite 10 mm ball end fitting. It is ideal choice where exceptional quality combined with an over all black appearance are important for your application.

Do you need the mount bracket, or a different Gas Strut??? Click here!





Product Number R&P PART NUMBER Extended Length Compressed Length (in) Stroke (in) Rod Diameter (mm) Stroke (in)2 Standard Ends
SPD-GSNI-4900-10 LGP6-750-10 7.5 5.5 2 6 15 EF-PS30B1
SPD-GSNI-4900-20 LGP6-750-20 7.5 5.5 2 6 15 EF-PS30B1
SPD-GSNI-4900-30 LGP6-750-30 7.5 5.5 2 6 15 EF-PS30B1
SPD-GSNI-4900-40 LGP6-750-40 7.5 5.5 2 6 15 EF-PS30B1
SPD-GSNI-4900-60 LGP6-750-60 7.5 5.5 2 6 15 EF-PS30B1
SPD-GSNI-2000-100  Call for Availability 10 7 3 8 18 EFPS30B1
SPD-GSNI-2000-120  Call for Availability 10 7 3 8 18 EFPS30B1
SPD-GSNI-2000-150  Call for Availability 10 7 3 8 18 EFPS30B1
SPD-GSNI-5000-10 LGP6-100-10 10 7 3 6 15 EF-PS30B1
SPD-GSNI-5000-20 LGP6-100-20 10 7 3 6 15 EF-PS30B1
SPD-GSNI-5000-30 LGP6-100-30 10 7 3 6 15 EF-PS30B1
SPD-GSNI-5000-40 LGP6-100-40 10 7 3 6 15 EF-PS30B1
SPD-GSNI-5000-60 LGP6-100-60 10 7 3 6 15 EF-PS30B1
SPD-GSNI-5000-80 LGP6-100-80 10 7 3 6 15 EF-PS30B1
SPD-GSNI-2100-120  Call for Availability 11.9 8.4 3.5 8 18 EFPS30B1
SPD-GSNI-2100-150  Call for Availability 11.9 8.4 3.5 8 18 EFPS30B1
SPD-GSNI-2100-20  Call for Availability 11.9 8.4 3.5 8 18 EFPS30B1
SPD-GSNI-2100-30 LGP8-119-30 11.9 8.4 3.5 8 18 EFPS30B1
SPD-GSNI-2100-40  Call for Availability 11.9 8.4 3.5 8 18 EFPS30B1
SPD-GSNI-2100-50  Call for Availability 11.9 8.4 3.5 8 18 EFPS30B1
SPD-GSNI-2100-60 Call for Availability 11.9 8.4 3.5 8 18 EFPS30B1
SPD-GSNI-2100-90 LGP8-119-90 11.9 8.4
