Match the part number, measurements and connection points that apply to your trailer.
| Dimensions | Measure the original hardware and mounting centers. |
|---|---|
| Orientation | Confirm direction where applicable. |
| Hardware | Confirm keeper, hinge and latch compatibility. |

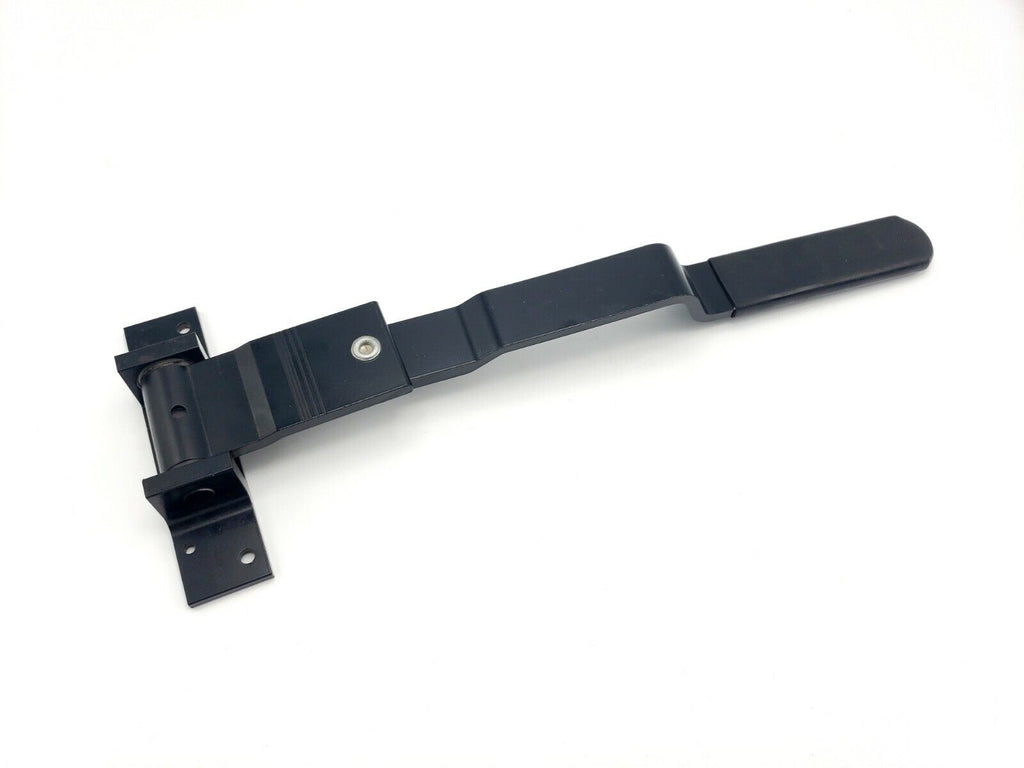

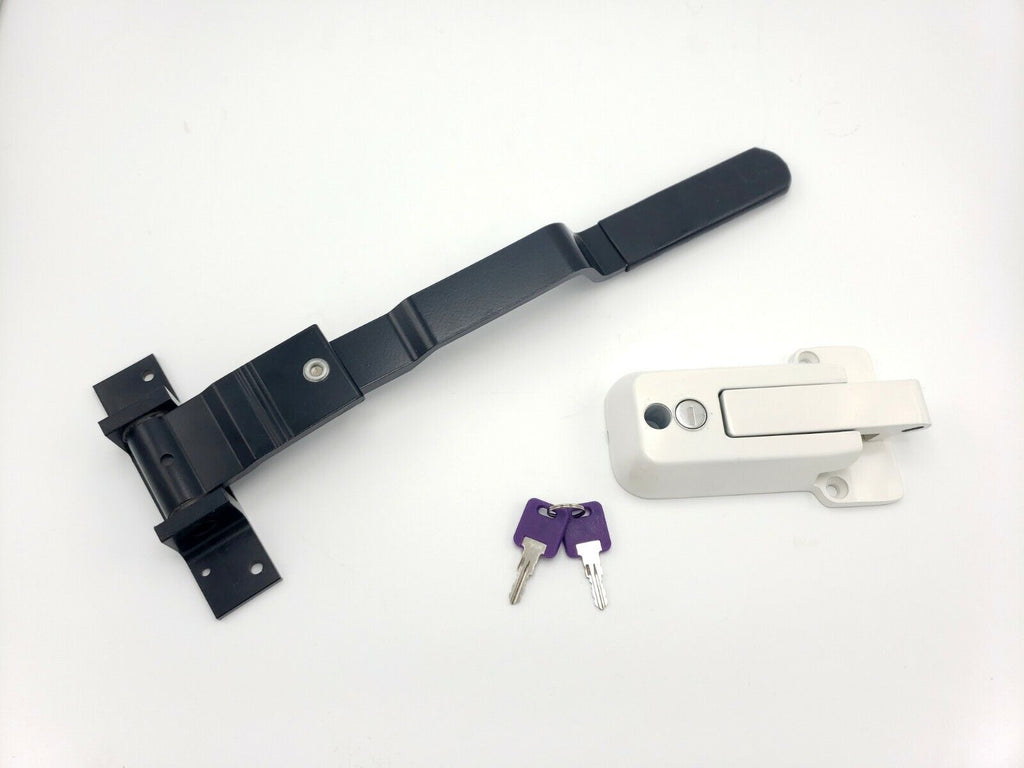

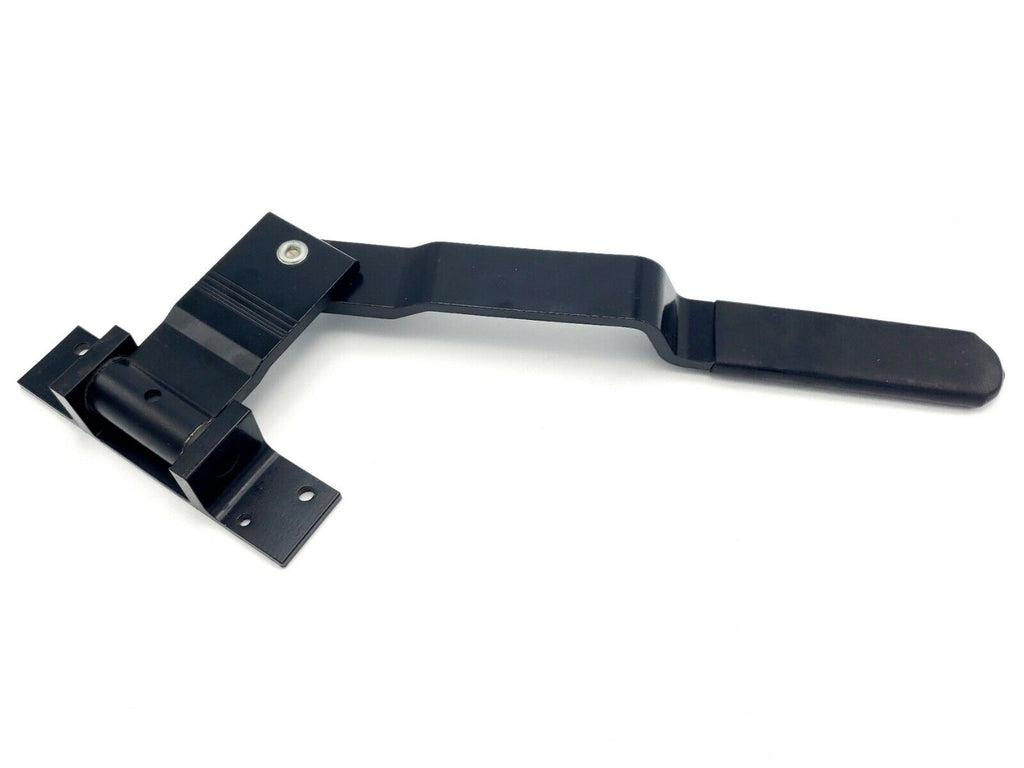

 Black Powder Coated Aluminum Swivel Bar Cambar with White Lock
Part Number: SCB-B4-WHT
CAMBAR
Features: - Easy four hole installation - 180+ degree Swivel - Powder Coated for Long lasting finish Specifications: - Mounting Holes - 3-7/8" On Center (smaller holes) - 4-7/8" on Center (larger holes) - Mounting Bracket: 5-3/4" x 1-3/8" - Cambar Arm: 16" Long Overall, 1-1/4" Wide Cambar Lock Features White powder coat Finish Measures 6" x 3- 9/16" 3 Hole Mount - Top Two Holes are 2-7/8" on center, bottom hole is 3-5/8" from top holes. All holes are 1/4" in diameter Spring assisted latch for easy use Latch locks in place to secure cam-bar and lock doors Self Latching Includes two keys, KEYED ALIKE |
