At a Glance
- >Fits Dexter 10K Heavy Duty axles
- >8 on 6.5" bolt pattern
- >5/8"-18 wheel studs
- >Designed for use with Dexter drum 009-027-01 (not included)
- >Part of Dexter 2-piece hub and drum system
- Brand: Dexter
- SKU: 008-214-05
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Part Number | Match the number stamped on the original bearing or seal. |
|---|---|
| Dimensions | Measure the mating surfaces when a number is unavailable. |
| Hub / Axle | Use capacity as context, not as the only fitment check. |
Product Details

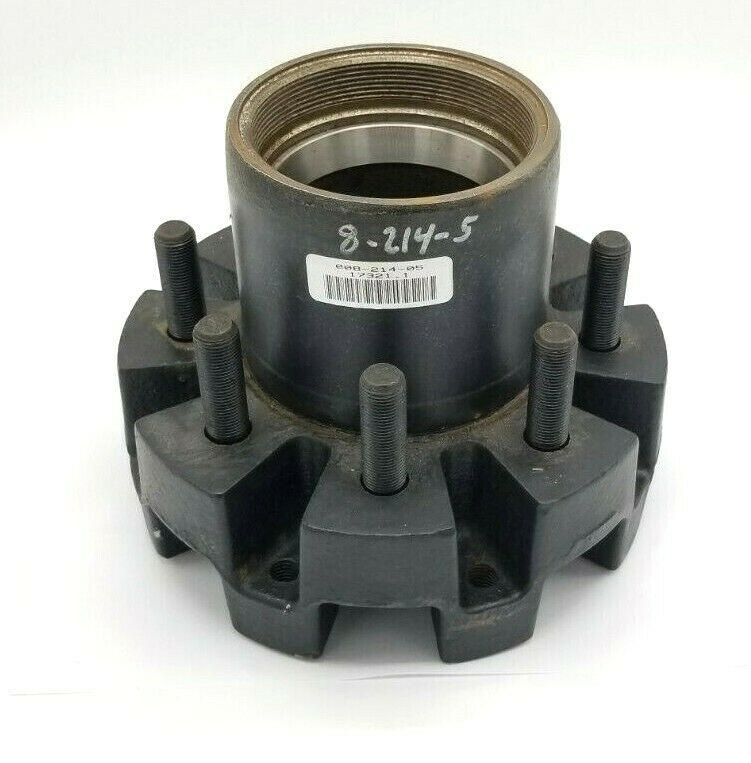

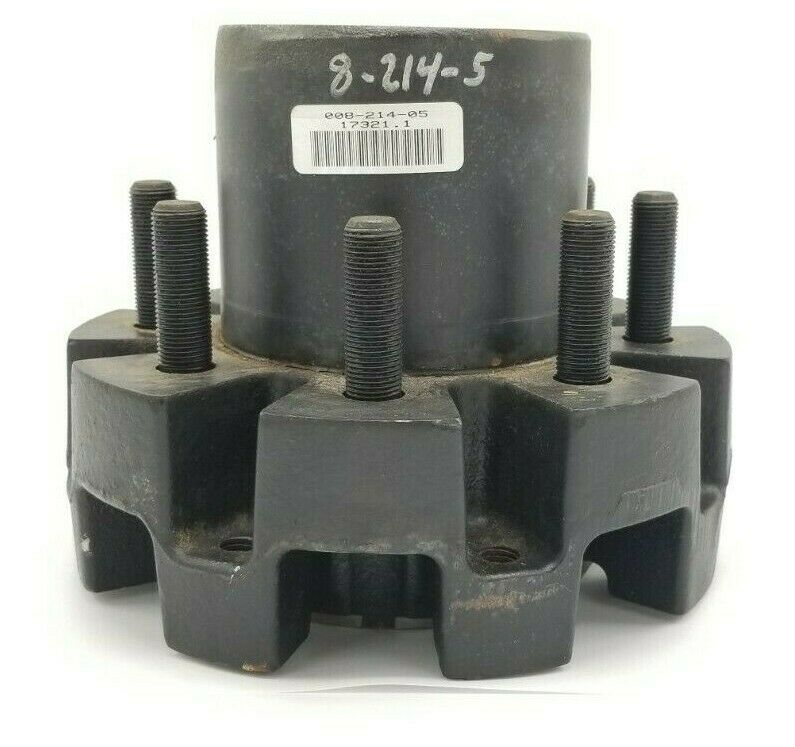

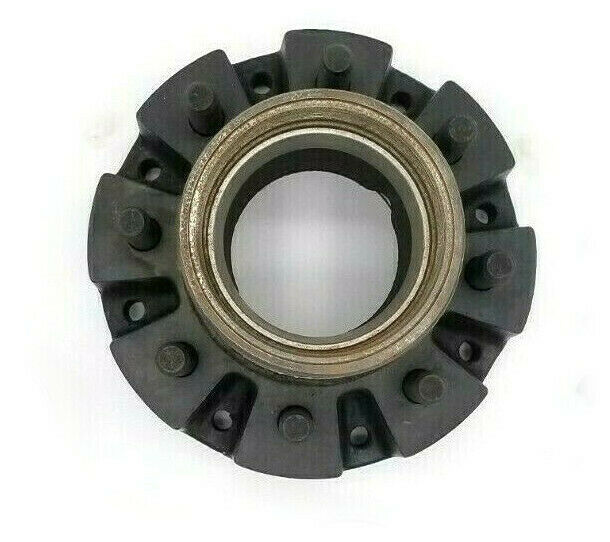

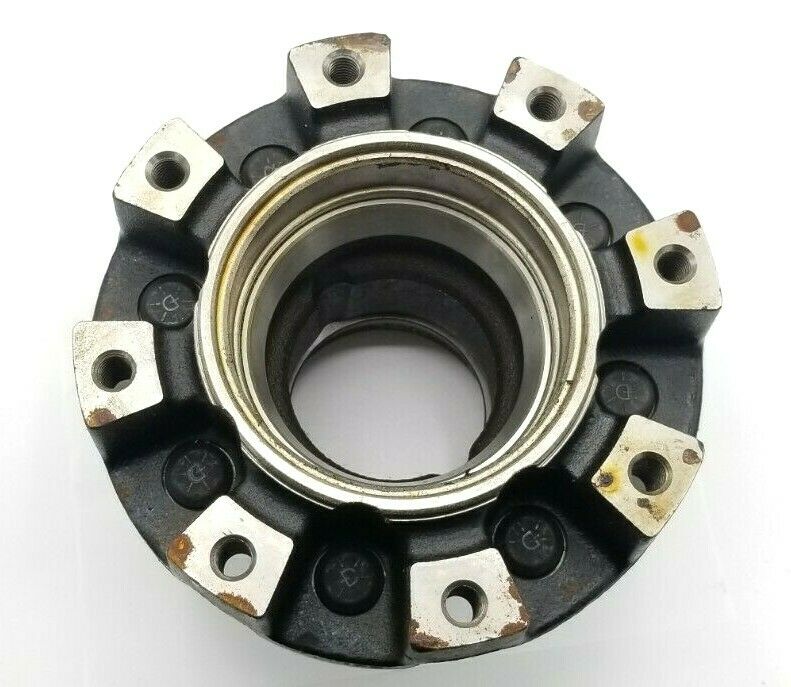

Dexter 10K Heavy Duty Hub – 8 on 6.5" – 5/8" Studs – Hub Only
RP Part Number: 008-214-05
Replacement hub for Dexter 10,000 lb Heavy Duty (HD) axle systems. Designed for use in Dexter two-piece hub and drum configurations.
This listing is for the hub only. Drum, bearings, races, seal, oil cap, and mounting hardware are not included.
R&P Knowledge Hub
Dexter 10K Heavy Duty (HD) axles use a two-piece hub and drum system. The hub (008-214-05) mates with drum 009-027-01. This hub will not fit 10K General Duty (GD) axles.
Common identifiers for 10K HD systems include a drum marked “9-27,” 4" wide brake shoes, a 7-bolt brake flange, and oil caps marked “Dexter 21-36.” Always confirm axle type and components before ordering.
Features
- Fits Dexter 10K Heavy Duty axles
- 8 on 6.5" bolt pattern
- 5/8"-18 wheel studs
- Designed for use with Dexter drum 009-027-01 (not included)
- Part of Dexter 2-piece hub and drum system
Specifications
| Specification | Detail |
| Part Number | 008-214-05 |
| Axle Type | Dexter 10K Heavy Duty (HD) |
| Compatibility | Will NOT fit 10K General Duty (GD) axles |
| Bolt Pattern | 8 on 6.5" |
| Stud Size | 5/8"-18 |
| Capacity Per Hub | 5,000 lb |
| System Type | Dexter 2-Piece Hub & Drum System |
| Matching Drum | 009-027-01 (Not Included) |
| Included | Hub Only |
Verify specifications before installation.
