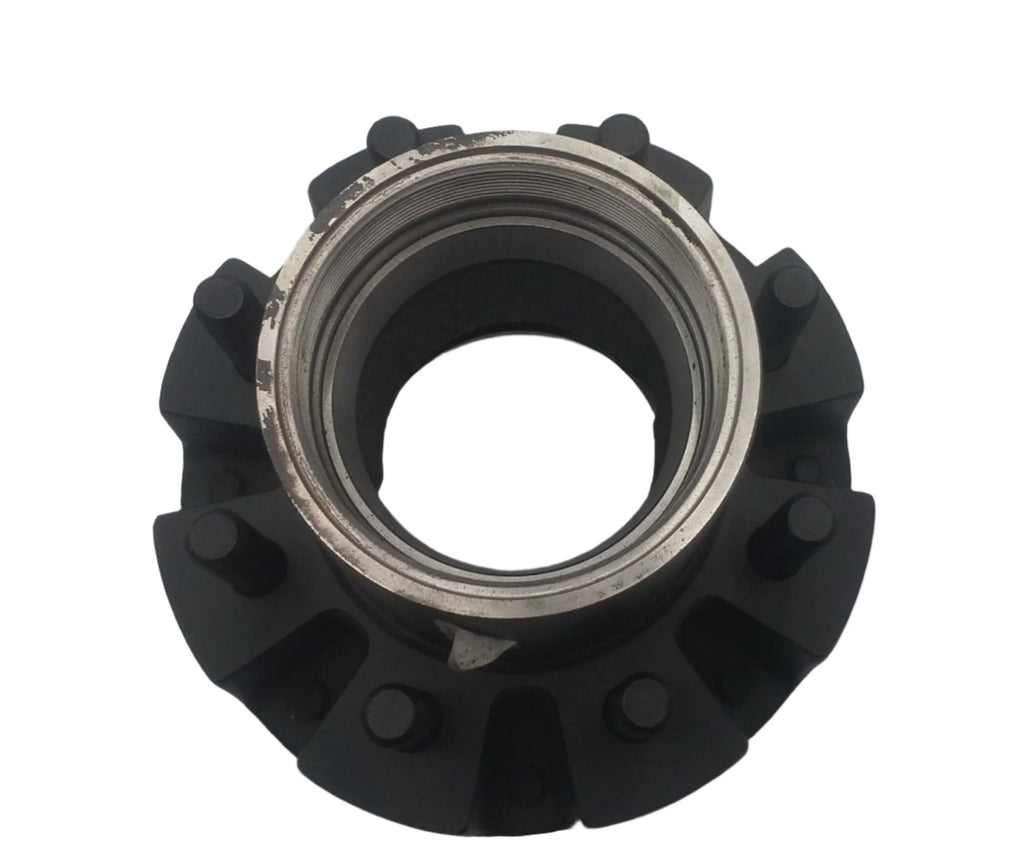

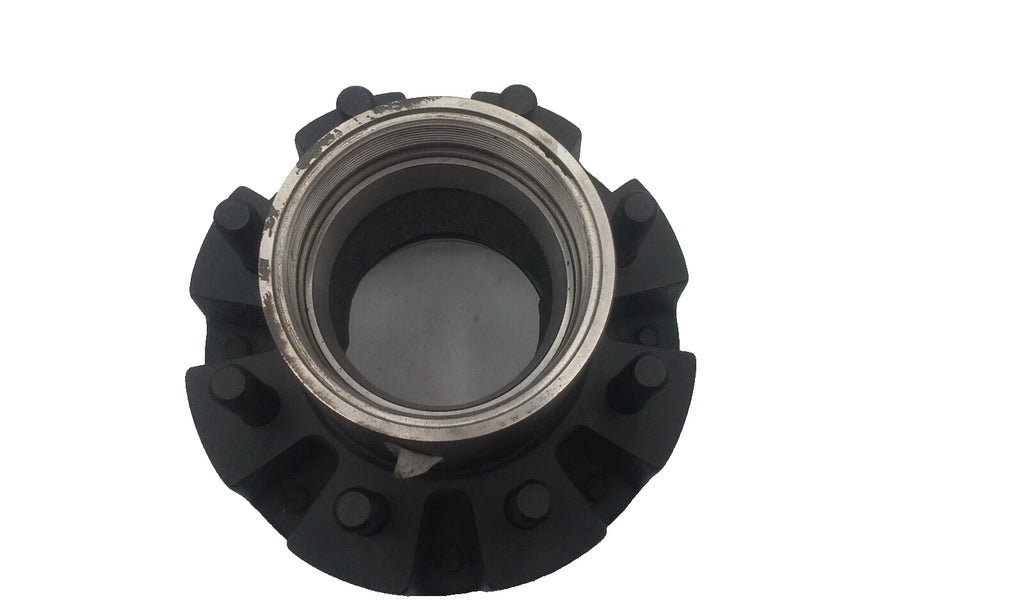

10K Disc Brake Hub – 8 on 6.5" – 4.77" Pilot – Hub Only
Part Number: 008-214-06
Replacement hub for 10,000 lb disc brake axle systems. Designed for use with disc brake rotors and 8 on 6.5" bolt pattern wheels.
This listing includes the hub only. Bearings, races, seals, oil cap, and lug nuts are not included.
R&P Knowledge Hub
Disc brake hubs differ from drum hubs in rotor mounting and bearing configuration. This hub is designed for 10K disc brake axles and is not interchangeable with drum-style hubs.
Always confirm pilot diameter, bolt pattern, stud size, rotor compatibility, and spindle dimensions before installation.
Features
- For 10K disc brake axle systems
- 8 on 6.5" bolt pattern

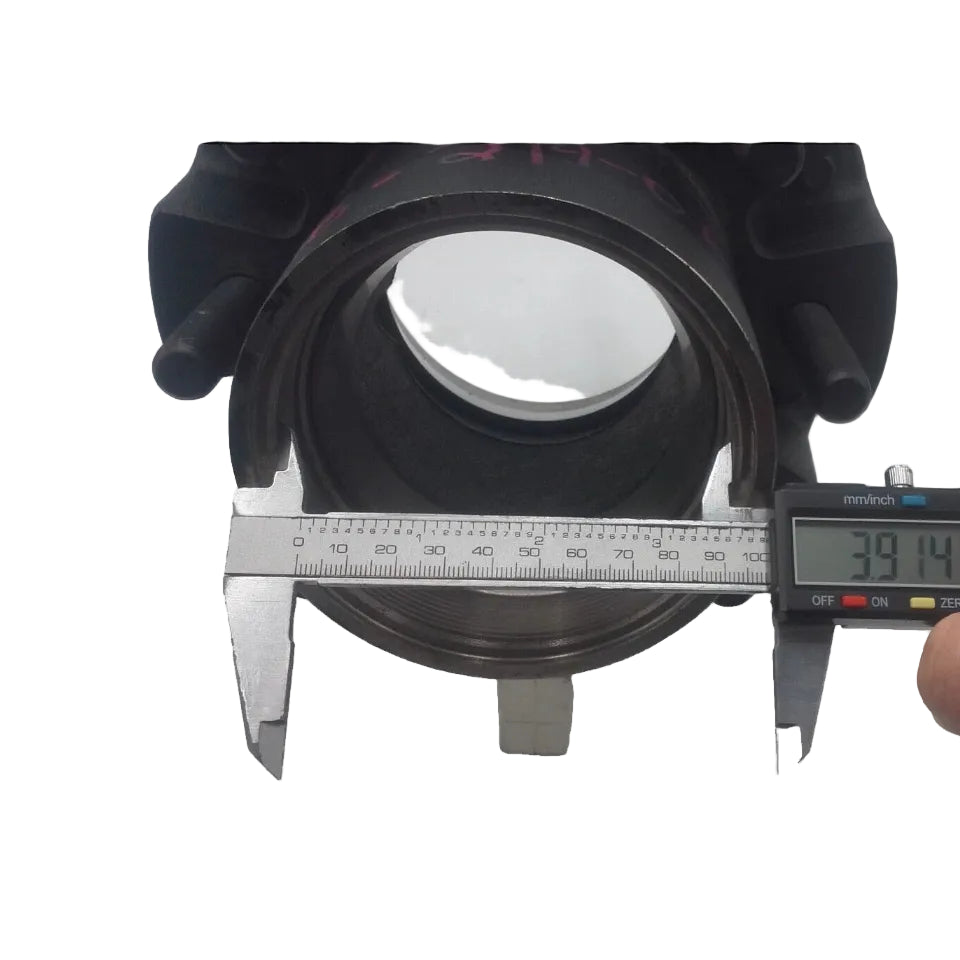

- 4.77" pilot diameter
- 5/8" wheel studs

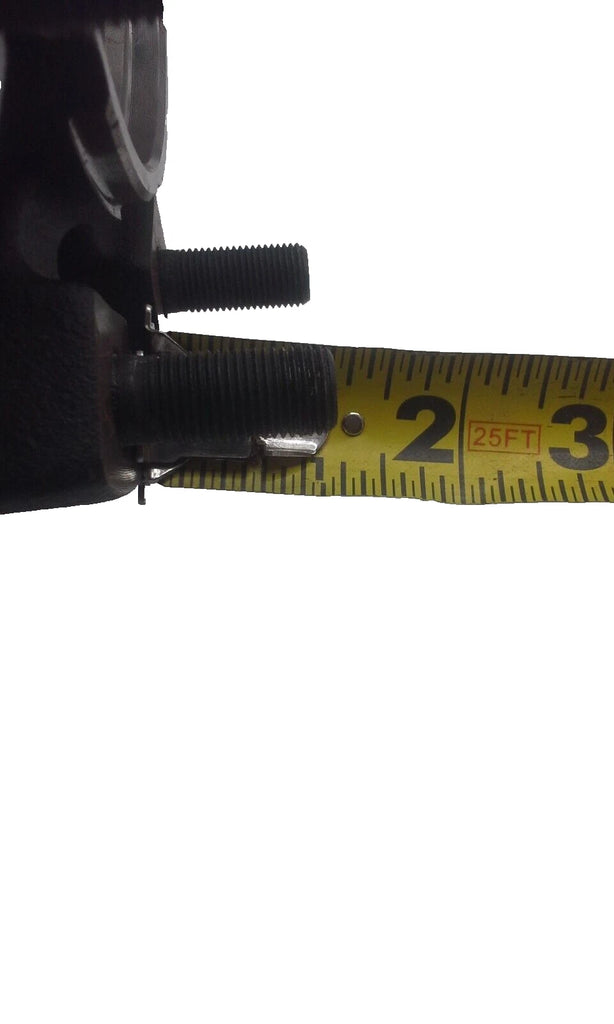

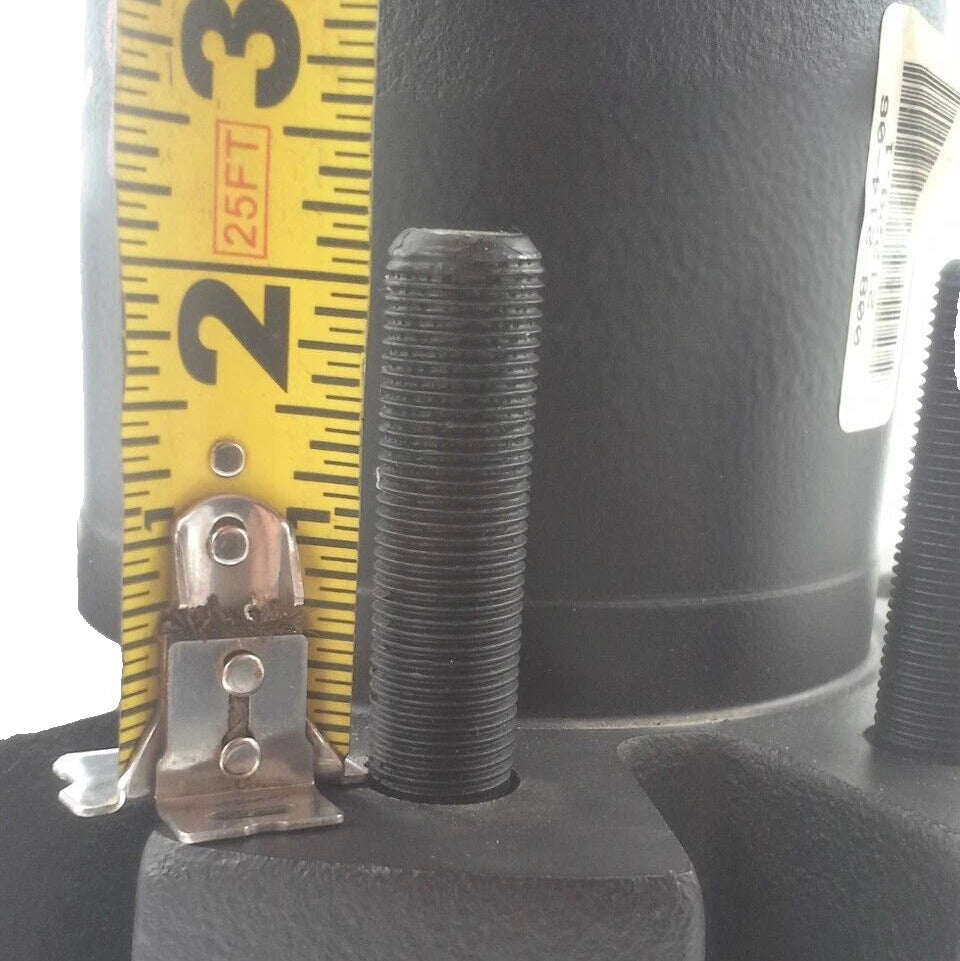

- 2-1/4" stud length
- Compatible with rotor 070-006
Specifications
| Specification | Detail |
| Part Number | 008-214-06 |
| Axle Application | 10K Disc Brake Axles |
| Bolt Pattern | 8 on 6.5" |
| Pilot Diameter | 4.77" |
| Stud Size | 5/8" |
| Stud Length | 2-1/4" |
| Rotor Fitment | 070-006 |
| Included | Hub Only |
Verify specifications before installation.
