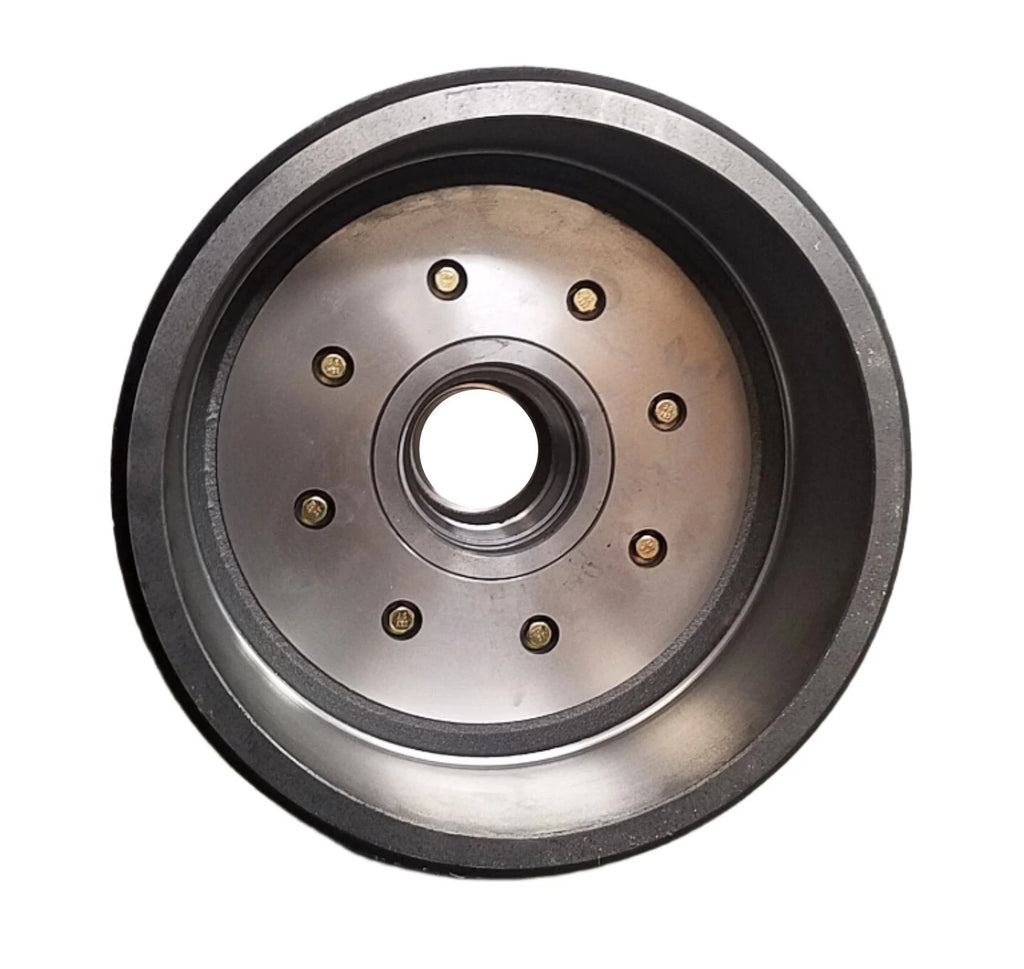

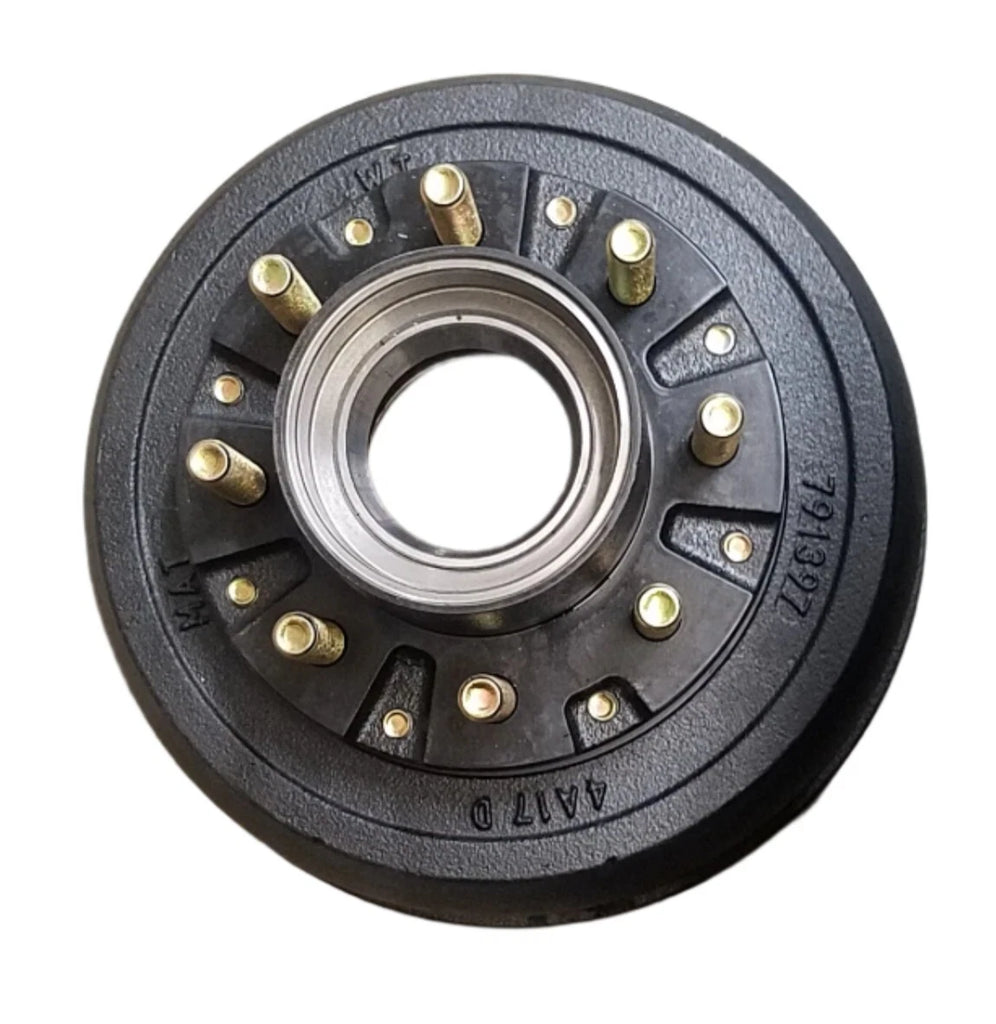

Hub & Drum 10K General Duty – 4" Oil Cap – Short Spindle – 99-86510-399-LS
SKU: 99-86510-399-LS | Equivalent to Lippert 791399
Heavy-duty 10,000 lb General Duty hub and drum assembly designed for short spindle trailer axles using a 4" oil cap configuration. This assembly matches the specifications of Lippert LCI part number 791399 and is intended for 10K short spindle axle applications.
R&P Knowledge Hub
10K General Duty short spindle axles use a specific hub depth and oil cap diameter that differ from long spindle configurations. A 4" oil cap hub will not properly interchange with hubs designed for smaller caps or alternate spindle lengths.
Before ordering, confirm axle rating, spindle length, brake size, bolt pattern, and oil cap diameter to ensure correct fitment.
Features
- 10,000 lb General Duty rating
- Short spindle configuration
- Designed for 4" oil cap systems
- Heavy-duty construction for commercial and equipment trailers
- Equivalent to Lippert 791399
Specifications
| Specification | Detail |
| SKU | 99-86510-399-LS |
| OEM Equivalent | Lippert 791399 |
| Axle Rating | 10,000 lb General Duty |
| Spindle Type | Short Spindle |
| Oil Cap Size | 4" |
Verify specifications before installation.
