Mobile Home Conversion Idler Hub Kit — Pair
5 on 4.5" Bolt Pattern • Bearings, Seals & Dust Caps Included
SKU: 33667-MH-KITX2
Complete pair of idler hubs for mobile home axle conversions. This kit services both sides of one axle and includes hubs, bearings, grease seals, dust caps, and lug nuts.
Designed for axles that use a L68149 inner bearing and a 5 on 4.5" wheel bolt pattern.

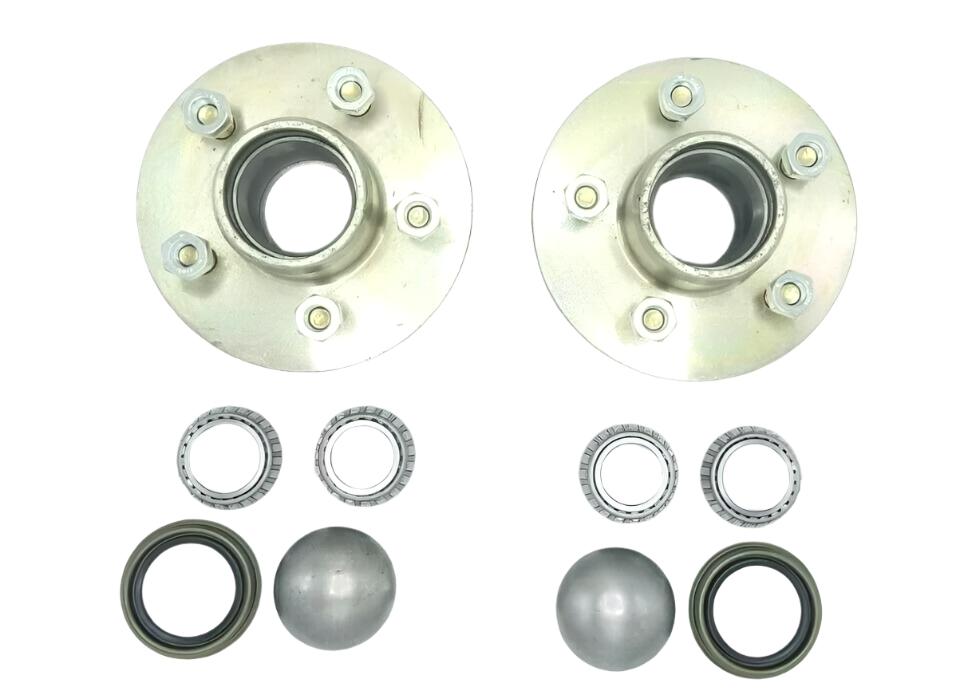

What’s Included
- (2) Idler hub assemblies — 5 on 4.5" bolt pattern (races installed)
- (2) Inner bearings — L68149 (1-3/8" ID)
- (2) Outer bearings — LM67048 (1-1/4" ID)
- (2) Double-lipped grease seals — GS19 (1.87" ID × 2.56" OD)
- (2) Dust caps — 1601 (2.33" OD)
- (10) Matching 1/2" lug nuts
Specifications
| Hub Type | Idler (no brakes) |
| Bolt Pattern | 5 on 4.5" |
| Inner Bearing | L68149 (1-3/8" ID) |
| Outer Bearing | LM67048 (1-1/4" ID) |
| Grease Seal | GS19 — 1.87" ID × 2.56" OD |
| Dust Cap | 1601 — 2.33" OD |
Fitment Note: This kit requires an axle using a L68149 inner bearing. Verify bearing numbers and seal dimensions before installation.
