At a Glance
- >Replacement master cylinder assembly
- >Fits Titan Model 6 surge brake actuators
- >Designed for drum brake systems
- >Self-tapping bolt option available (sold separately)
- >Master cylinder
- Brand: Waymire
- SKU: 1777401
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Connector | Match the connector and circuit count. |
|---|---|
| Function | Verify circuits rather than wire color alone. |
| Voltage | Confirm system voltage. |
Product Details

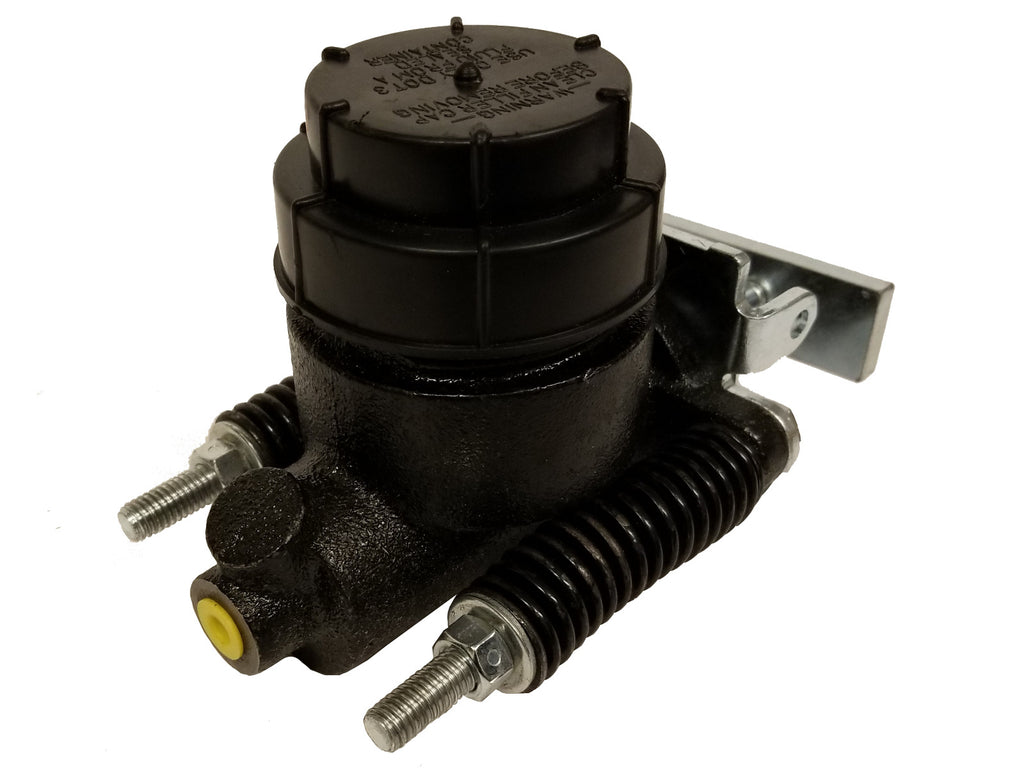

Titan Model 6 Brake Actuator Master Cylinder Assembly – Drum Brake – 1777401
Part Number: 1777401
Replacement master cylinder assembly designed for Titan Model 6 brake actuators.Compatible with drum brake systems only.
R&P Knowledge Hub
Surge brake actuators use a hydraulic master cylinder to apply braking force when the trailer compresses the actuator during deceleration. Proper master cylinder function is critical for maintaining safe trailer braking performance.
Features
- Replacement master cylinder assembly
- Fits Titan Model 6 surge brake actuators
- Designed for drum brake systems
- Self-tapping bolt option available (sold separately)
Specifications
| Specification | Detail |
| Compatible Actuator | Titan Model 6 |
| Brake Type | Drum Brake Systems |
| Orifice Connector Opening | 0.015" |
| Optional Bolt | 5/16" x 1/2" Self-Tapping Hex Bolt (T1781500) |
Verify actuator model and brake type before installation.
Includes
- Master cylinder
- Cylinder mounting plate
- Push rod assembly
- Hex bolt – 5" long x 3/8" diameter
- Hex nut – 3/8"
- Washer – 3/8"
- Return spring
- Diaphragm master cylinder cap
