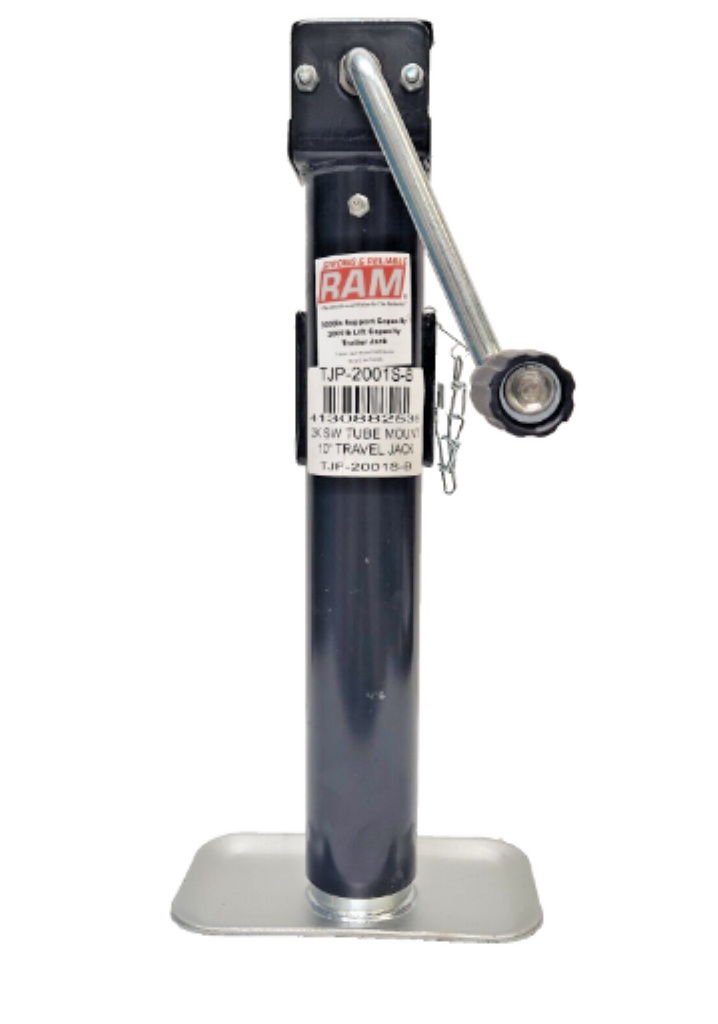

2,000 lb Side Wind Tube Mount Trailer Jack with Foot
Part Number: TJP-2001S-B
This side wind tube mount trailer jack is designed to lift up to 2,000 lbs and support up to 3,000 lbs static load. The jack swivels 90 degrees when not in use and locks into position with the integrated retention pin for secure travel.
Features
- Side wind crank operation
- Swivels 90 degrees for travel clearance
- Integrated locking retention pin
- Mounts to standard 2" trailer tongue tubes
- Includes flat foot plate
- Grease fitting for maintenance
- Black powder-coated outer tube with zinc-plated inner tube
Specifications
| Lift Capacity | 2,000 lbs |
|---|---|
| Static Support Capacity | 3,000 lbs |
| Mounting Type | Side mount, swivel tube |
| Mounting Tube Size | 2" tube |
| Travel / Lift | 10" |
| Retracted Height | 26" overall |
| Foot Plate Size | 7" x 4" flat foot |
| Finish | Black powder-coated outer tube, zinc-plated inner tube |
Verify mounting tube size, clearance, and load requirements before installation.
