RAM 20K Dual Pin Spring Loaded Sidewind Drop Leg Trailer Jack with Handle
Steel sidewind drop leg trailer jack with dual pin spring loaded leg design, handle, and clip included. Built for heavy-duty trailer applications requiring high-capacity support, controlled sidewind operation, and added drop leg adjustment.
Overview
The RAM steel 20K dual pin spring loaded sidewind drop leg jack is built for heavy-duty trailer applications where a high-capacity drop leg jack is required. The assembly includes the handle and clip, with a 20,000 lb static load rating, 12,000 lb lift capacity, and 13.75" drop leg for added height adjustment when the trailer setup matches the required capacity, working height, and mounting arrangement.
R&P Service Insight
Trailer jack replacement should be matched by capacity, travel, mounting setup, and handle clearance before ordering.
- Capacity: Rated for 20,000 lbs static load capacity with 12,000 lbs lift capacity.
- Travel: 28.5" retracted height and 54.75" extended height for heavy-duty trailer support applications.
- Drop Leg: 13.75" drop leg gives additional height adjustment and helps reduce unnecessary cranking.
R&P Knowledge Hub
Compatibility: Intended for heavy-duty trailer jack applications requiring a sidewind, spring loaded drop leg jack with 20K static capacity.
Vehicle / System Fit: Heavy-duty trailer jack replacement or installation where this capacity and sidewind drop leg configuration are required.
Installation Notes: Verify your existing jack style, mounting arrangement, retracted height, extended height, required lift capacity, and sidewind handle clearance before ordering.
Performance Insight: A drop leg jack reduces the amount of cranking needed by allowing the leg to be positioned closer to the ground before lifting.
Brand & Fitment Note
Selling Brand: RAM
Application Reference: Heavy-duty trailer jack replacement or installation where the listed capacity, sidewind operation, drop leg design, and working height match the trailer setup.
Included Components: One RAM steel 20K dual pin spring loaded sidewind drop leg jack with handle and clip.
Before Ordering: Compare all measurements and confirm this jack matches your trailer’s mounting style, load requirements, working height, and handle clearance.
R&P Repair Insight
If your existing jack is bent, difficult to crank, slipping under load, or no longer holding the trailer safely, replacement may be the cleanest repair path. Match the new jack by load rating and operating height, not just by appearance.
- Check Height: Compare the 28.5" retracted height and 54.75" extended height to your trailer setup.
- Check Load: Confirm the 20K static and 12K lift capacity meet your trailer’s requirements.
- Check Clearance: Make sure the sidewind handle has enough room to rotate after installation.
Features
Heavy-Duty Capacity
Rated for 20,000 lbs static load capacity and 12,000 lbs lift capacity for demanding trailer jack applications.

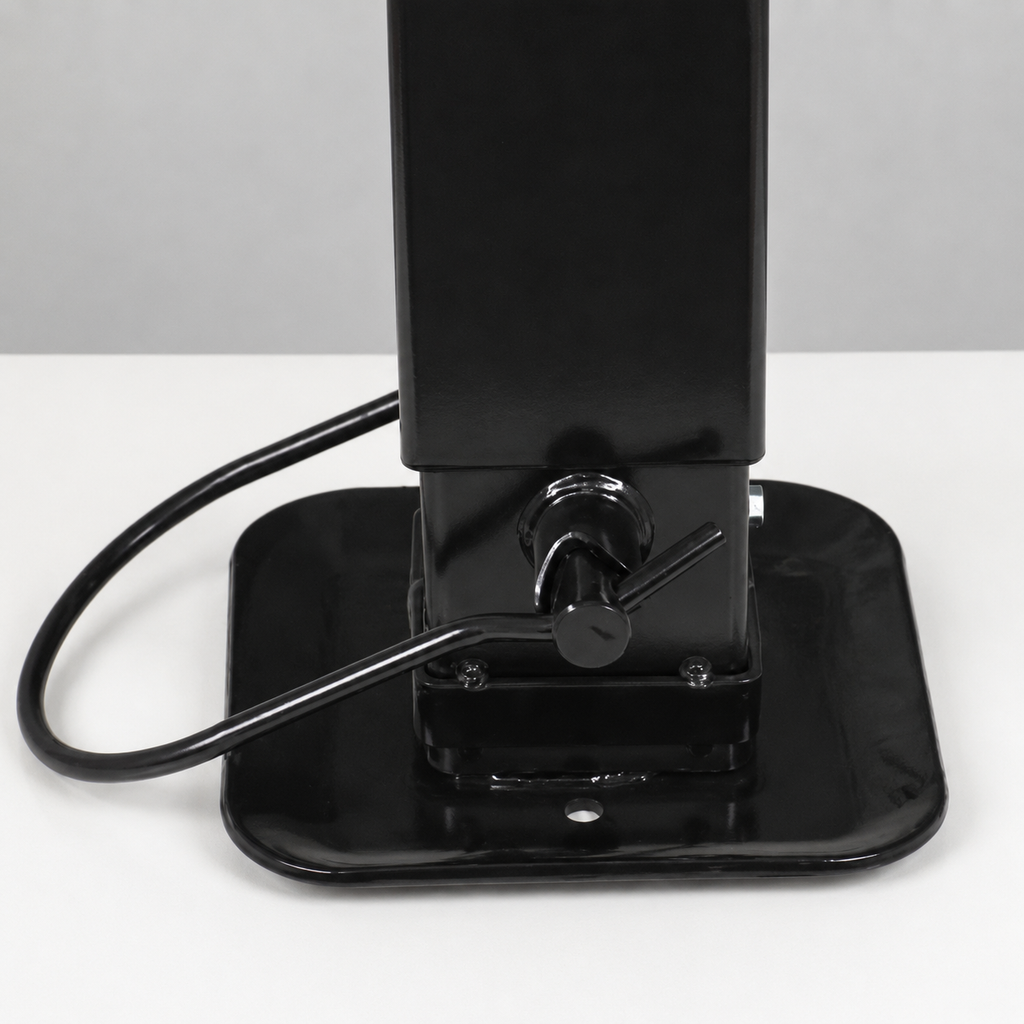

Spring Loaded Drop Leg

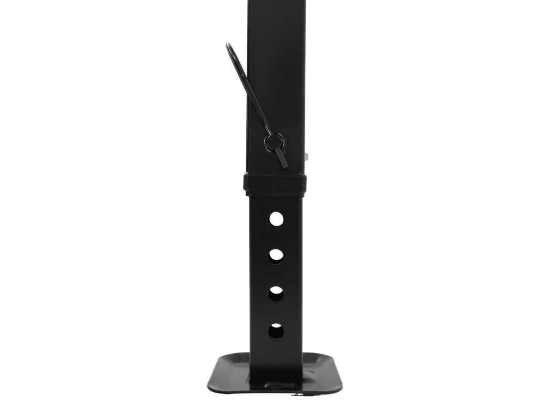

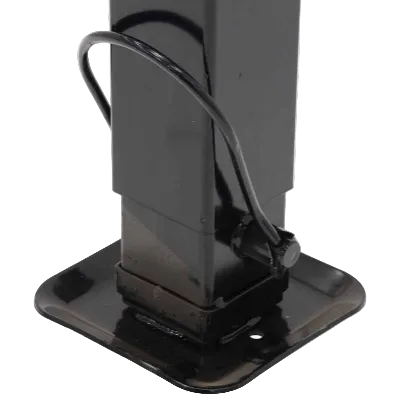

Dual pin spring loaded drop leg design provides added adjustment range and helps reduce unnecessary cranking.

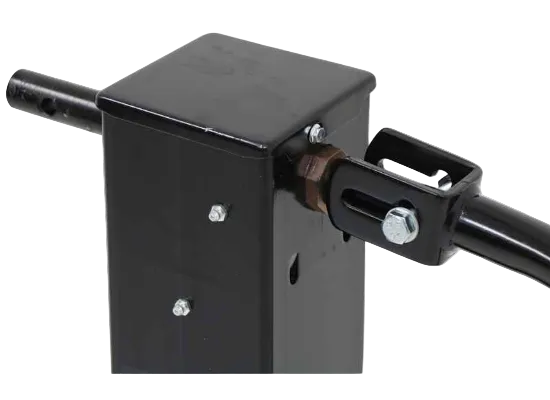

Sidewind Operation
Sidewind handle configuration supports controlled jack operation in heavy-duty trailer applications.
Handle & Clip Included
Includes the jack assembly, handle, and clip as listed for a complete replacement or installation component.

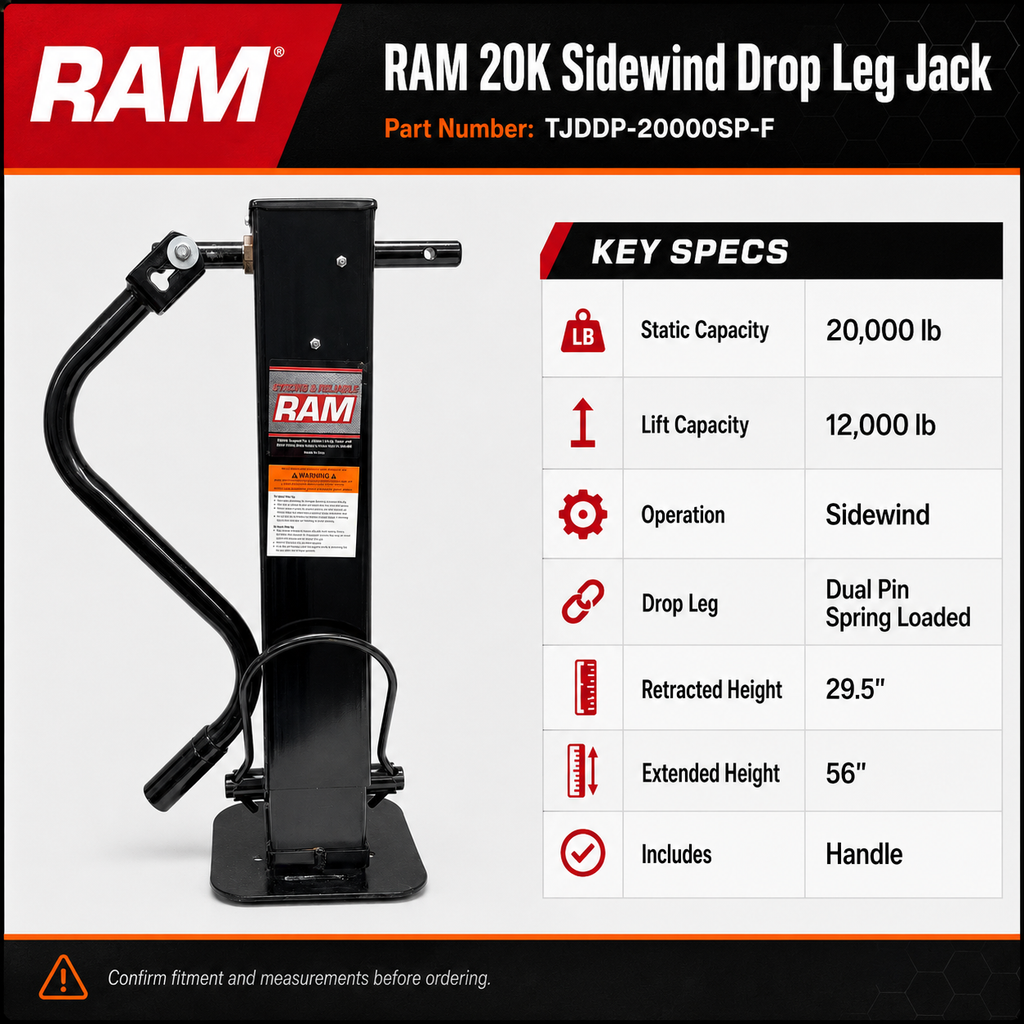

Specifications
| Specification | Detail |
|---|---|
| Part Number / SKU | TJDDP-20000SP-F |
| Brand | RAM |
| Product Type | Sidewind spring loaded drop leg trailer jack |
| Quantity Included | One jack assembly with handle and clip |
| Static Load Capacity | 20,000 lbs |
| Lift Capacity | 12,000 lbs |
| Material / Finish | Steel |
| Operation | Sidewind |

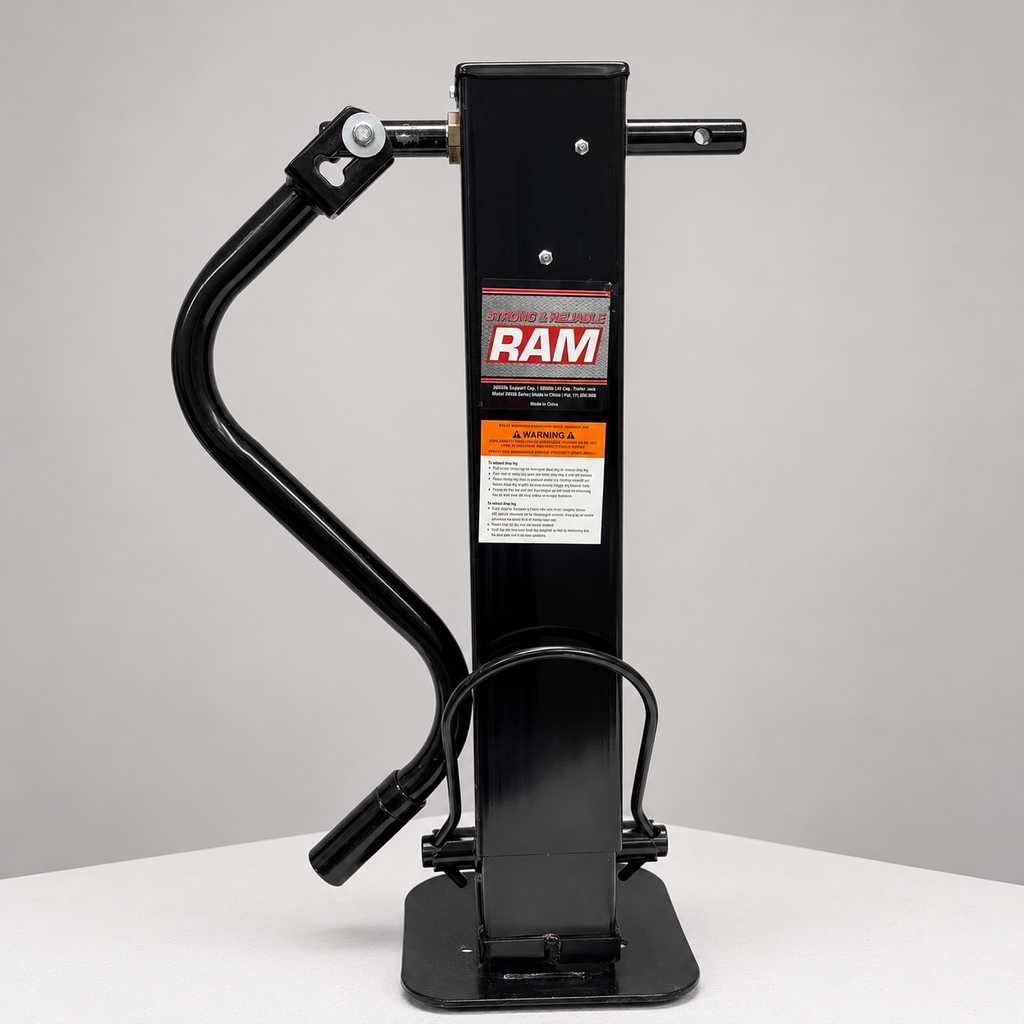

| Retracted Height | 28.5" |
| Extended Height | 54.75" |

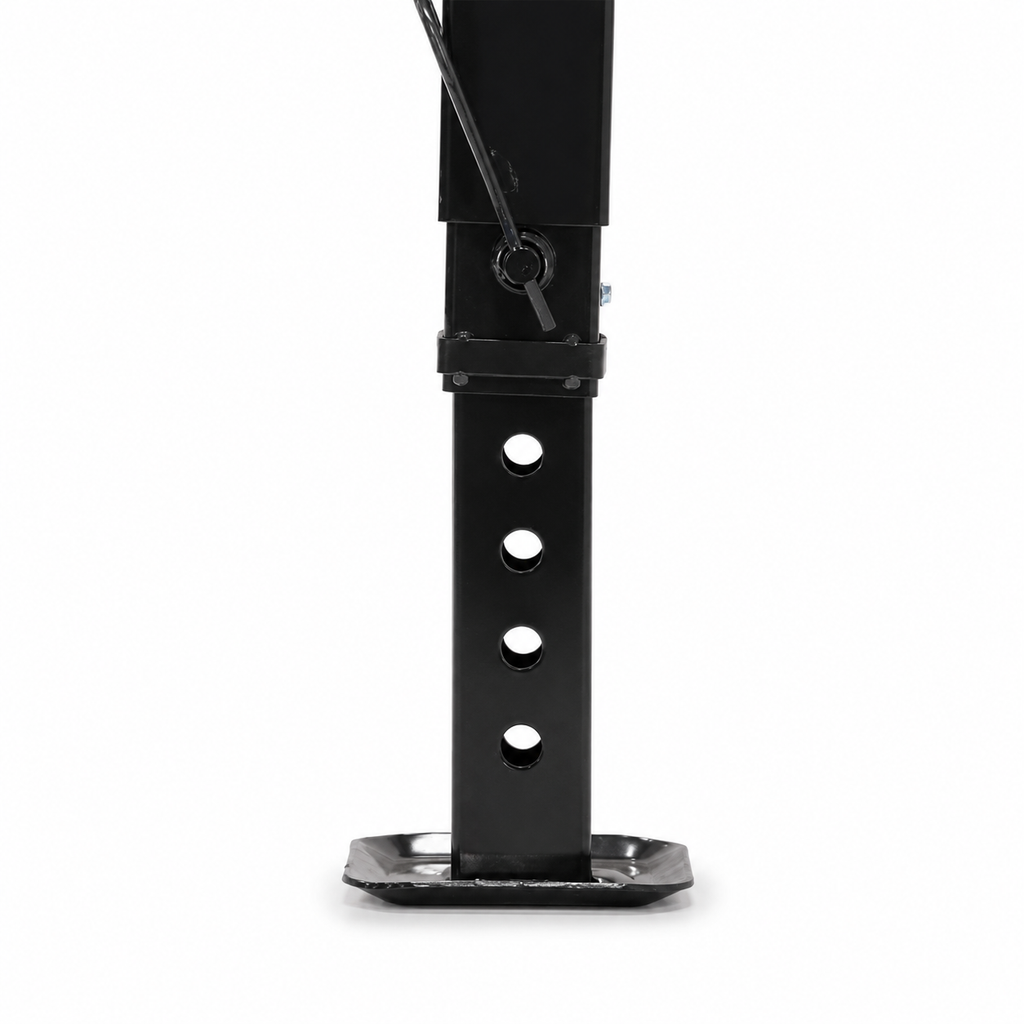

| Drop Leg | 13.75" |
Fitment / Application
| Category | Details |
|---|---|
| System | Heavy-duty trailer jack applications |
| Primary Fit | Trailers requiring a 20K static / 12K lift sidewind drop leg jack |
| Common Uses | Replacement jack, service replacement, or new heavy-duty trailer jack installation |
| Notes | Confirm mounting style, working height, capacity, and handle clearance before ordering. |
Detailed Measurements
| Key Dimension | Measurement |
|---|---|
| Retracted Height | 28.5" |
| Extended Height | 54.75" |
| Drop Leg | 13.75" |
| Operation Style | Sidewind |
Included Components
| Quantity | Item |
|---|---|
| 1 | RAM steel 20K dual pin spring loaded sidewind drop leg jack |

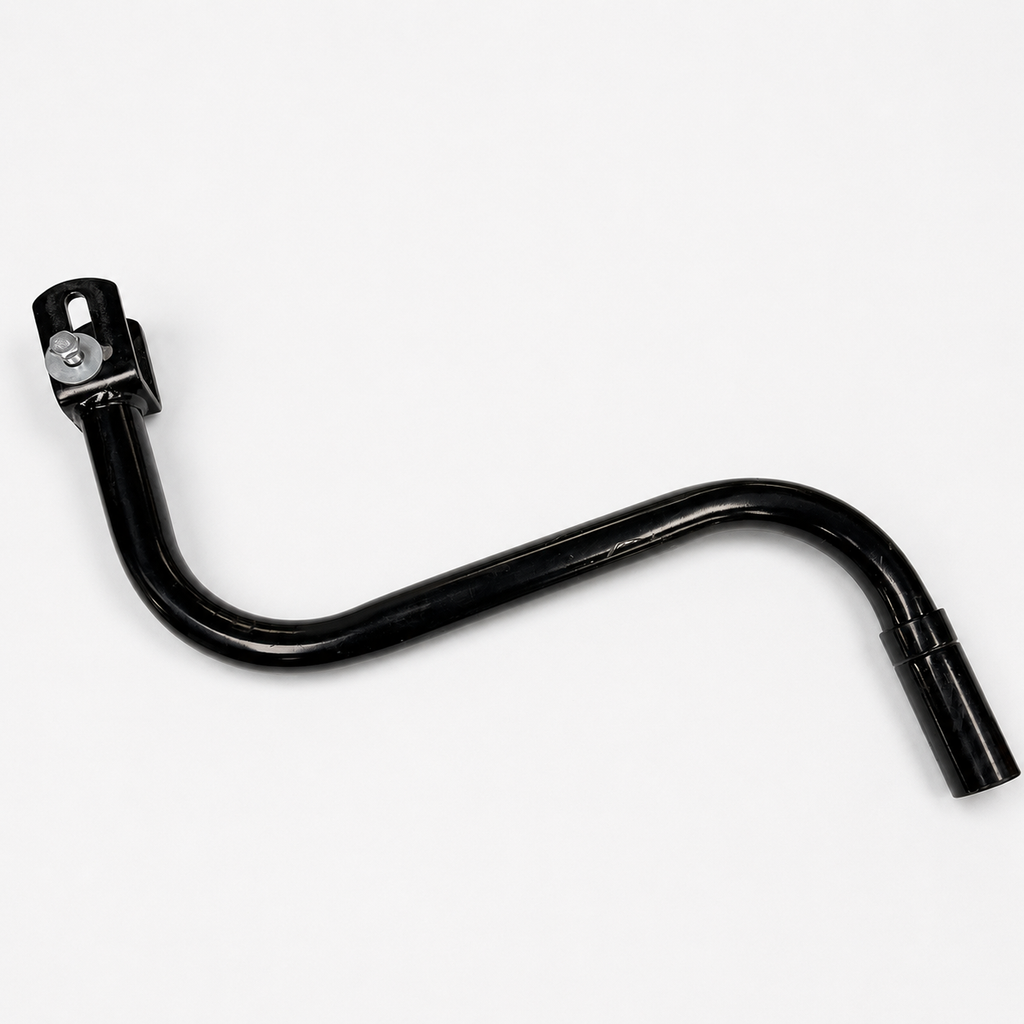

| 1 | Handle |
| 1 | Clip |
