One 1.75" Spring Perch for 2,000 lb Round Trailer Axle 1.75" Fit
Replacement spring perch designed for 1.75" round trailer axles commonly used in 2,000 lb axle applications. A practical weld-on mounting point for positioning trailer leaf springs during axle repair, replacement, or fabrication work.
Overview
This spring perch is used as a leaf spring mounting seat on compatible 1.75" round trailer axles. It provides the saddle-style mounting point needed to locate the axle properly on the spring pack. Ideal for trailer axle repair, replacement axle setup, and light-duty fabrication where the listed measurements match the existing axle and suspension layout.
R&P Service Insight
Spring perches are small parts, but placement matters. Before welding or installation, confirm axle diameter, spring width, center pin location, and axle orientation.
- Axle Match: Designed for 1.75" round axle tube applications.
- Spring Location: The spring center bolt should align with the perch hole before final welding.
- Install Check: Measure both sides carefully to keep the axle square under the trailer.
R&P Knowledge Hub
Compatibility: Intended for 1.75" round trailer axle tubes where the perch dimensions match the existing suspension setup.
Trailer System Fit: Commonly used with light-duty 2,000 lb trailer axle applications.
Installation Notes: This is typically a weld-on component. Final welding should be performed only after axle alignment, spring spacing, and pin-hole position are confirmed.
Performance Insight: Correct spring perch location helps maintain axle tracking, suspension alignment, and even trailer handling.
R&P Repair Insight
When replacing spring perches, do not assume the old perch location is correct unless the trailer previously tracked properly. Damaged, bent, or poorly welded perches can cause alignment problems and uneven tire wear.
- Check Tube Diameter: Confirm the axle tube is 1.75" round before ordering.
- Check Spring Width: This perch has an inside channel width of approximately 1-1/2".
- Check Hole Size: The spring center bolt hole is approximately 5/8" diameter.
Features
Fits 1.75" Round Axles
Designed for compatible 1.75" round trailer axle tubes used in light-duty trailer suspension setups.
2,000 lb Axle Application
Commonly used for 2,000 lb trailer axle spring mounting applications where dimensions match.
5/8" Bolt Hole
Features an approximately 5/8" center hole for locating the spring center bolt.
Compact Weld-On Seat

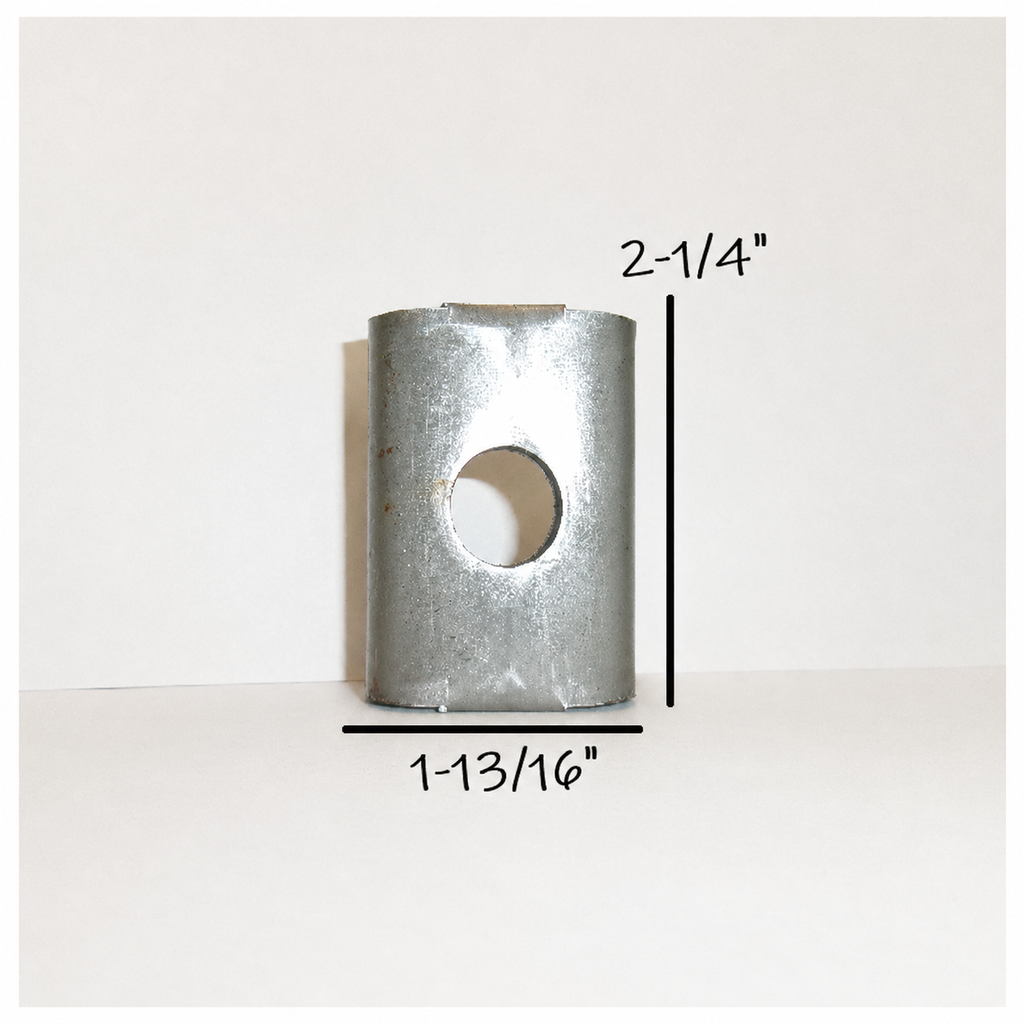

Approximate 2" length, just under 2" width, and 1" height for compact axle mounting use.
Specifications
| Specification | Detail |
|---|---|
| Part Number | TP-S200 |
| Product Type | Trailer axle spring perch |
| Axle Application | 2,000 lb round trailer axle |
| Axle Tube Fit | 1.75" round axle |
| Bolt Hole Diameter | Approximately 5/8" |
| Length | Approximately 2" |
| Width | Just under 2" |
| Height | Approximately 1" |
| Inside Channel Width | Approximately 1-1/2" |
| Installation Style | Weld-on spring perch |
Fitment / Application
| Category | Details |
|---|---|
| Trailer Type | Light-duty utility, small cargo, marine, and general trailer applications where dimensions match |
| Primary Fit | 1.75" round trailer axle tube |
| Axle Rating Reference | Commonly used with 2,000 lb axle applications |
| Notes | Verify axle diameter, spring width, center bolt size, and perch spacing before installation. |
Included Components
| Quantity | Item |
|---|---|
| 1 | 1.75" spring perch for compatible 2,000 lb round trailer axle applications |
