15-Pack 3/4" Red / Clear LED Marker Lights with 12" Spaced Harness – M50960-100 System
|
|
|
|

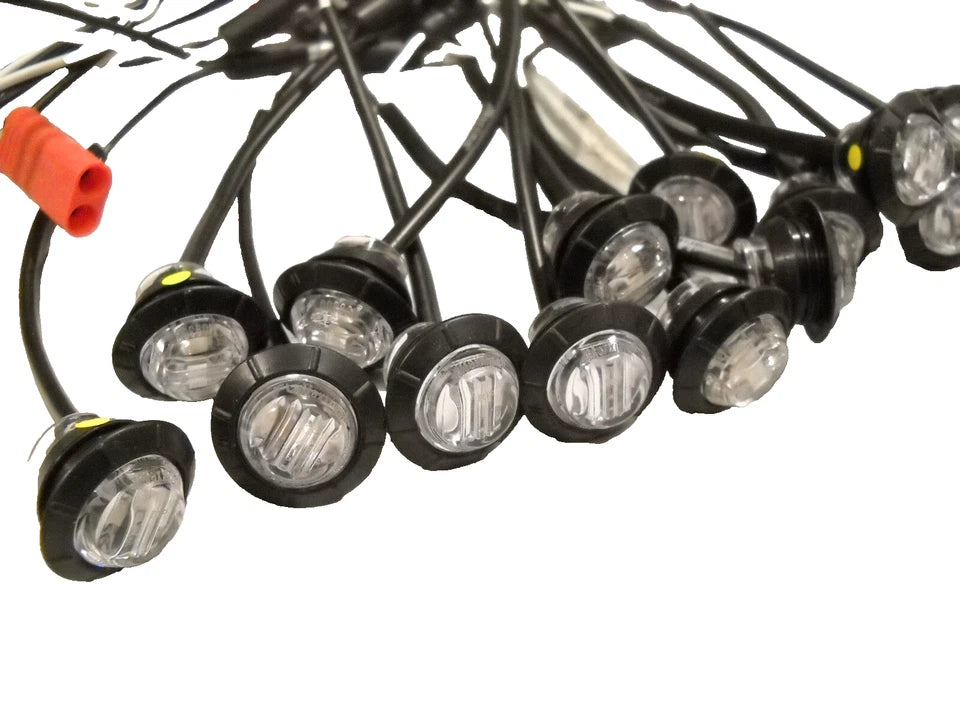

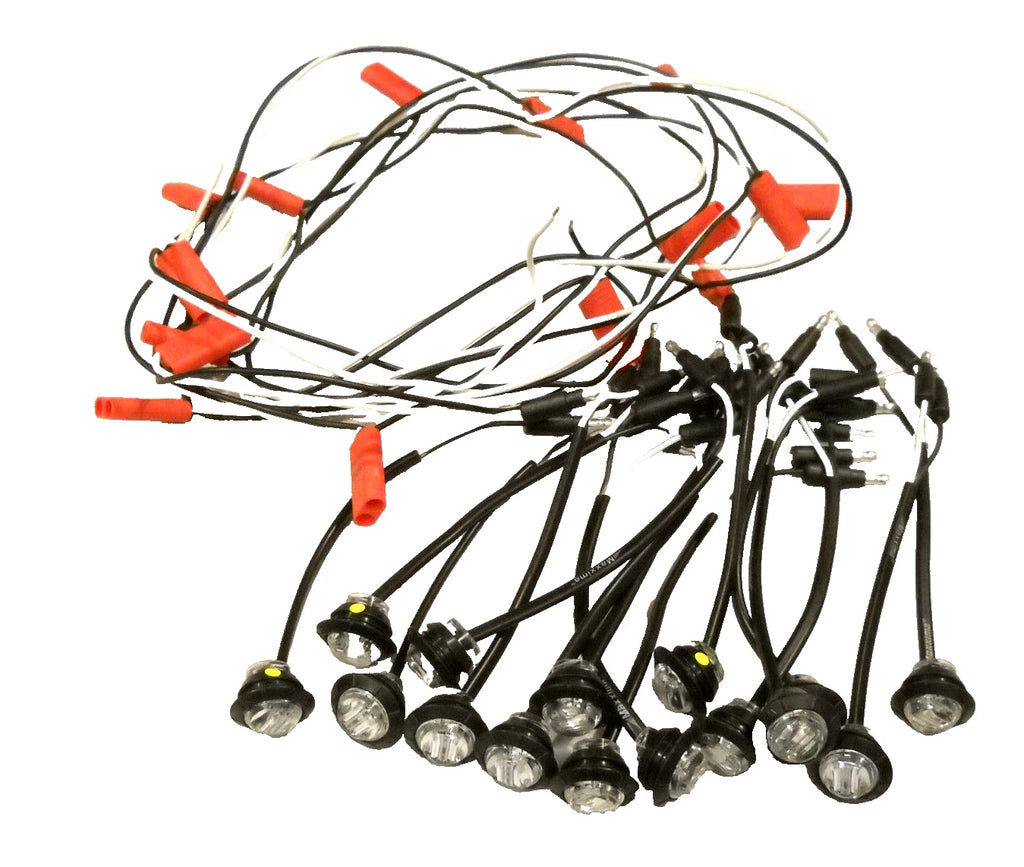

Complete 15-light clearance and marker lighting system including fifteen 3/4" red LED bullet lights installed into an M50960-100 continuous twin-wire harness with 12" spacing between connectors. Designed for trailer side runs, enclosed trailers, utility bodies, and commercial vehicle lighting systems. Includes lights, harness, and mounting grommets.
R&P Knowledge Hub
Continuous marker light harness systems reduce the need for individual splicing during installation and provide consistent spacing along trailer side rails. The 12" spacing between connectors allows uniform light positioning and simplifies layout planning. LED marker systems draw minimal amperage compared to incandescent systems while maintaining steady illumination.
Verify mounting hole diameter (3/4"), confirm 12V DC system compatibility, and measure required spacing before installation. This kit includes lights and harness only.
Features
- 15 red LED bullet-style marker lights
- M50960-100 continuous twin-wire harness
- 12" spacing between connectors

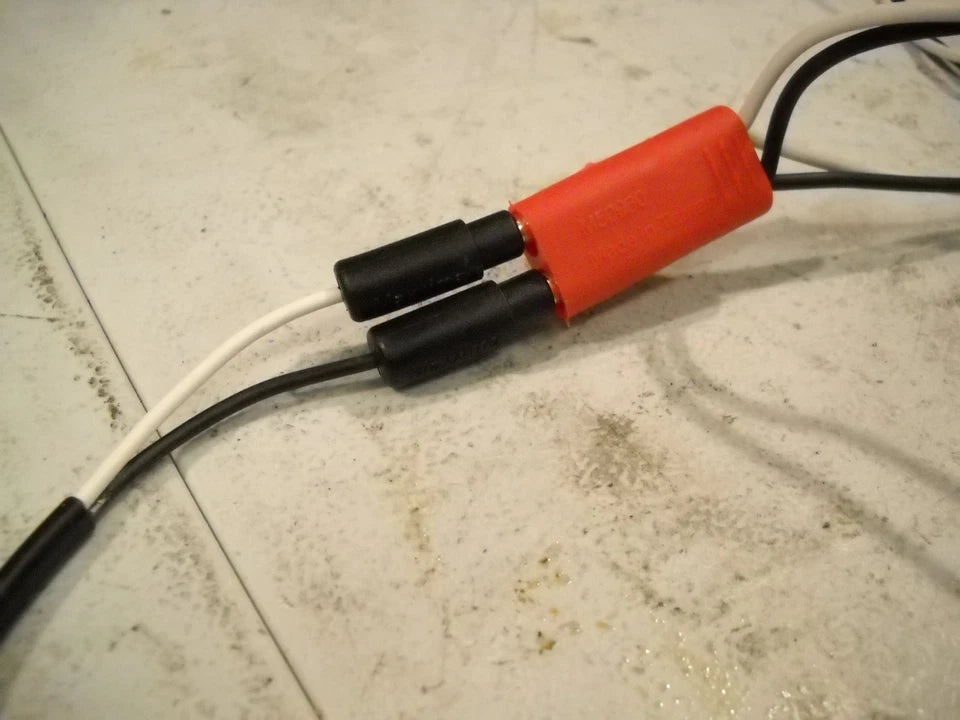

- Nickel-plated Gen 2 bullet connectors
- Clear polycarbonate lenses
Specifications
| Specification | Detail |
| Harness | M50960-100 |
| Spacing | 12" |
| Voltage | 12V DC |
| LED Count | 3 SMD LEDs per light |
| Mounting Hole | Standard 3/4" |
| Certification | DOT / SAE J592E |
Verify specifications before installation.
