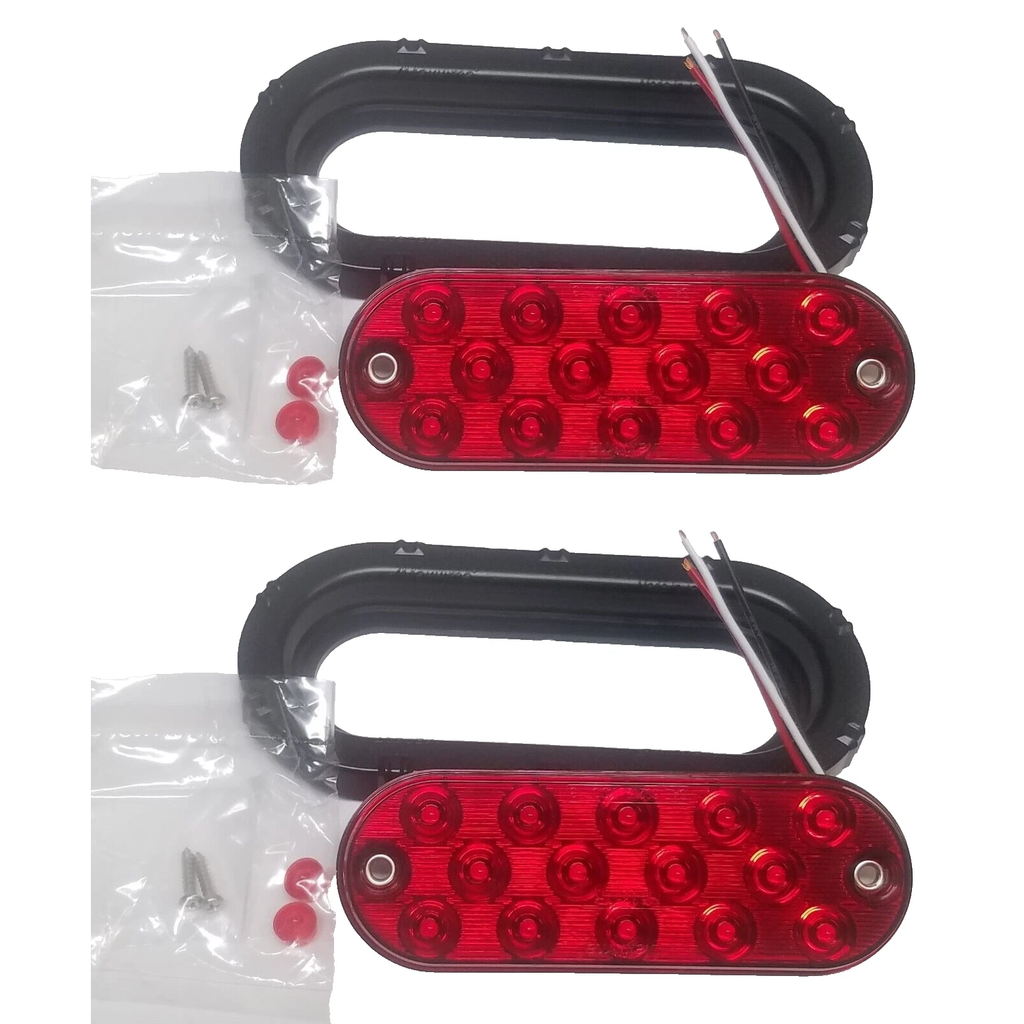

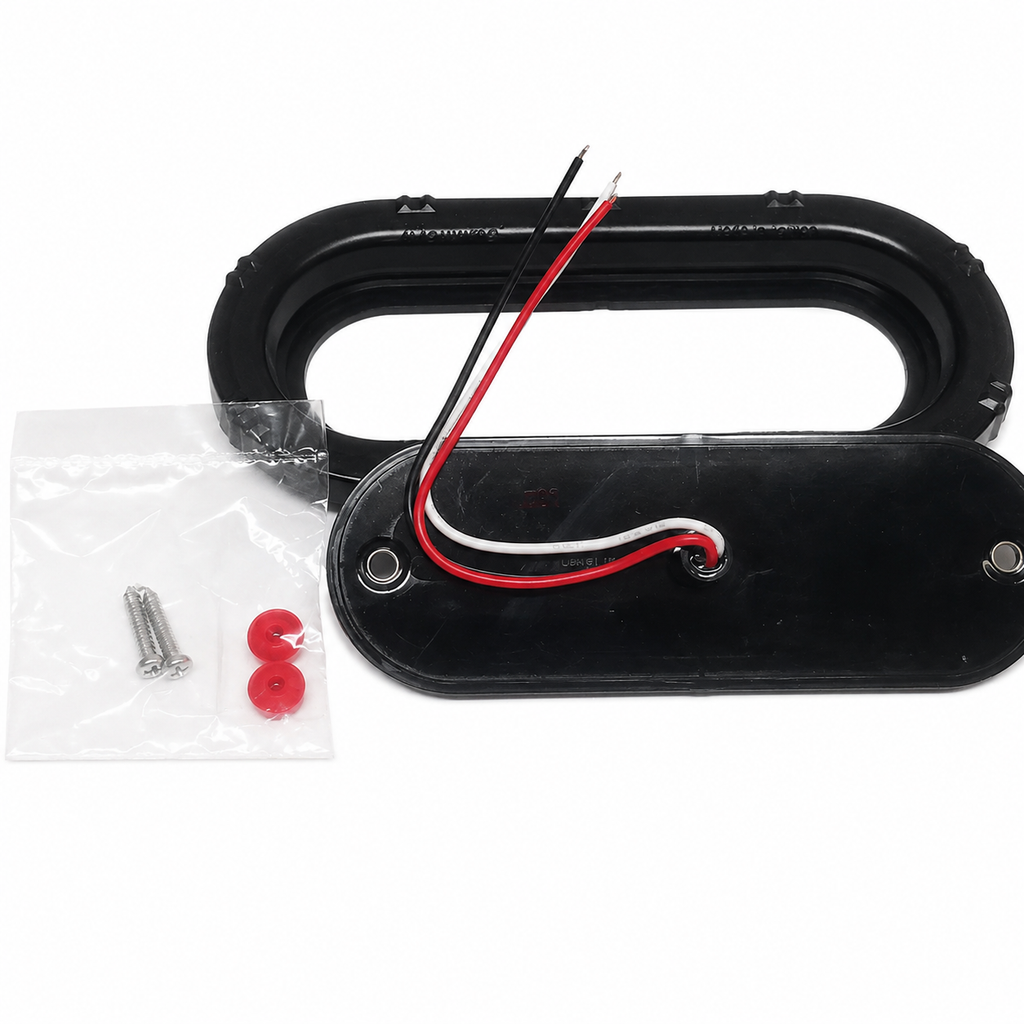

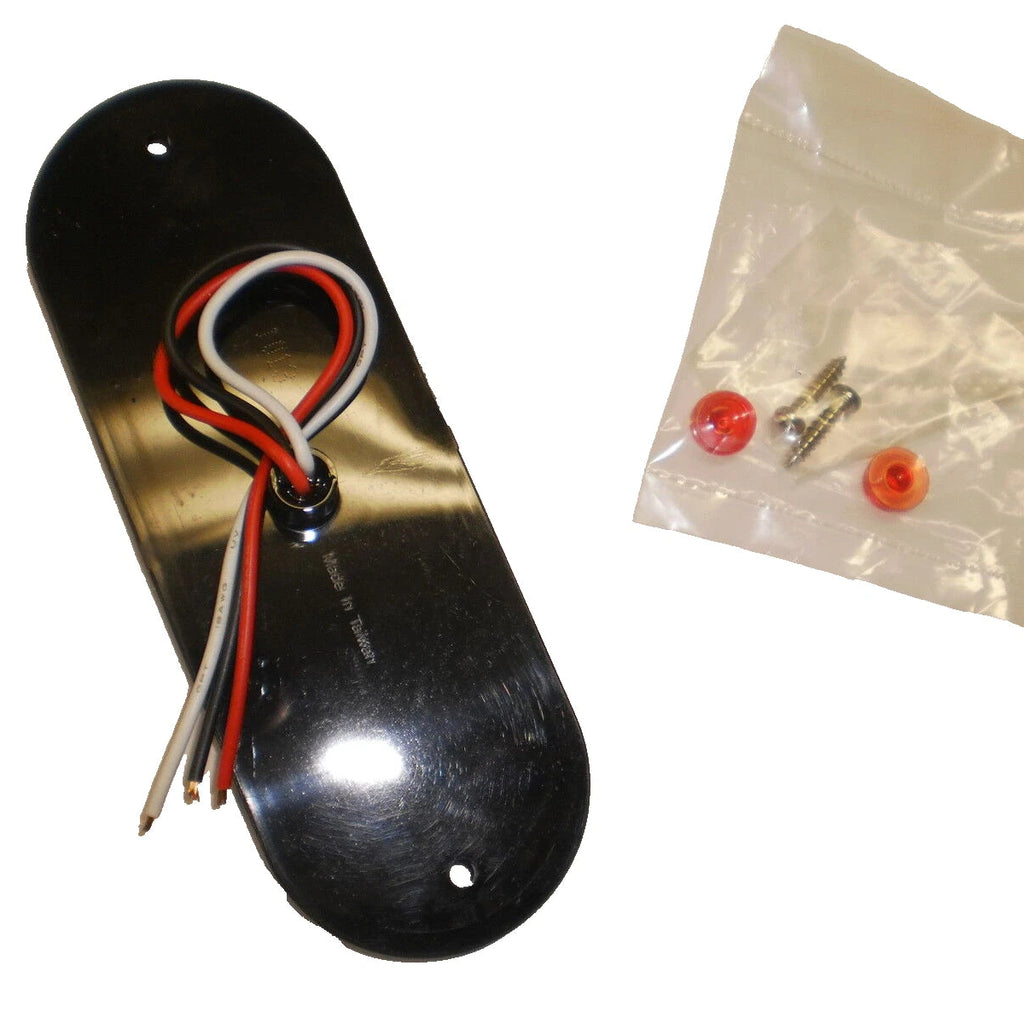

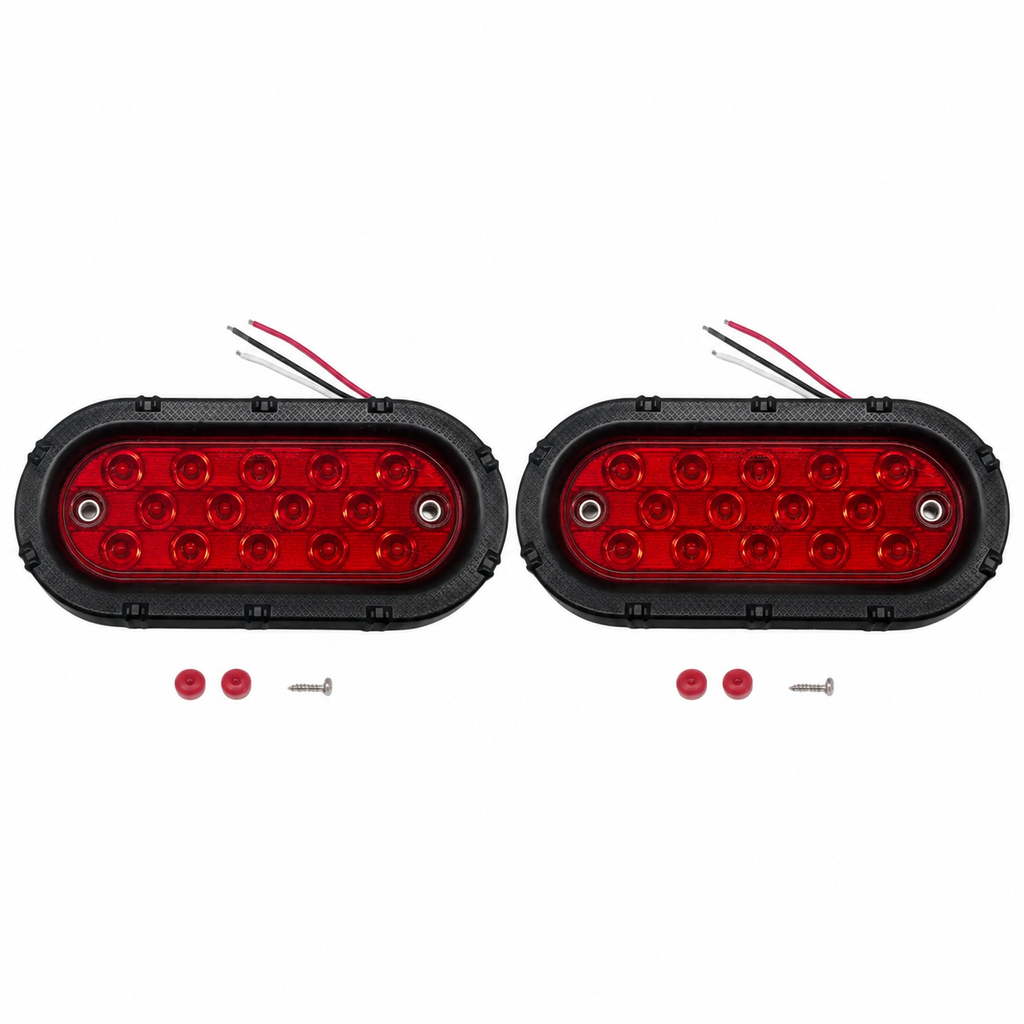

Two - Maxxima Red 6" Oval Low Profile LED Stop Tail Brake Lights with Two Grommets
This listing includes two Maxxima red oval LED stop / tail / brake lights and two matching low-profile oval grommets. Built for trailer, truck, RV, Jeep, service body, and utility lighting applications where the 6" oval size, 3-wire leads, and mounting style match.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | M63350R + M50607-LOTOF2 |
| Brand | Maxxima |
| Product Type | Red oval LED stop / tail / brake light kit with low-profile grommets |
| Light Size | 6.5" wide x 2.3" high x 0.4" deep |
| LED Count | 14 red LEDs per light |
| Voltage | 12.8 VDC |
| Amp Draw | 230 mA |
| Connector | 3-wire, 6" leads |
| Quantity Included | 2 lights and 2 low-profile oval grommets |
Fitment / Application
| Category | Details |
|---|---|
| Common Uses | Trailer stop / tail / brake lighting, truck lighting, RV lighting, utility trailer lighting, Jeep lighting, and service body lighting |
| Primary Fit | 6" oval low-profile applications where the light size, wiring, and mounting method match |
| Mounting Options | Low-profile grommet mount, surface mount with screws, or compatible adhesive tape mounting when used with the correct tape kit |
| Mounting Holes | 2 mounting holes, each 3/16" diameter, 5-1/2" center to center; screw hole covers included with lights |
| Important Note | Verify light dimensions, mounting clearance, wiring style, and existing opening before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Ultra-Thin Profile | 0.4" low-profile depth helps fit tight trailer, truck, RV, and utility lighting locations. |
| Sealed Electronics | Designed for exterior vehicle and trailer lighting use where moisture exposure is common. |
| Polycarbonate Lens & Housing | Durable construction for regular road-use lighting applications. |
| Horizontal or Vertical Use | Flexible installation orientation where the application and legal lighting layout allow. |
Overview
The Maxxima M63350R is a red 6" oval LED stop / tail / brake light with a slim 0.4" profile, 14 LEDs, and 3-wire 6" leads. This two-light kit also includes two Maxxima M50607 low-profile oval grommets for compatible grommet-mount installations.
R&P Service Insight
Low-profile oval lights are commonly used when a standard-depth oval light takes up too much space behind the panel. Before replacing an existing light, match the body size, wiring, and mounting method rather than ordering by appearance alone.
- Check the Opening: Confirm the cutout or mounting area accepts a 6" oval low-profile grommet setup.
- Check the Wiring: This light uses 3-wire 6" leads for stop / tail / brake function.
- Check the Mounting: This kit includes grommets, but the light can also be surface mounted with screws where that installation style is preferred.
R&P Knowledge Hub
Compatibility: Designed for 6" oval stop / tail / brake light applications where the dimensions, wiring, and mounting method match.
Vehicle / System Fit: Commonly used on trailers, trucks, RVs, Jeeps, utility trailers, enclosed trailers, service bodies, and similar 12V lighting systems.
Installation Notes: Verify polarity and function wiring before final installation. Test stop and tail functions before sealing the light into place.
Performance Insight: The ultra-thin body helps reduce clearance issues behind panels while the included grommets provide a cleaner low-profile mounted finish.
Brand & Fitment Note
Selling Brand: Maxxima
Application Reference: Trailer, truck, RV, Jeep, and service body references describe common lighting applications only.
What This Means: This listing is for a Maxxima two-light kit with matching low-profile grommets, not a guaranteed OEM-branded replacement unless specifically stated for your application.
Before Ordering: Verify measurements, mounting style, wire count, available depth, and required lighting function before installation.
R&P Repair Insight
When replacing trailer stop / tail lights, most fitment issues come from mismatched mounting depth, wire count, or grommet style. Compare the existing light and opening before removing old wiring or cutting into the trailer body.
- Mounting Depth: This light is 0.4" deep, making it useful for shallow mounting areas.
- Wire Function: Match the 3-wire leads to the correct tail and stop / brake circuits before final crimping or sealing.
- Grommet Fit: Use the included low-profile grommets only where the panel opening and light body are compatible.
Features
Two-Light Kit
Includes two Maxxima M63350R red oval LED stop / tail / brake lights and two compatible low-profile oval grommets.
Ultra-Thin 0.4" Design
Low-profile body helps with shallow trailer panels, service bodies, RV panels, and tight mounting locations.
14 Red LEDs Per Light
LED design provides stop / tail / brake lighting for compatible 12.8 VDC vehicle and trailer systems.
Multiple Mounting Options
Can be mounted with the included low-profile grommets or surface mounted with screws where that installation method fits the application.
Included Components
| Quantity | Item |
|---|---|
| 2 | Maxxima M63350R red 6" oval low-profile LED stop / tail / brake lights |
| 2 | Maxxima M50607 low-profile oval grommets |
| Included with lights | Mounting screws and screw hole covers |
| Not Included | Adhesive mounting tape kit, wiring connectors, sealant, and installation tools |
