Two - Maxxima Red 6" Oval Low Profile LED Stop Tail Brake Lights with Two Mounting Tape
Pair of red Maxxima 6" oval low-profile LED stop, tail, and brake lights with mounting tape included. Designed for trailer, truck body, RV, utility body, and equipment lighting applications where the size, wiring, and mounting style match.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | M63350R + M63350-TAPE-LOTOF2 |
| Brand | Maxxima |
| Product Type | Red oval LED stop / tail / brake light pair |
| LED Count | 14 LEDs per light |
| Overall Size | 6.5" wide x 2.3" high x 0.4" deep |
| Voltage | 12.8 VDC |
| Amp Draw | 230 mA |
| Connector | 3-wire 6" leads |
| DOT / SAE | J1395, J1398, J585e |
| Legal Heading | I6S2T2 |
| Quantity Included | 2 lights with mounting tape |
Fitment / Application
| Category | Details |
|---|---|
| Common Uses | Trailer stop, tail, and brake lighting; truck body lighting; RV lighting; utility trailer lighting; service body lighting |
| Mounting Style | Grommet, tape, or screw mount depending on installation surface and hardware used |
| Orientation | Horizontal or vertical use |
| Mounting Holes | Two 3/16" diameter holes, 5-1/2" center to center; screw hole covers included |
| Fitment Method | Match the 6.5" x 2.3" light size, 3-wire lead connection, mounting hole spacing, and required mounting method before ordering |
| Important Note | Verify light size, wiring function, mounting surface, and clearance before installation |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Ultra-Thin Profile | 0.4" low-profile depth works well where a compact surface-mounted light is needed |
| Sealed Electronics | Built for exterior trailer lighting environments where moisture resistance matters |
| Polycarbonate Lens & Housing | Durable housing and lens construction for trailer and equipment applications |
| Mounting Tape Included | Listing includes mounting tape for compatible adhesive-mount installations |
Overview
This listing is for two Maxxima M63350-R red LED stop, tail, and brake lights with mounting tape included. These 6" oval low-profile lights are designed for 12.8 VDC trailer and vehicle lighting systems where a compact red LED light is needed for stop, tail, and brake light functions. Each light has 14 LEDs, sealed electronics, a polycarbonate lens and housing, and 3-wire 6" leads.
R&P Service Insight
Before replacing a trailer stop/tail/brake light, confirm whether the existing light uses a 3-wire setup and whether the trailer body is set up for tape, grommet, or screw mounting.
- Measure First: Confirm the 6.5" x 2.3" overall light size before replacing an existing light.
- Check Wiring: This light uses 3-wire 6" leads for stop, tail, and brake light function.
- Confirm Mounting: Match the mounting method to your trailer surface before installation.
R&P Knowledge Hub
Compatibility: Designed for compatible trailer, truck body, RV, and utility lighting applications where the dimensions, wiring, and mounting style match.
Vehicle / System Fit: 12.8 VDC lighting systems using a red 3-wire stop / tail / brake light configuration.
Installation Notes: Clean and prepare the mounting surface before using adhesive tape. For screw mounting, use the 5-1/2" center-to-center mounting hole spacing and verify screw clearance behind the mounting surface.
Performance Insight: The 0.4" low-profile design helps reduce light protrusion while still providing a sealed LED stop, tail, and brake light assembly.
Brand & Fitment Note
Selling Brand: Maxxima
Application Reference: Trailer, truck body, RV, utility trailer, service body, and equipment lighting references are application examples only.
What This Means: This listing is for a pair of Maxxima red oval LED stop / tail / brake lights with mounting tape, not a guaranteed direct replacement for every 6" oval trailer light.
Before Ordering: Verify overall dimensions, wire count, lead length, mounting method, mounting hole spacing, and required lighting function before installation.
R&P Repair Insight
Many trailer light replacement issues come from mismatched wiring, poor ground connections, incorrect mounting style, or ordering a light based only on general shape. Match the complete light specification before replacing both lights.
- Function Check: Confirm the trailer needs a red stop / tail / brake light, not a reverse, marker, or clearance light.
- Wiring Check: Confirm the existing light uses a 3-wire lead setup and that the trailer wiring is in good condition.
- Mounting Check: Verify whether your application requires adhesive tape, screws, or a compatible grommet before installation.
Features
Ultra-Thin Low Profile Design
0.4" deep housing provides a compact installation profile for compatible trailer and vehicle lighting applications.
Red LED Stop / Tail / Brake Function
Designed for red rear lighting applications using a 3-wire 12.8 VDC electrical connection.
Sealed Electronics
Completely sealed electronics help protect the light assembly in exterior trailer lighting environments.
Flexible Mounting Options
Can be used horizontally or vertically and supports compatible grommet, tape, or screw-mounted installations.

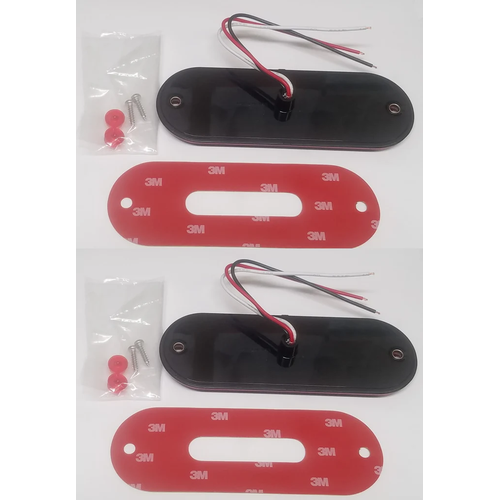

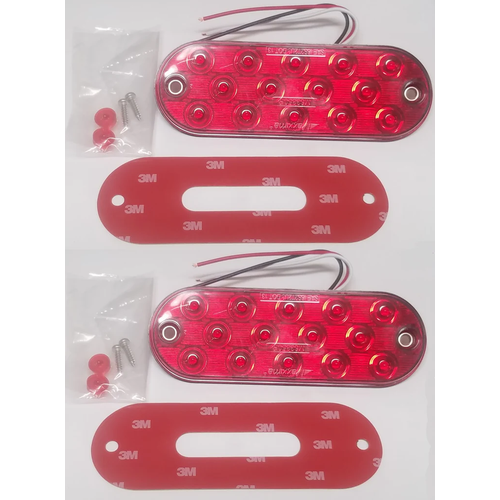

Included Components
| Quantity | Item |
|---|---|
| 2 | Maxxima M63350-R red oval LED stop / tail / brake lights |
| 2 | Mounting tape pieces for compatible tape-mount installation |
| Included | Mounting screws and screw hole covers |
