Match the part number, measurements and connection points that apply to your trailer.
| Opening | Measure the existing roof or wall opening. |
|---|---|
| Flange | Confirm overall and flange dimensions. |
| Operation | Confirm powered, manual or fixed operation. |
| Mount / Power | Verify mounting and electrical requirements. |

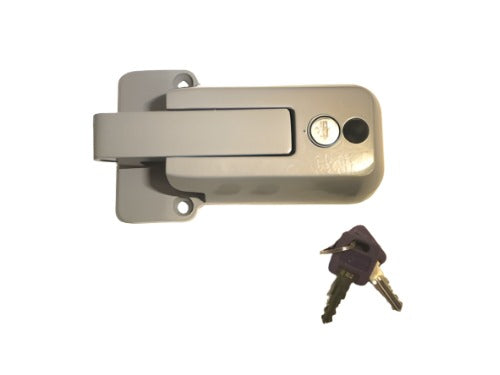

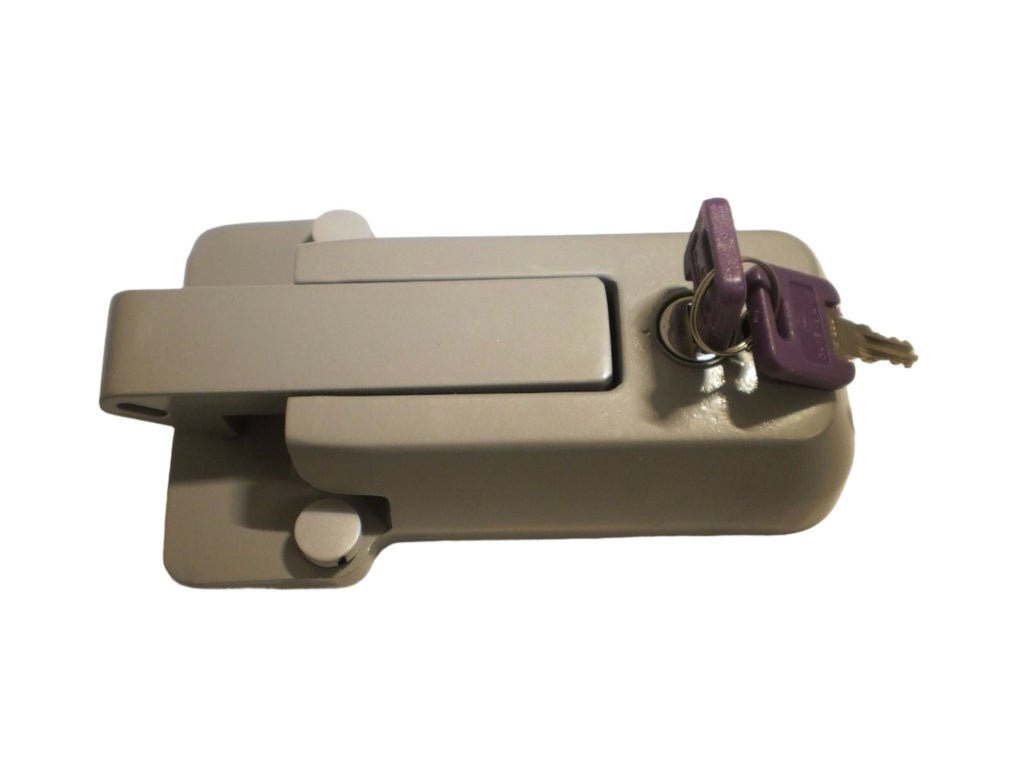

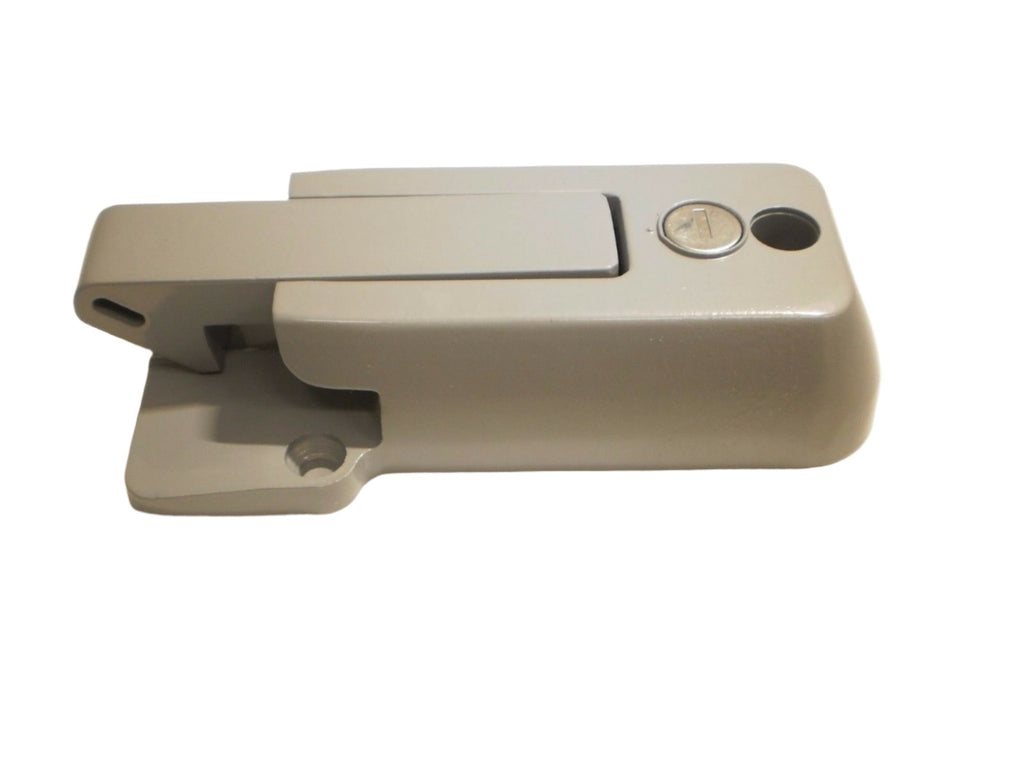

A heavy-duty 5-piece set of self-latching vise locks designed for enclosed cargo, horse, and utility trailers to secure cam bars automatically upon closure.
The CBL-G-5X is a specialized security solution for trailer cam bar systems. Featuring a spring-assisted "vise-style" design, it wraps around the door handle to provide superior security compared to standard padlocks. This FIC / R&P Carriages 5-pack bundle is ideal for multi-door trailers or fleet management, ensuring all locks operate on the same key code for maximum efficiency.
We recommend these for users who want convenience without sacrificing security. The "slam-to-lock" feature is a game changer for busy job sites.
Compatibility: Designed for standard cam bars approximately 1-1/4" Wide x 1/2" Thick.
Mechanism: Key is required for opening only; the unit self-latches when the bar is pushed in.
Installation Notes: Features a 3-hole mounting pattern for secure attachment to the trailer wall. Uses 1/4" bolts (not included).
Performance Insight: These locks cannot be manually overridden from the outside once latched; always keep a spare key in a safe location.
Selling Brand: FIC / R&P Carriages
Application Reference: Any OEM or platform names in this listing describe compatibility, fitment target, or application style only where supported by verified dimensions, mounting points, and configuration details.
What This Means: This listing is for an FIC / R&P Carriages specialized locking system, designed to replace or upgrade existing "vise-lock" style housings on trailer door frames.
Before Ordering: Verify your cam bar width (approx. 1-1/4") and thickness (1/2") to ensure proper fitment within the vise-grip housing.
Installing these is a straightforward upgrade for enclosed trailers. Proper alignment and basic upkeep ensure these locks function smoothly for years.
Unit automatically clicks and locks when the cam bar is inserted—no key required to secure the door.
Specifically designed to wrap around the bar for a more integrated, tamper-resistant locking point.
Includes 5 individual locks all coded to the same key for maximum convenience across multiple doors.
Durable Silver/Gray powder coating provides excellent resistance against rust and road debris.
| Specification | Detail |
|---|---|
| Part Number | CBL-G-5X |
| Brand | FIC / R&P Carriages |
| Product Type | Self-Latching Vise Lock |

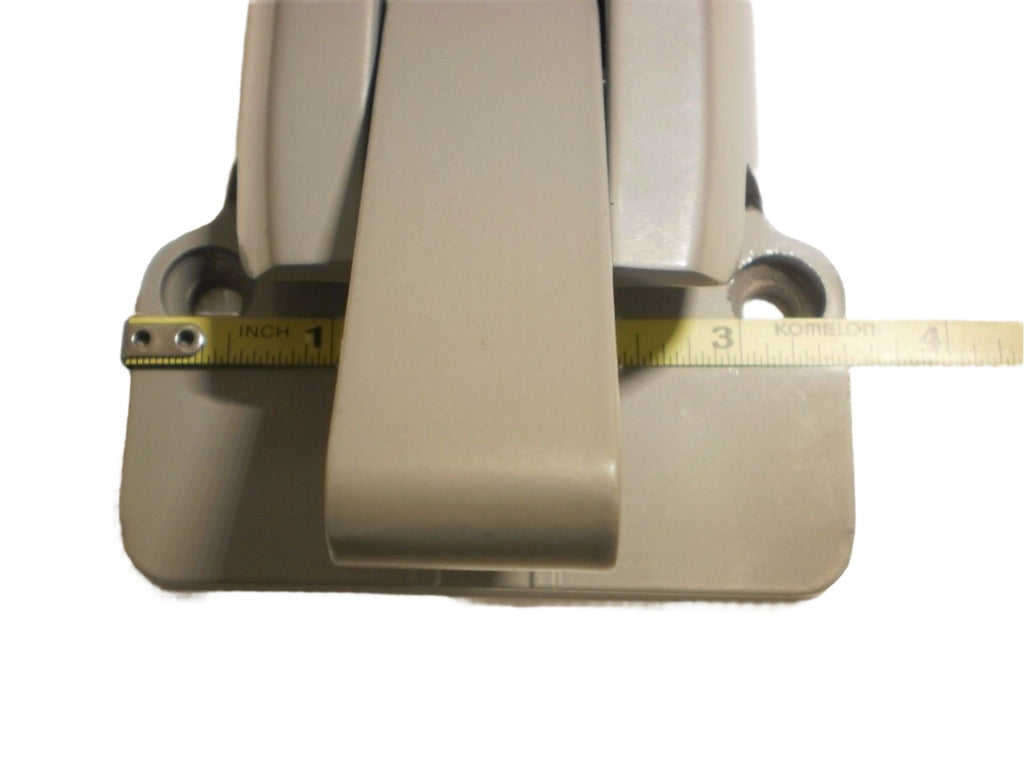

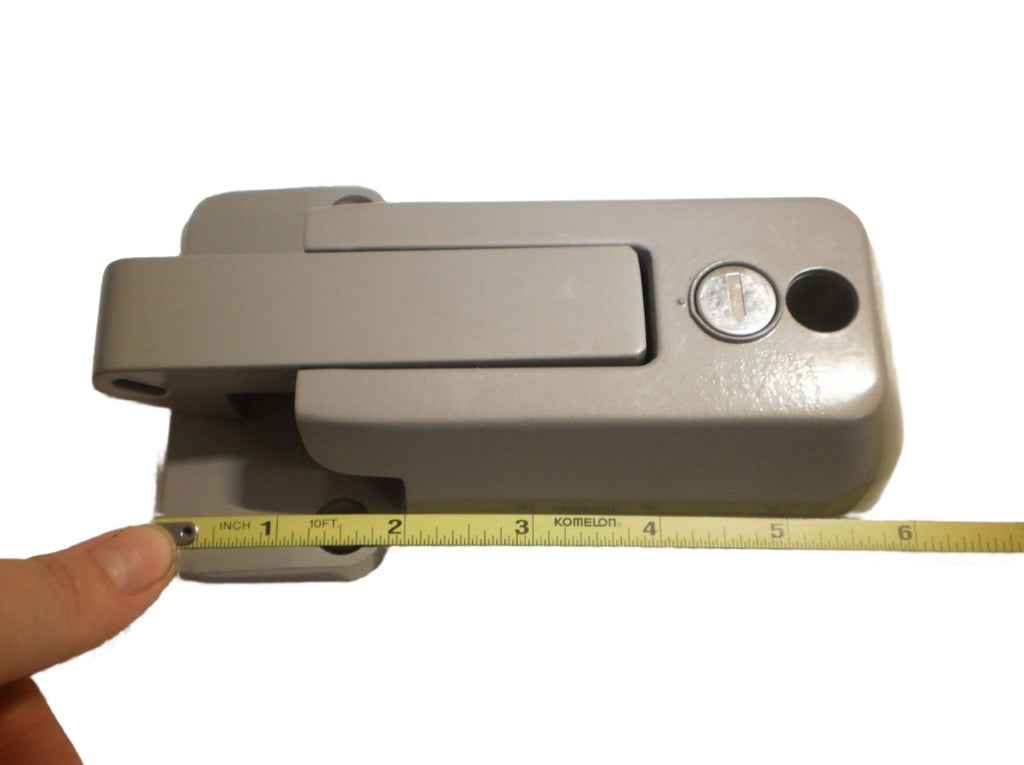

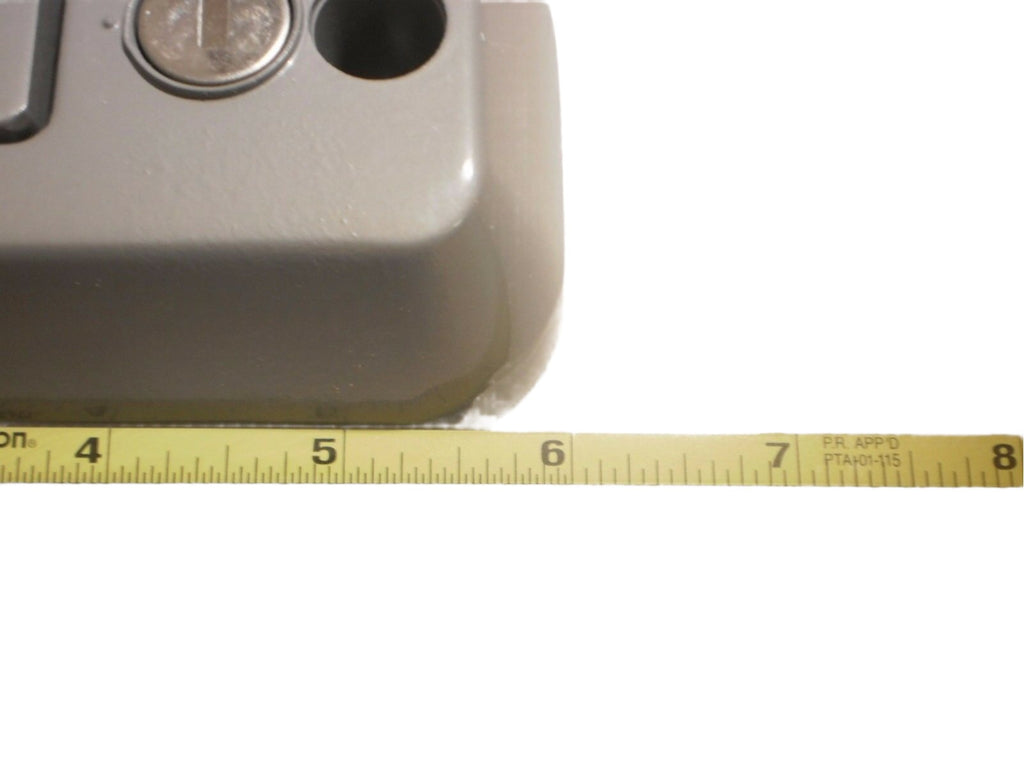

| Body Dimensions | Approx. 6" (L) x 3-9/16" (W) |
| Material / Finish | Gray Powder Coat |
| Bar Capacity | 1-1/4" Wide x 1/2" Thick |
| Mount Centers | 2-7/8" Top; 3-5/8" Vertical |
| Category | Details |
|---|---|
| Vehicle / System | Enclosed Cargo, Horse, & Utility Trailers |
| Hardware Type | Cam Bar / Lock Rod Door Systems |
| Key Type | FIC Double-Sided Keys |
| Notes | Replaces or upgrades existing "vise-lock" style housings on trailer door frames. |
| Quantity | Item |
|---|---|
| 5 | Self-Locking Cam Bar Vise Lock Housings (Gray) |
| 10 | FIC Double-Sided Keys (Keyed Alike) |

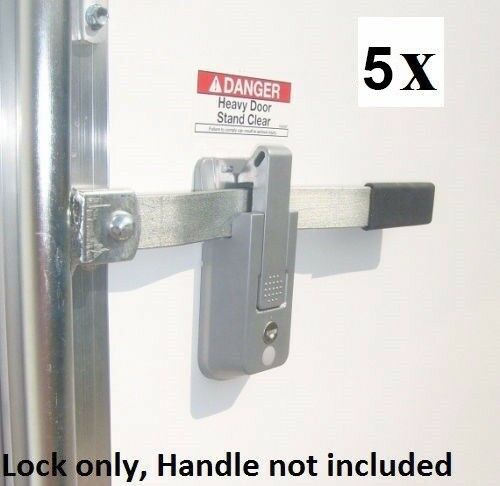

| Not Included | Vertical Cam Bar (Rod) |
| Not Included | Handle / Latch Rod Assembly |
| Not Included | 1/4" Mounting Bolts & Nuts |
