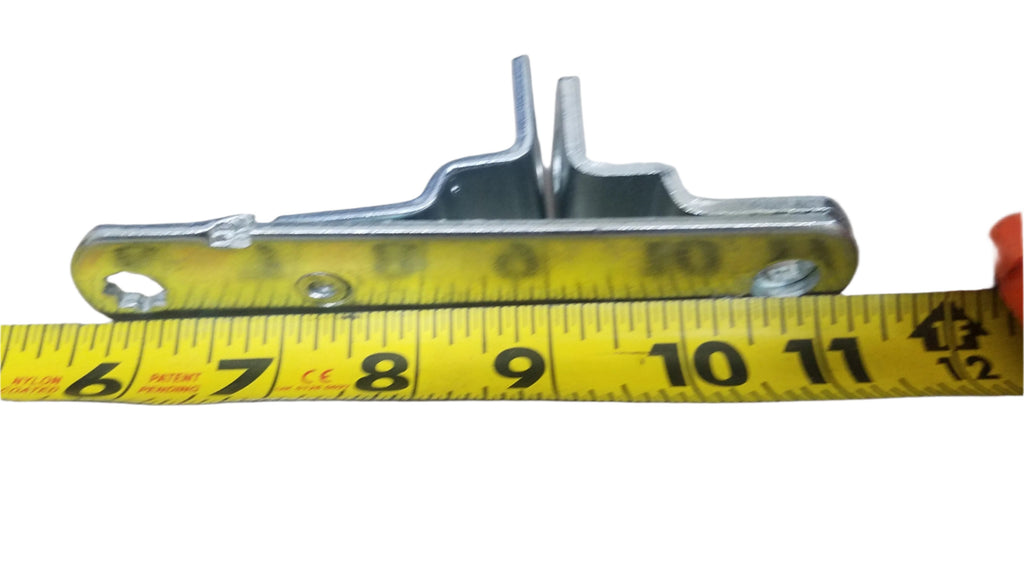

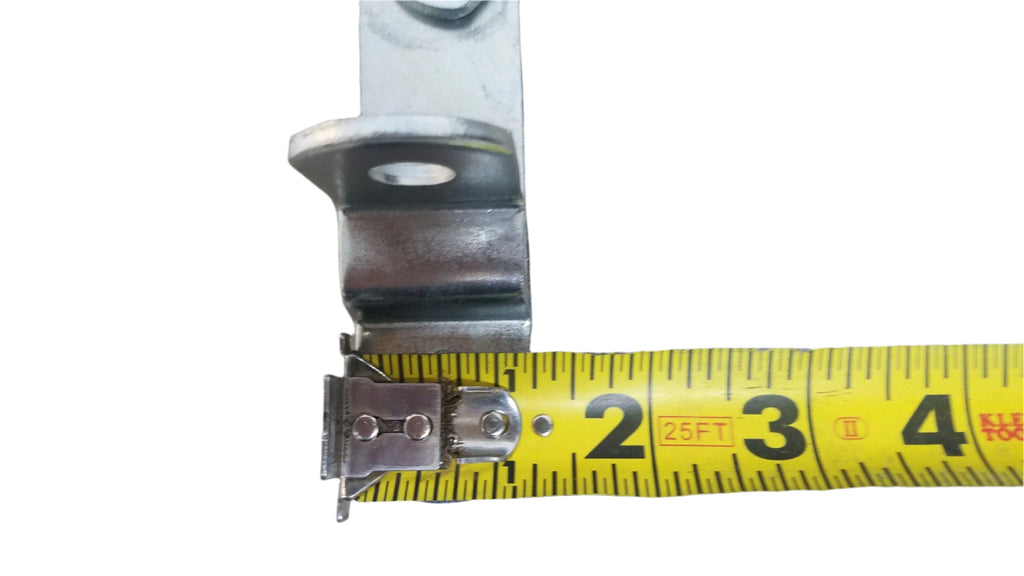

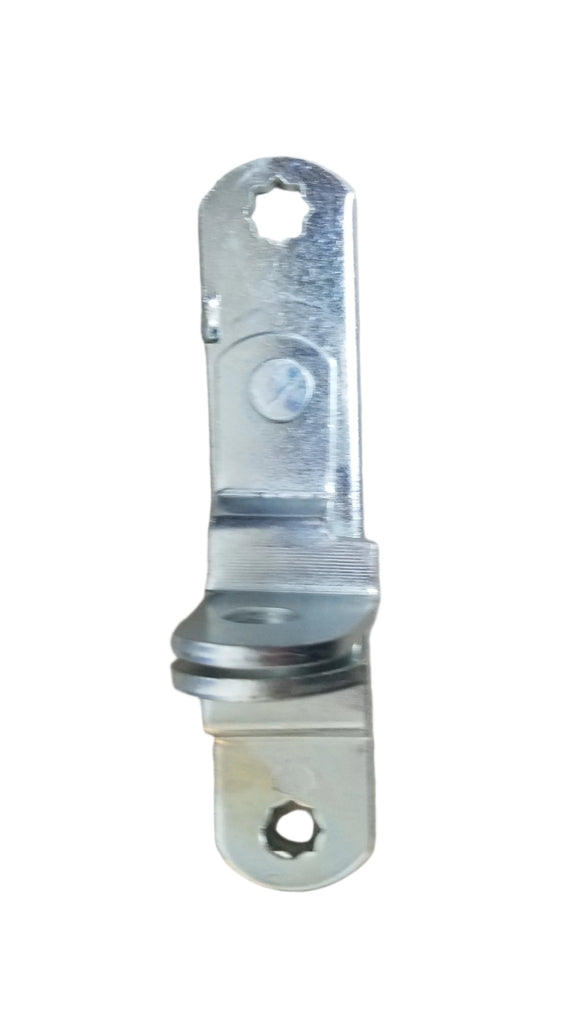

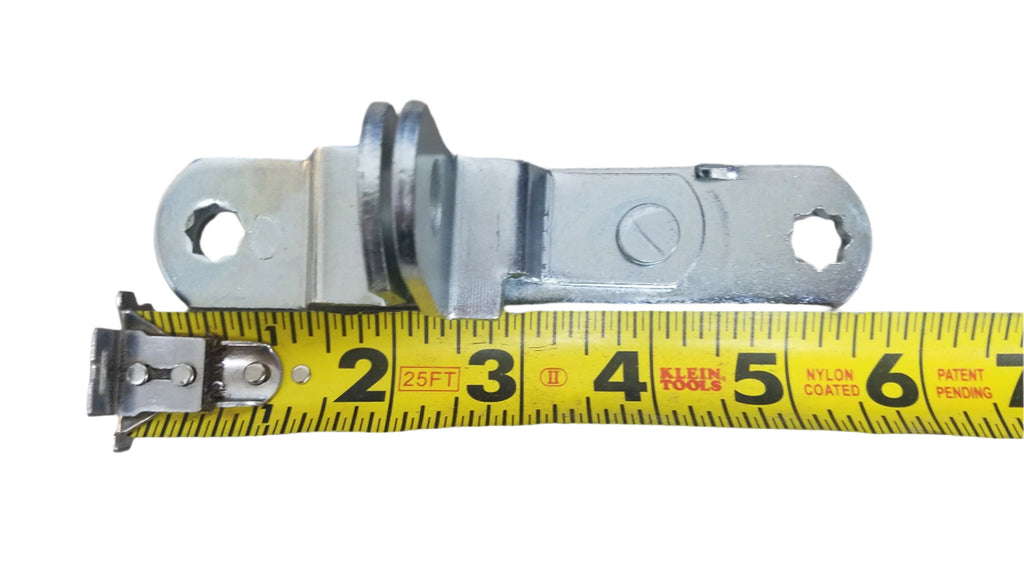

This replacement door latch hasp is used with Polar cam-action door latch systems commonly installed on enclosed trailers and cargo trailers. The hasp provides the locking tab that allows a padlock to secure the latch handle in the closed position.
It is designed as a replacement component for the Polar cam latch kit 5654X and mounts directly to the latch assembly using standard hardware spacing.
| Specification | Details |
| Part Number | 158-101 |
| Product Type | Door Latch Hasp |
| Compatible Latch Kit | Polar 5654X |
| Overall Length | 5-5/8" |
| Width | 1-1/4" |
| Mounting Hole Spacing | 4-1/4" Center to Center |
| Mounting Hole Diameter | 3/8" |
| Lock Hole Diameter | 1/2" |
| Quantity | 1 Hasp |
Verify specifications before installation.
