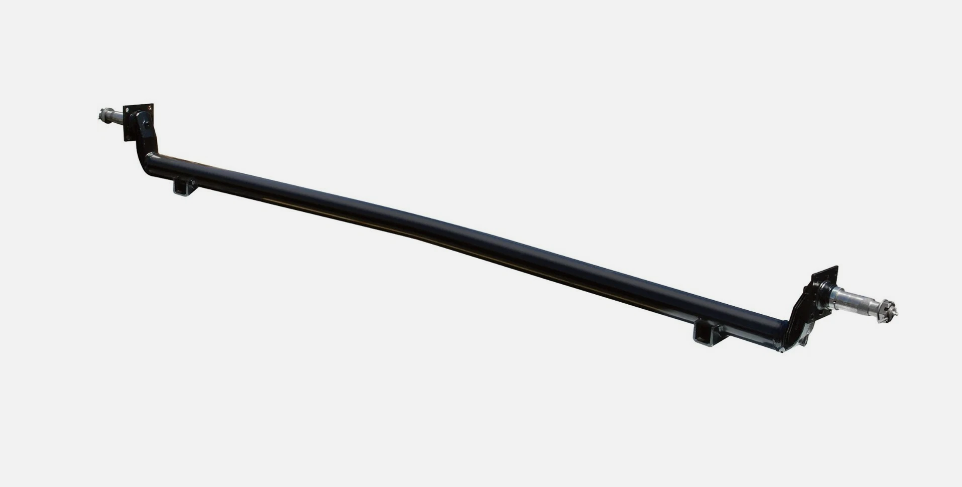

Lippert Trailer Axle 3500# Bare Beam 92.5" Hub Face 3" Heavy Duty Tube 4" Drop EZ Lube USA Made (3500-925-3-D-KIT)

Lippert

$299.00

Running Low — Only 1 left

Ask a Pro

Features

Common Replacement Axle for Trailers or Campers that typically have 74.50" to 80.50" Floor Deck Width and 5 Lug Hubs or 10" Drums
Heavy Duty 3" Tube (also available in Standard 2.4" Tube)
Axle Has 4" Drop and is Cambered
Uses Standard L44649/L68149 Bearings and 10-19 Seals (Not Included, See Chart Below)

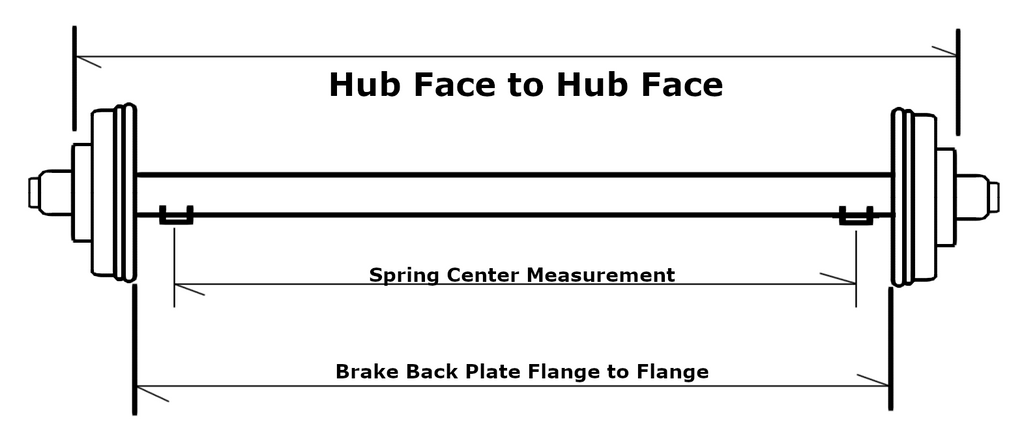

Brake Flange to Flange	86.06"
Bearing Shoulder to Shoulder	88.69
Spindle End to End	96.88

Part Number	Quantity	Description
3500-92.5-3-D-KIT	1	Lippert Trailer Axle 3500# Bare Beam 92.5" Hub Face 3" Heavy Duty Tube 4" Drop EZ Lube USA Made
SP-3	2	Spring Perch for 3" Axle Beam
