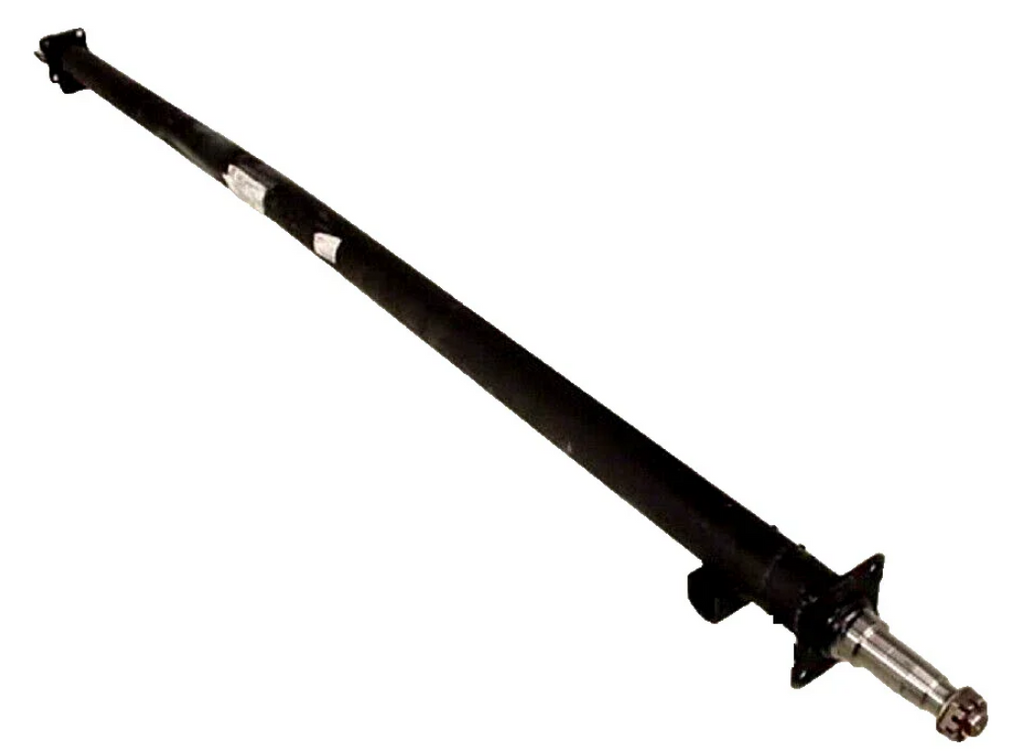

Lippert Trailer Axle 3500# Bare Beam 94" Hub Face 2.4" Tube Straight EZ Lube USA Made (3500-94-24-KIT)

Lippert

$192.00

Running Low — Only 5 left

Ask a Pro

Features

Common Replacement Axle for Trailers or Campers that typically have 76" to 82" Floor Deck Width and 5 Lug Hubs or 10" Drums
Standard 2.4" Tube (also available in Heavy Duty 3" Tube)
Axle Straight and is Cambered
Uses Standard L44649/L68149 Bearings and 10-19 Seals (Not Included, See Chart Below)

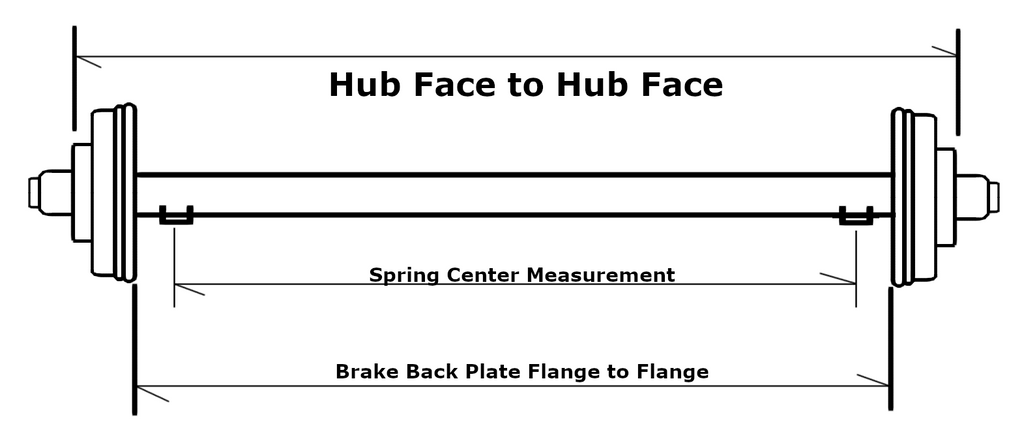

Brake Flange to Flange	87.66"
Bearing Shoulder to Shoulder	90.19
Spindle End to End	98.38

Part Number	Quantity	Description
3500-94-24-KIT	1	Lippert Trailer Axle 3500# Bare Beam 94" Hub Face 2.4" Tube Straight EZ Lube USA Made
SP-2375	2	Spring Perch for 2.4" Axle Beam
