Stillwell Tradesman Vaquero 7K Self-Contained Hydraulic A-Frame Jack
An all-in-one hydraulic solution designed to replace traditional manual hand-crank jacks with effortless, integrated 12V power.
Overview
The Stillwell SJ003B1DEVQ Tradesman unit is a heavy-duty hydraulic jack engineered for high-frequency use on work trailers. Unlike standard hydraulic setups that require mounting a separate pump box and running hydraulic lines, the Vaquero houses everything inside the jack head. This "plug-and-play" design makes it the ultimate upgrade for dump trailers, equipment haulers, and utility trailers.
R&P Service Insight
We recommend this jack for professionals who unhook frequently. It saves time and physical strain compared to manual jacks.
- High Power: Bucher pump capable of over 10,000 lbs force.
- Compact: No external plumbing or bulky reservoir boxes required.
- Safety: Includes a manual hydraulic override for peace of mind.
R&P Knowledge Hub: Usage & Operation

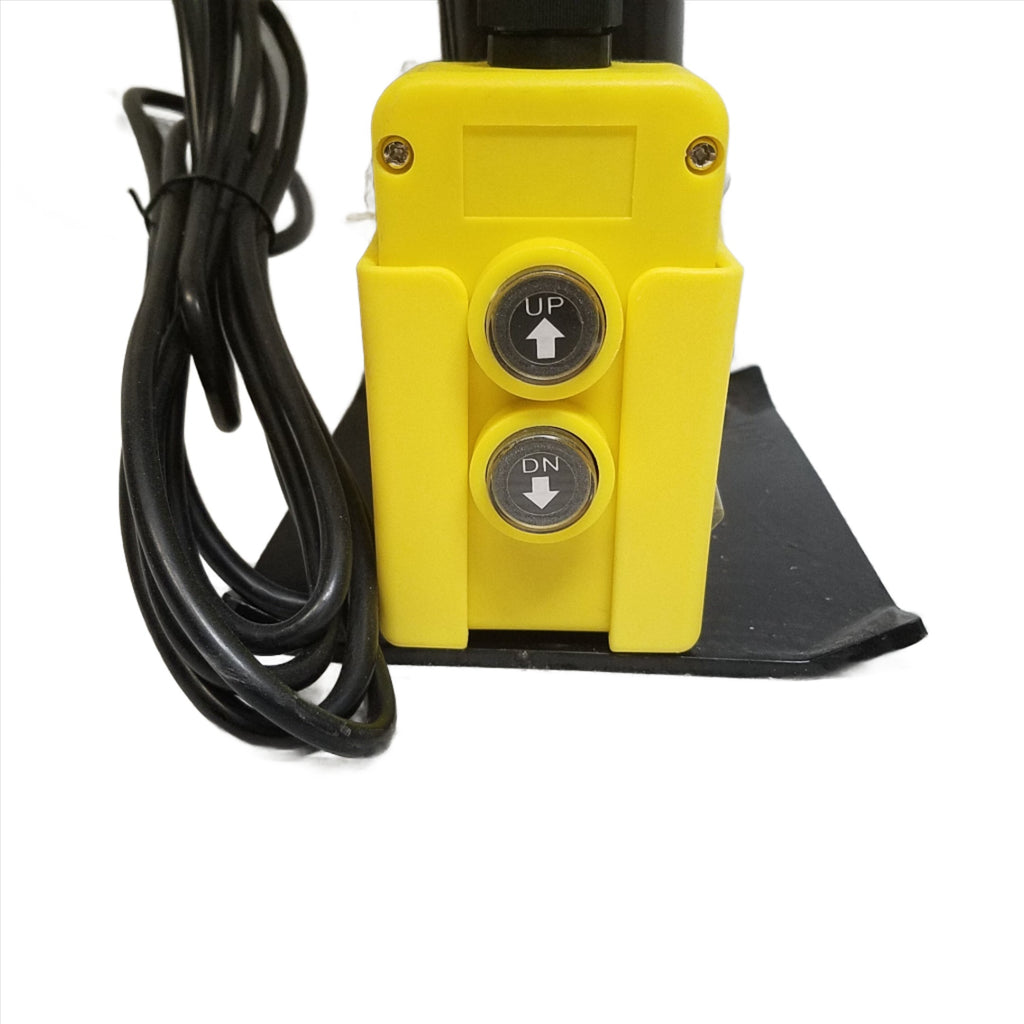

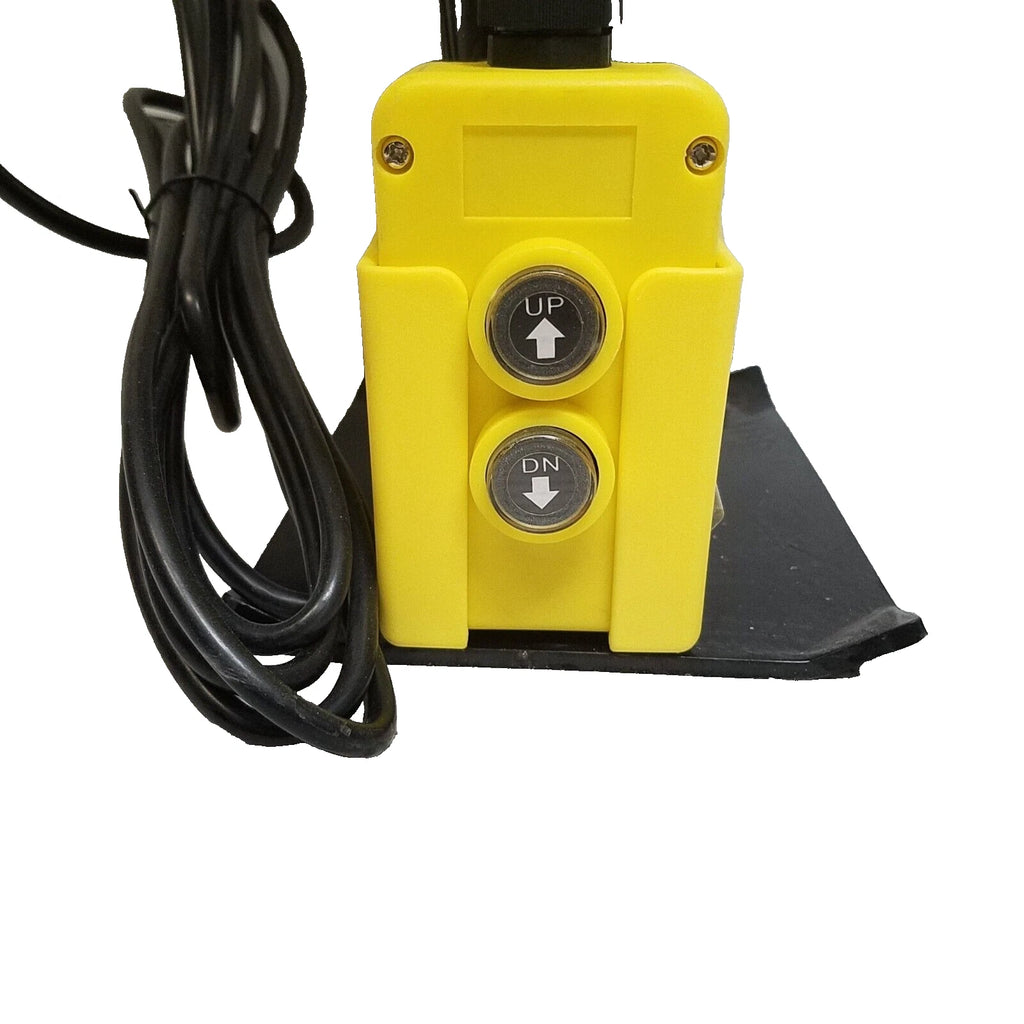

Operation: Use the included 15-foot corded remote to raise or lower the trailer. Ensure your battery is fully charged for peak performance.
Emergency Override: In the event of power loss, locate the override valve on the pump. Pull the knob and turn 1/4 to lock open, allowing the jack to retract under the trailer's weight.
System Bleeding: If the jack feels "spongy," extend it 1/4 of the way and retract fully. Repeat 3–5 times to cycle air back to the reservoir.
Maintenance: Check fluid only when fully retracted. Use ATF (Dexron III) for top-offs and grease the inner leg seasonally to prevent corrosion.
R&P Installation Insight
Installation is straightforward for anyone comfortable with basic 12V wiring and bolt-on components.
- Mounting: Drops into standard 2.25" A-frame coupler holes; uses standard 3-bolt pattern.
- Electrical: Connect directly to a 12V Deep Cycle battery. Ensure a clean ground through mounting bolts.

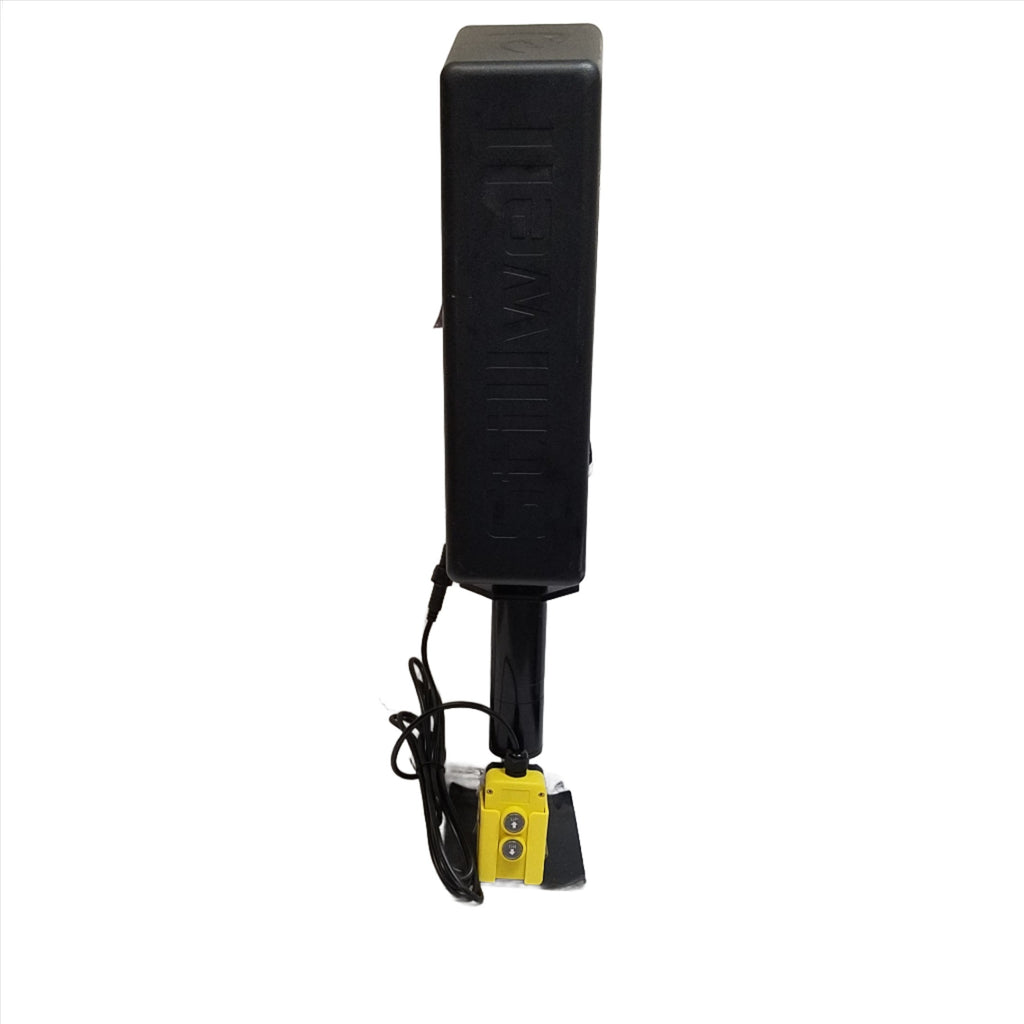

- Protection: Custom-molded cover protects internal electronics from rain and debris.
Key Features
Self-Contained Power

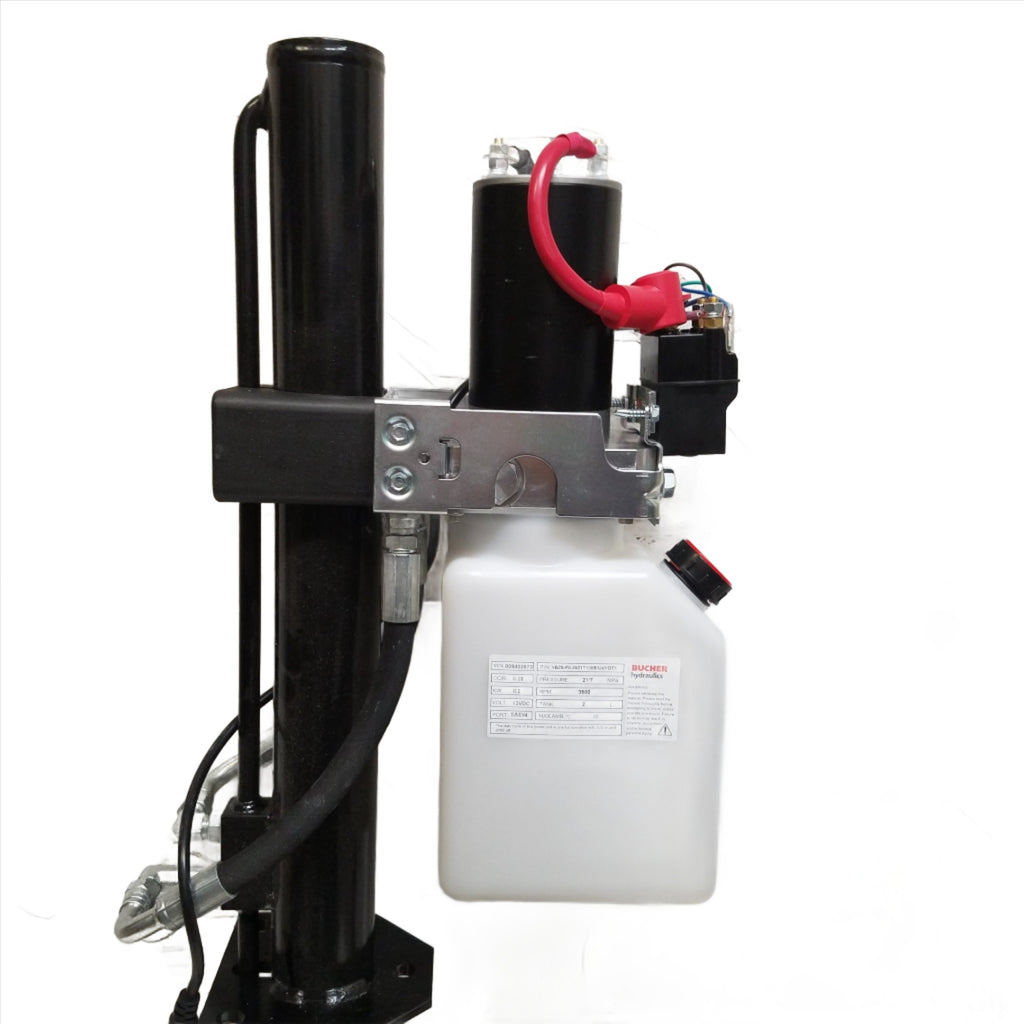

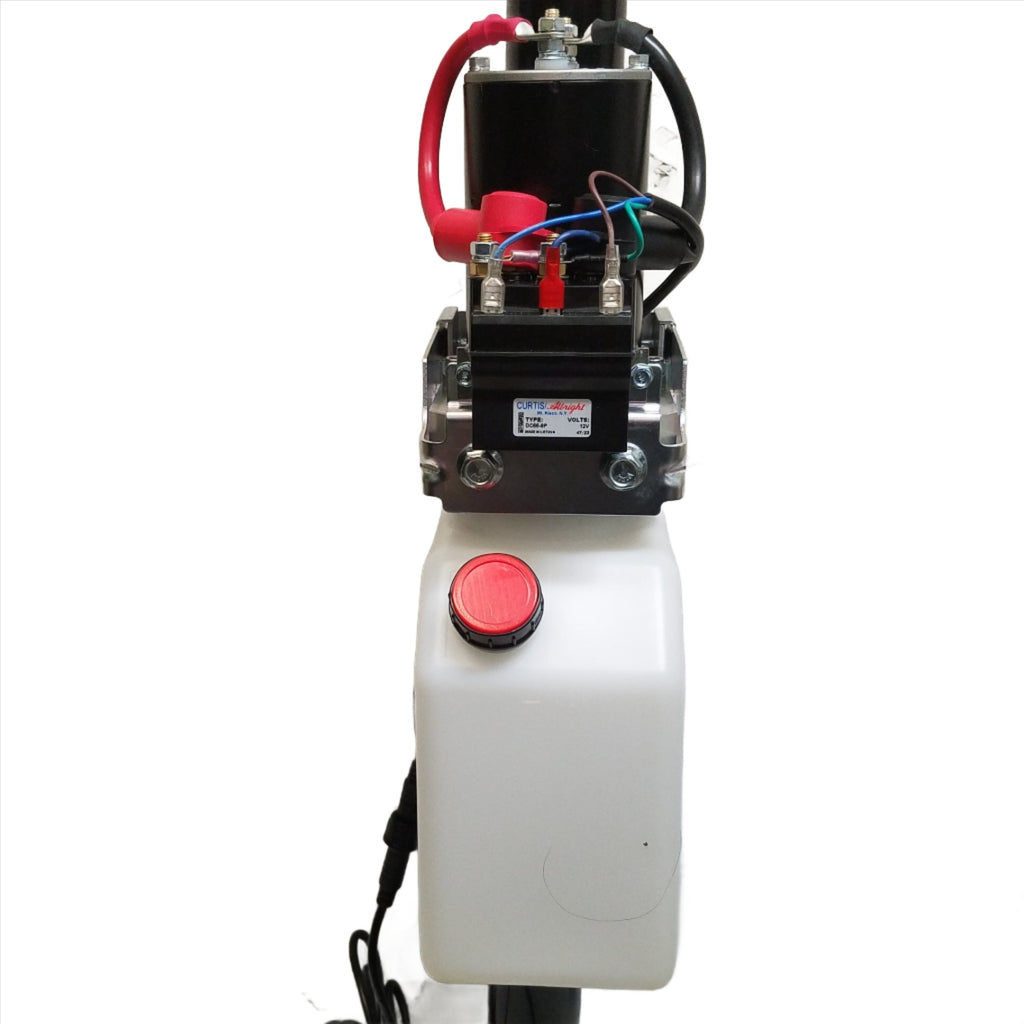

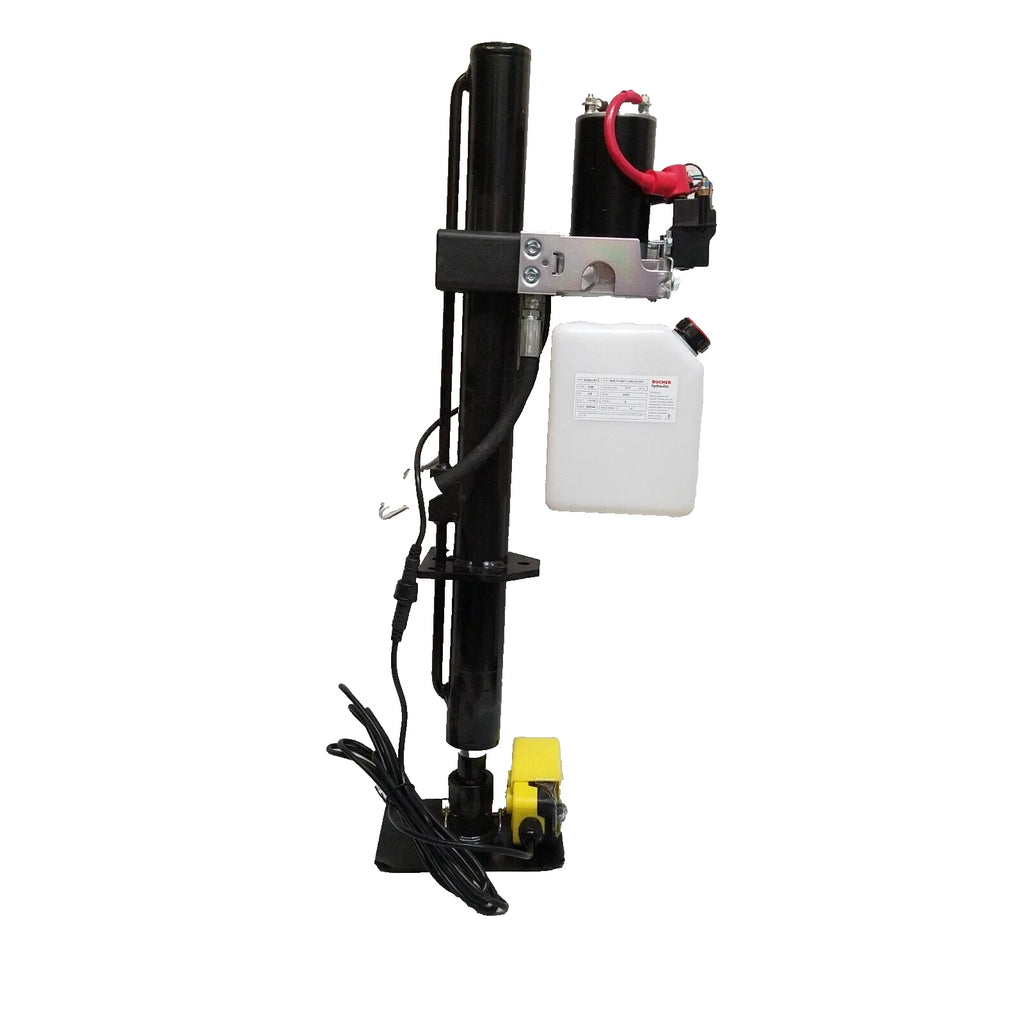

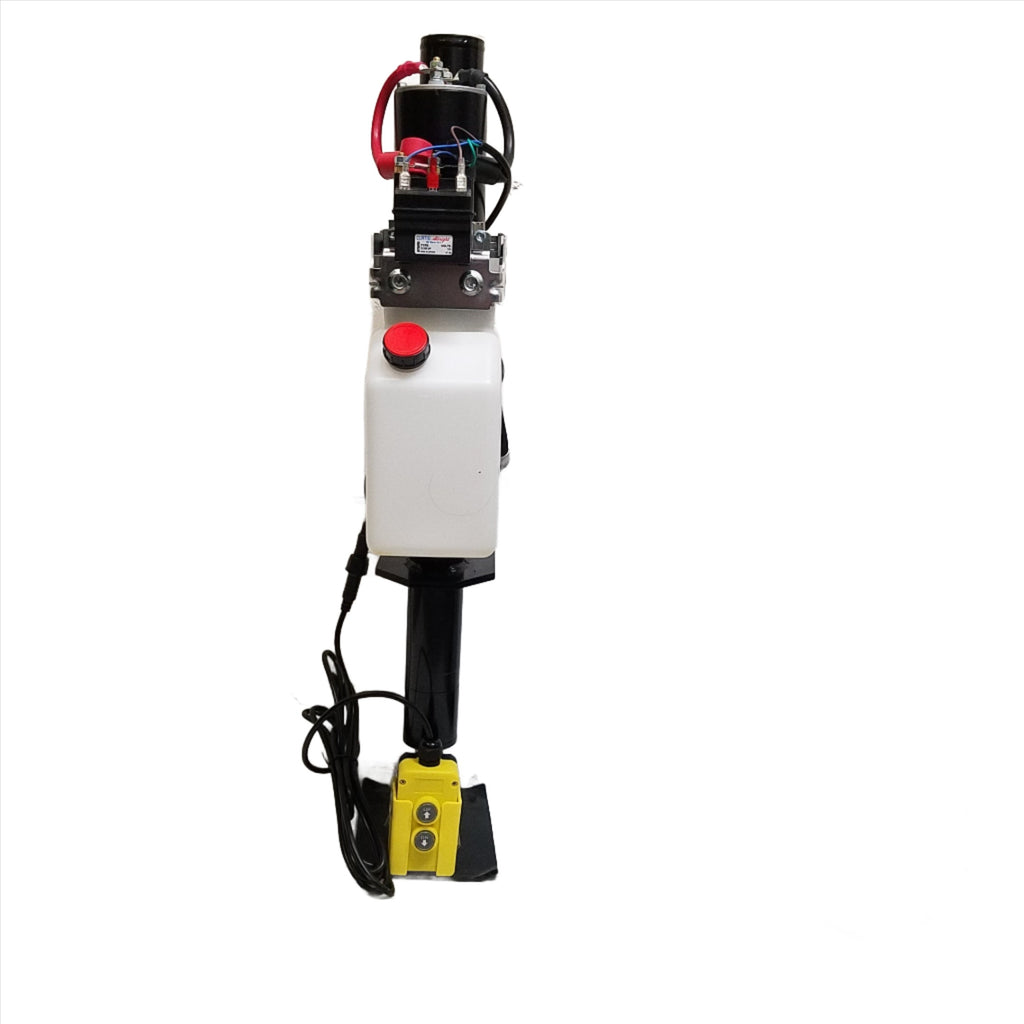

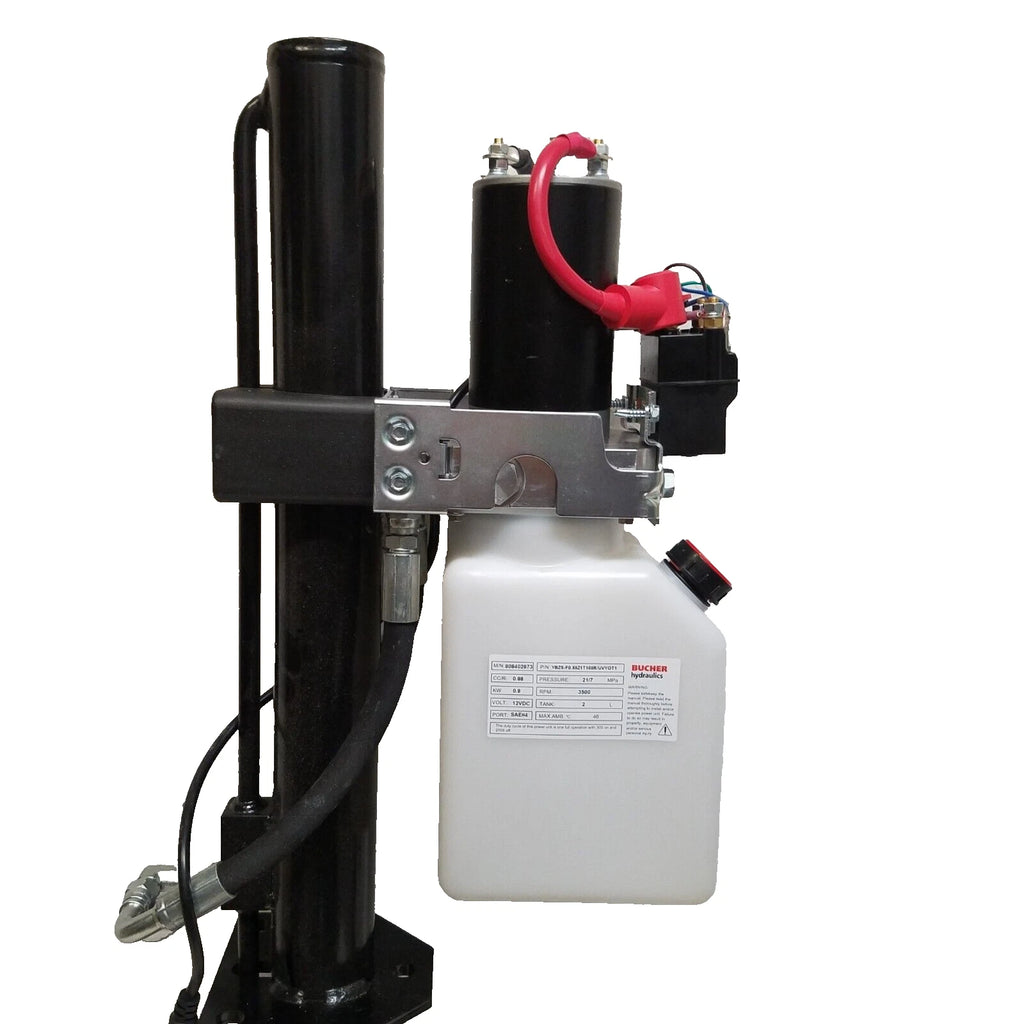

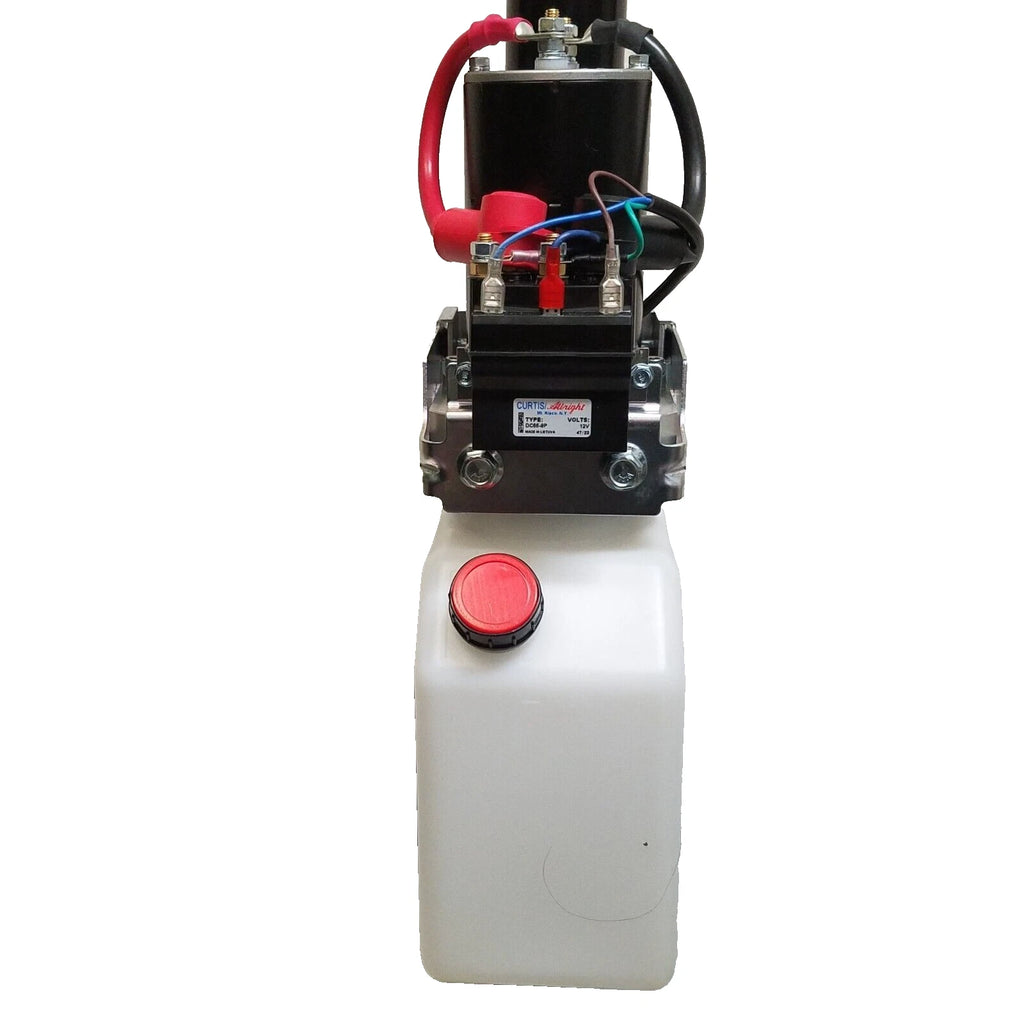

Pump, motor, and reservoir are integrated into the jack head for a clean, hose-free installation.
Bucher Hydraulics Pump
High-performance pump capable of generating up to 3,200 PSI for reliable lifting force.
Tradesman Durability
Specifically designed for work trailers with a black powder coat finish and weather-sealed cover.
24" Total Travel
Ample vertical travel to accommodate various hitch heights and uneven terrain conditions.
Specifications
| Specification | Detail |
|---|---|
| Part Number | SJ003B1DEVQ |
| Lift Capacity | 7,000 lbs |
| Voltage | 12V DC |
| Max Pressure | 3,200 PSI |
| Fluid Type | ATF (Dexron III) |
| Total Travel | 24 Inches |
| Retracted Height | ~32 Inches |
Fitment / Application
| Category | Details |
|---|---|
| Mounting Style | Bolt-on A-Frame (3-Hole) |
| Body Diameter | 2.25 Inches |
| Trailer Type | Dump, Equipment, Utility |
| Notes | Fits standard triangular 3-hole A-frame mounting patterns found on most bumper-pull couplers. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Vaquero Hydraulic A-Frame Jack Unit |
| 1 | 15-Foot Corded Remote Controller |
| 1 | Custom Molded Power Unit Cover |
