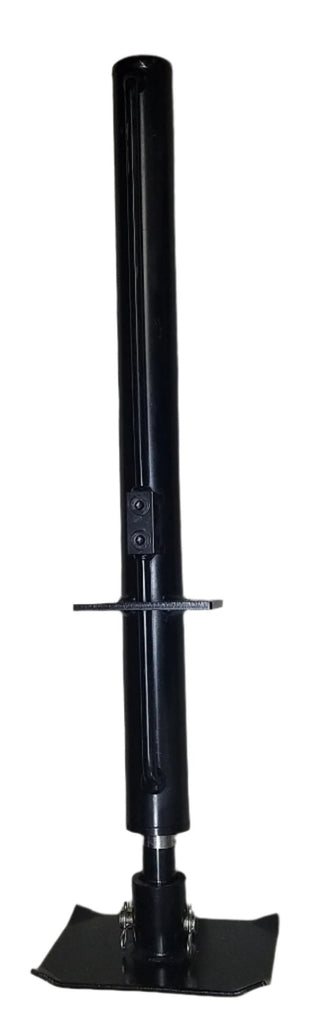

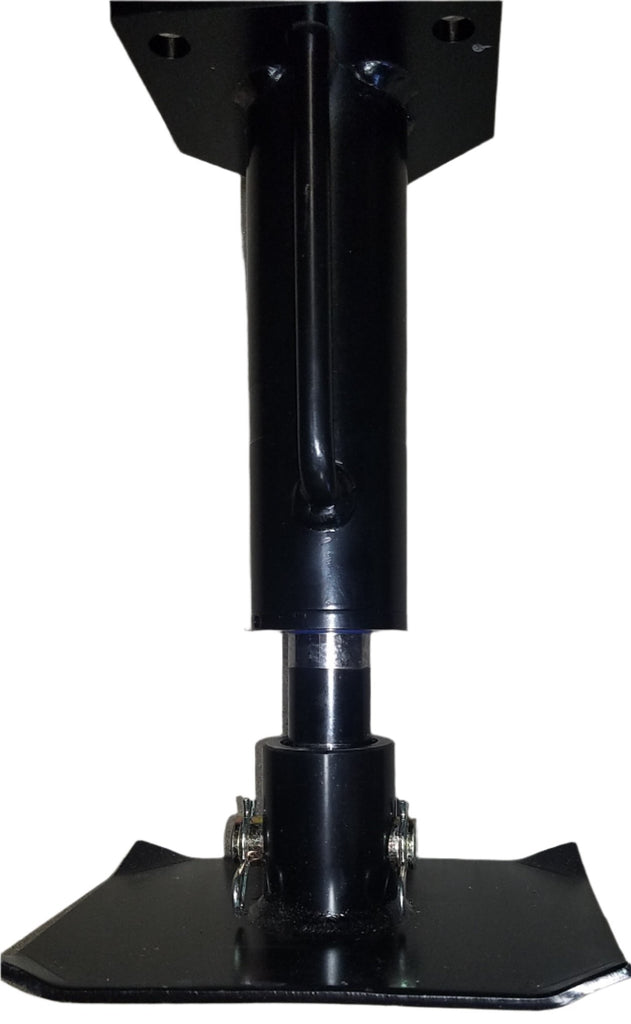

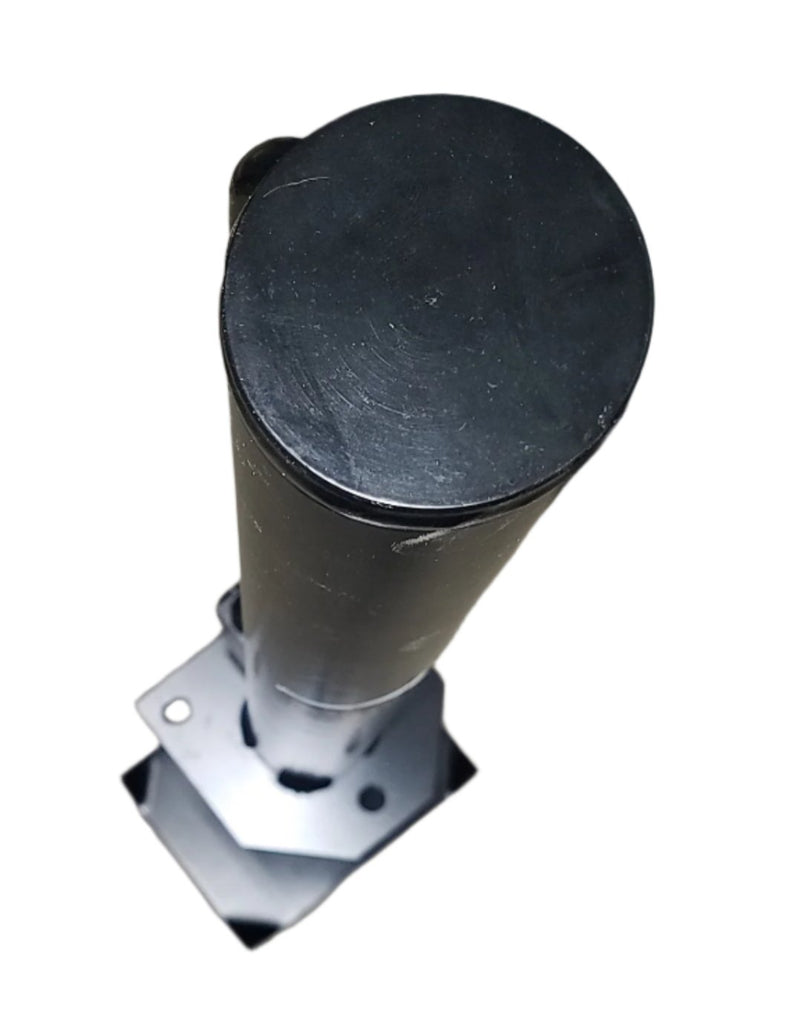

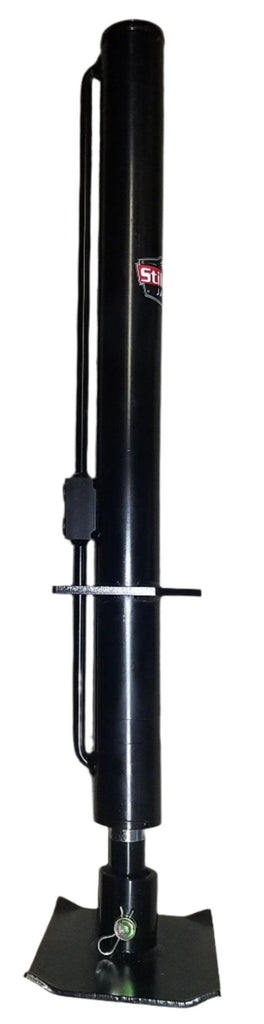

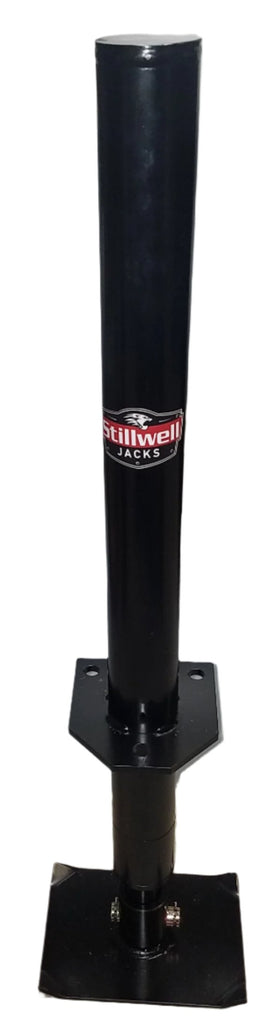

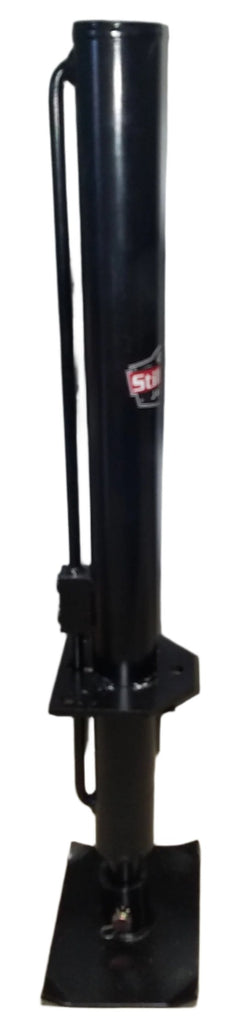

Stillwell Hydraulic Trailer Tongue Jack – 7,000 lb
Stillwell hydraulic tongue jack designed for trailer applications requiring a hydraulic lifting solution. This jack features a long stroke hydraulic cylinder and is intended for use with an external hydraulic pump system (pump not included).
The jack mounts directly to the trailer tongue using existing jack mounting holes and includes a removable foot for ground contact.
Features
- Hydraulic tongue jack for trailer applications
- 7,000 lb load capacity
- Long stroke hydraulic cylinder
- Removable steel foot
- Designed for use with an external hydraulic pump
Specifications
| Load Capacity | 7,000 lb |
|---|---|
| Stroke Length | 24" |
| Retracted Overall Length | 32" |
| Extended Overall Length | 56" |
| Retracted Mount to Foot | 12" |
| Foot Size | 8" × 6" (removable) |
| Cylinder Bore | 2" |
| Rod Diameter | 1.25" |
| Maximum Pressure | 3,200 PSI |
| Pump Included | No |
Important Installation Note: This hydraulic jack does not include a pump and must be connected to a compatible external hydraulic system.
Verify mounting hole pattern, available stroke clearance, and hydraulic system compatibility before installation.
