Novalite Premium 7-Way Brake & Lighting Harness Kit – 88-BPUT-16
Complete Sheathed 7-Way System · Dual Axle Brake Integration · Custom OEM-Style Kit
Part Number: 88-BPUT-16
Manufacturer: Novalite USA
Type: Premium 7-Way Trailer Brake & Lighting Harness Kit · Fully Jacketed, Modular Design

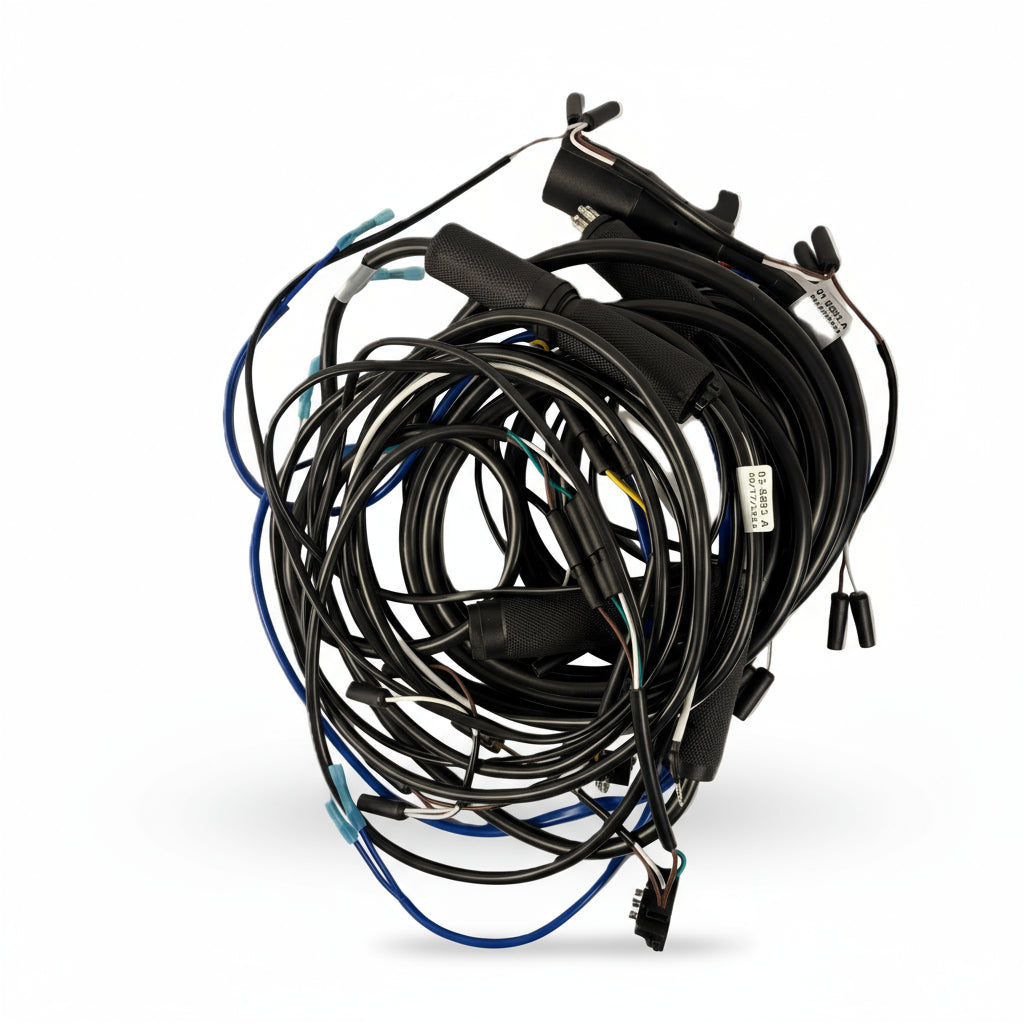

The Novalite 88-BPUT-16 is a professional-grade, pre-terminated 7-way trailer wiring system engineered for full lighting and electric brake control on tandem-axle trailers. Built from three integrated harness modules (01-8803-A, 02-8803-A, and 03-8803-A), this kit delivers a completely sheathed, plug-ready system from tongue to tail. The result is a clean, OEM-style installation that handles both lighting and braking functions through a rugged, jacketed mainline cable.
System Overview
- Primary 7-Way Input Harness (01-8803-A): Molded round 7-way plug with color-coded jacketed cable and integrated ground return.
- Mid-Section Brake Distribution Harness (02-8803-A): Connects main feed to dual axle electric brakes and carries auxiliary power and reverse circuits.
- Rear Lighting & Brake Integration Harness (03-8803-A): Y-split rear branch for left/right stop, turn, tail, marker, and center ID lighting with bullet connectors for quick connection to LED fixtures.
Technical Specifications
| Connector Type | 7-Way Round Blade (SAE J2863 / RV-Style) |
| Cable Jacket | Black Multi-Sheath Rubberized Jacket · UV, Oil & Abrasion Resistant |
| Conductor Material | Pure Copper, Tinned for Corrosion Resistance |
| Wire Gauge | 10 AWG (Brake & Aux) / 12–14 AWG (Lighting Circuits) |
| Axle Support | Tandem Axle (Up to 4 Brake Assemblies) |
| Length | Approx. 25 ft – Ideal for 14- to 18-ft Trailers |

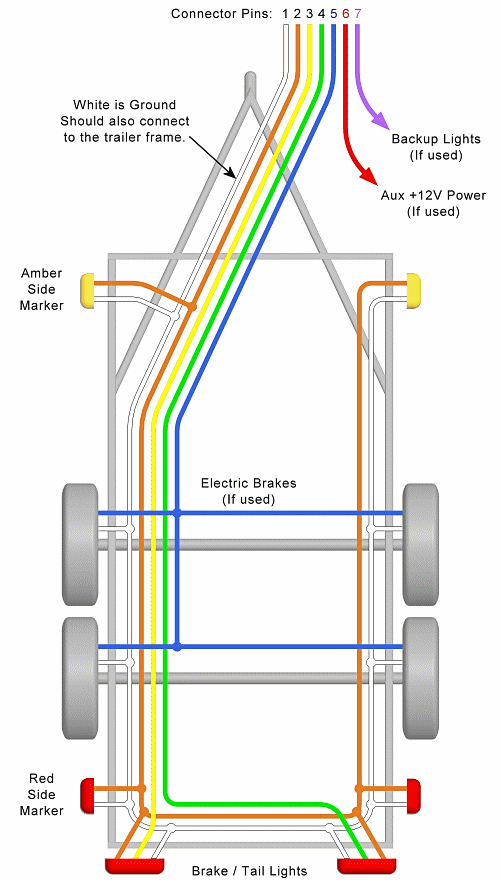

| Color Code | White – Ground Blue – Electric Brakes Brown – Tail / Marker / ID Green – Right Turn / Brake Yellow – Left Turn / Brake Black – Auxiliary / 12V Feed Purple – Reverse / Backup (if equipped) |
Lighting Configuration
Rear harness split provides all required DOT lighting outputs:
- Left Side: Stop/Turn/Tail lamp and one side marker
- Right Side: Stop/Turn/Tail lamp and one side marker
- Center Rear: Three-lamp ID bar (Brown wire feed)
All circuits terminate with factory-installed bullet connectors for fast installation with Maxxima, Optronics, Peterson, or Truck-Lite LED assemblies.
Why Choose the 88-BPUT-16
This is Novalite’s flagship harness system—designed for builders, OEM upfitters, and repair professionals who need a ready-to-install, full-function 7-way solution. The fully jacketed construction protects every conductor from the tongue plug to the rear Y-split, eliminating corrosion and wiring errors. With modular harness segments, it supports fast replacement or upgrade without cutting or splicing. The result: a clean, reliable, professional install that performs and looks like factory equipment.
