Idler Hub Kit – 5 on 4.5" Bolt Pattern (2,000 lb Axles)
Part Number: 825905-KIT

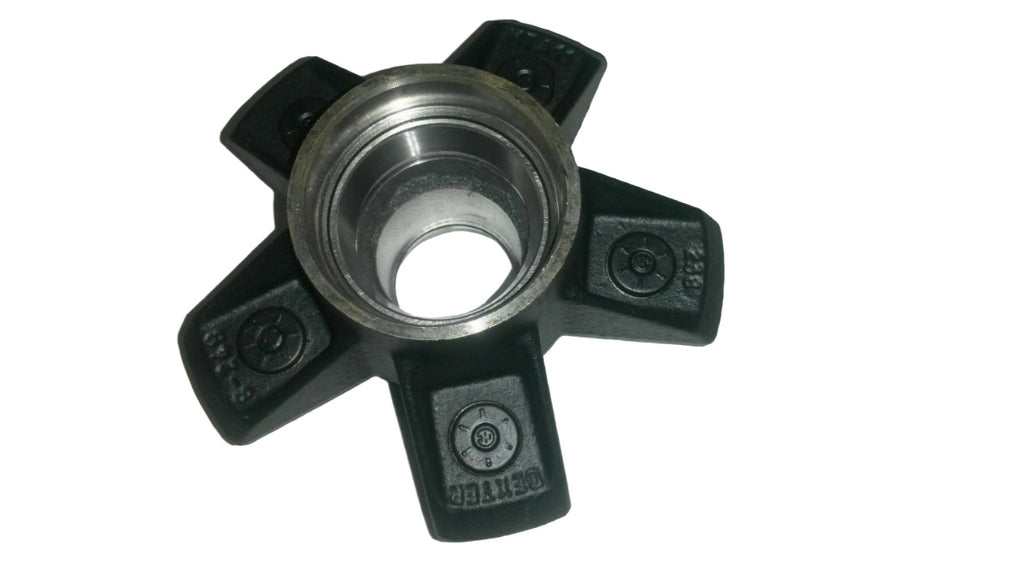

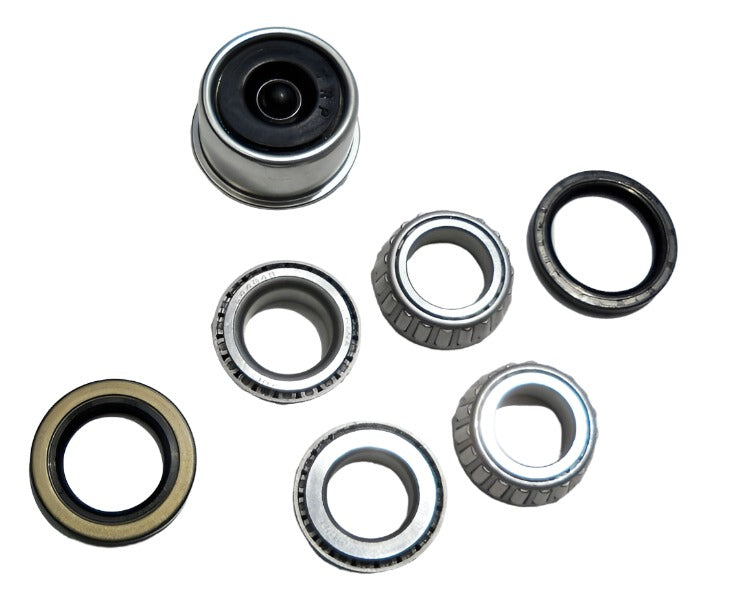

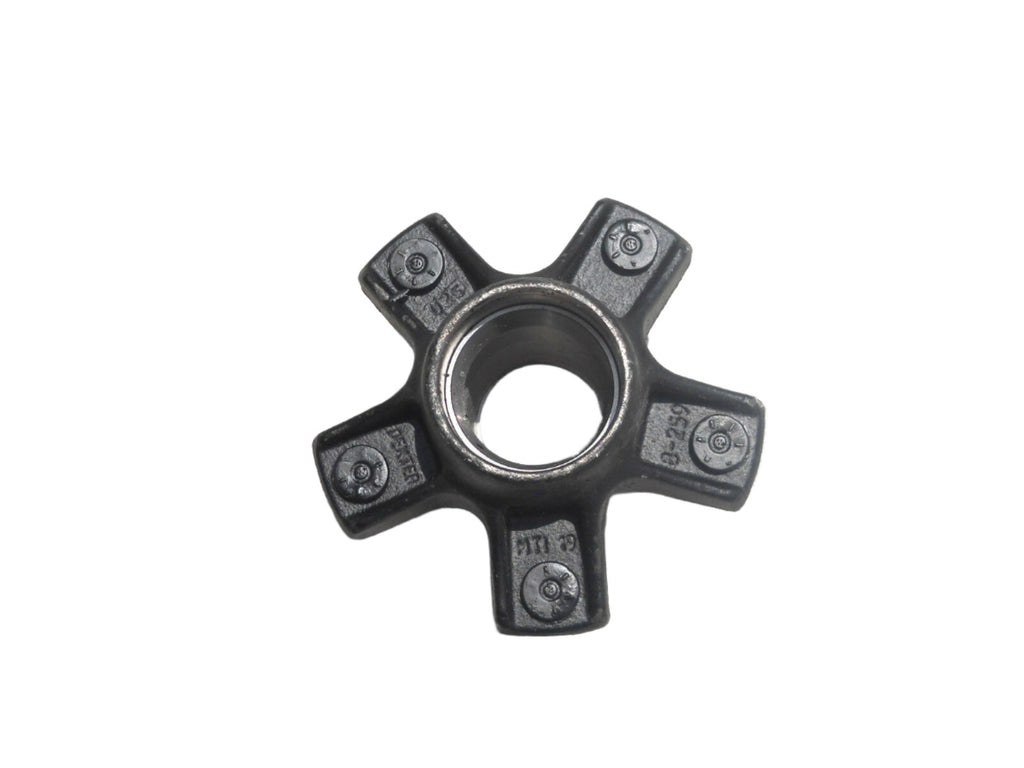

This idler hub kit is designed for light-duty trailer axles commonly rated at 2,000 lb and using a 5 on 4.5 inch wheel bolt pattern. The kit includes a hub with races installed along with two bearing size options and two seal sizes to accommodate common spindle variations.
Features
- Idler hub for light-duty trailer axles
- 5 on 4.5 inch wheel bolt pattern
- Supplied with multiple bearing and seal options
- Includes dust cap, plug, and matching lug nuts
Specifications
| Specification | Detail |
|---|---|
| Axle Rating | 2,000 lb |

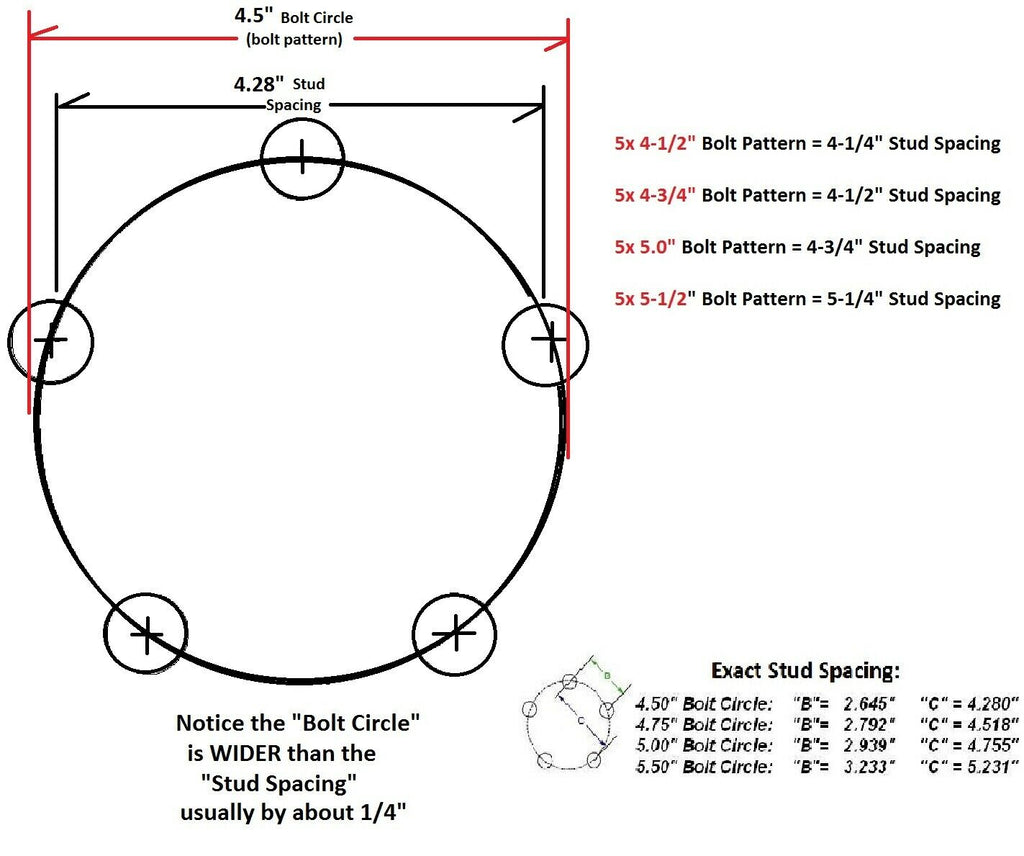

| Bolt Pattern | 5 on 4.5 inches |
| Inner / Outer Bearing Options | L44649 (1-1/16" ID) or L44643 (1.00" ID) |

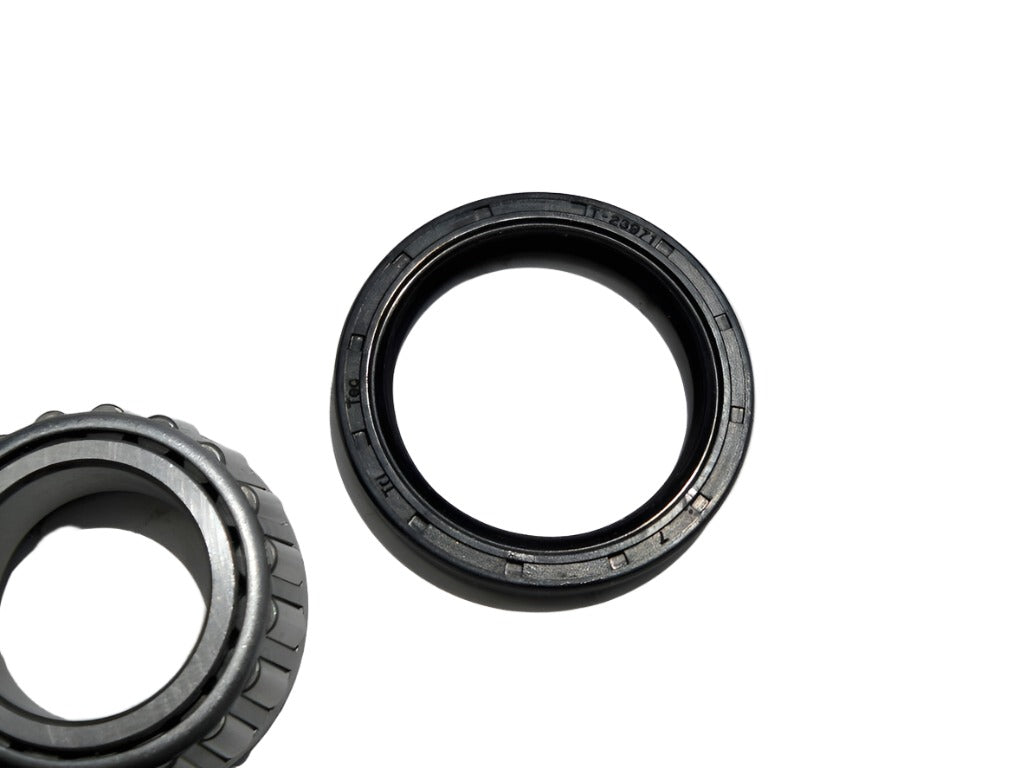

| Seal Options Included | 1.25" ID and 1.50" ID |
| Dust Cap | 1.98" EZ Lube style with plug |
| Wheel Stud Thread | 1/2" |
| Included Hardware | 4 matching lug nuts |
| Kit Quantity | 1 hub with bearings, seals, dust cap, and lug nuts |
This kit includes both bearing sizes and both seal sizes. Use only the bearing and seal combination that matches your axle spindle. Verify spindle dimensions and bearing numbers prior to installation.
