10K–15K Trailer Suspension Hanger & Equalizer Kit for 3" Springs
Part Number: HAP-203-03
This suspension hanger and equalizer kit is designed for use on tandem or multiple axle trailer suspensions in the 10,000–15,000 lb capacity range. The kit is intended for applications using 3" wide leaf springs and includes center hangers, equalizers, and mounting hardware as listed below. It is commonly used as a service replacement reference for Dexter HAP-203-02 configurations.
Features
- Designed for 10K–15K trailer axle suspension systems
- Intended for use with 3" wide leaf springs
- Suitable for tandem or multiple axle applications
- Includes center hangers, equalizers, and suspension hardware
Specifications
| Part Number | HAP-203-03 |
|---|---|
| Axle Capacity Range | 10,000–15,000 lb |
| Spring Width Compatibility | 3" |
| Suspension Type | Tandem / Multiple Axle |
| Reference Replacement | Dexter HAP-203-02 (reference only) |

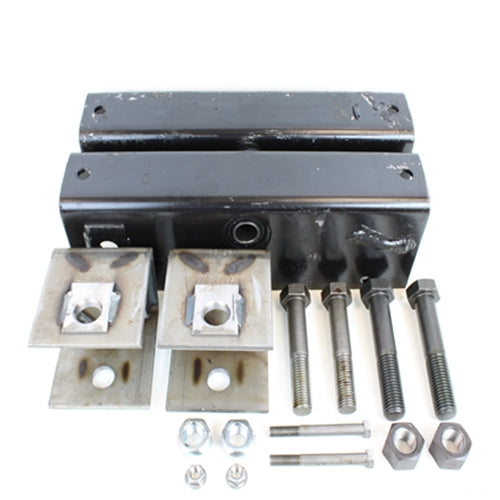

Kit Contents
| Qty | Part Number | Description |
|---|---|---|

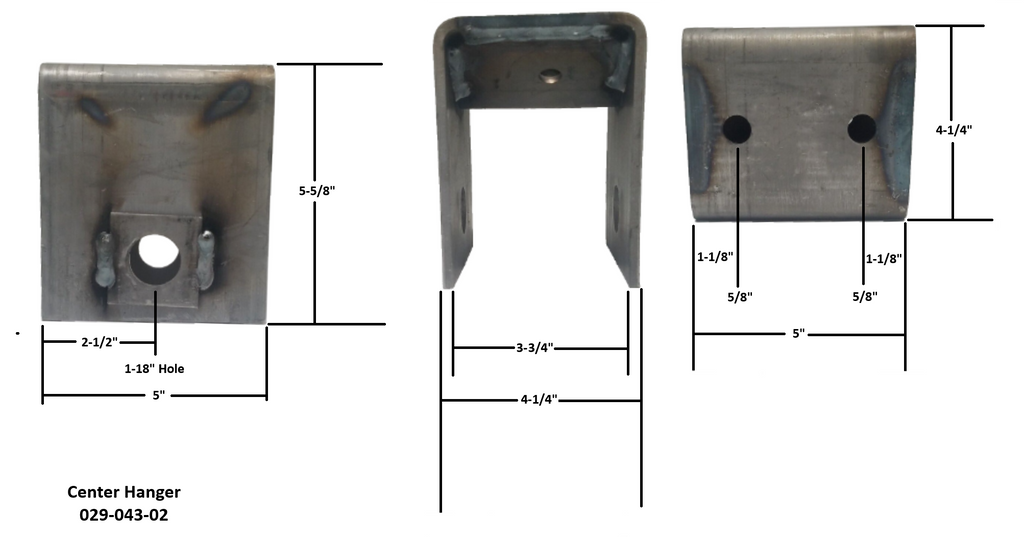

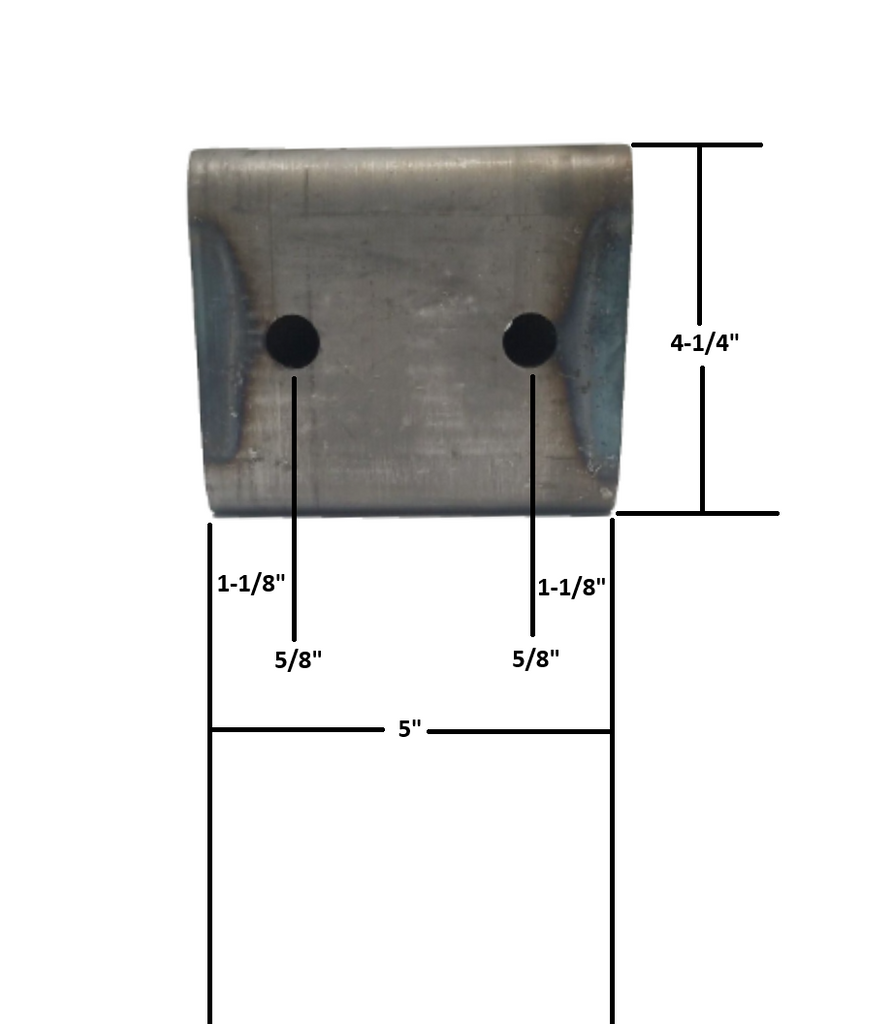

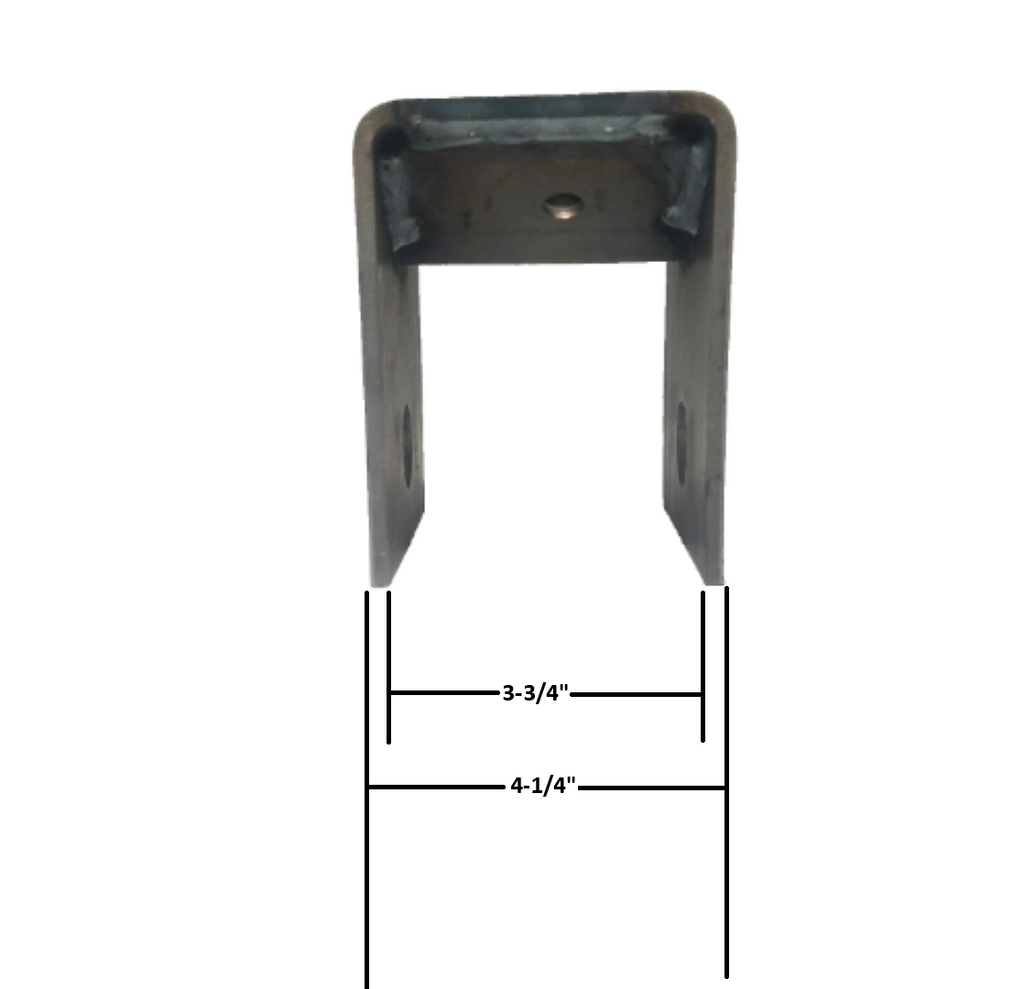

| 2 | 029-043-02 | Center hanger, 4-1/8" tall |
| 2 | 013-108-03 | Equalizer, 18-3/8" long |

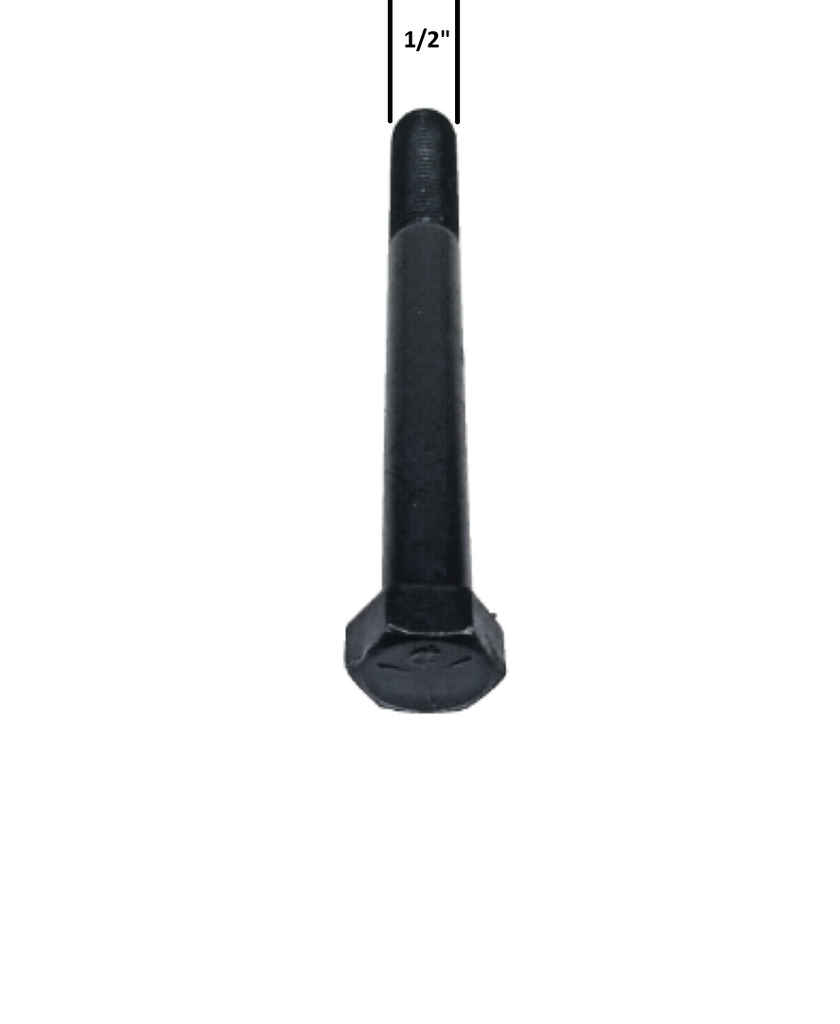

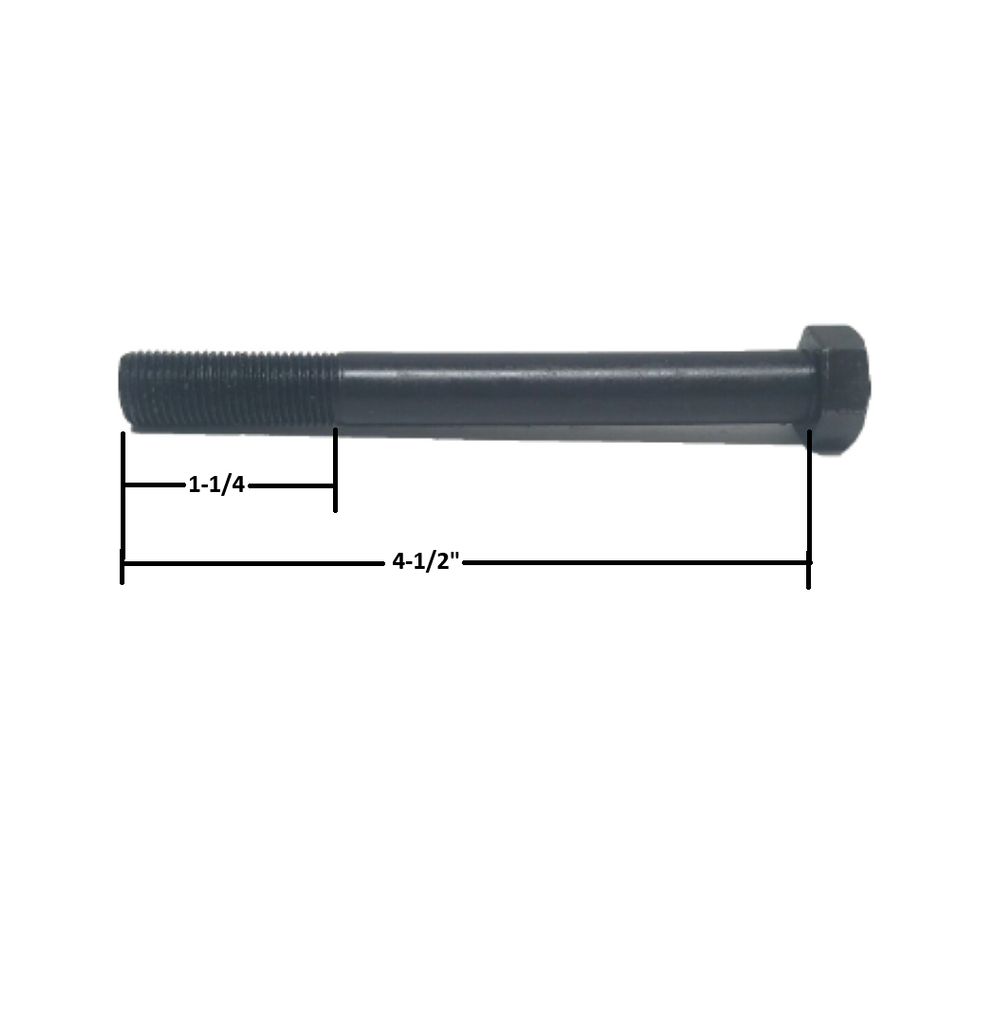

| 2 | 007-095-00 | Spring keeper bolts, 4-1/2" long x 1/2" |
| 2 | 006-046-00 | Lock nuts, 1/2" diameter |

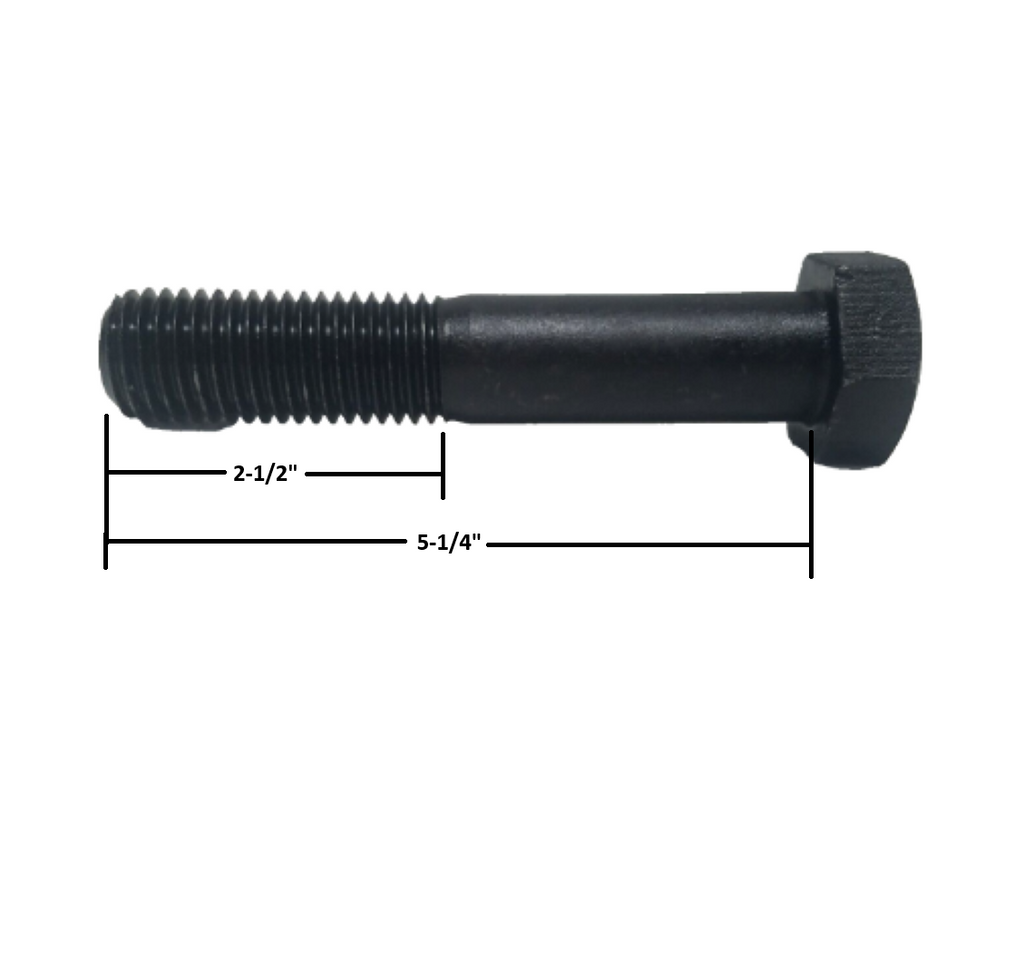

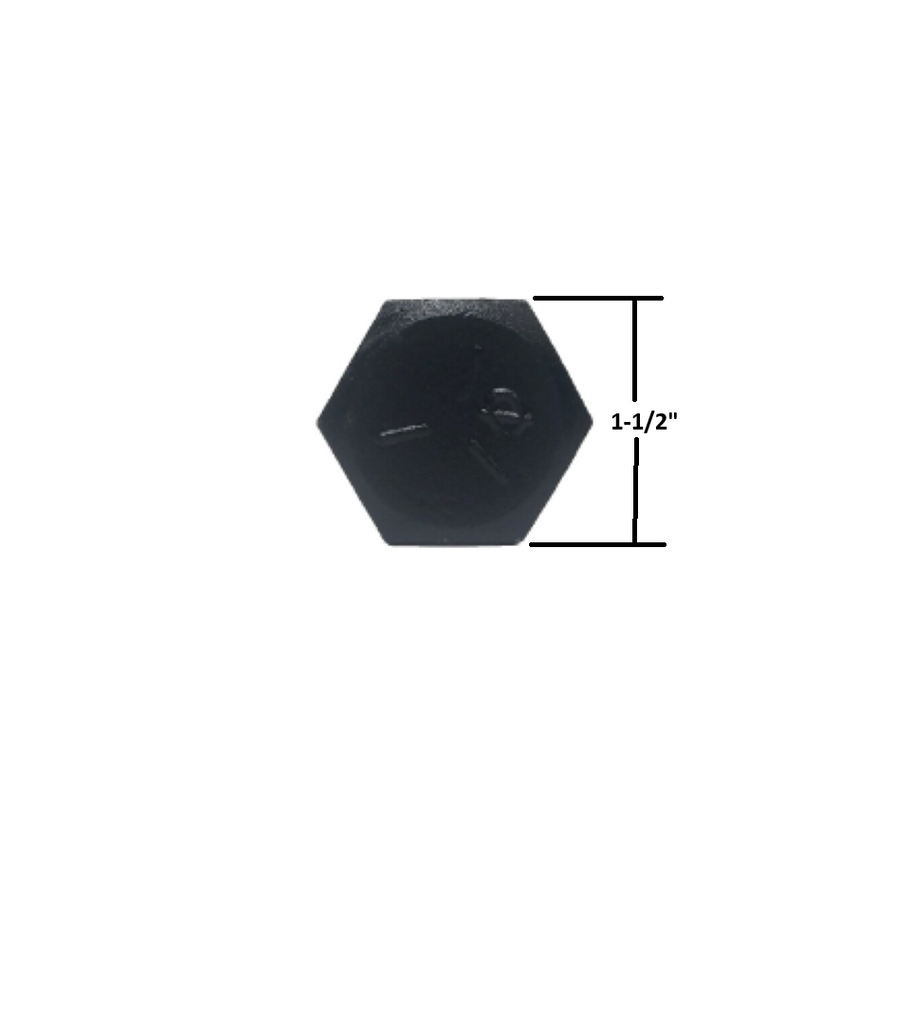

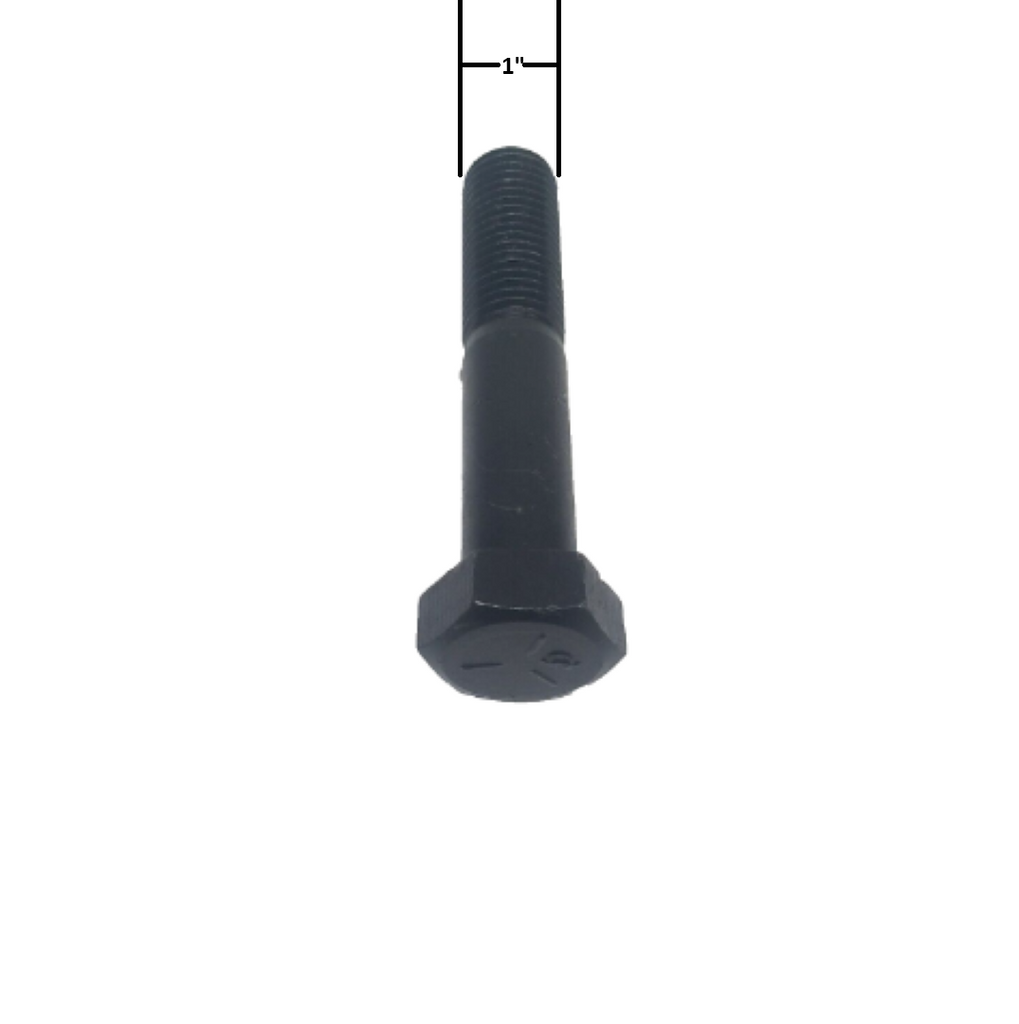

| 2 | 007-169-00 | Spring eye bolts, 5-1/2" long x 1" |

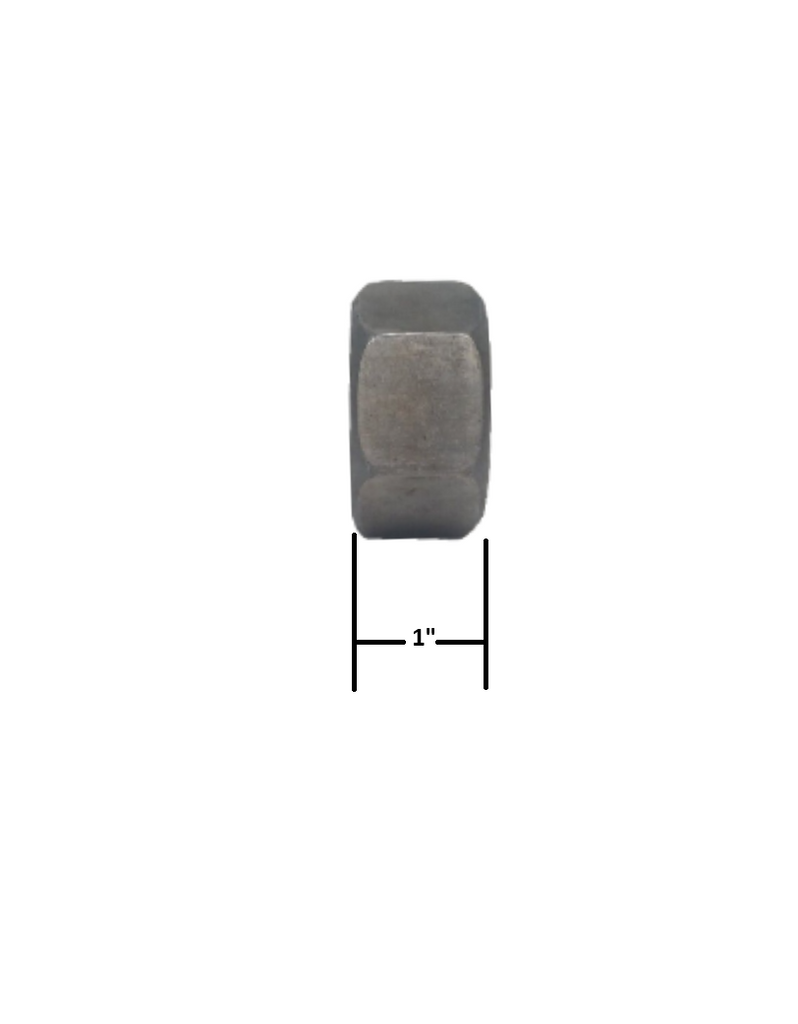

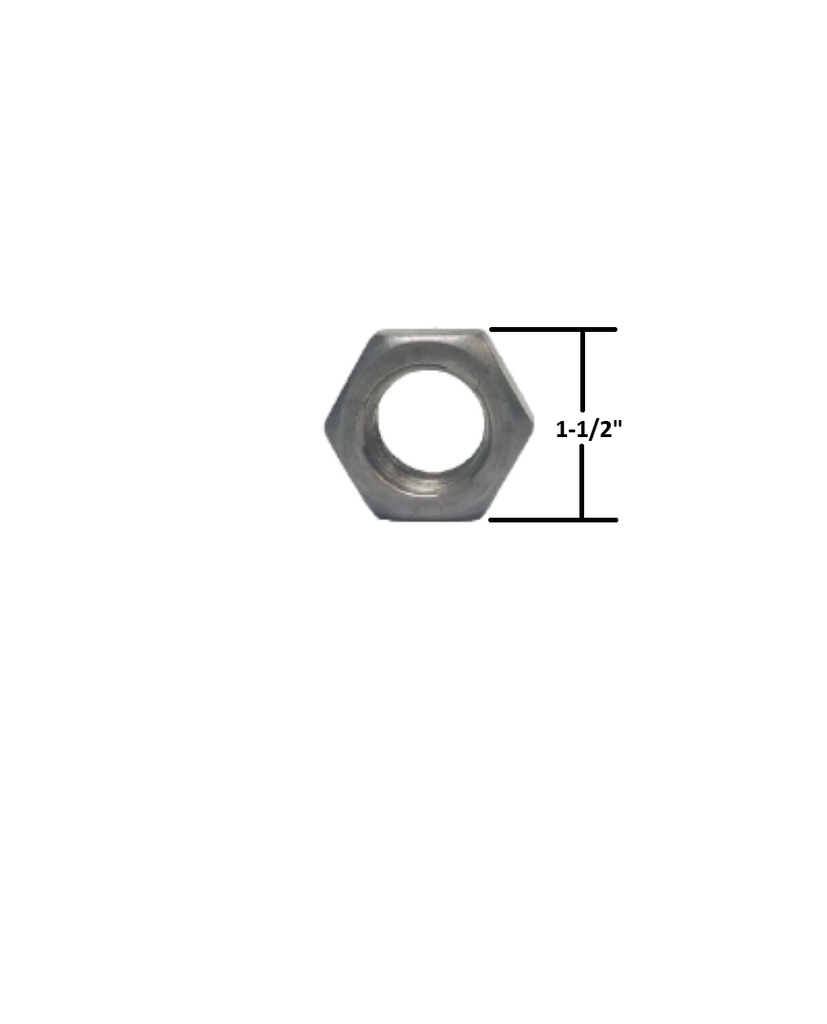

| 2 | 006-112-00 | Lock nuts, 1" diameter |

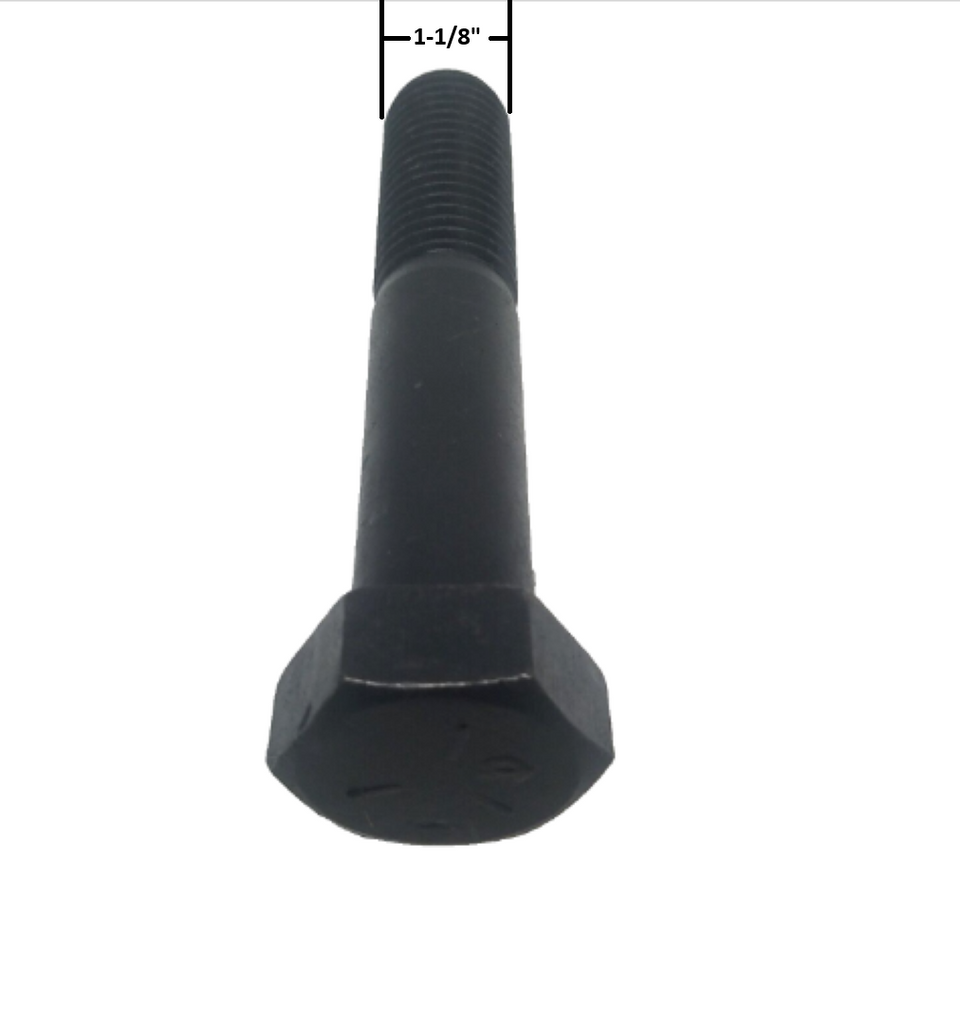

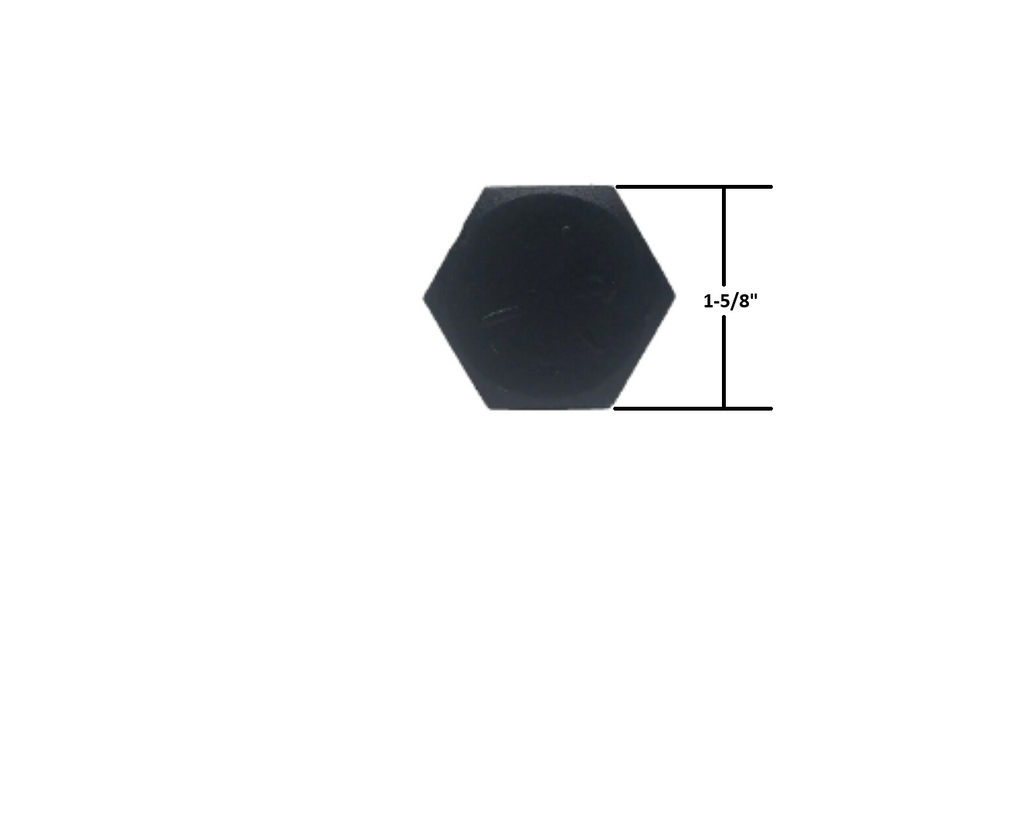

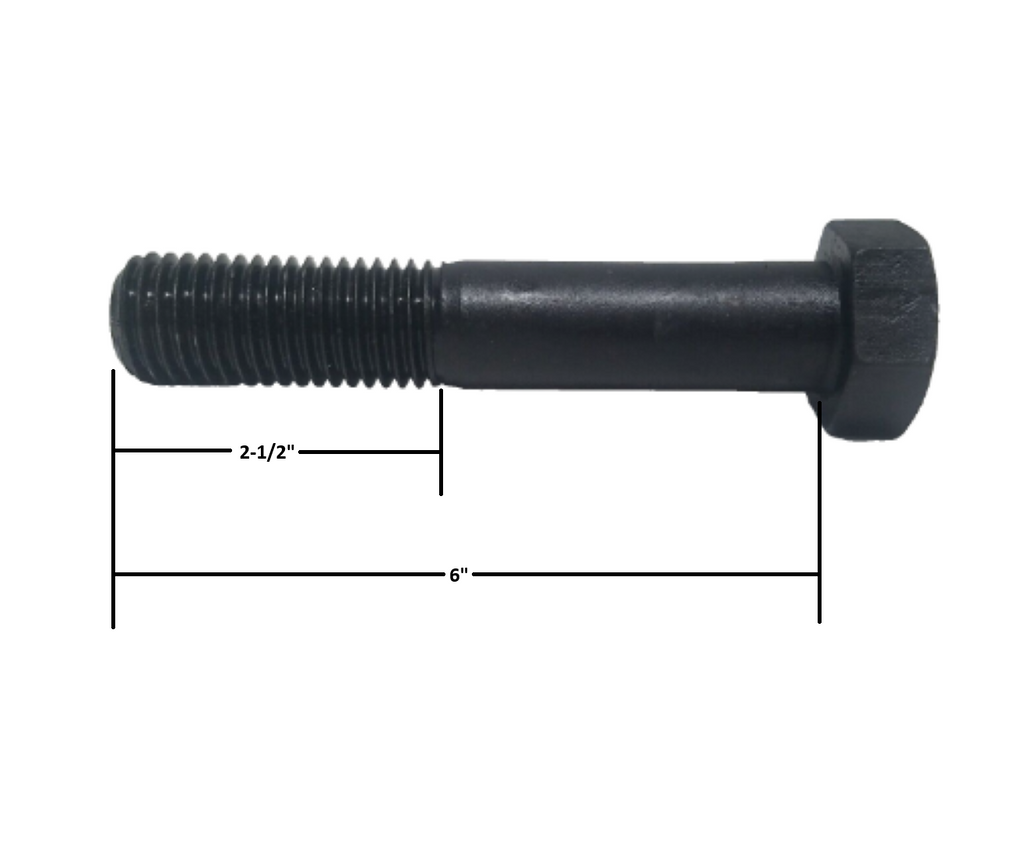

| 2 | 007-170-00 | Equalizer bolts, 6" long x 1-1/8" |

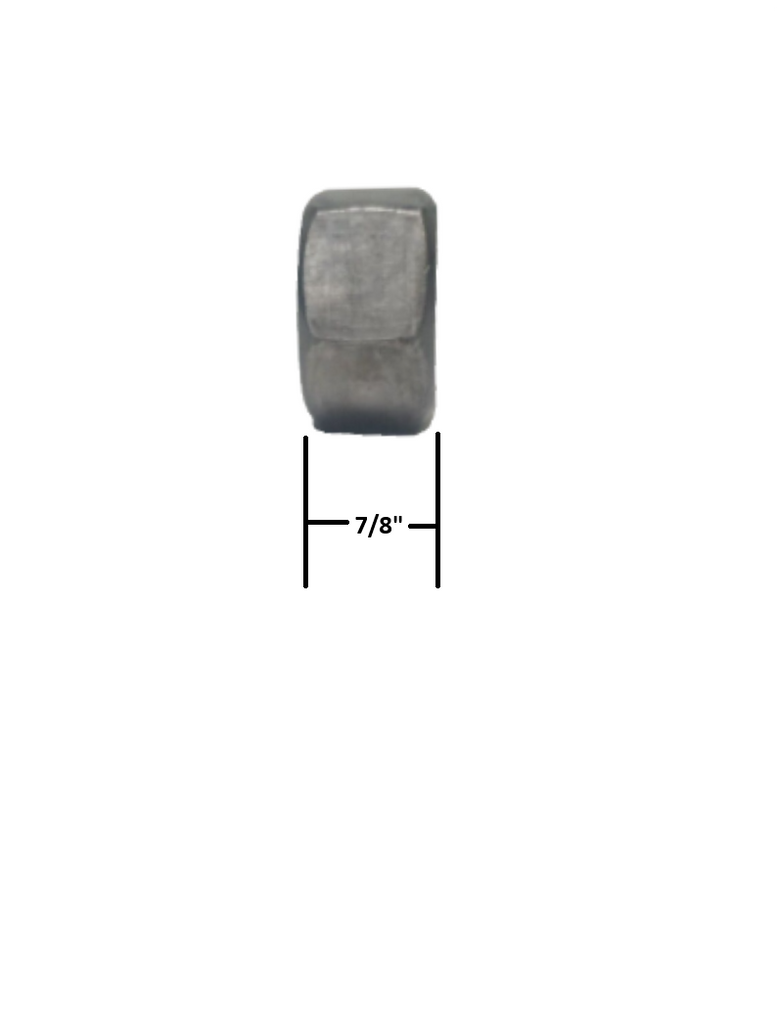

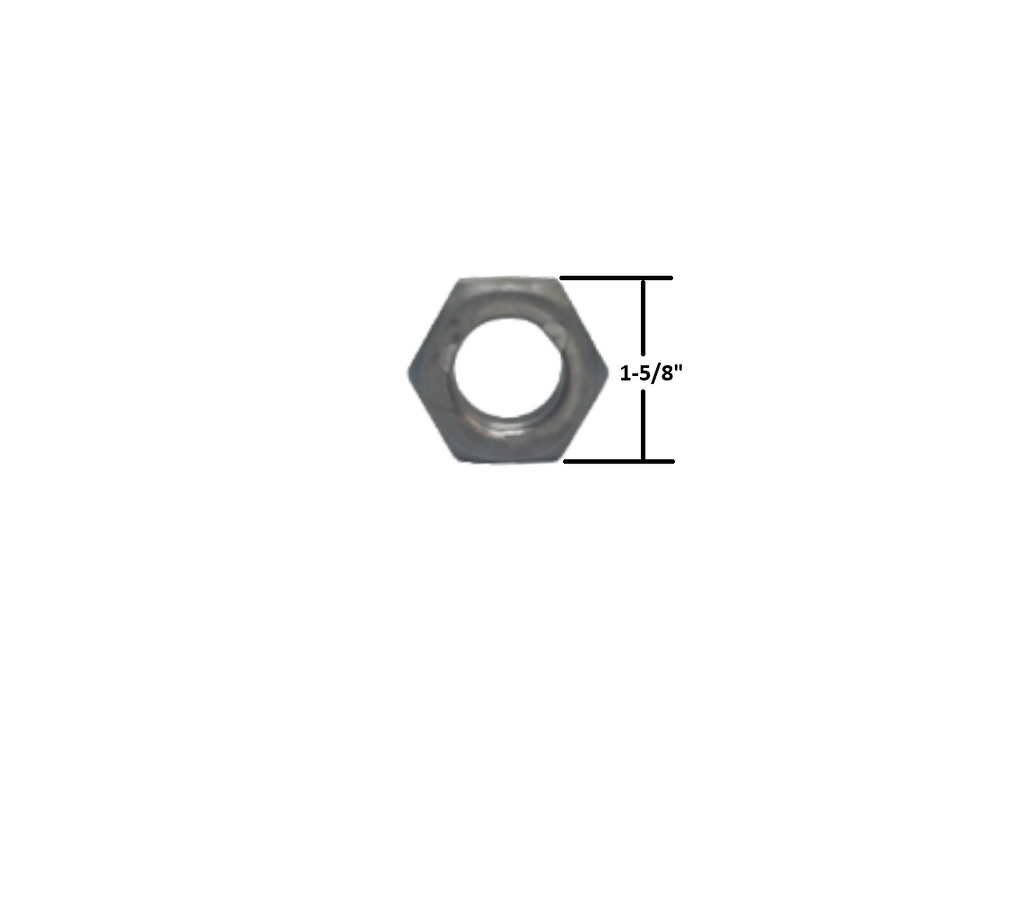

| 2 | 006-072-00 | Lock nuts, 1-1/8" diameter |
This kit does not include front or rear hangers or axle mounting hardware. Verify spring width, axle rating, and hanger configuration before installation.
