Add Brakes Basic Dexter 5 x 4.75 3500# Drums Dexter 10" Never Adjust Backing
Part Number - 945475-B-FSA-DEX

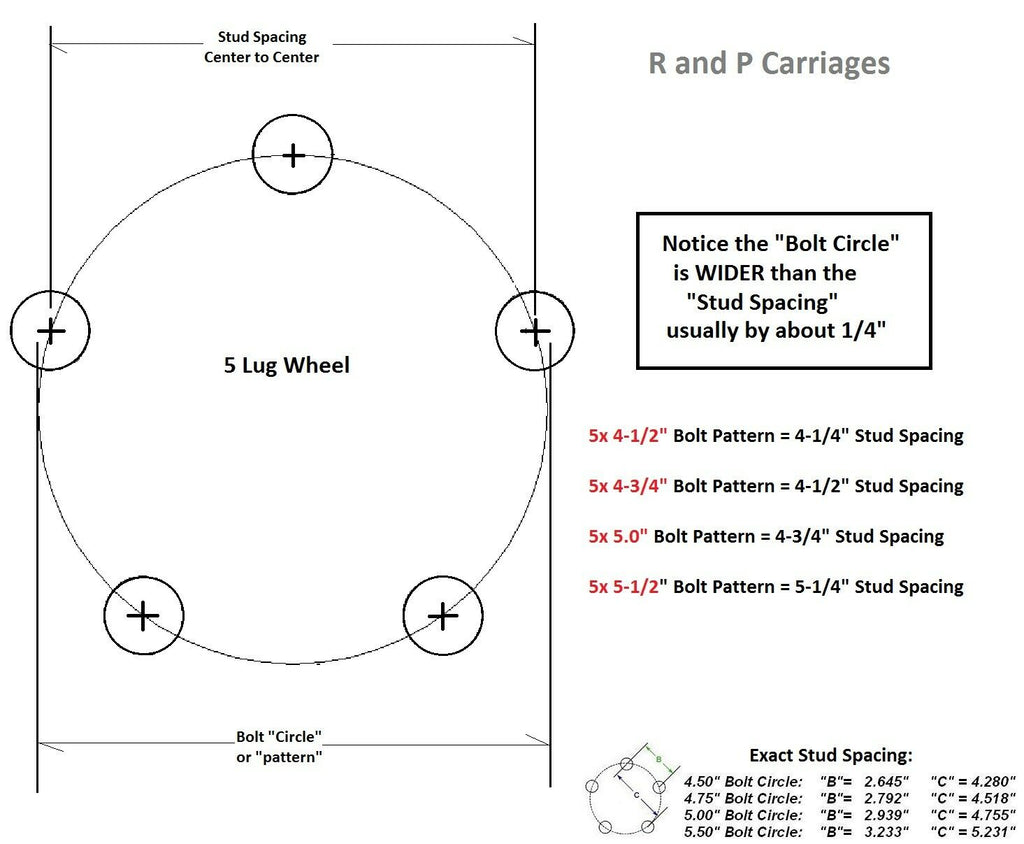

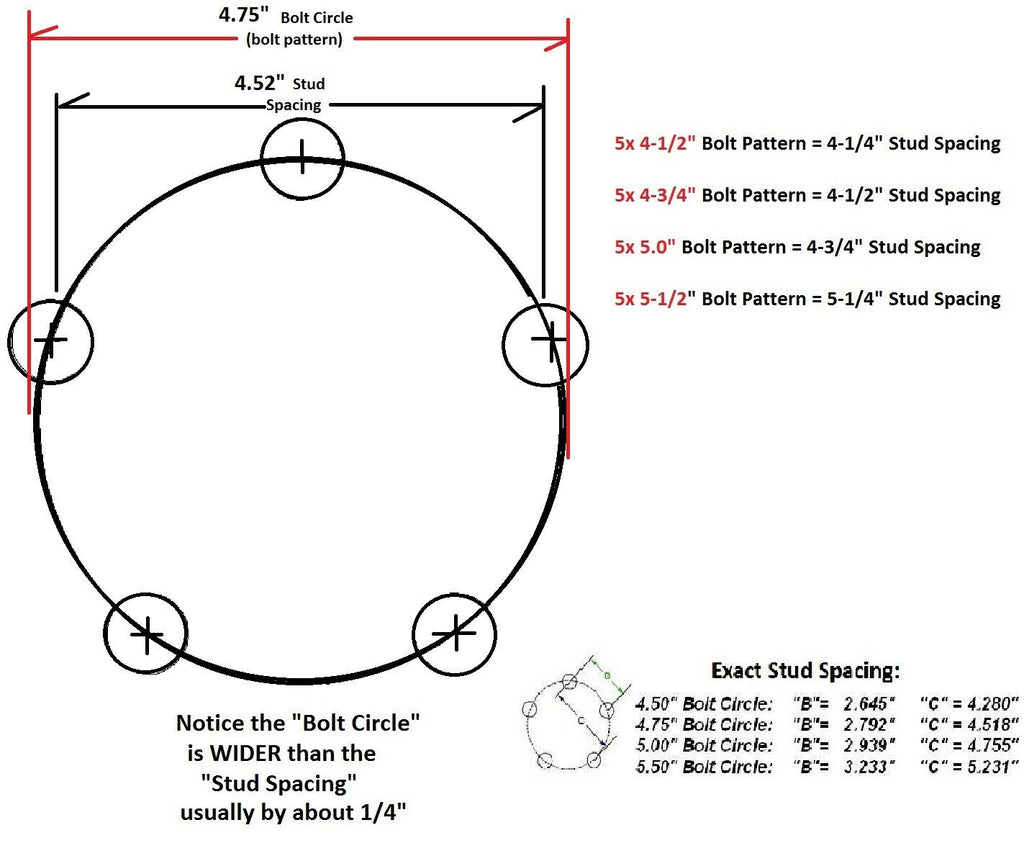

Common "Small GM" Bolt pattern (5 on 4.75")

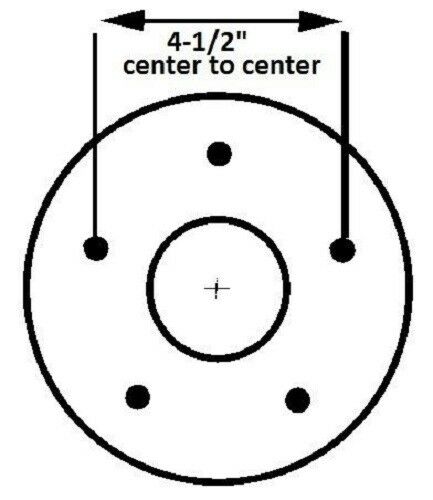

(4-1/2" stud spacing)

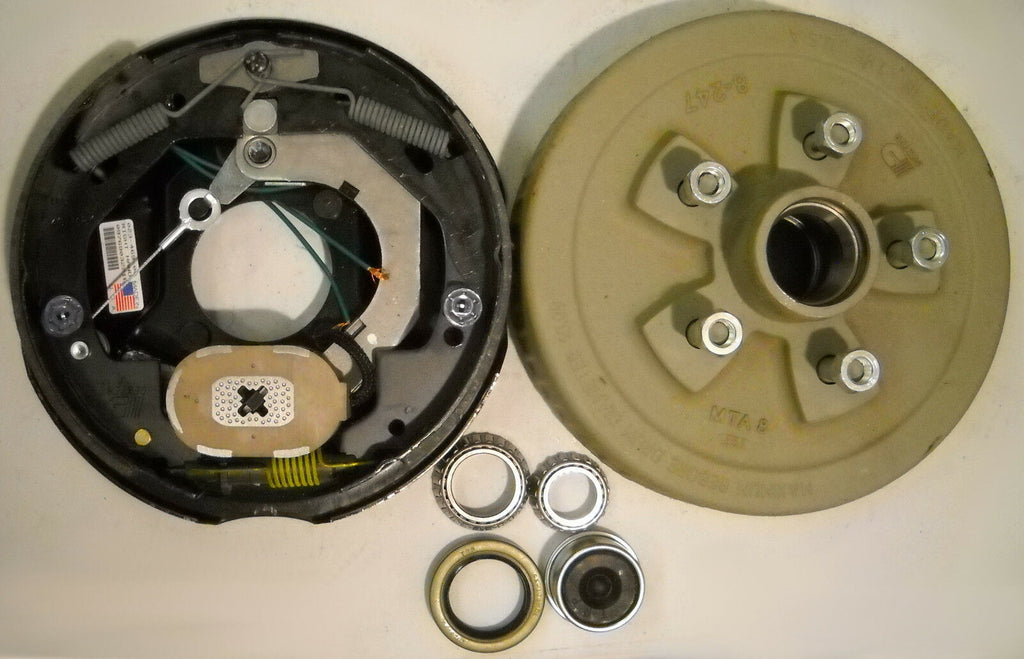

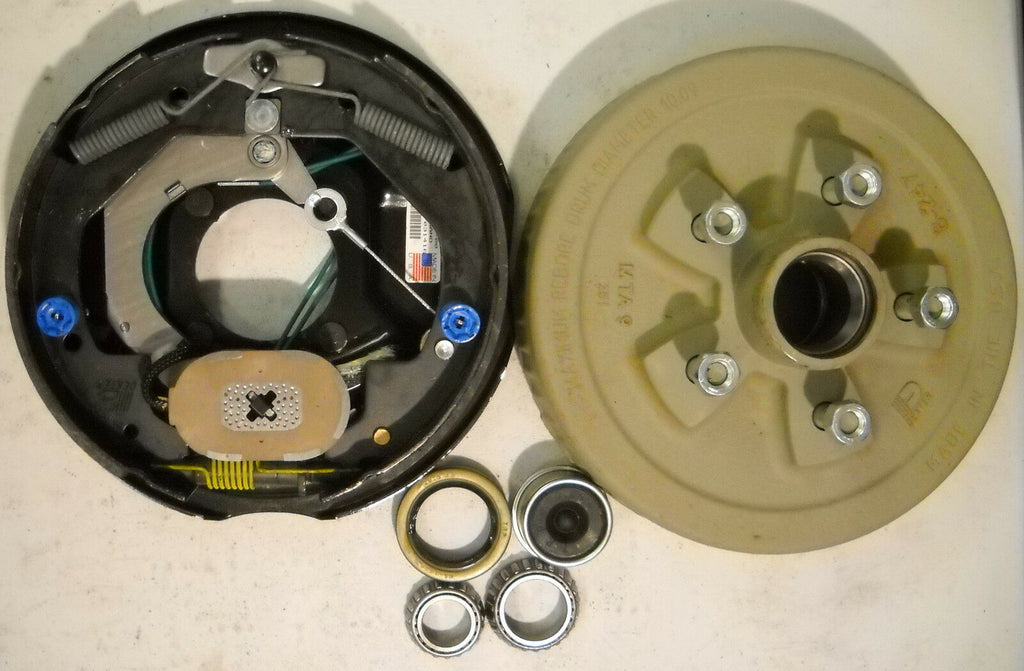

Complete Trailer Brake Setup, with a drum, seal, Bearings, Brake shoes, new hardware, backing plate, for one side of an axle!
for 3500# axles from Dexter, AL-KO, AXIS, Quality, and others!
for 3500# axles from Dexter, AL-KO, AXIS, Quality, and others!
If you have a bad left brake and you want to replace it, this kit has what you will need. This kit fits standard 3500# axle, either Spring or Torsion, EZ lube or Standard. Click here for wire and installation instructions
Most 5 bolt wheel trailers are 3500# axles. (does yours have a 2-3/8" axle tube?) Some small trailers (usually with small tires and a 1-5/8" axle tube) will have the smaller spindles, and for those you will need a smaller (or larger) brake kit (click here for the smaller brake kits) Look at the measurements below if you are not sure.

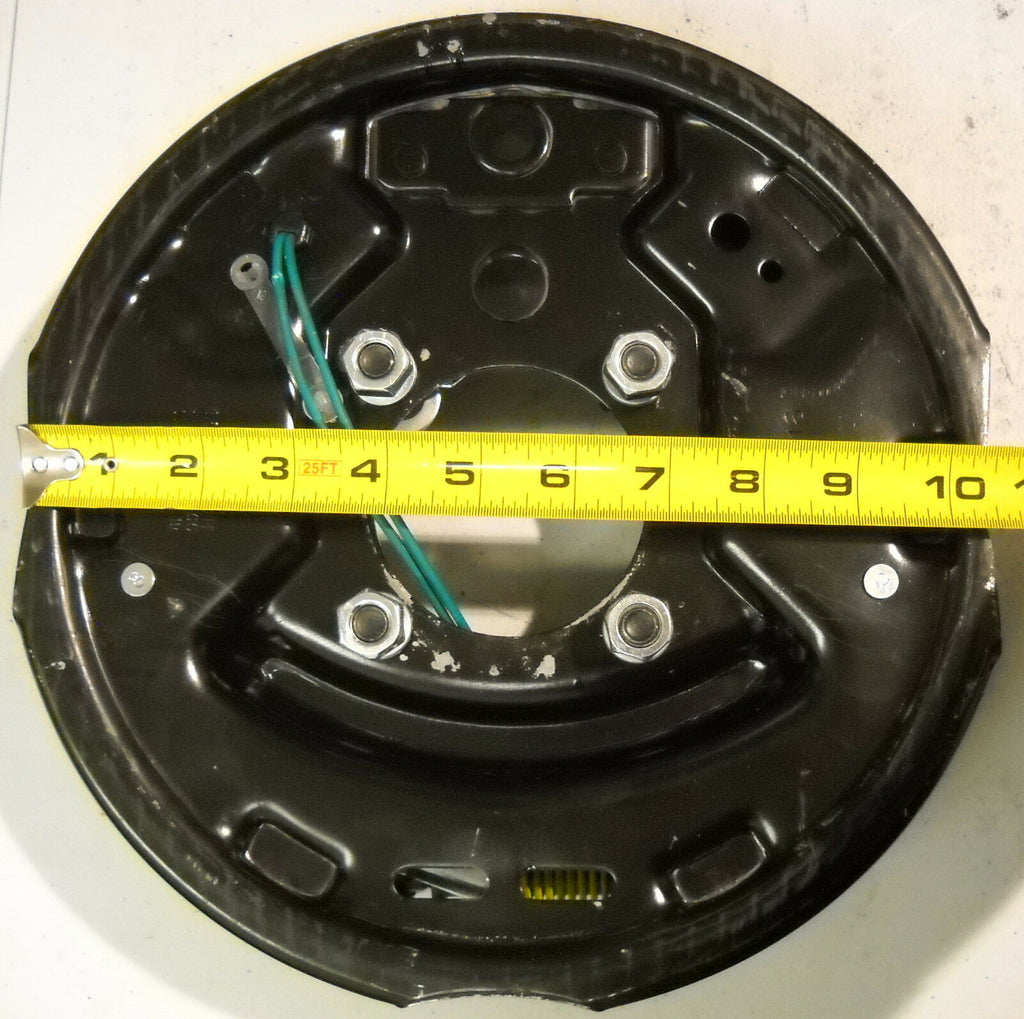

Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate

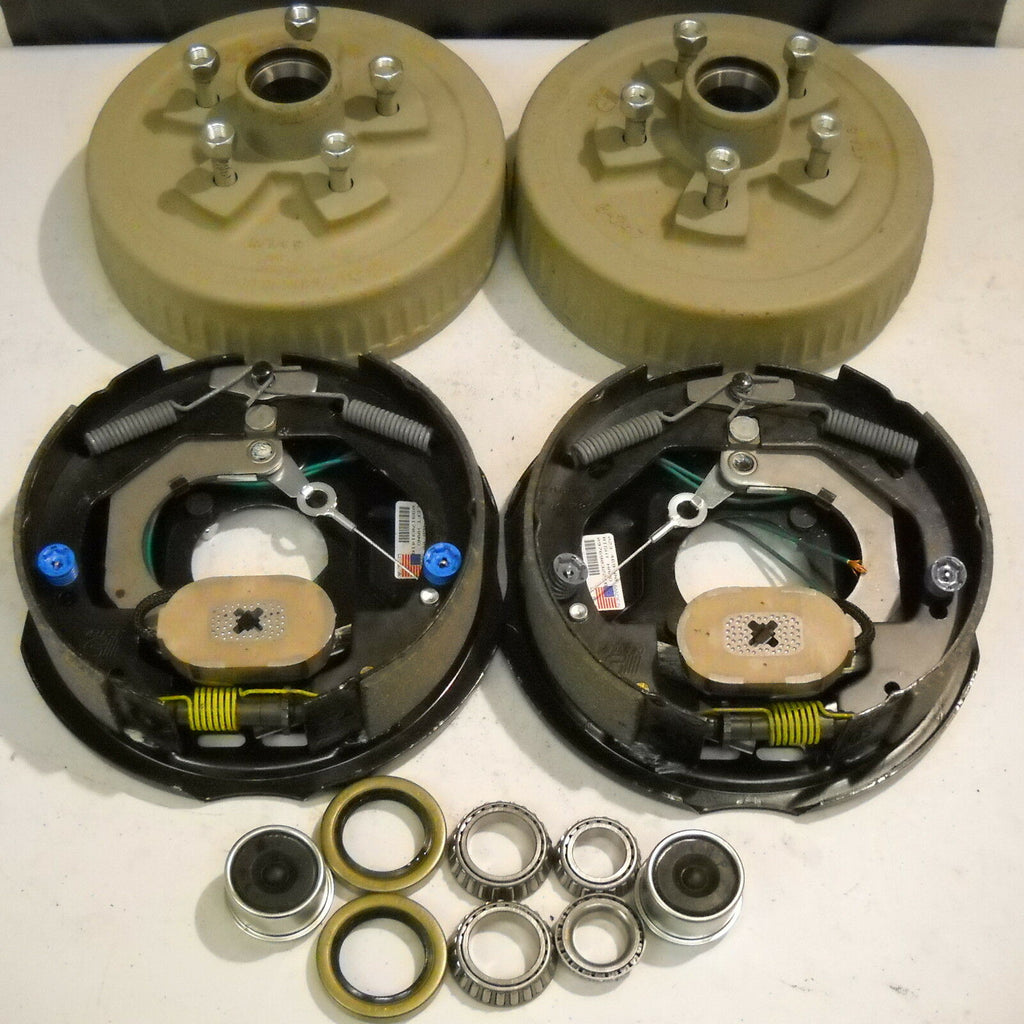

This Kit Includes:

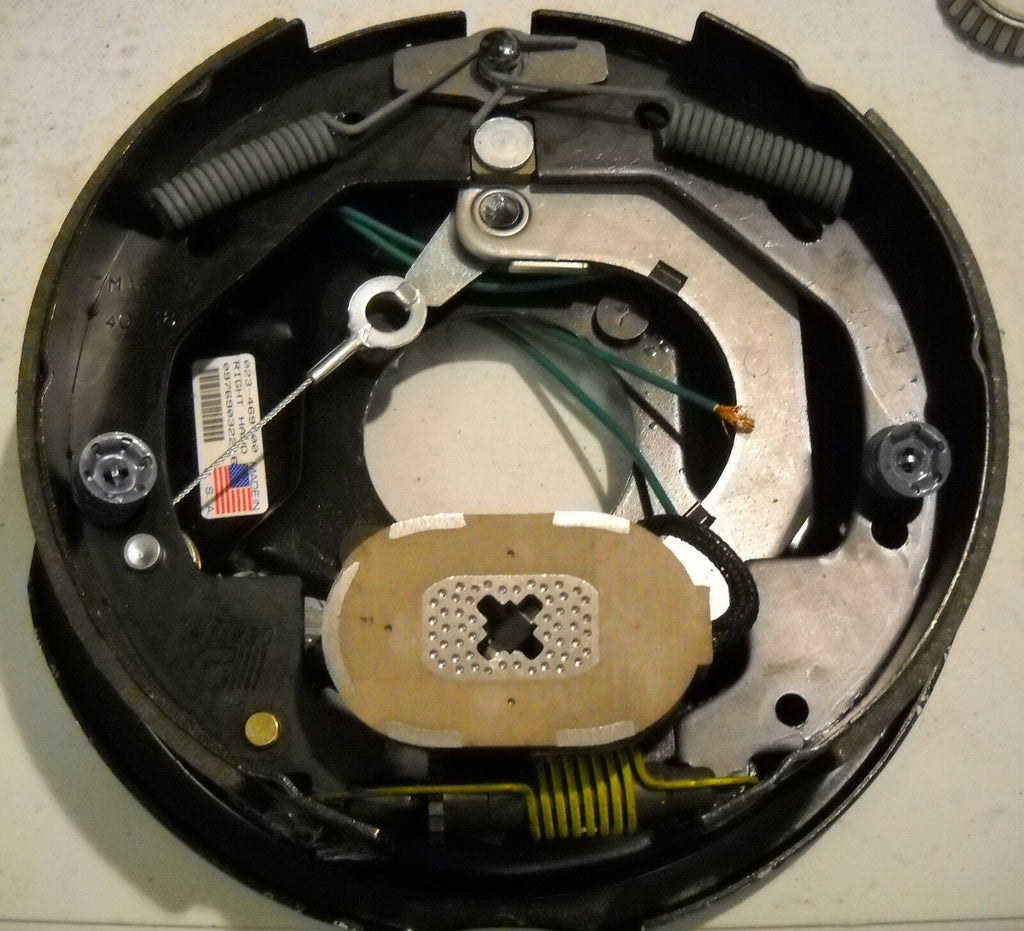

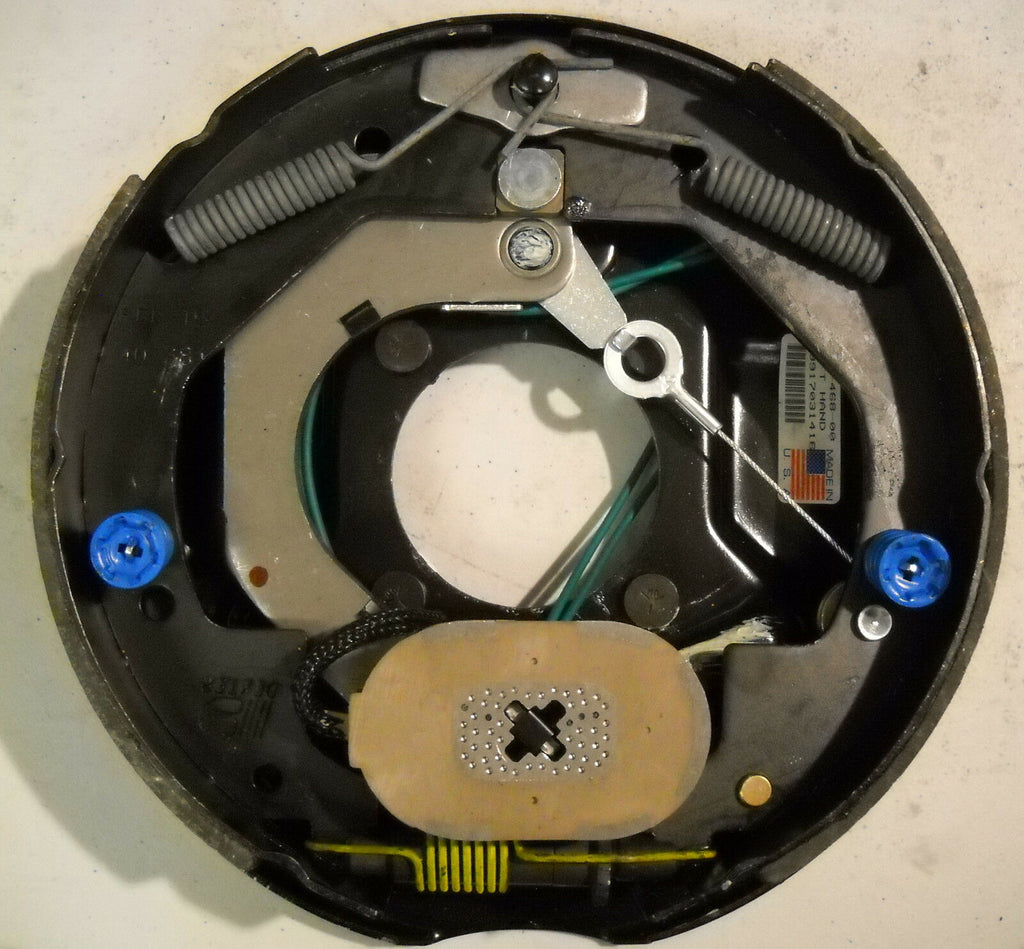

2- Genuine Dexter Brake backing plate, 3500# per pair, 10" x 2.25, RIGHT and LEFT

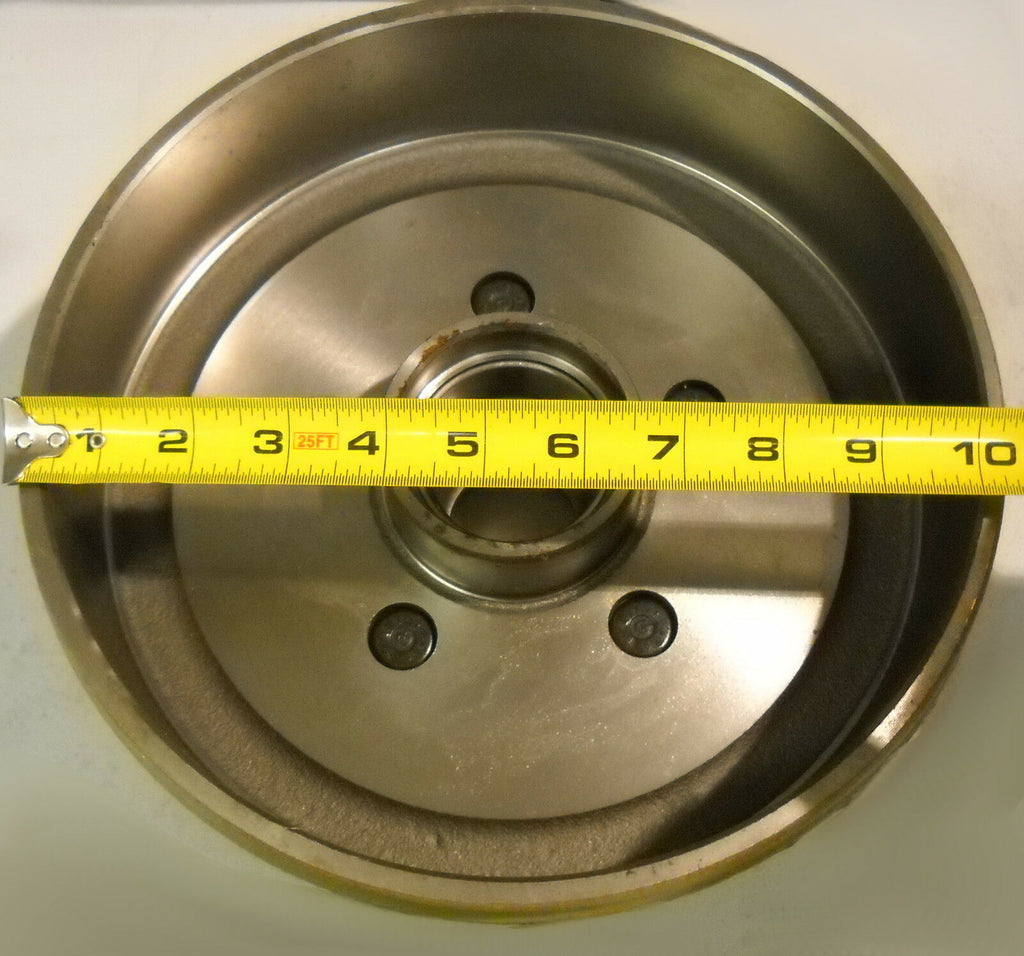

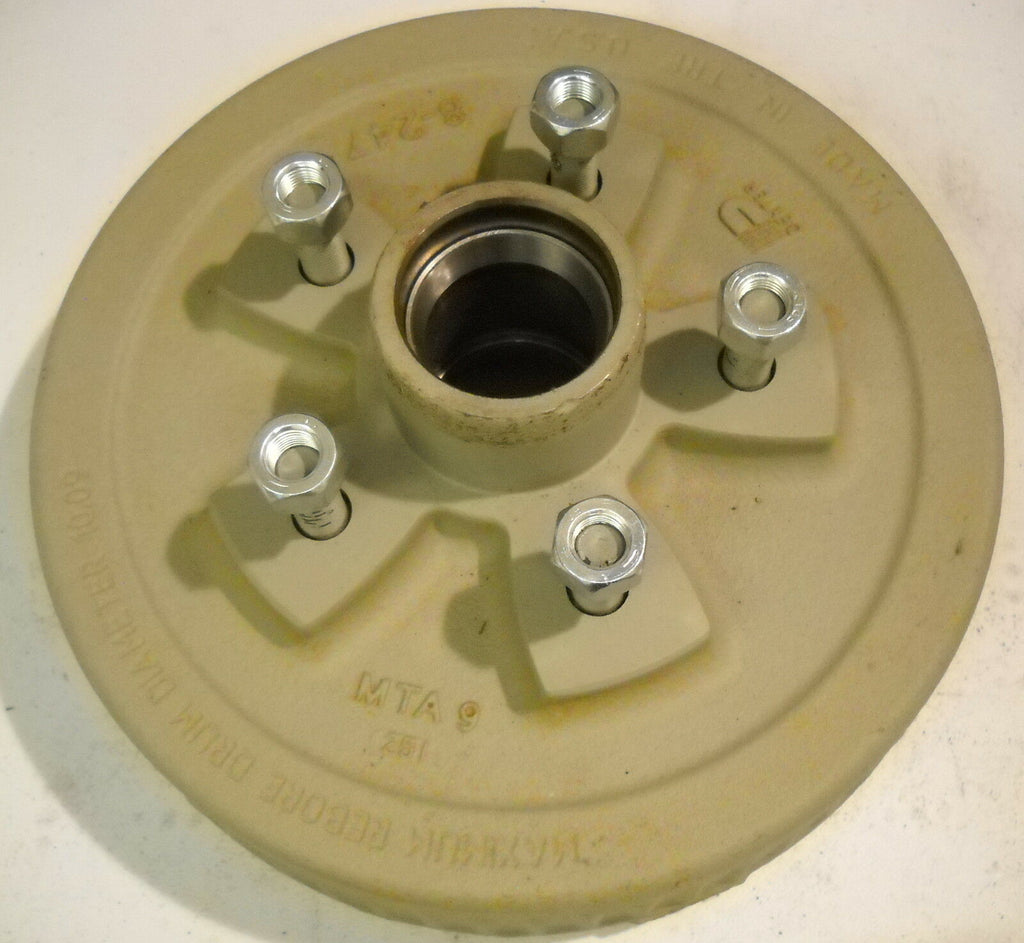

2- New Dexter 10" brake drum, 4.75" bolt pattern with races already pressed in (click here for other bolt patterns sizes)
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals

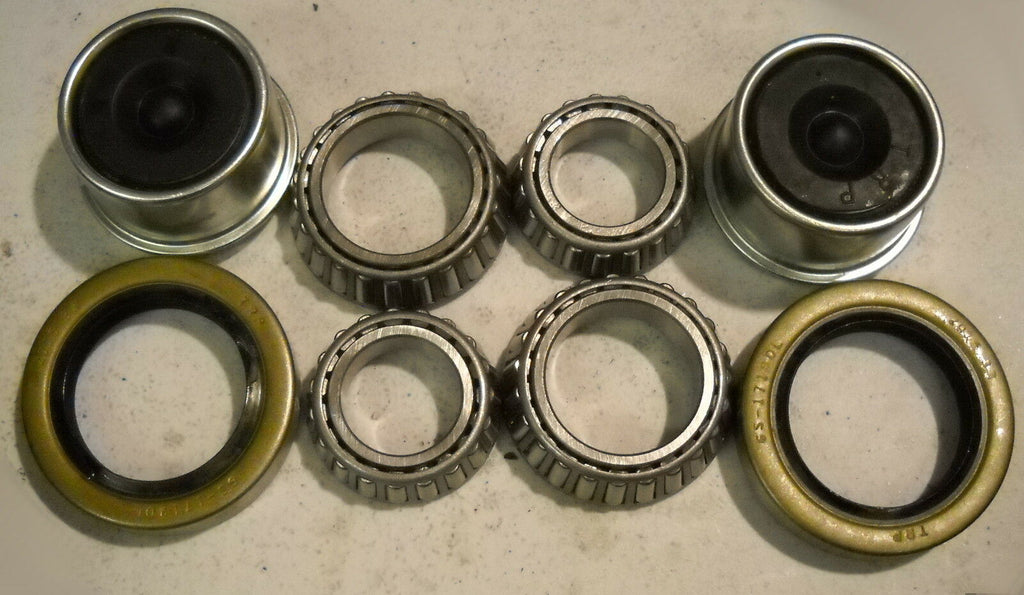

All New Wheel Bearings (Shipping loose with kit):
2 - 1.7" 10-19 seal
2 - L44649 bearing 1-1/16"
2- L68149 bearing 1-3/8"
10 - Matching lug nuts, 1/2-20
2 - New EZ Lube Dust Cap
2- New Dexter 10" brake drum, 4.75" bolt pattern with races already pressed in (click here for other bolt patterns sizes)
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals
All New Wheel Bearings (Shipping loose with kit):
2 - 1.7" 10-19 seal
2 - L44649 bearing 1-1/16"
2- L68149 bearing 1-3/8"
10 - Matching lug nuts, 1/2-20
2 - New EZ Lube Dust Cap
If you have a 2.75" OD Tube and a Flange with 5 holes, (to bolt the brake plate to) your axle is the 7000# Axle
If you have a 2.25" axle tube and has a 4 bolt flange it is the 3500# axle.
If you have the smaller 1-5/8" axle tube and has the 4 bolt flange, it has the smaller 2000/2200# axle
This auction is for a trailer with a 5 bolt, 4.750" bolt pattern! I stock all sizes, so please check my other auctions or specify you want a different size!
Note: We offer two different types of brake kits. Basic Kits & Complete Kits
Complete Kits are for adding brakes for the first time
Basic Kits are for adding brakes to a second axle or replacing them.
Make sure you double check that you are ordering the right bolt pattern before you pay
Complete Kits are for adding brakes for the first time
Basic Kits are for adding brakes to a second axle or replacing them.
Make sure you double check that you are ordering the right bolt pattern before you pay
