Match the part number, measurements and connection points that apply to your trailer.
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |
Part Number: STUB-84-555-Hx2
5-1/4" Stud Spacing

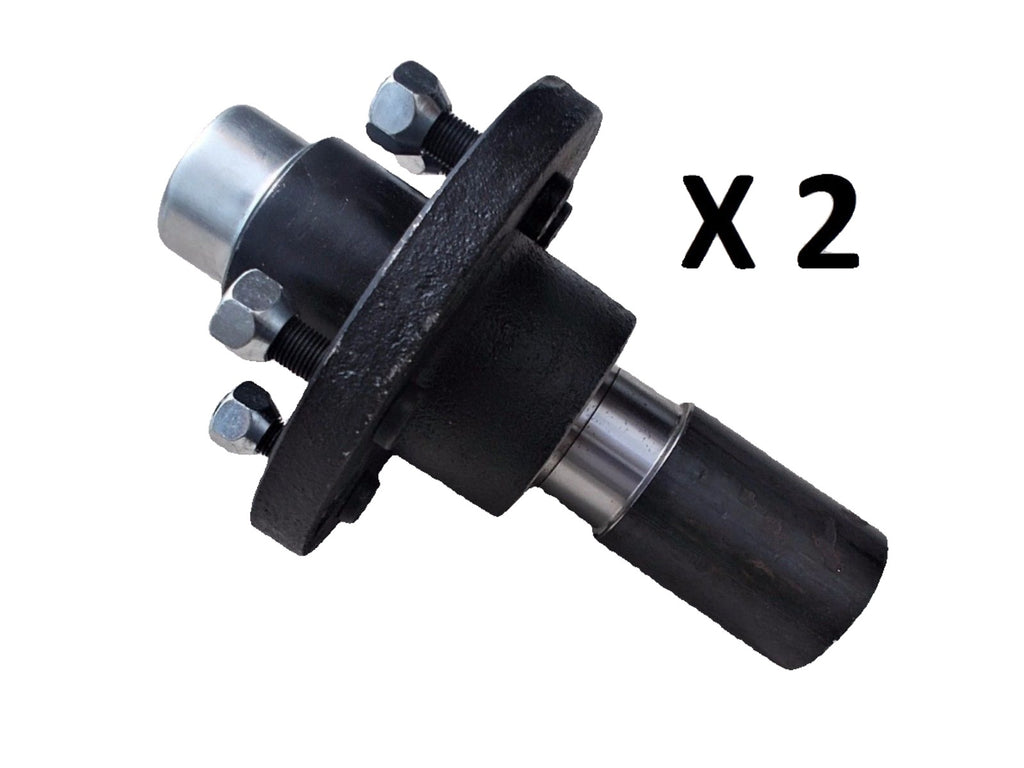

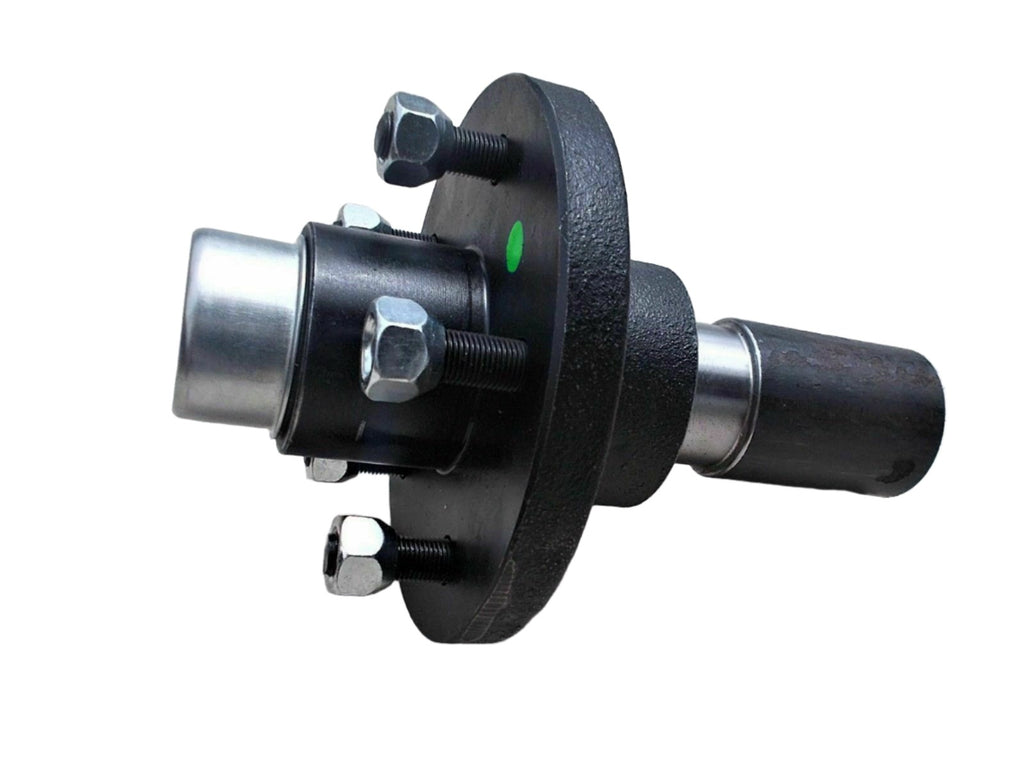

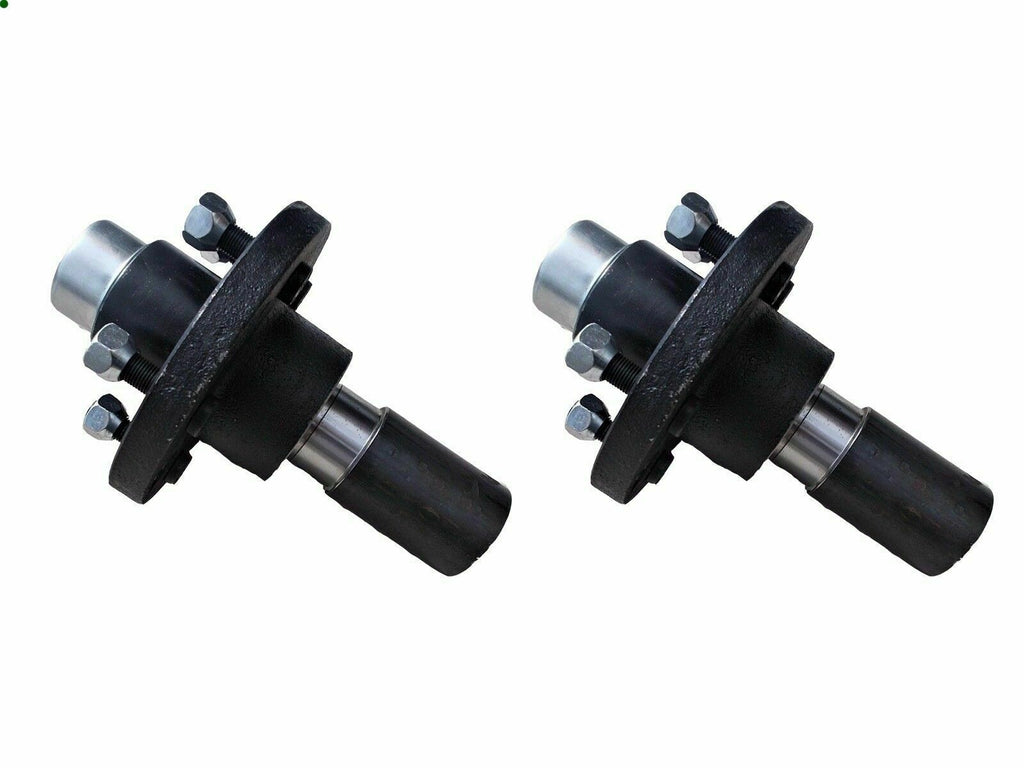

Complete replacement stub axle kit for 3,500 lb trailer axles with a 5 on 5.5 bolt pattern. Designed as a direct replacement for damaged or unusable spindles.

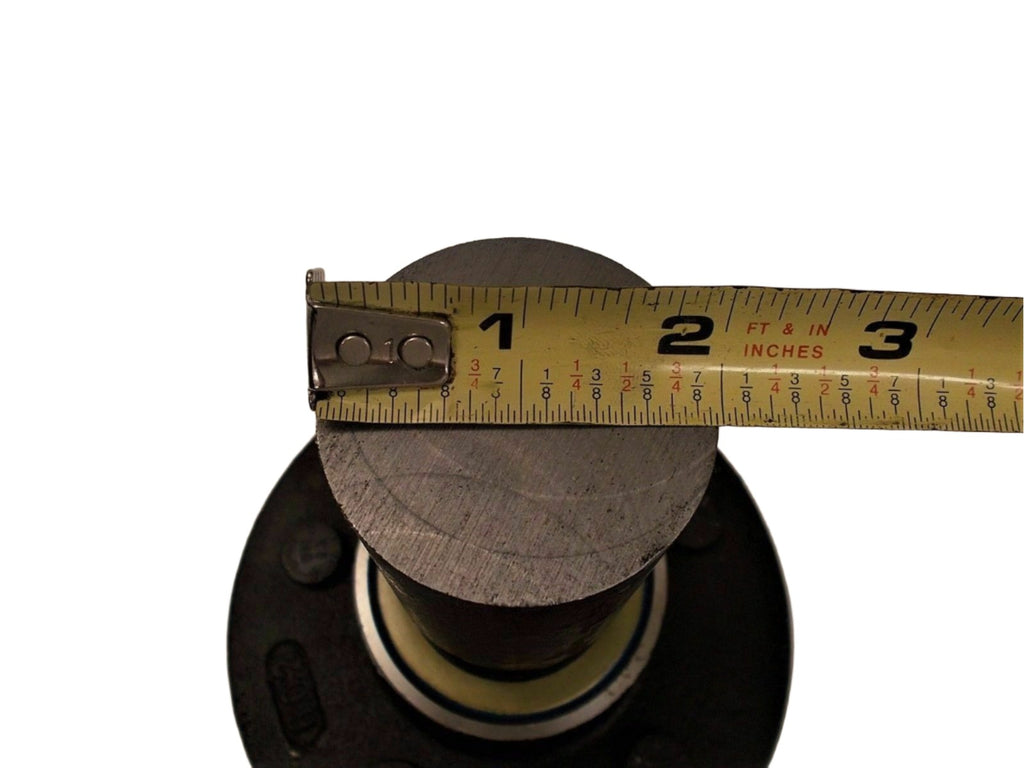

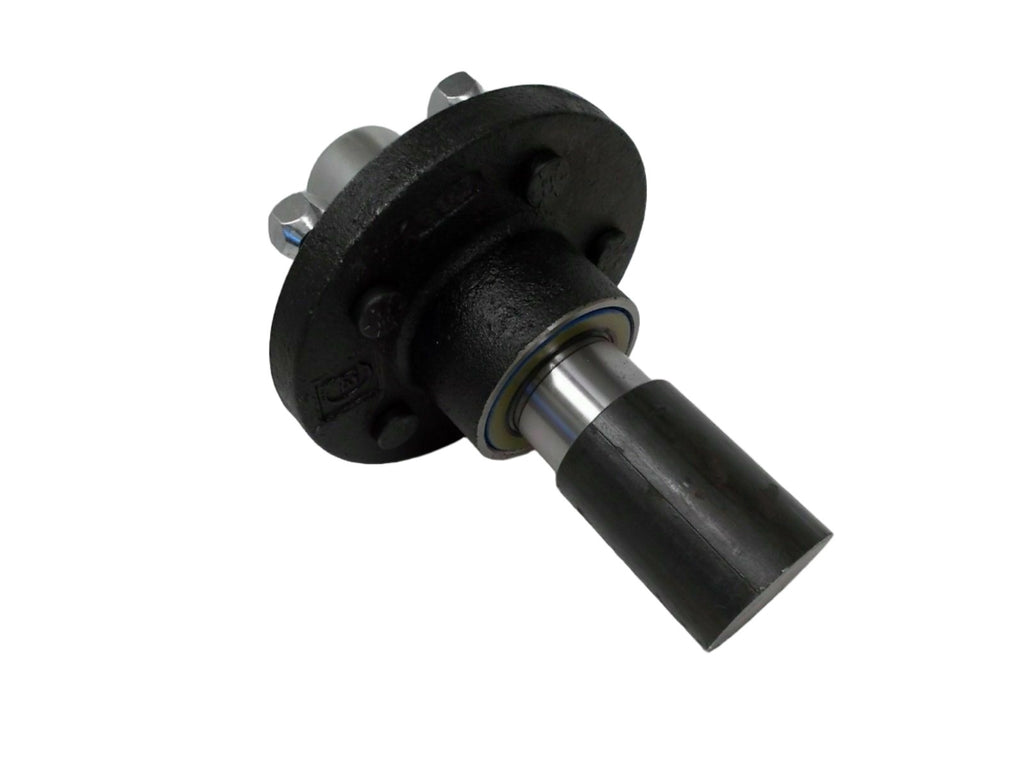

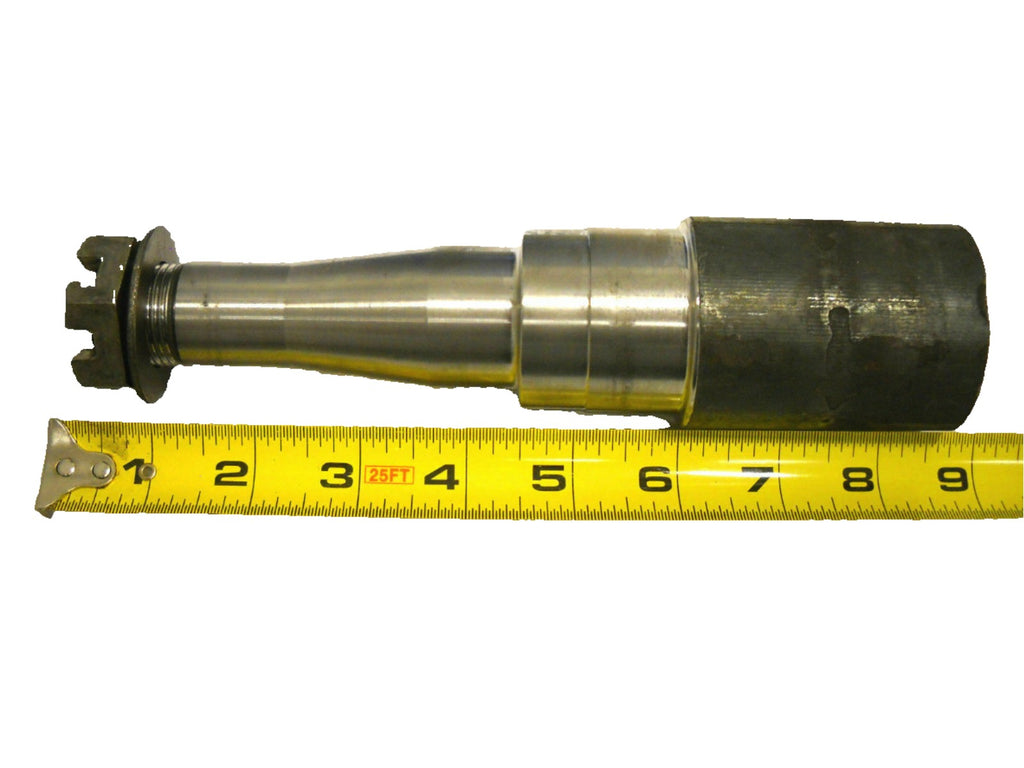

Each spindle features a 3.37" tail shaft with a 2.00" diameter base, designed to fit inside standard 2" Schedule 40 pipe.
Compatible with most major axle brands including Dexter, AL-KO, Quality, Lippert and others using a standard #84 spindle configuration.
| Specification | Details |
|---|---|
| Axle Rating | 3,500 lbs |
| Bolt Pattern | 5 on 5.5" |
| Stud Spacing | 5-1/4" |
| Spindle Type | SP-20084NWC (#84 Style) |
| Tail Shaft Length | 3.37" |
| Tail Shaft Diameter | 2.00" |
| Quantity | Component |
|---|---|

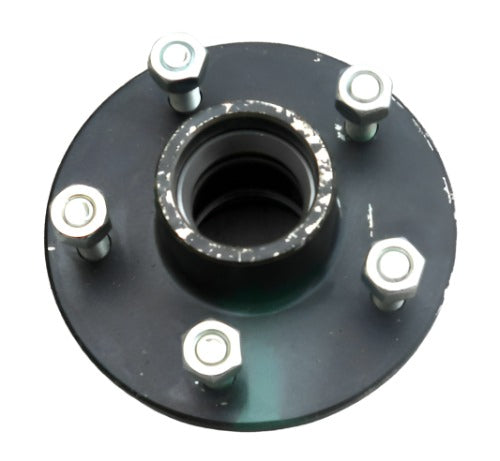

| 2 | 3,500 lb Idler Hubs – 5 on 5.5 (Code Blue) |
| 10 | Lug Nuts |

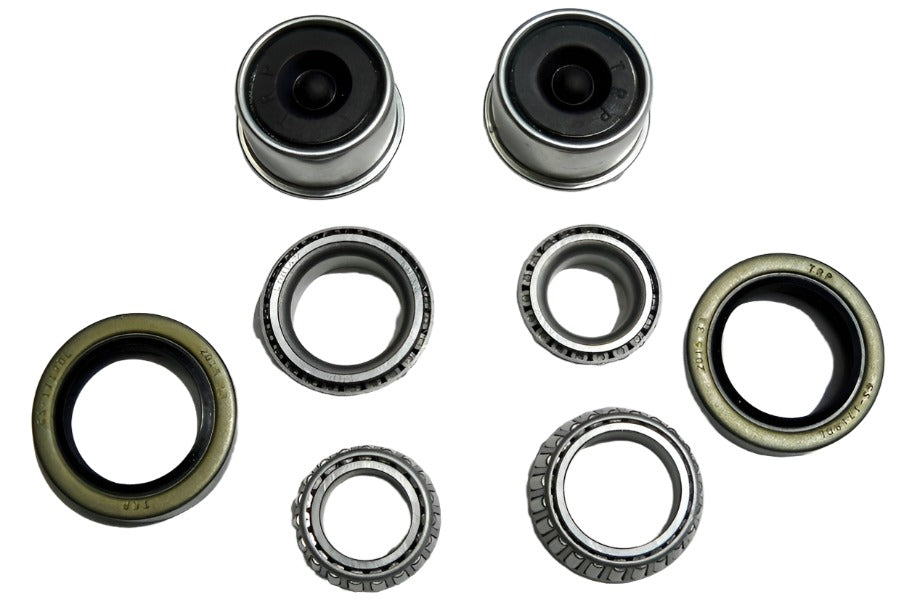

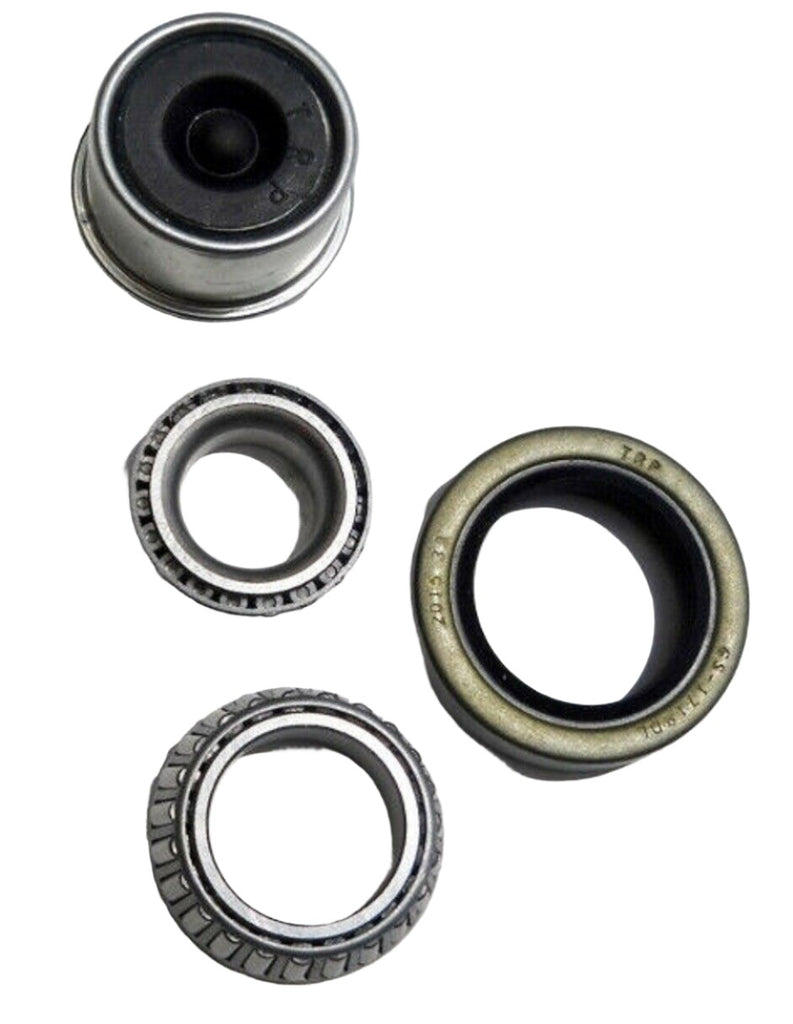

| 2 | 1.98" Dust Caps |
| 2 | L68149 Inner Bearings |
| 2 | L44649 Outer Bearings |
| 2 | 10-19 Grease Seals |
| 2 | SP-20084NWC Spindles |
| 2 | 1" Axle Nuts |
| 2 | 1" Spindle Washers |
Includes everything required to replace both sides of your 3,500 lb axle. Common on some Ford, Dodge, and other truck-pattern applications.
Selected from R&P customer feedback for Hub / Drum products and related trailer service.
“I've ordered lots of trailer repair parts from them, always fast service, well packed, and the right parts. I highly recommend.”
“Would like to say thanks to everyone at R and P Carriages parts were delivered fast and with the very helpful staff, the right parts were sent the first time. Thanks Happy Holiday's.”
“Received swivel d-ring tie down 4 days after my wife ordered them , great price and came with backing plates. I received exactly what I paid for, thanks for the great service. Chris Davis , Mooresville NC”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
