Match the part number, measurements and connection points that apply to your trailer.
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |

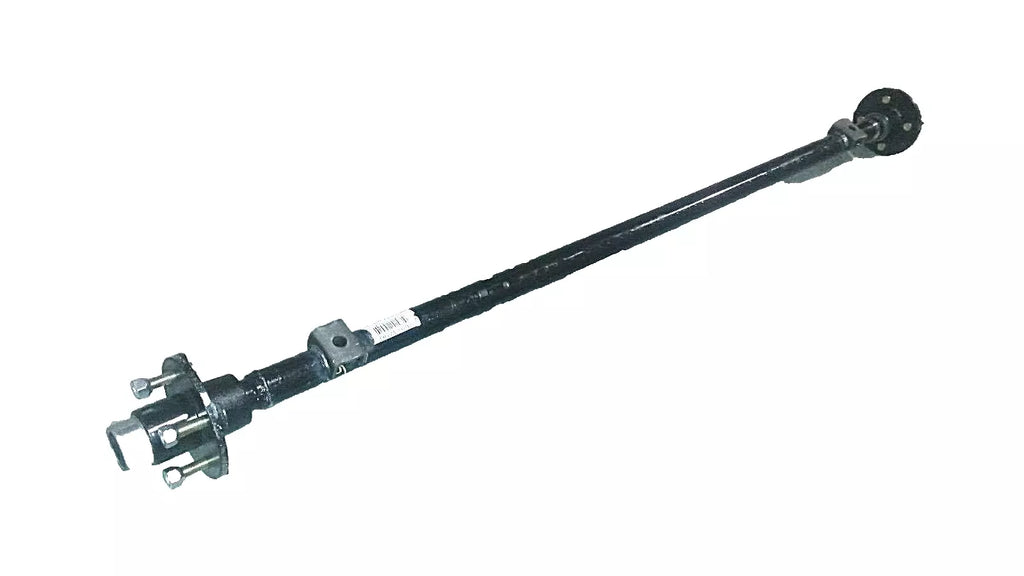

2200# Trailer Axle with 70" Hub Face

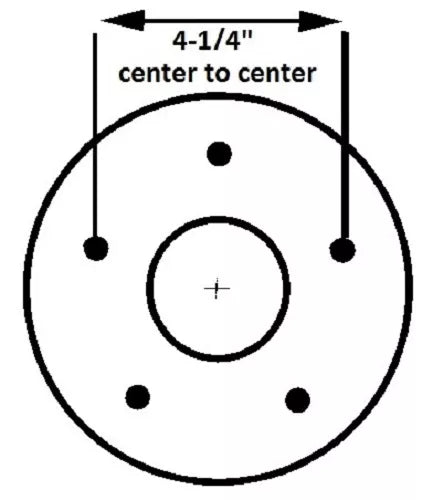

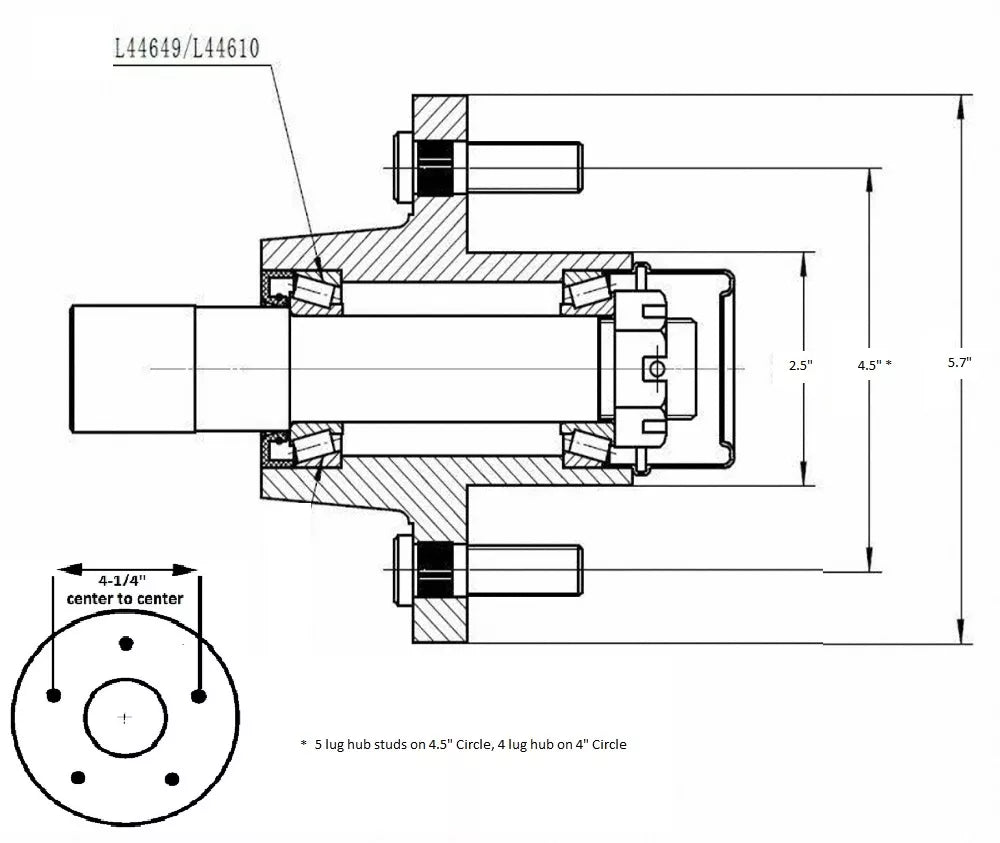

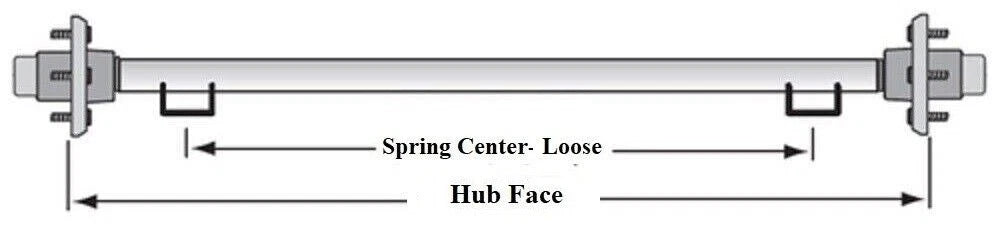

and 5 x 4.5" Idler Hubs Use to build a common 5x6, 5x8 of 5x10 trailer (or any 58" wide trailer) Spring mounts sent loose, unless specified at the time of purchase. Rated to 2200 pounds. Includes 5 lug hubs (available with 4 lug hubs, just let us know!) Includes standard 1.0625 Bearings L44649, and 1.5" seal #10-60 Hub is 5 lug (or 4 lug, just let us know) with a center "pilot" dia of 2.45 inches (the hole in your wheel must be bigger than 2-1/2", pretty common) Measures 70" from hub face to face (should be tire center to center) Includes axle nuts and washer, bearings, dust caps, lug nuts, ALL parts. Also very popular in camper construction, and smaller boat trailers Price is for one axle. |
Selected from R&P customer feedback for Hub / Drum products and related trailer service.
“I've ordered lots of trailer repair parts from them, always fast service, well packed, and the right parts. I highly recommend.”
“Would like to say thanks to everyone at R and P Carriages parts were delivered fast and with the very helpful staff, the right parts were sent the first time. Thanks Happy Holiday's.”
“Received swivel d-ring tie down 4 days after my wife ordered them , great price and came with backing plates. I received exactly what I paid for, thanks for the great service. Chris Davis , Mooresville NC”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
