Idler Hub – 5 on 4.5" Bolt Pattern (2,000–2,200 lb Axles)
Part Number: 08-259-05
This idler hub is designed for light-duty trailer axles commonly rated at 2,000 to 2,200 lb and using a 5 on 4.5 inch bolt pattern. The hub is supplied with two bearing size options and two seal sizes to accommodate common spindle variations found on axles in this weight range.
Features
- Idler hub for light-duty trailer axles
- 5 on 4.5 inch wheel bolt pattern
- Supplied with two bearing size options
- Includes two seal sizes for spindle compatibility
Specifications
| Specification | Detail |
|---|---|
| Axle Rating | 2,000–2,200 lb |

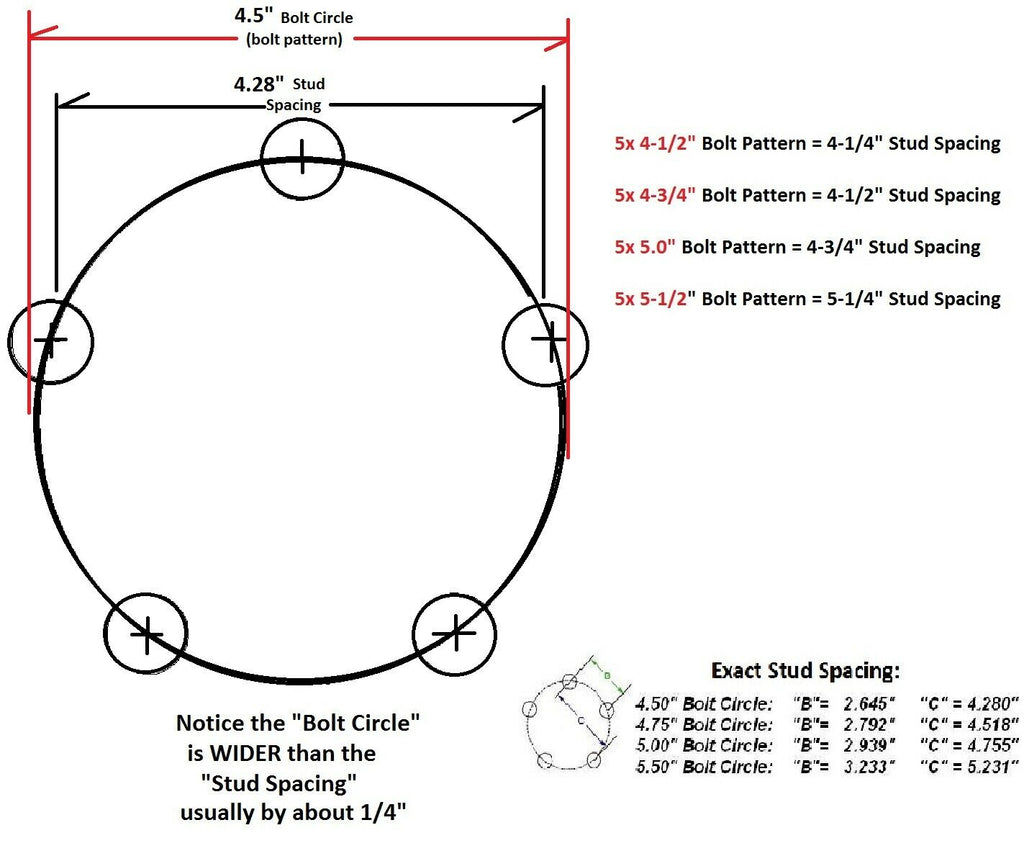

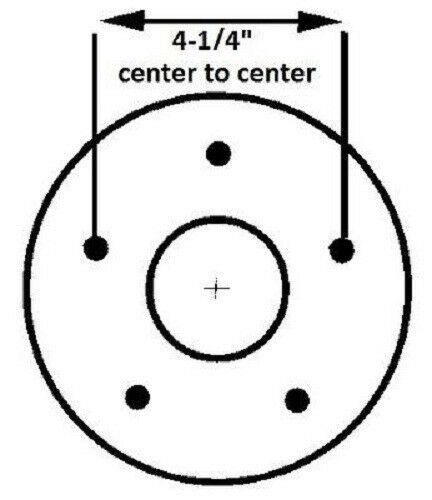

| Bolt Pattern | 5 on 4.5 inches |
| Inner Bearing Options | L44643 (1.00" ID) or L44649 (1.06" ID) |
| Outer Bearing | Same as inner bearing (matching set) |
| Seal Options Included | 1.24" ID and 1.50" ID |
| Bearing Spacing | Approximately 3-1/2" to 3-3/4" (outer-to-outer) |
| Hub Quantity | Sold individually (1 hub) |

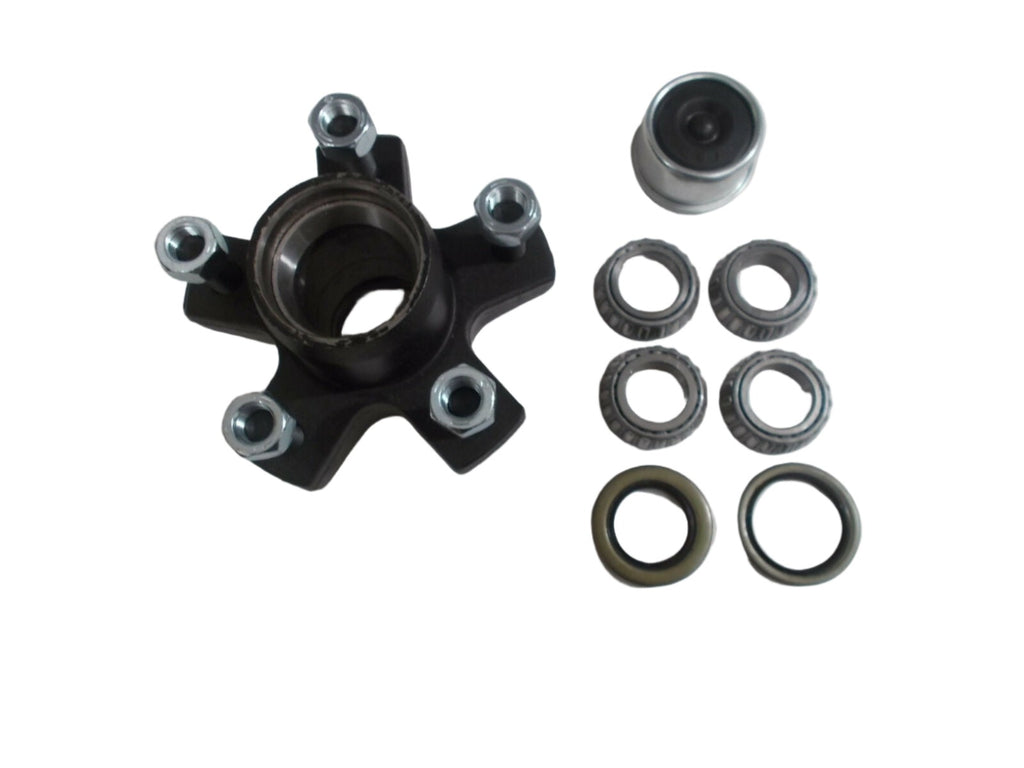

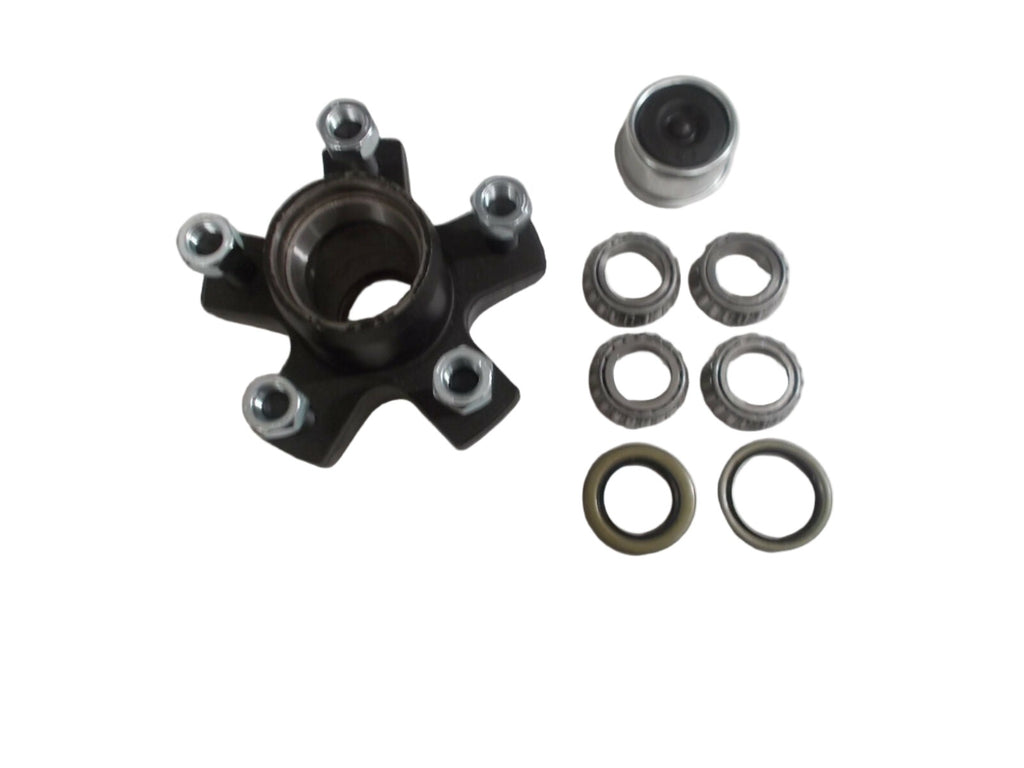

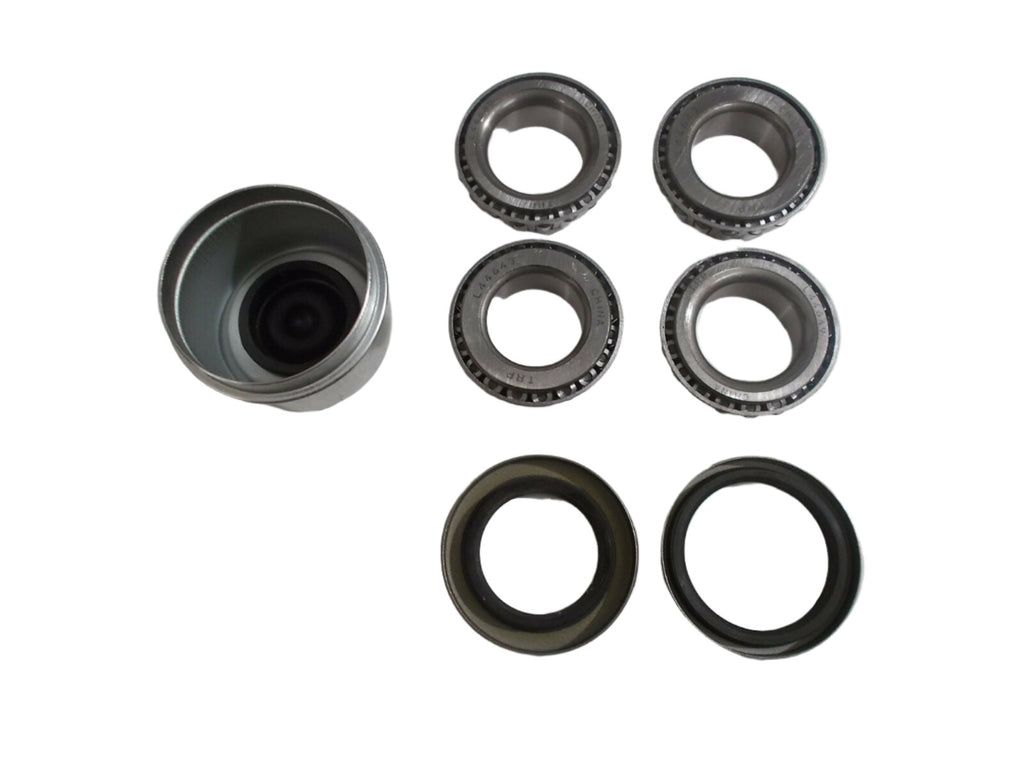

Each hub is supplied with both bearing sizes and both seal sizes. Use only the bearing and seal combination that matches your axle spindle. Verify spindle dimensions and bearing numbers prior to installation.
