Match the part number, measurements and connection points that apply to your trailer.
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |
Part Number: STUB-84-545-DR

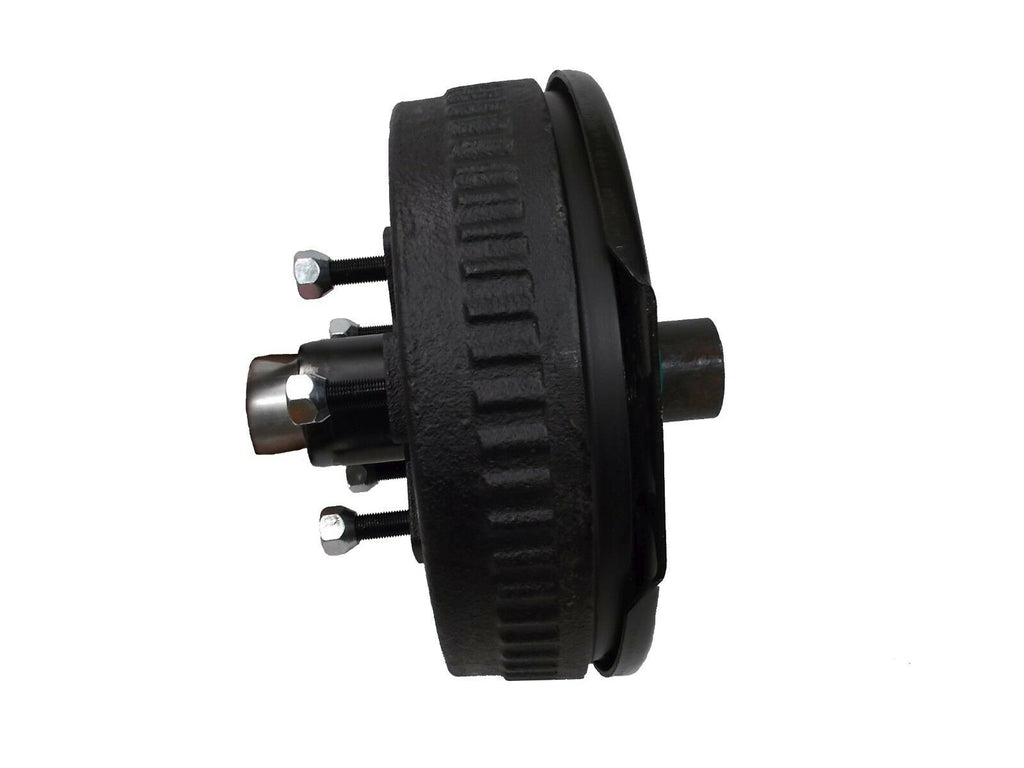

Complete right-side brake assembly and spindle replacement kit for 3,500 lb trailer axles using a 5 on 4.5 bolt pattern.

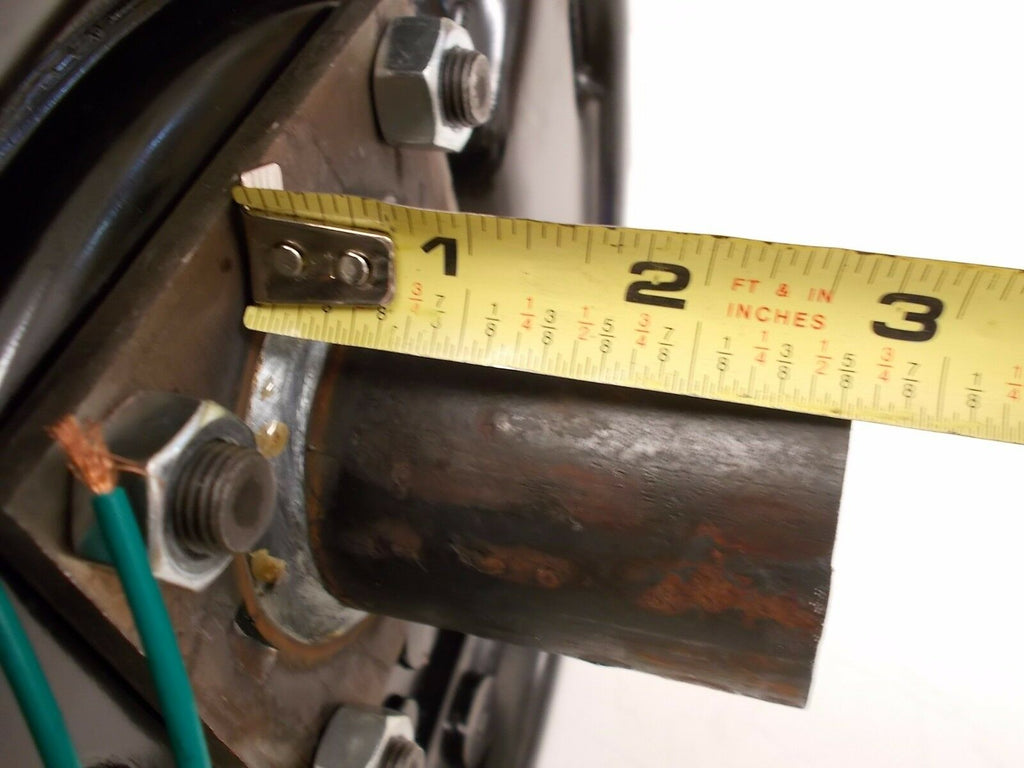

Designed as a direct replacement for damaged or worn spindles. Spindle features a 3.37" tail shaft and 2.00" diameter base, intended to fit inside standard 2" Schedule 40 pipe.
Compatible with most major axle brands including Dexter, AL-KO, Quality, Lippert and others using a standard #84 spindle configuration.
| Specification | Details |
|---|---|
| Axle Rating | 3,500 lbs |

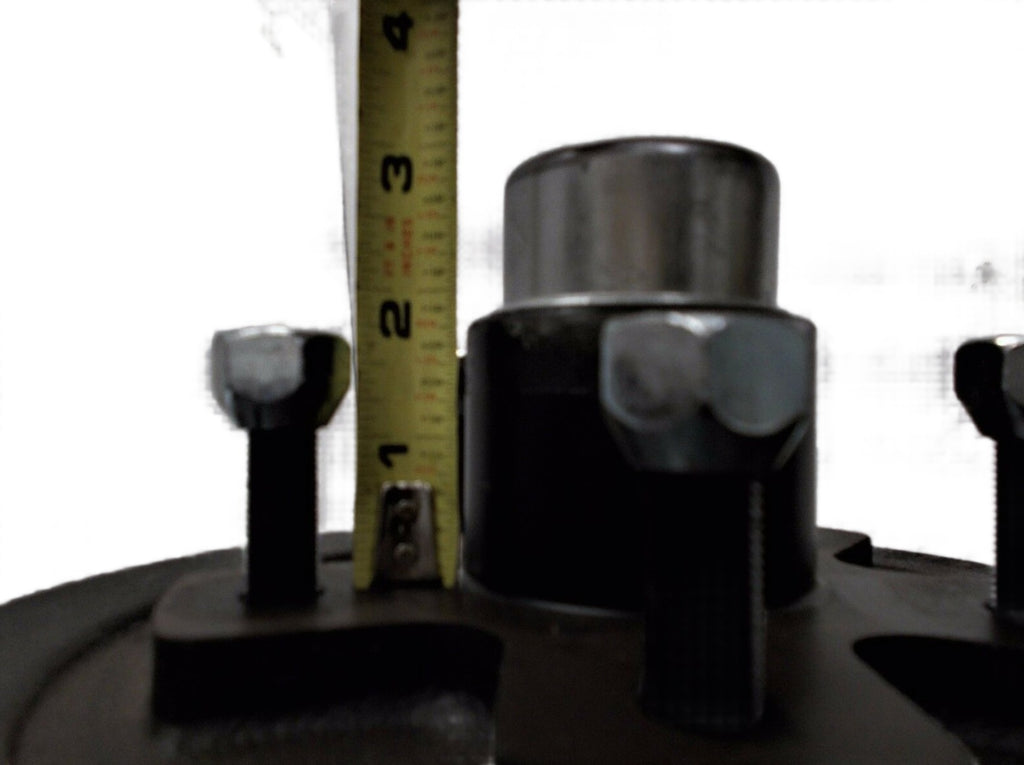

| Bolt Pattern | 5 on 4.5" |
| Spindle Type | SP-20084FZ (#84 Style) |
| Tail Shaft Length | 3.37" |
| Tail Shaft Diameter | 2.00" |
| Quantity | Component |
|---|---|

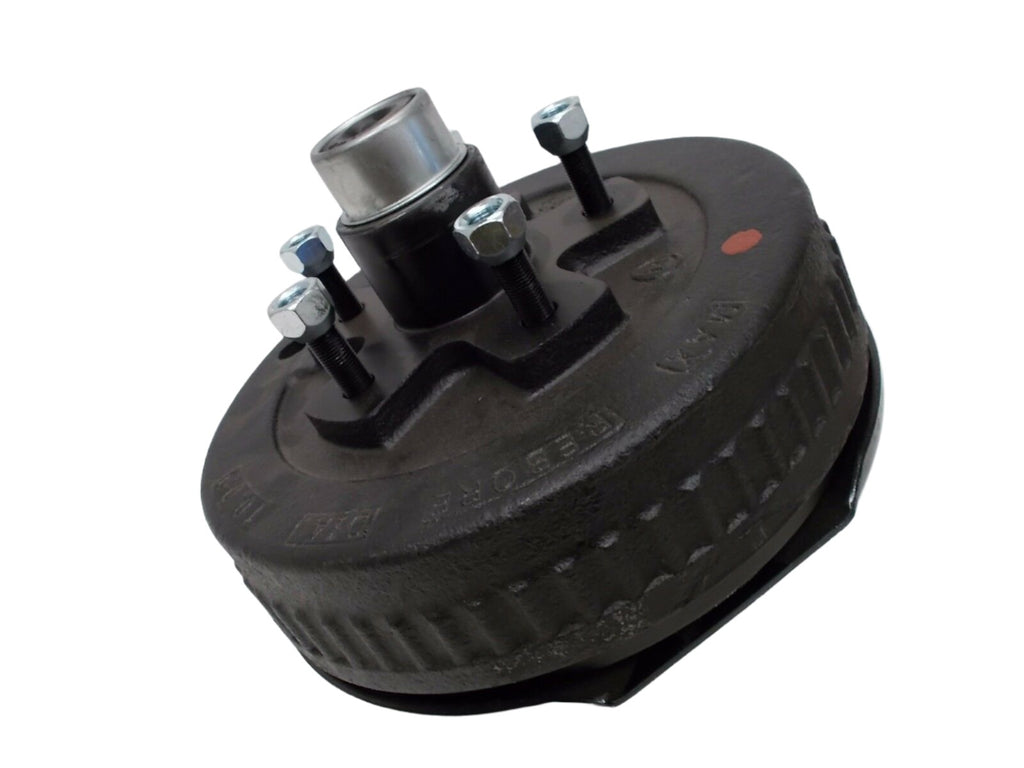

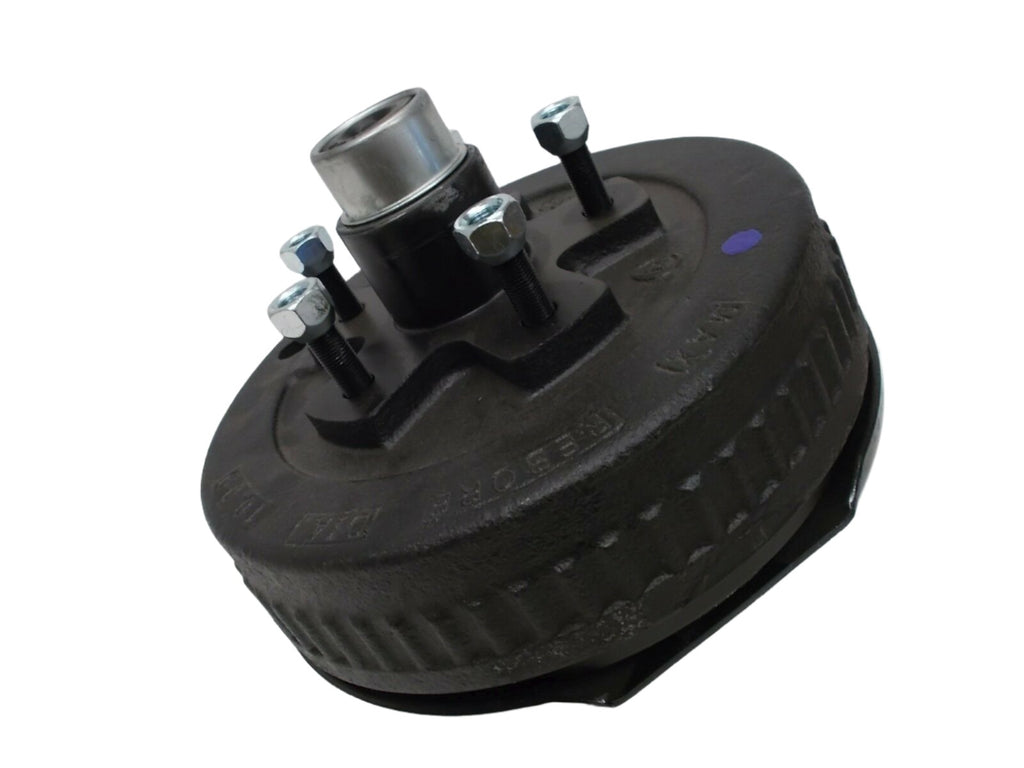

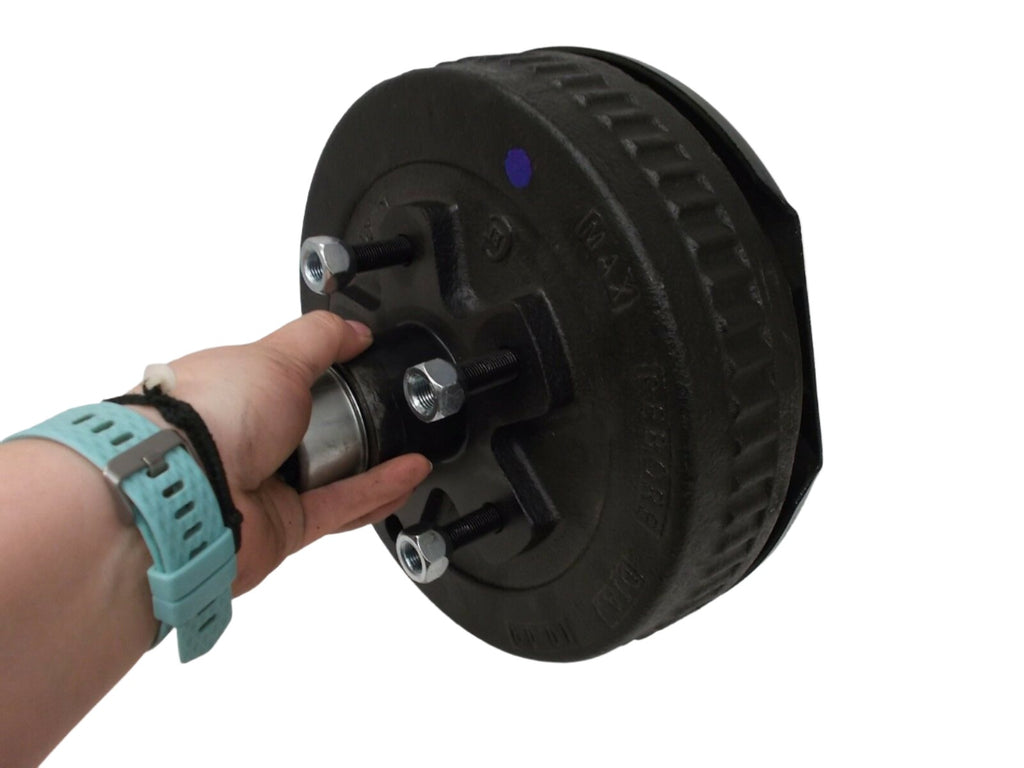

| 1 | 3,500 lb Brake Drum – 5 on 4.5 (Code Blue) |

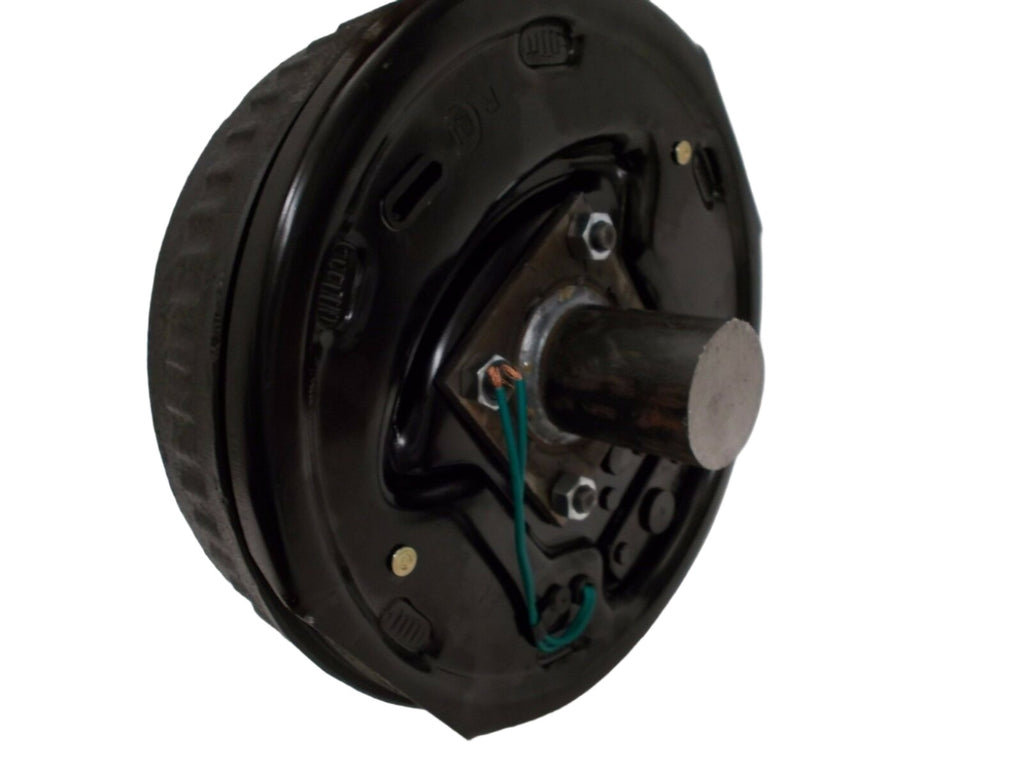

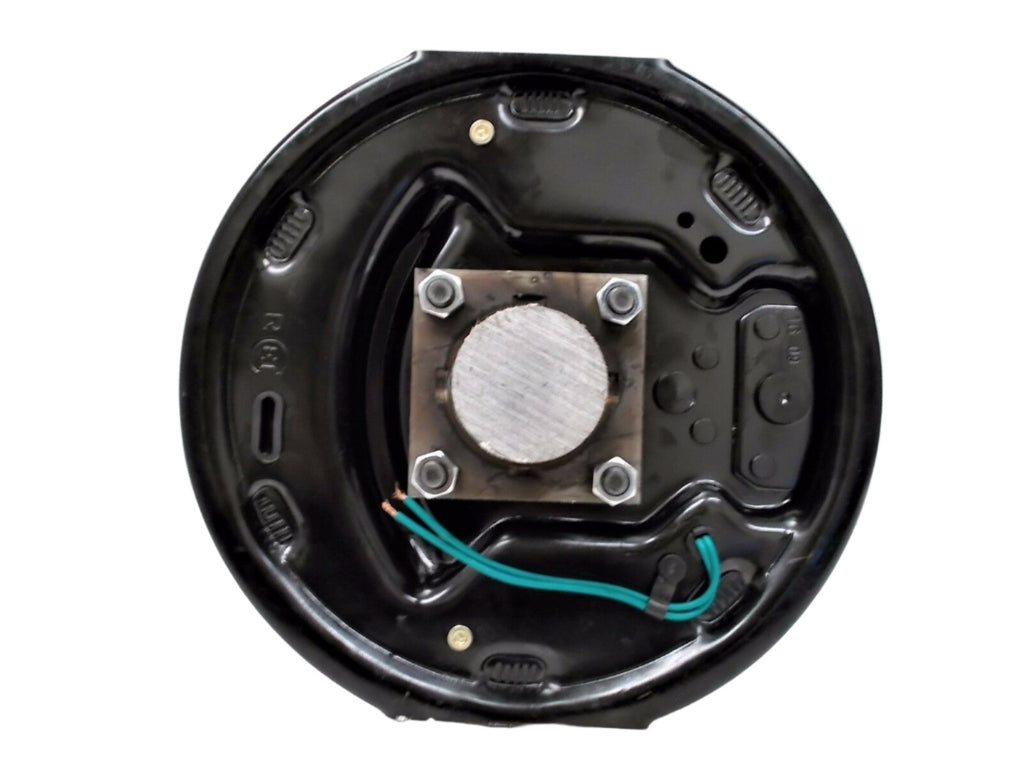

| 1 | 10" Backing Plate – Right Hand |
| 5 | Lug Nuts |

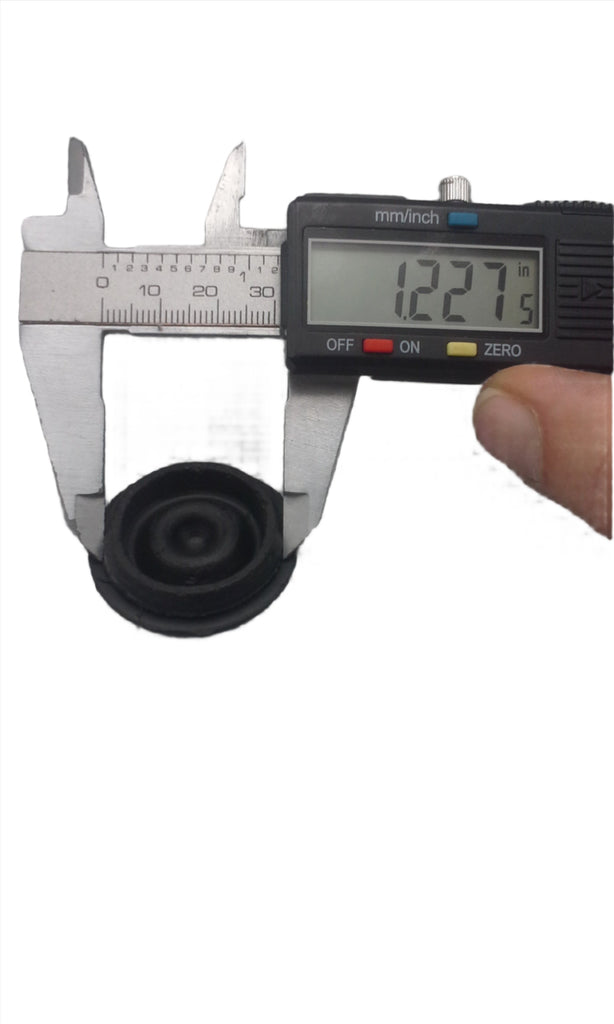

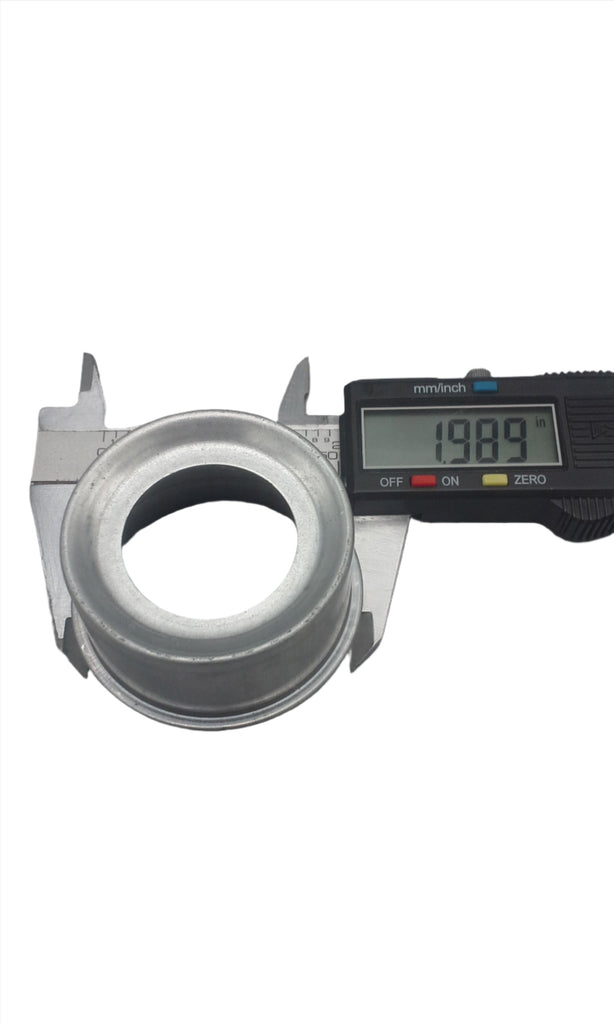

| 1 | 1.98" Dust Cap |

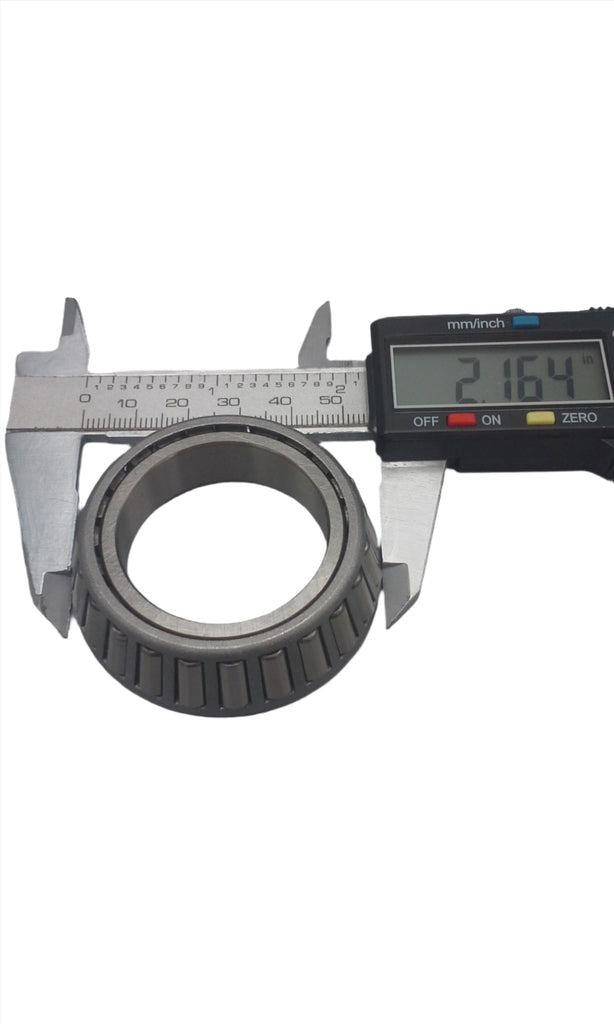

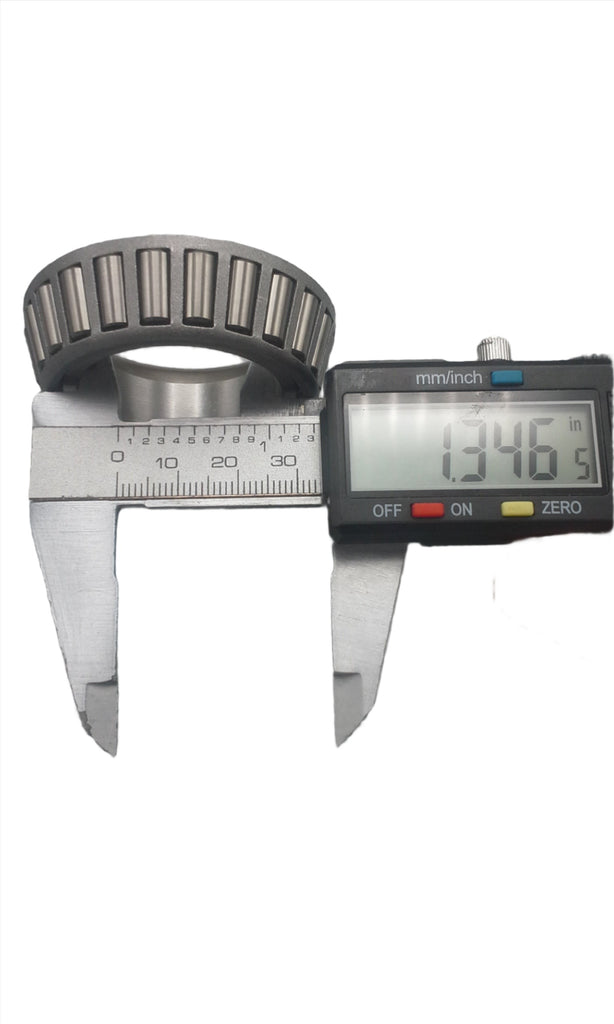

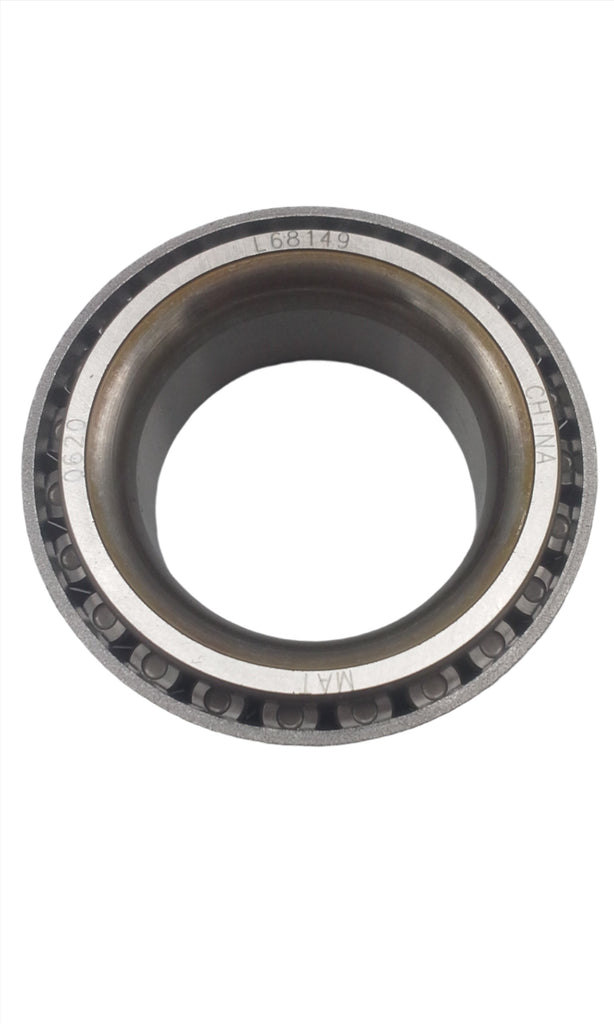

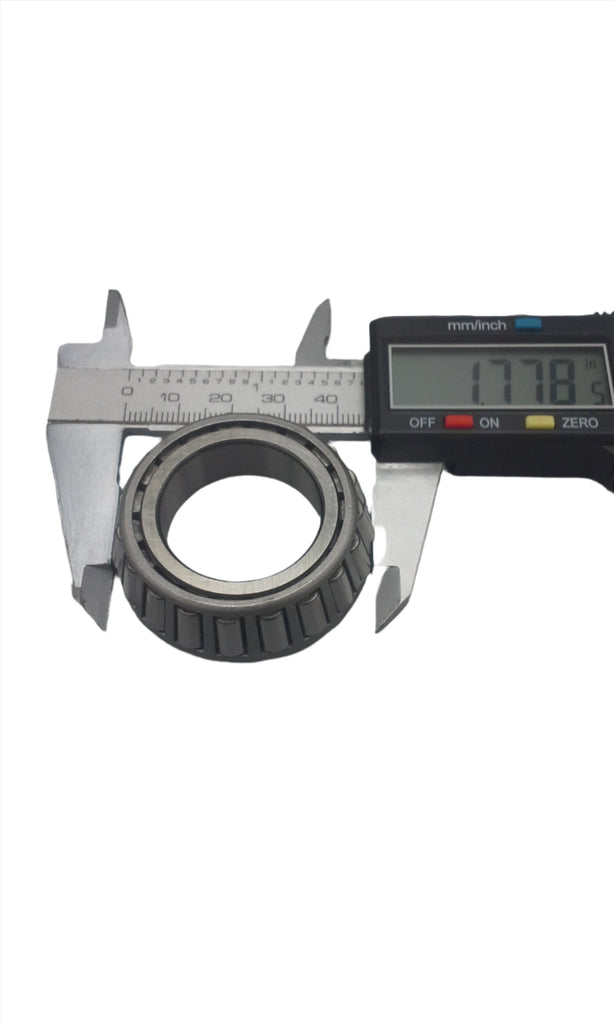

| 1 | L68149 Inner Bearing |

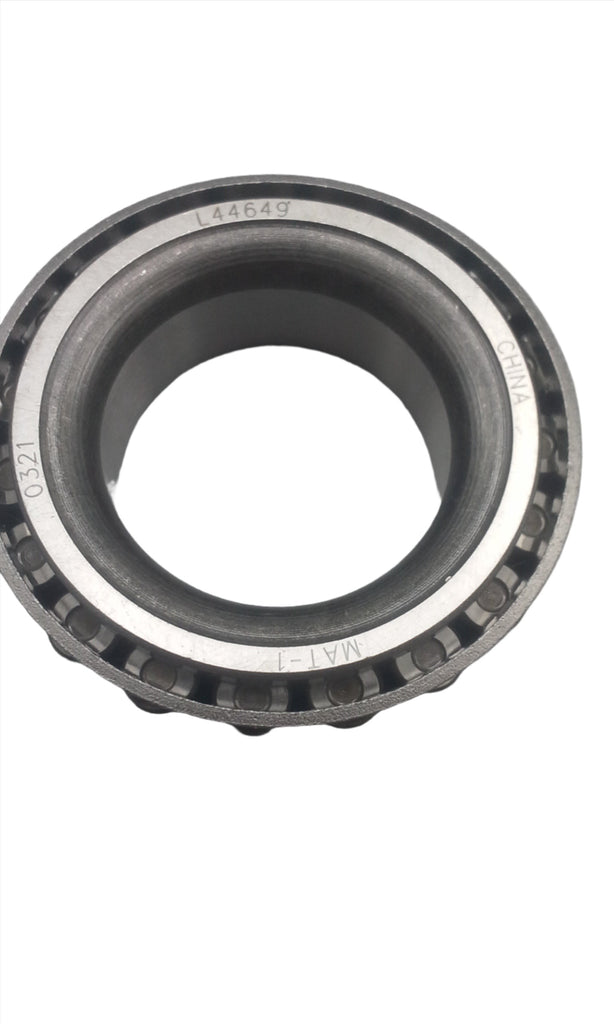

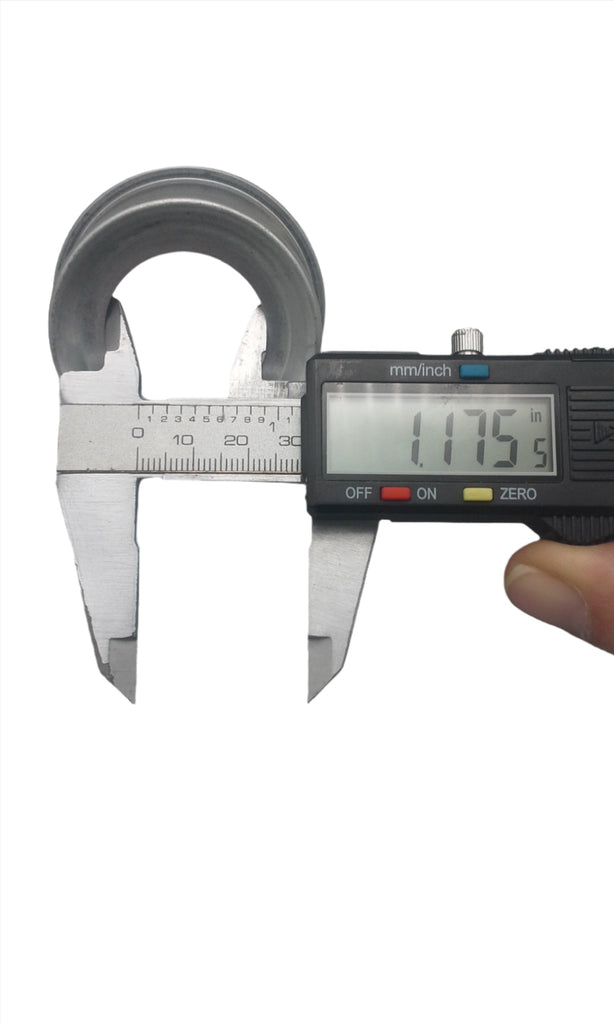

| 1 | L44649 Outer Bearing |

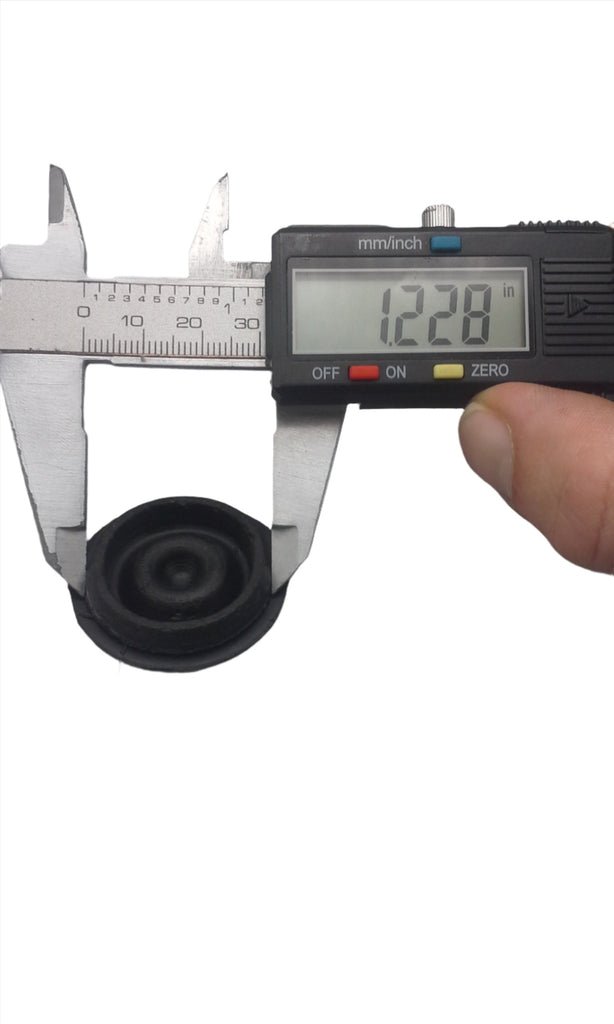

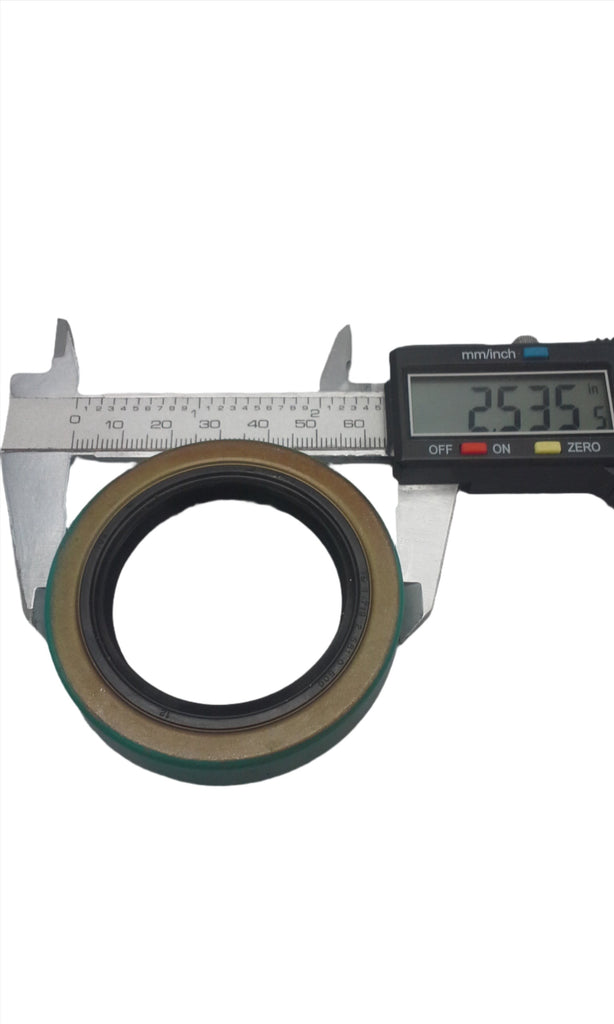

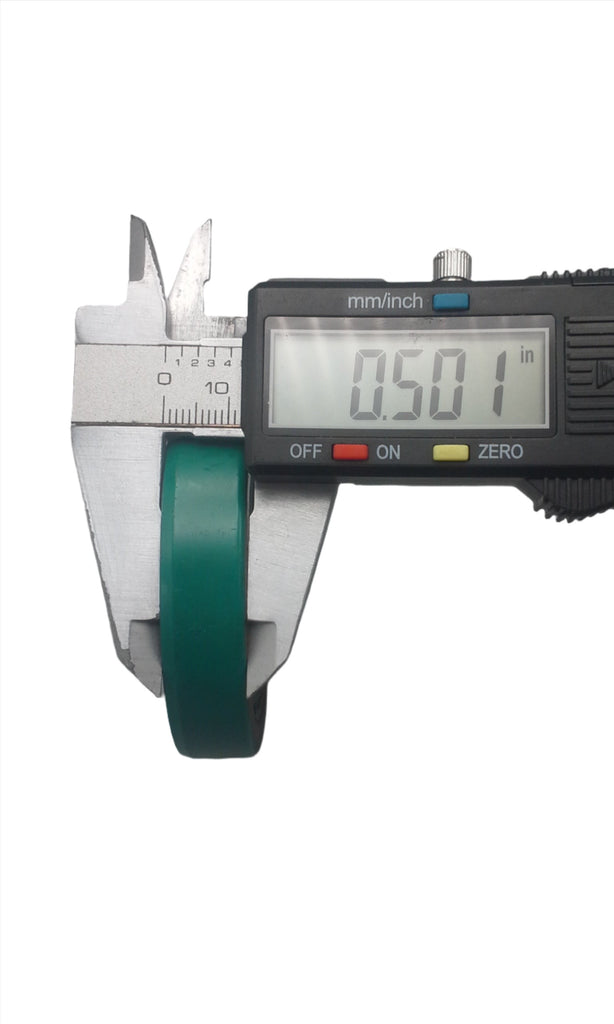

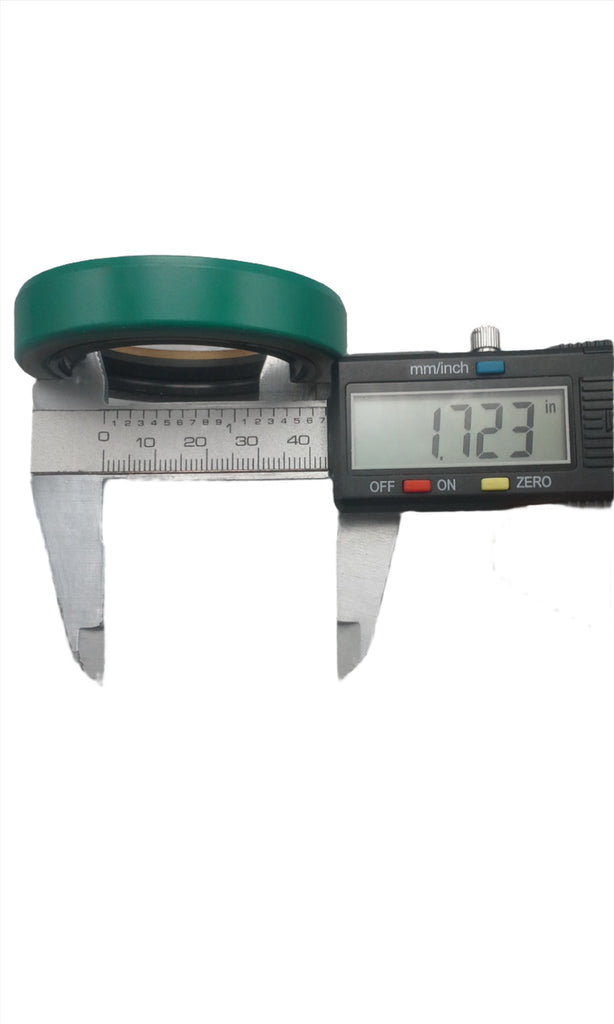

| 1 | 10-19 Grease Seal |
| 1 | SP-20084FZ Spindle |
| 1 | 1" Axle Nut |
| 1 | 1" Spindle Washer |
Includes everything required to replace one side of your 3,500 lb axle.
Selected from R&P customer feedback for Hub / Drum products and related trailer service.
“I've ordered lots of trailer repair parts from them, always fast service, well packed, and the right parts. I highly recommend.”
“Would like to say thanks to everyone at R and P Carriages parts were delivered fast and with the very helpful staff, the right parts were sent the first time. Thanks Happy Holiday's.”
“Received swivel d-ring tie down 4 days after my wife ordered them , great price and came with backing plates. I received exactly what I paid for, thanks for the great service. Chris Davis , Mooresville NC”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
