5 x 5 Right Side Brake Assembly Spindle Kit Stub End Unit Trailer Axle 3500 84 (STUB-84-550-DR)

R & P Carriages

Regular price $114.99

5 x 5 Right Side Brake Assembly Spindle Kit Stub End Unit Trailer Axle 3500 84

Part Number - STUB-84-550-DR

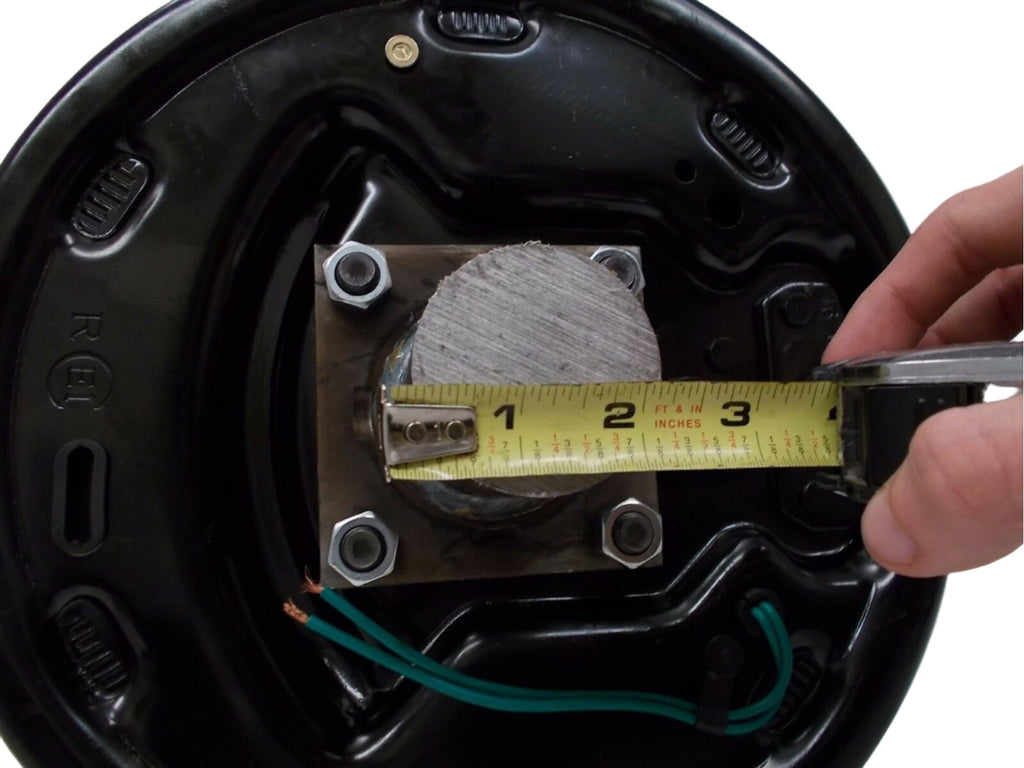

This can be used as a direct replacement for a spindle that is not safely usable anymore. Spindles have 3.37" long "tail shaft", 2.0" Diameter (Should fit inside in Standard 2" Schedule 40 pipe!)

Will fit most brands: Dexter, AL-KO, Quality, Lippert, etc. (If you are not sure, look at the axle spindle chart above, this hub fits spindle #84) I can ship more, if needed. I also have a few of other bolt patterns, see my other listings or just ask, and I will list them!

Includes:

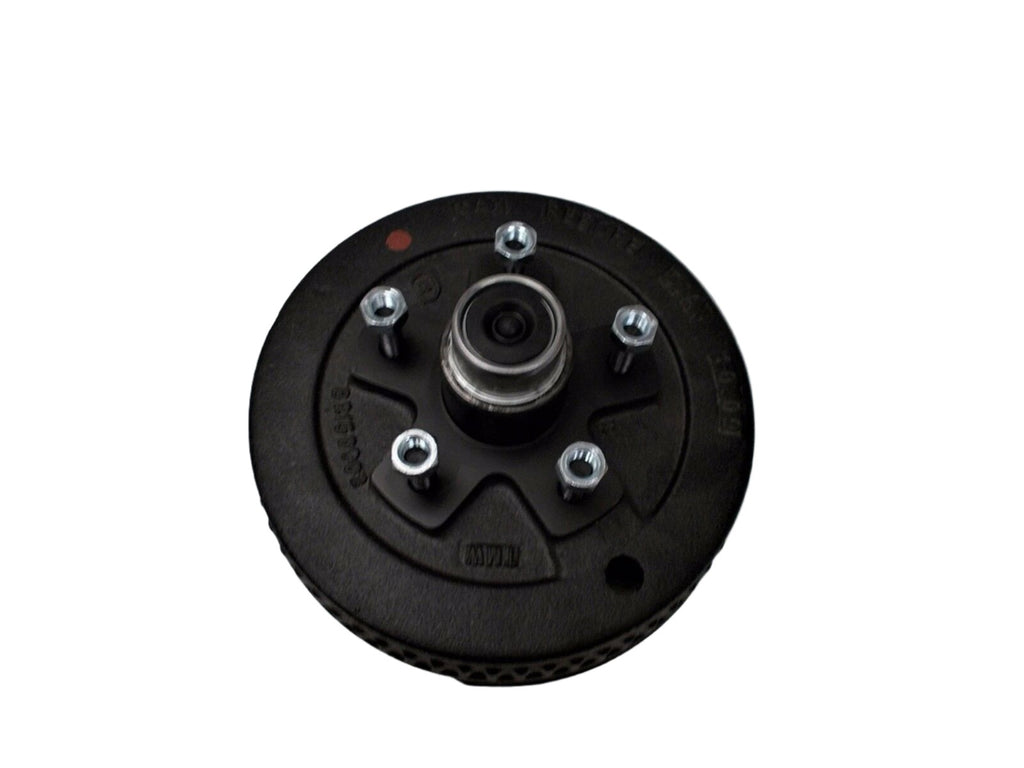

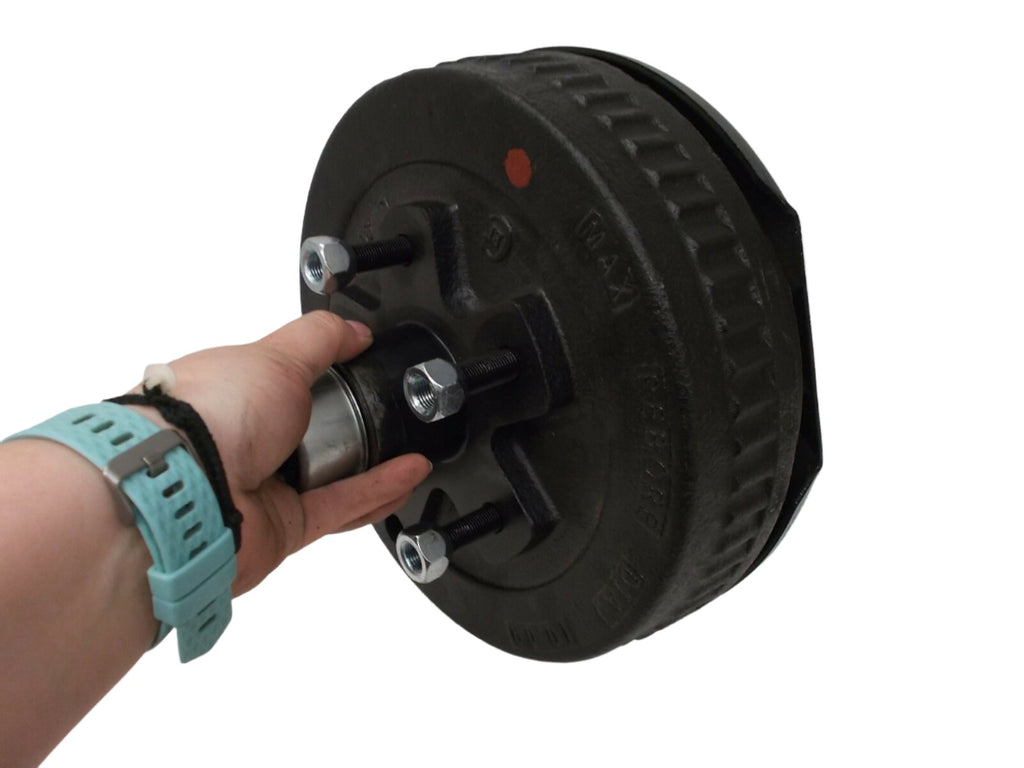

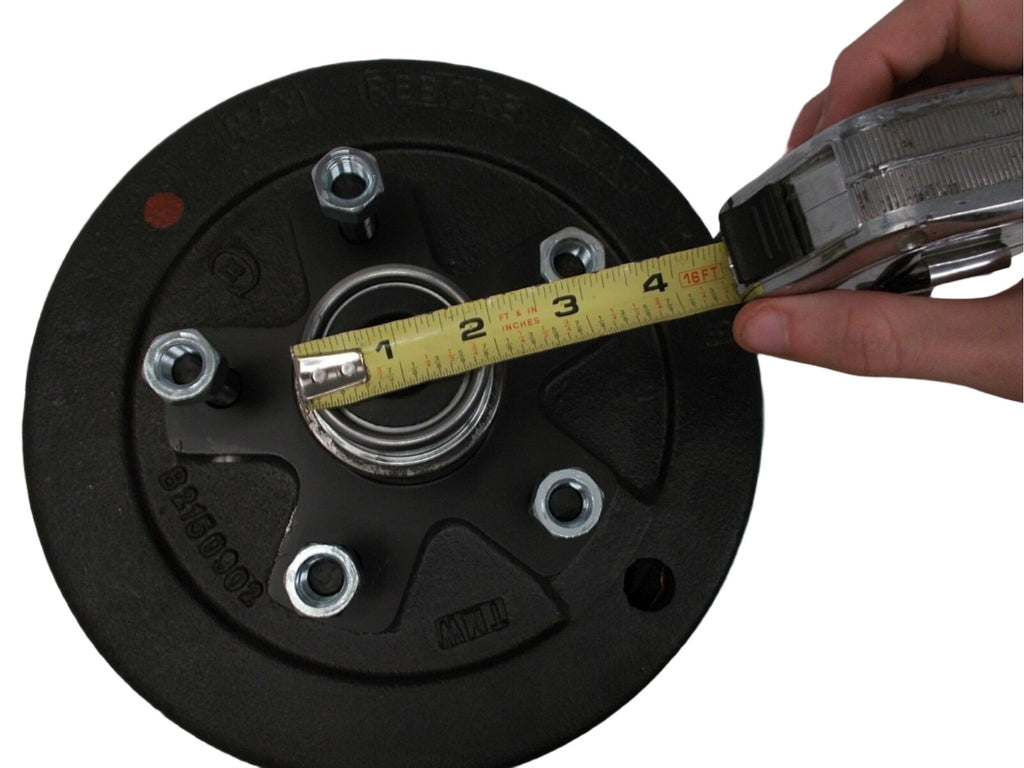

1x 3500 pound Brake Drum, 5 x 5 bolt pattern (code Red)

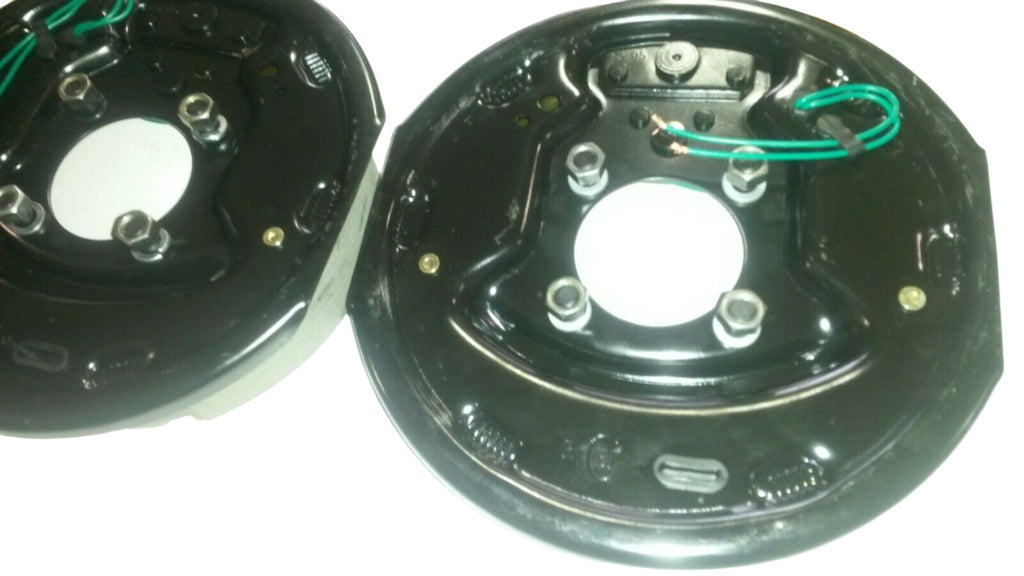

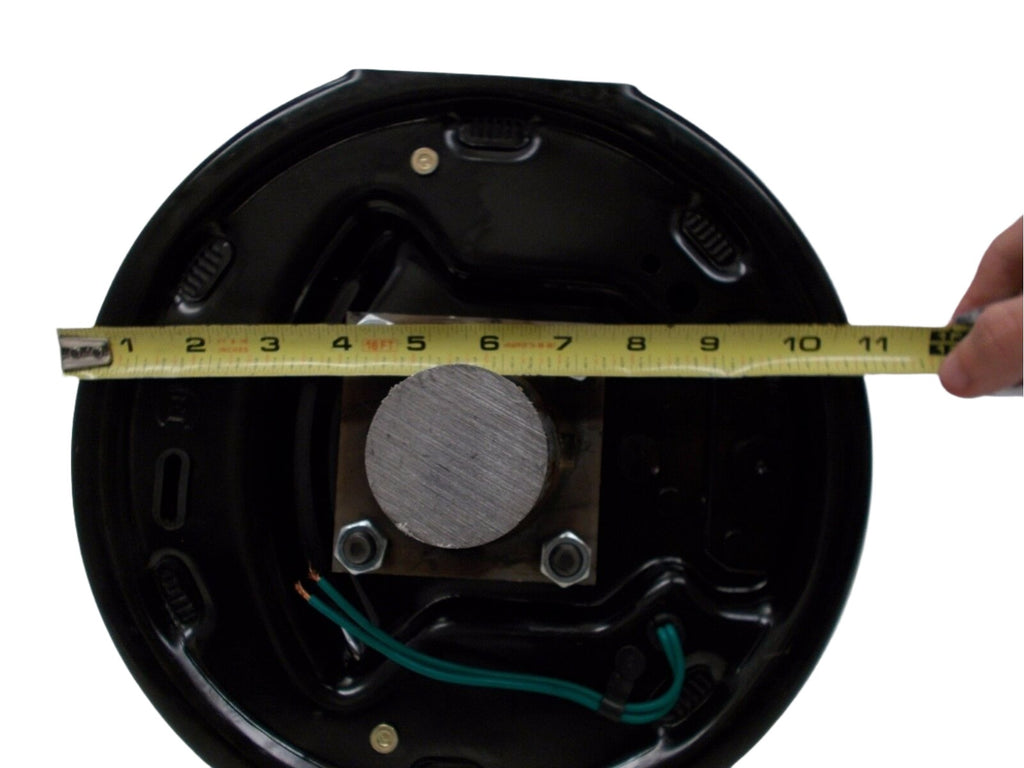

1x 10" Backing Plate, Right Hand Side
5x Lug Nuts
1x 1.98" Dust cap
1 x L44649 Bearing
1 x L68149 Bearing
1 x 10-19 Seal
1 x SP-20084FZ Spindle
1 x 1" Axle Nut
1 x 1" spindle washer

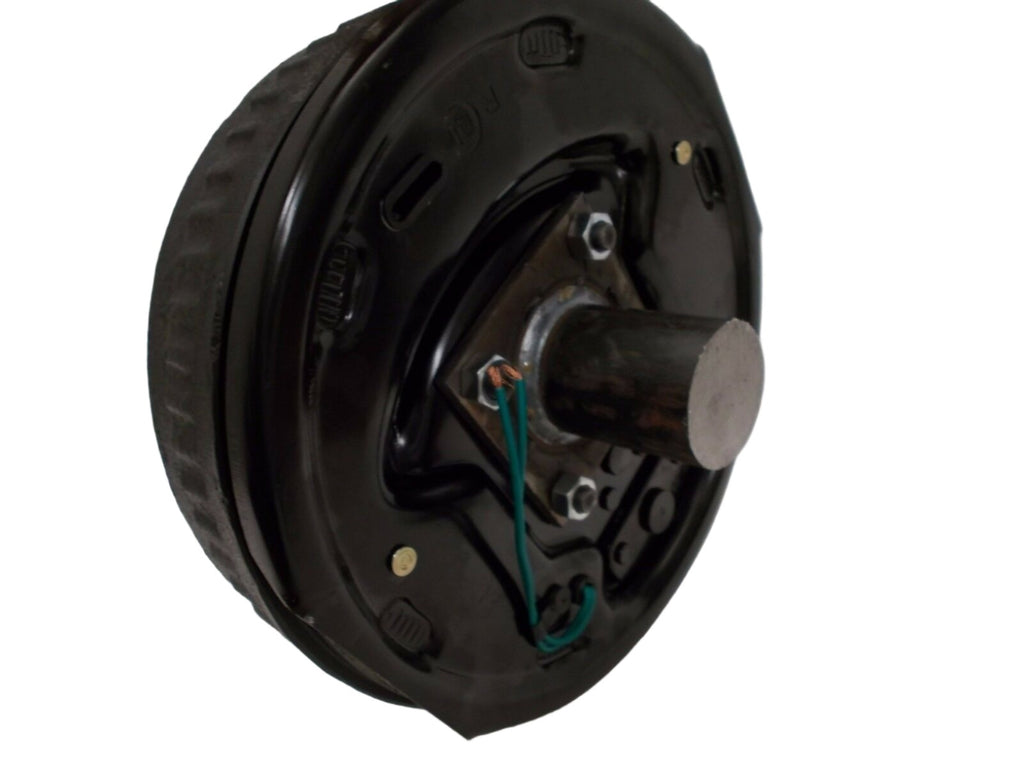

Includes 1 of the 5 bolt x 5" Bolt circle Drum, bearings, spindle, axle nut, everything you need to replace 1 side of your axle!

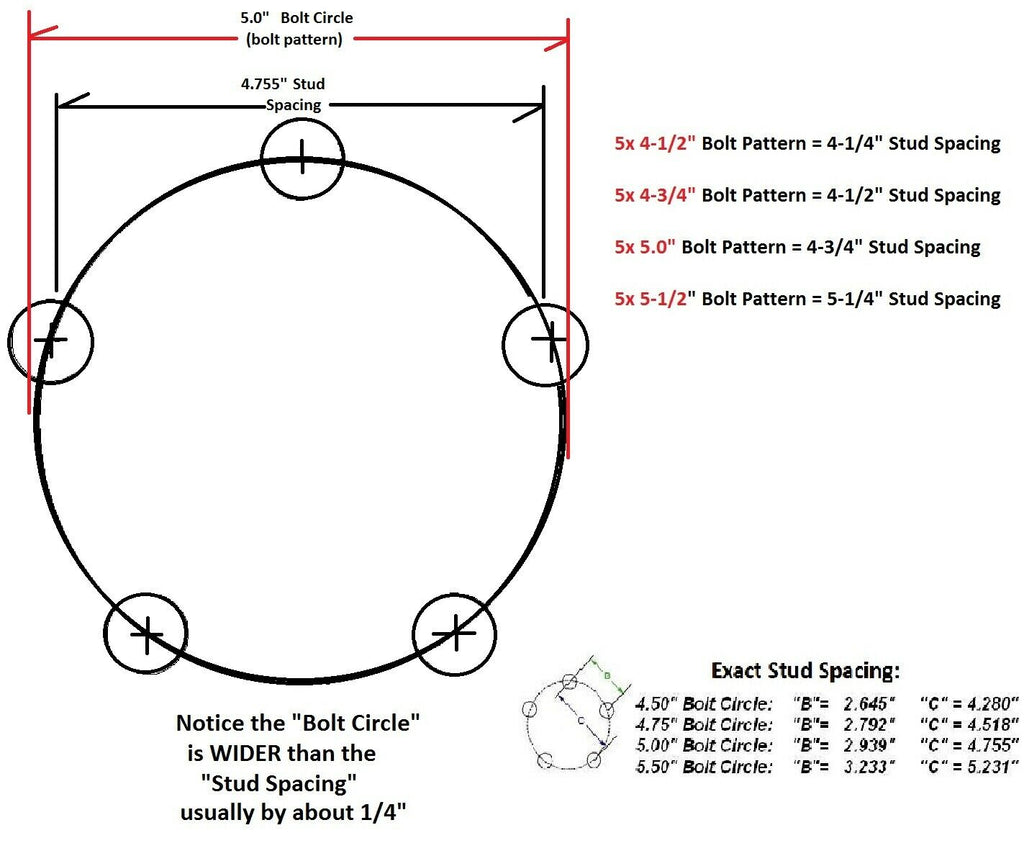

(note stud spacing is 4-3/4")

This Drum will fit this axle:

This auction includes spindle SP-20084FZ,
(standard 3500# Axle spindle with 2" round base):

5 x 5 Right Side Brake Assembly Spindle Kit Stub End Unit Trailer Axle 3500 84 (STUB-84-550-DR)

5 x 5 Right Side Brake Assembly Spindle Kit Stub End Unit Trailer Axle 3500 84

Part Number - STUB-84-550-DR
