At a Glance
- >1 × 3,500 lb Idler Hub – 6 on 5.5" Bolt Pattern
- >6 × Lug Nuts
- >1 × 1.98" Dust Cap
- >1 × L44649 Outer Bearing
- >1 × L68149 Inner Bearing
- Brand: R&P CARRIAGES
- SKU: STUB-84-655-H-SQ
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |
Product Details

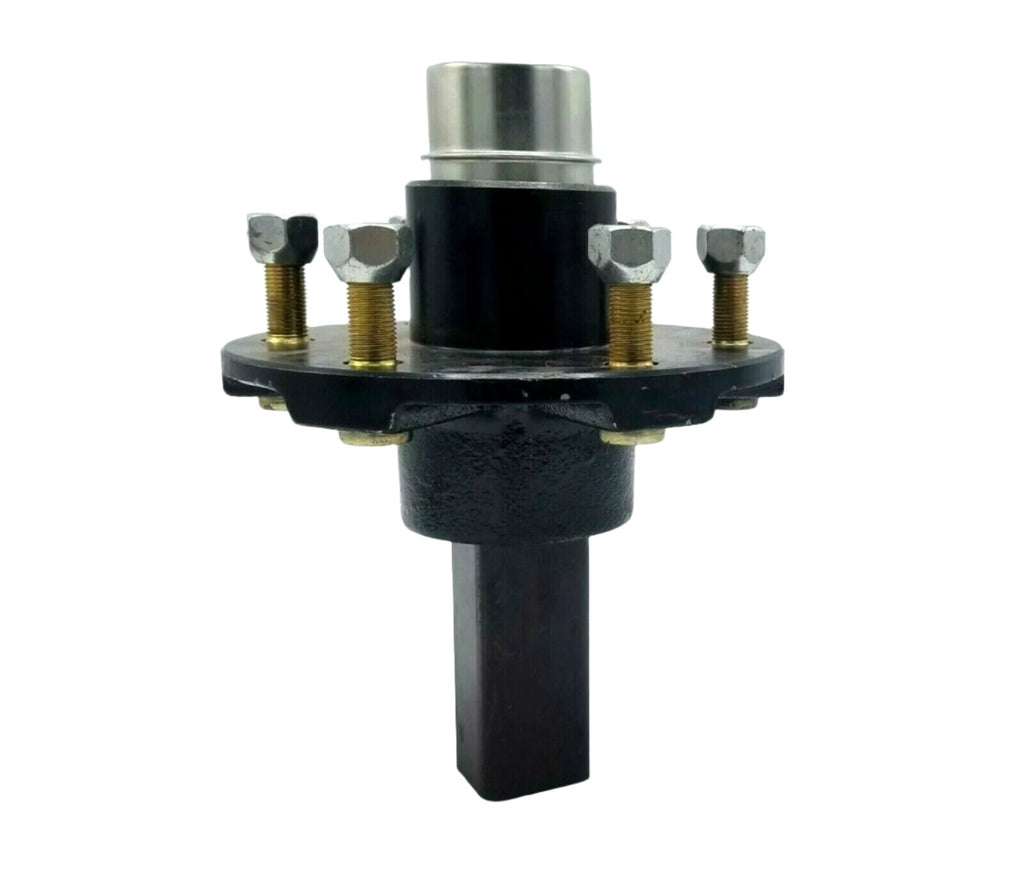

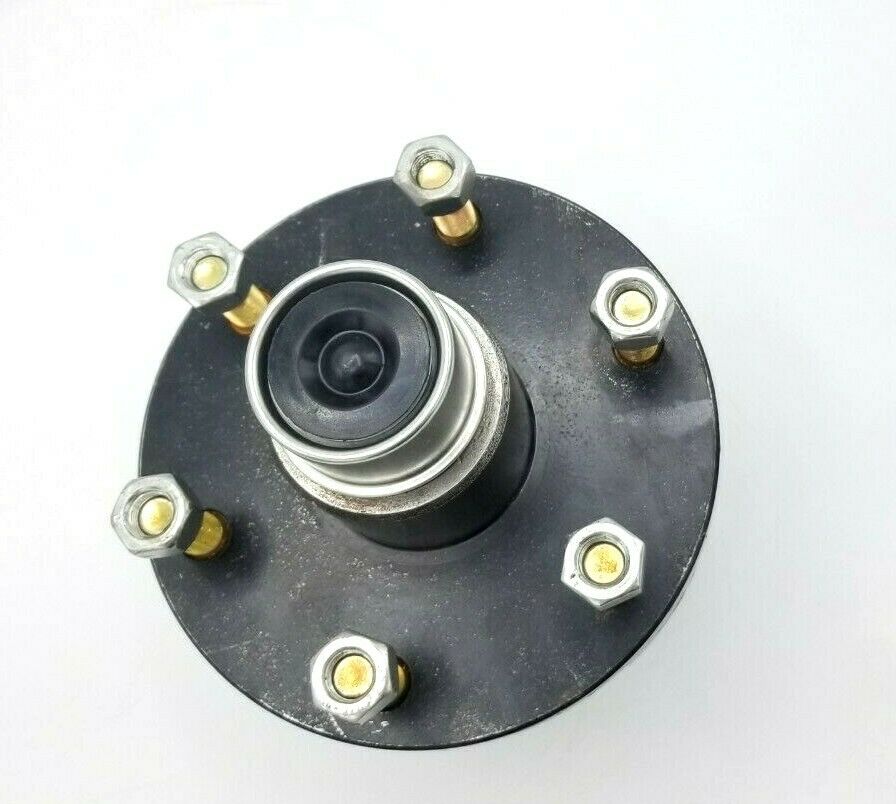

6 on 5.5" Idler Hub & Square Stub Spindle Kit – 3,500 lb – Replacement Assembly
Part Number: STUB-84-655-H-SQ
Complete replacement idler hub and square stub spindle kit for 3,500 lb trailer axles.Designed for applications using a square spindle configuration.This kit services one side of the axle.
R&P Knowledge Hub

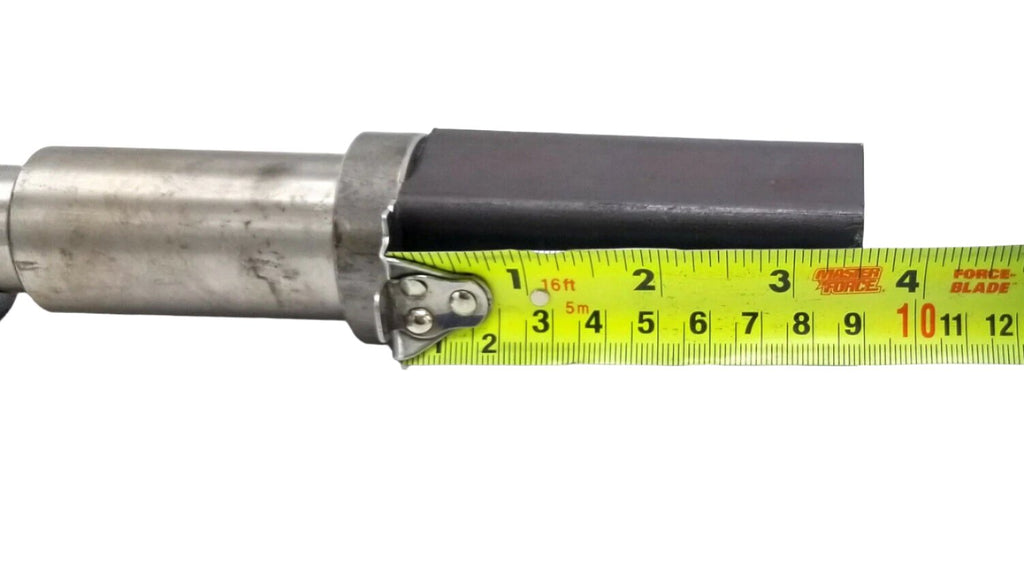

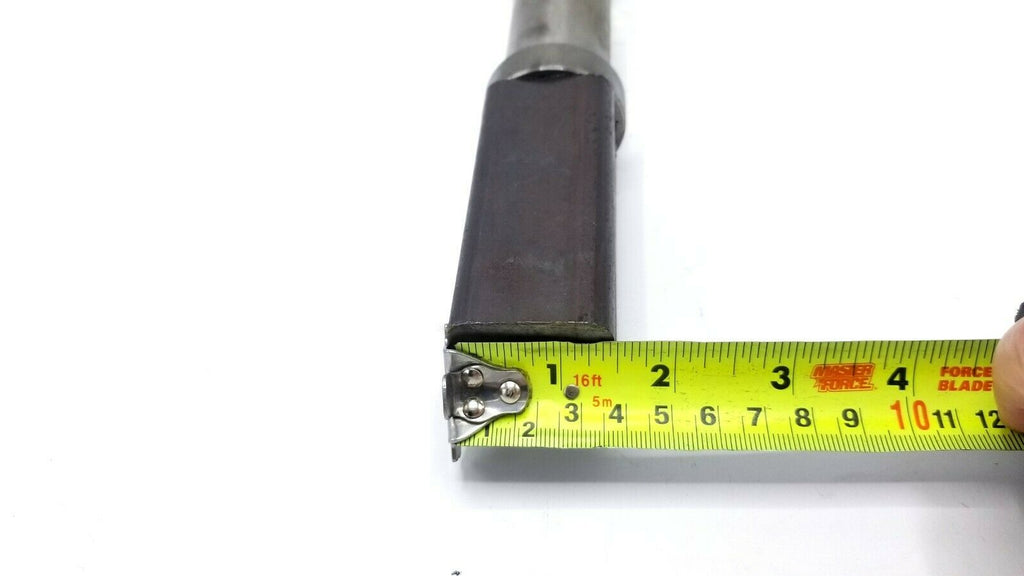

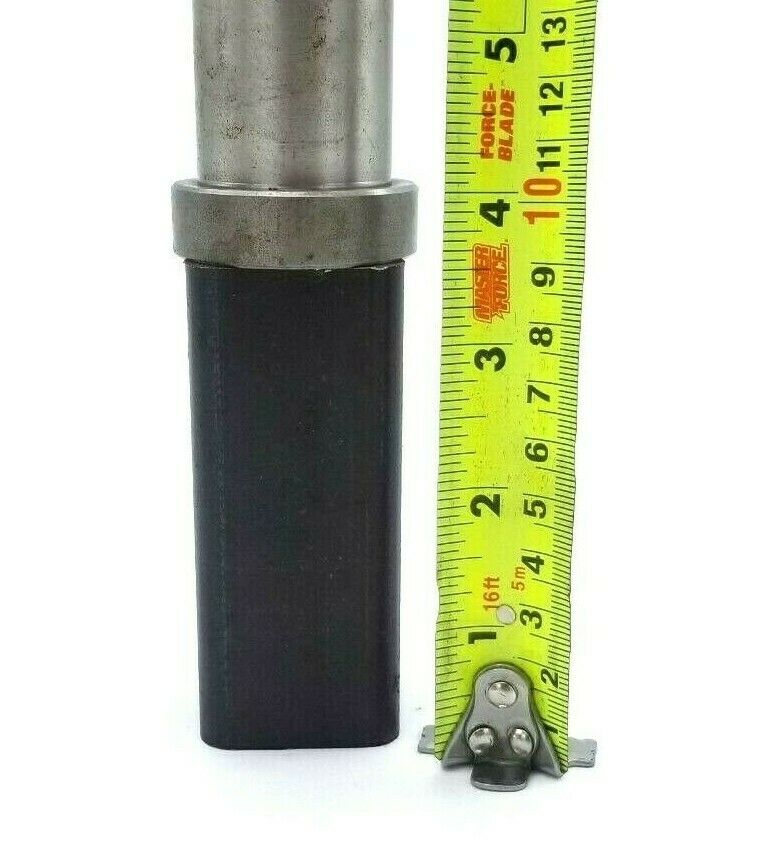

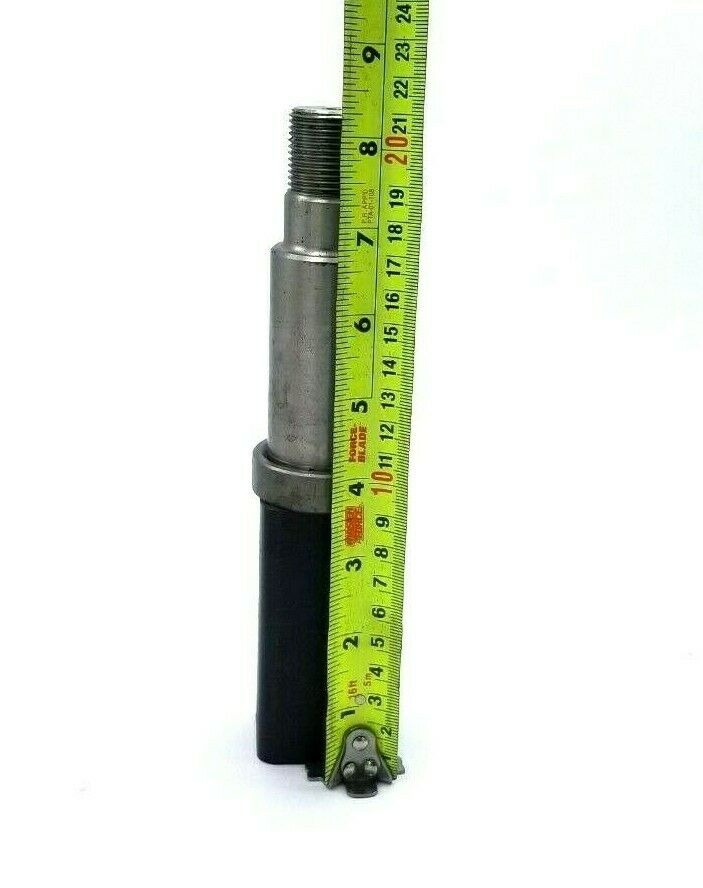

Square stub spindle features a 1.5" square tail shaft measuring approximately 3.53" in length. Confirm spindle style and dimensions before ordering.
Hub uses common 3,500 lb bearing combination: L44649 (outer) and L68149 (inner) with 10-19 grease seal.
Always verify bolt pattern and bearing numbers stamped on your existing components.

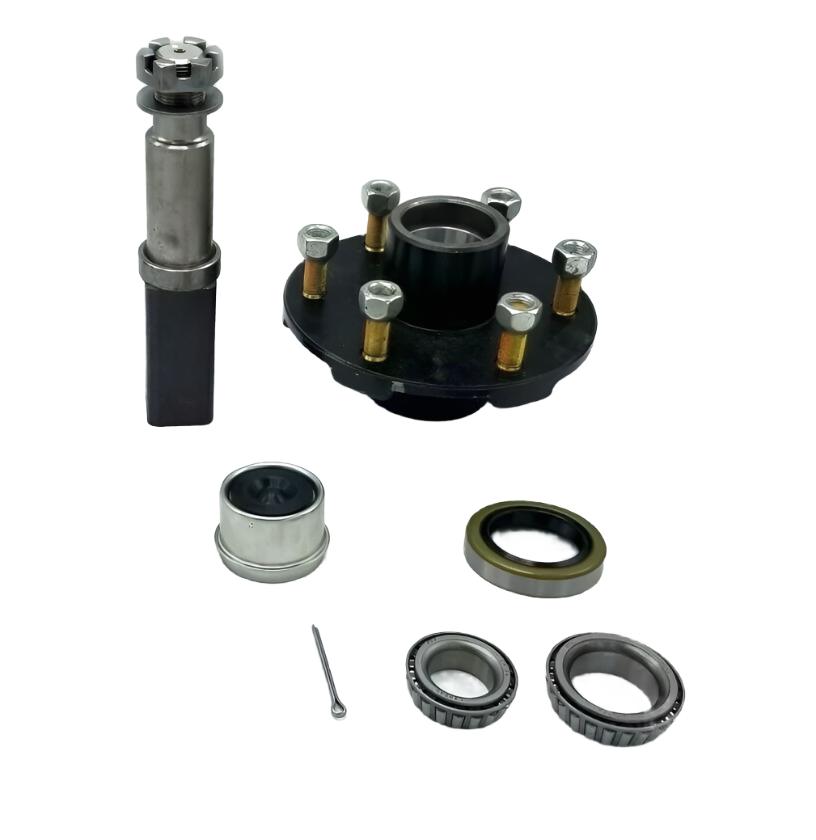

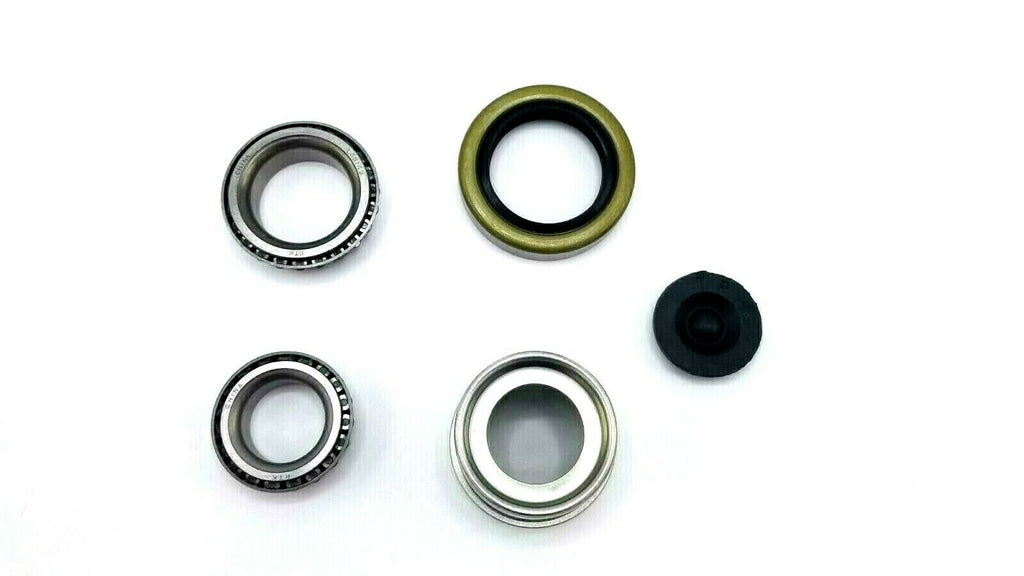

Kit Includes
- 1 × 3,500 lb Idler Hub – 6 on 5.5" Bolt Pattern
- 6 × Lug Nuts
- 1 × 1.98" Dust Cap
- 1 × L44649 Outer Bearing
- 1 × L68149 Inner Bearing
- 1 × 10-19 Grease Seal
- 1 × SP-20084SQ Square Spindle

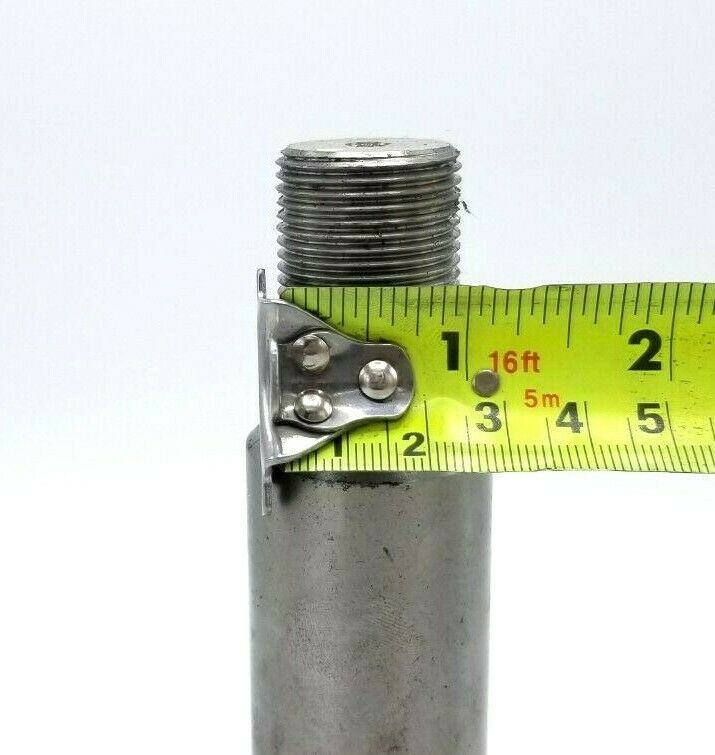

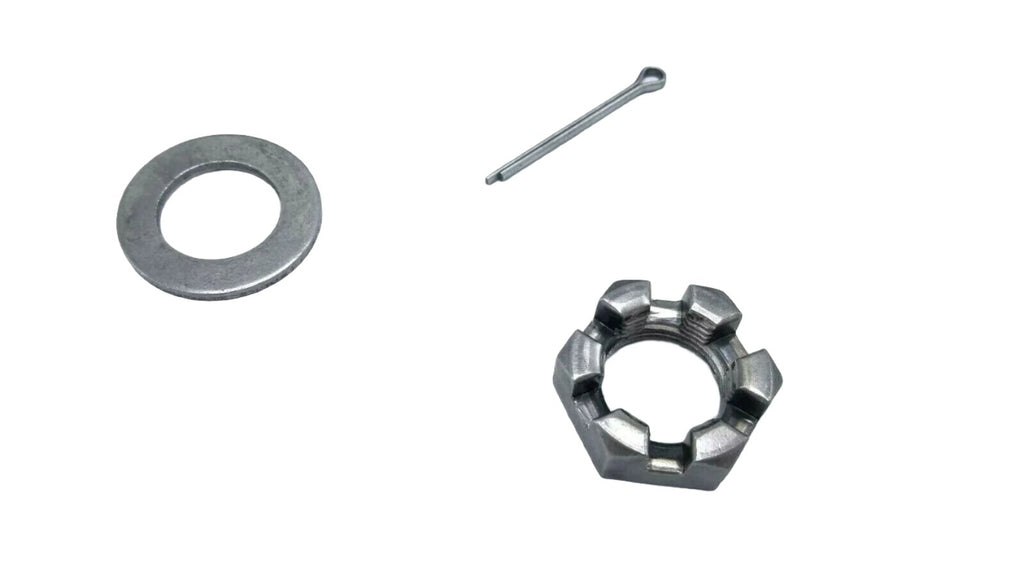

- 1 × 1" Axle Nut
- 1 × 1" Spindle Washer
Includes all components required to service one side of the axle.

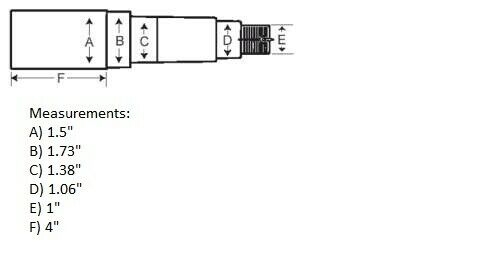

Spindle Identification Reference
Compare your existing spindle configuration to the diagram above before installation.
Specifications
| Specification | Detail |
| Axle Rating | 3,500 lb |
| Bolt Pattern | 6 on 5.5" |
| Outer Bearing | L44649 |
| Inner Bearing | L68149 |
| Seal | 10-19 |
| Spindle Type | 1.5" Square Tail Stub Spindle |
Verify specifications before installation.
