Right Brake with a
5 x 5 Bolt Pattern with
a Right Backing Plate
If you have a trailer with a bad left brake that needs to be replaced, this kit has what you will need. This kit fits standard 3500# axle, either Spring or Torsion, EZ lube or Standard. Click here for wire and installation instructions

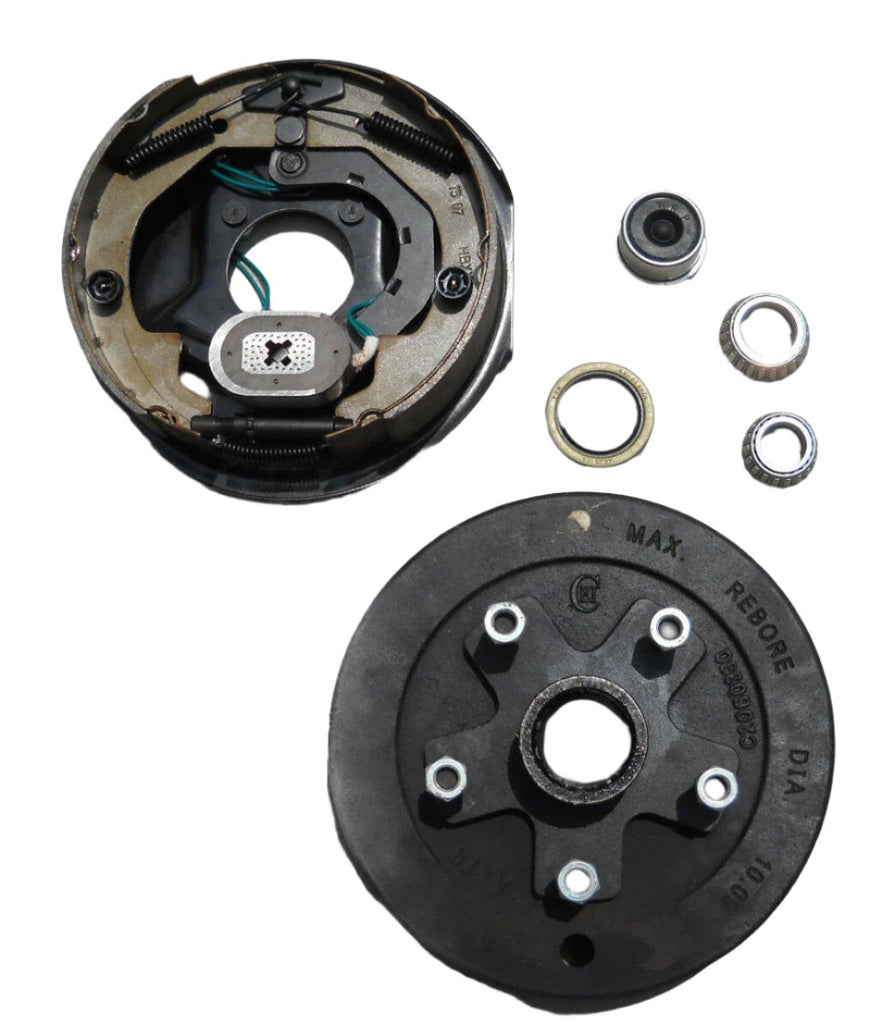

Complete Trailer Brake Setup, with drums, seals, Bearings, Brake shoes, new hardware, backing plates, for one side of an axle!
for 3500# axles from Dexter, AL-KO, AXIS, Quality, and others!
Most 5 bolt wheel trailers are 3500# axles. (does yours have a 2-3/8" axle tube?) Some small trailers (usually with small tires and a 1-5/8" axle tube) will have the smaller spindles, and for those you will need a smaller (or larger) brake kit (click here for the smaller brake kits) Look at the measurements below if you are not sure.

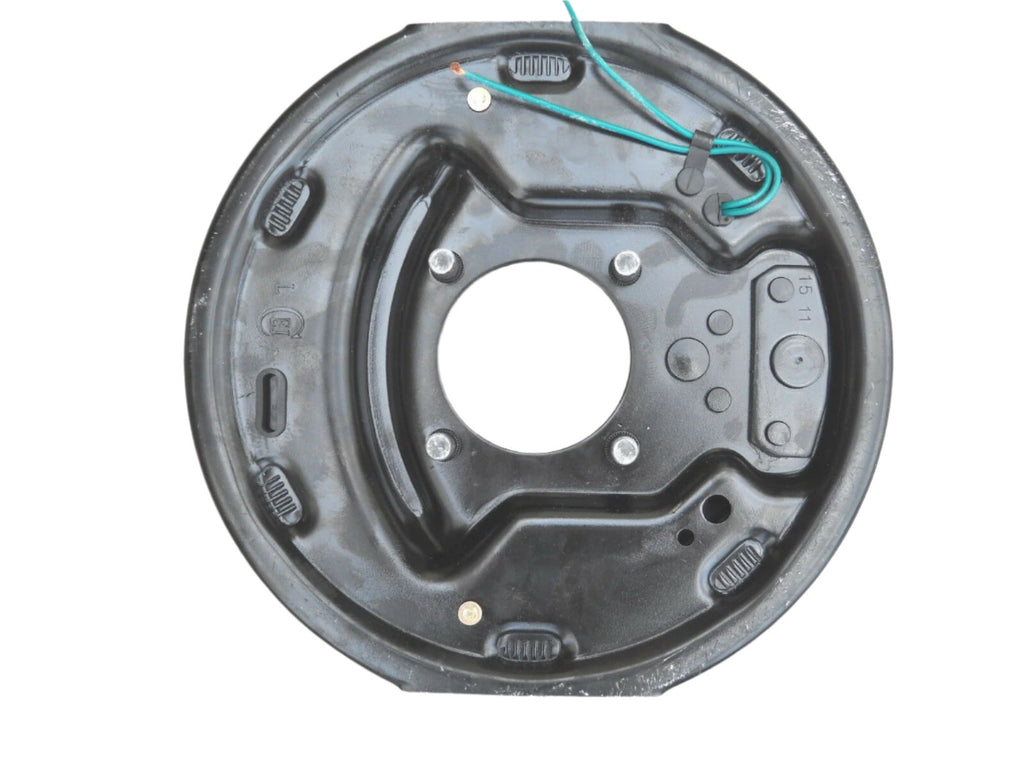

Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate

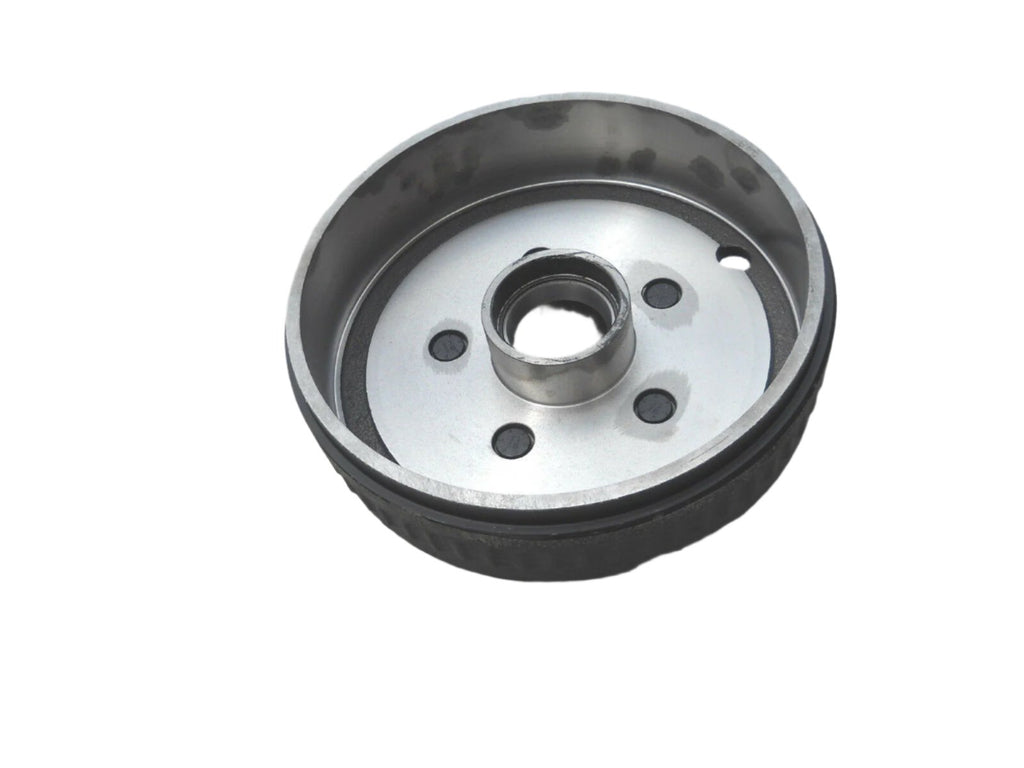

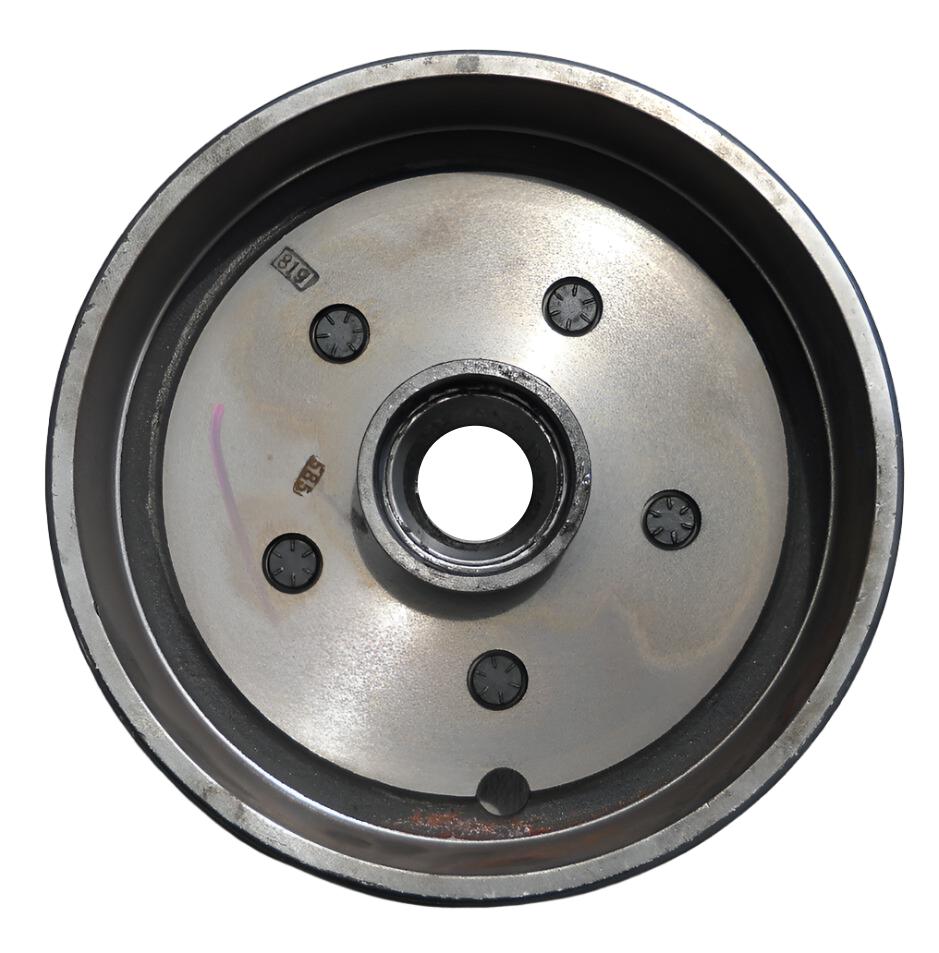

This Kit Includes:ONE - New 10" brake drums, 5.0" bolt pattern with races already pressed in
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals

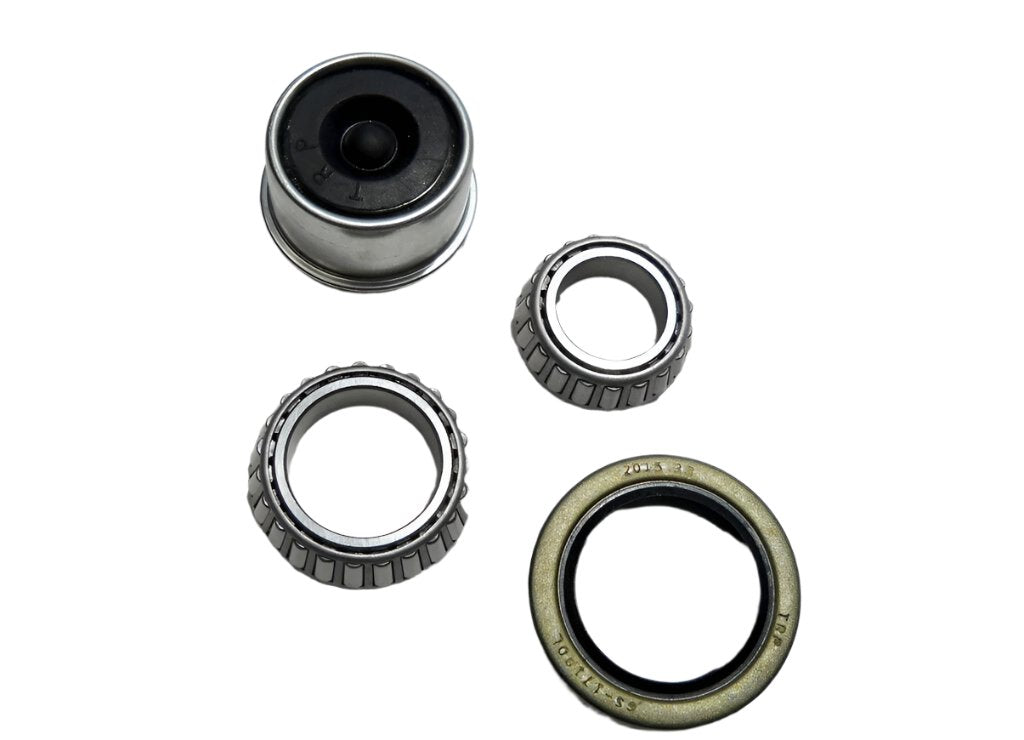

All New Wheel Bearings (Shipping loose with kit):
ONE- 1.7" 10-19 seals

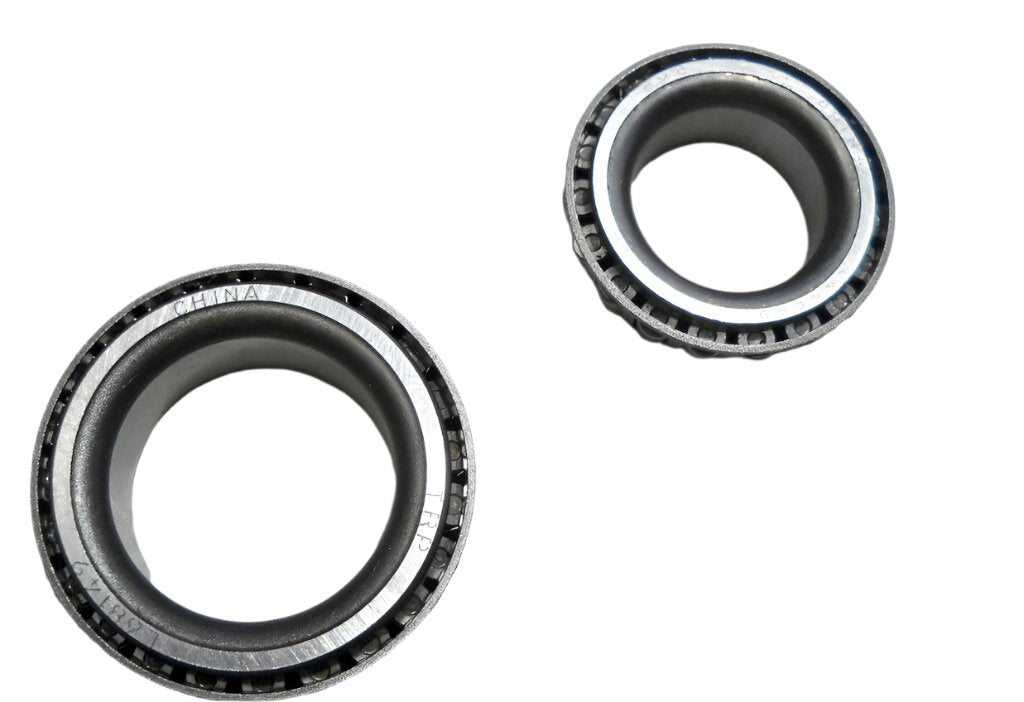

ONE- L44649 bearings
ONE- L68149 bearings
FIVE- Matching lug nuts, 1/2-20
ONE- New EZ Lube Dust Caps
If you have a 2.75" OD Tube and a Flange with 5 holes, (to bolt the brake plate to) your axle is the 7000# Axle
If you have a 2.25" axle tube and has a 4 bolt flange it is the 3500# axle.
If you have the smaller 1-5/8" axle tube and has the 4 bolt flange, it has the smaller 2000/2200# axle

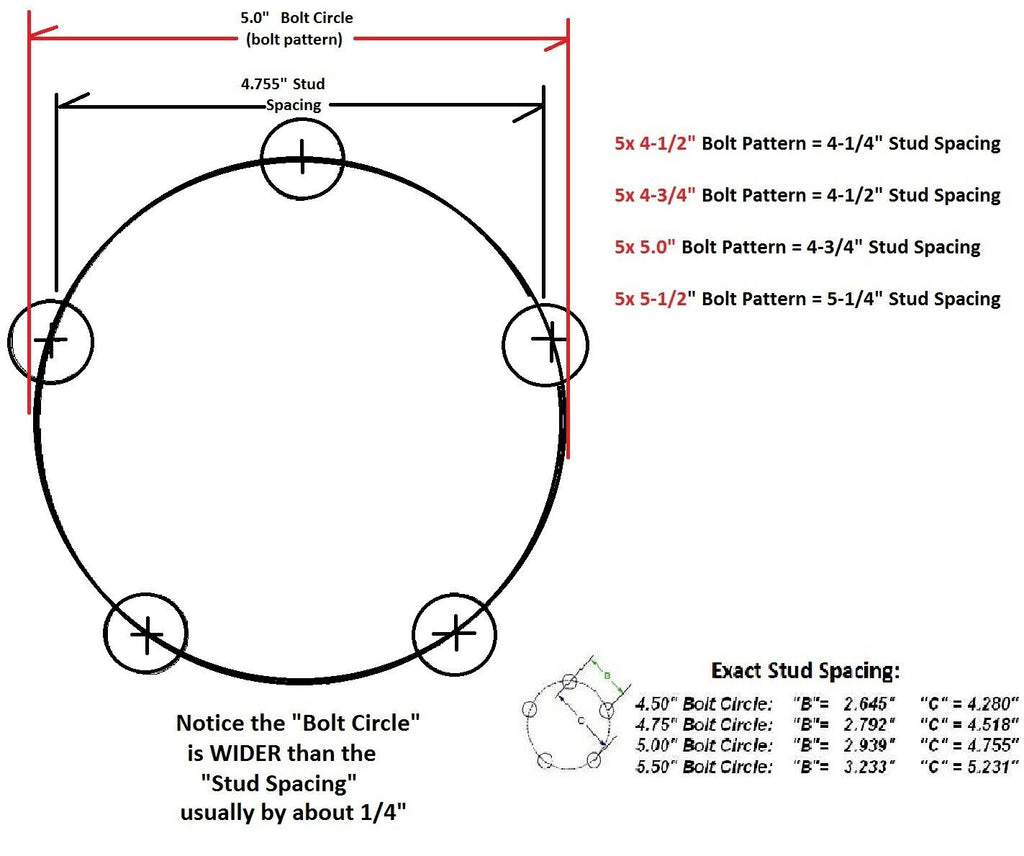

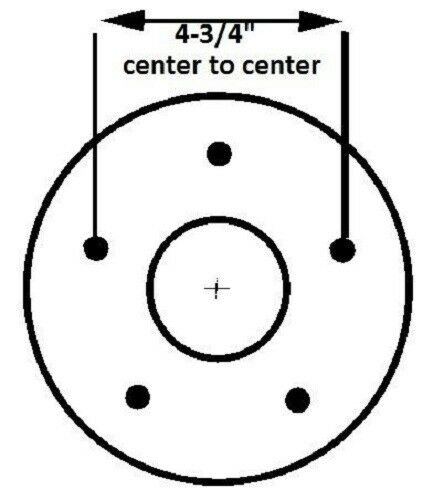

This auction is for a trailer with a 5 bolt, 5" bolt pattern! I stock all sizes, so please check my other auctions or specify you want a different size!
