Basic Kit 5x5.5" Drum 3500# 10" Electric Backing Plate Right Side Only

Basic Kit 5x5.5" Drum 3500# 10" Electric Backing Plate Right Side Only Trailer (94555-B-IMP-R)

$95.99

Shipping options shown at checkout.

In Stock

Not Sure It Fits? Ask a Pro

At a Glance

Replace YourRight Brake with a 5 x 5.5 Bolt Pattern Drum and a Right 10" Backing PlatePart#: 94555-B-IMP-R (5-1/4" Stud Spacing)If you have a trailer with a bad left brake that needs to be replaced, this kit has what you will need. This kit fits standard 3500# axle, either Spring or Torsion, EZ lube or Standard. Complete Trailer Brake Setup,...
Brand: R & P Carriages
SKU: 94555-B-IMP-R

Before You Order

Match the part number, measurements and connection points that apply to your trailer.

Bearings	Match inner and outer bearing numbers.
Seal	Match the seal number or dimensions.
Bolt Pattern	Verify the complete lug pattern.
Brake Size	Confirm when applicable.

Product Details

Replace Your
Right Brake with a
5 x 5.5 Bolt Pattern Drum and
a Right 10" Backing Plate
Part#: 94555-B-IMP-R

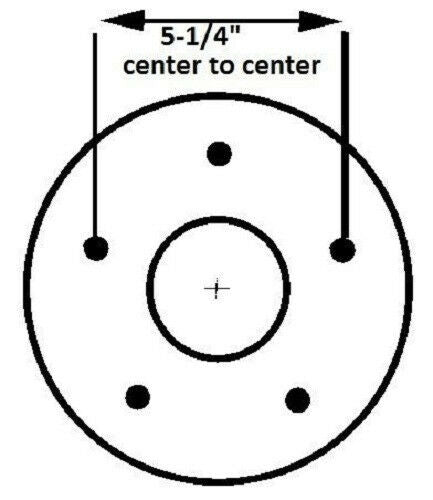

(5-1/4" Stud Spacing)

If you have a trailer with a bad left brake that needs to be replaced, this kit has what you will need. This kit fits standard 3500# axle, either Spring or Torsion, EZ lube or Standard. Complete Trailer Brake Setup, with drums, seals, Bearings, Brake shoes, new hardware, backing plates, for one side of an axle!
for 3500# axles from Dexter, AL-KO, AXIS, Quality, and others!

Most 5 bolt wheel trailers are 3500# axles. (does yours have a 2-3/8" axle tube?) Some small trailers (usually with small tires and a 1-5/8" axle tube) will have the smaller spindles, and for those you will need a smaller (or larger) brake kit

Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate

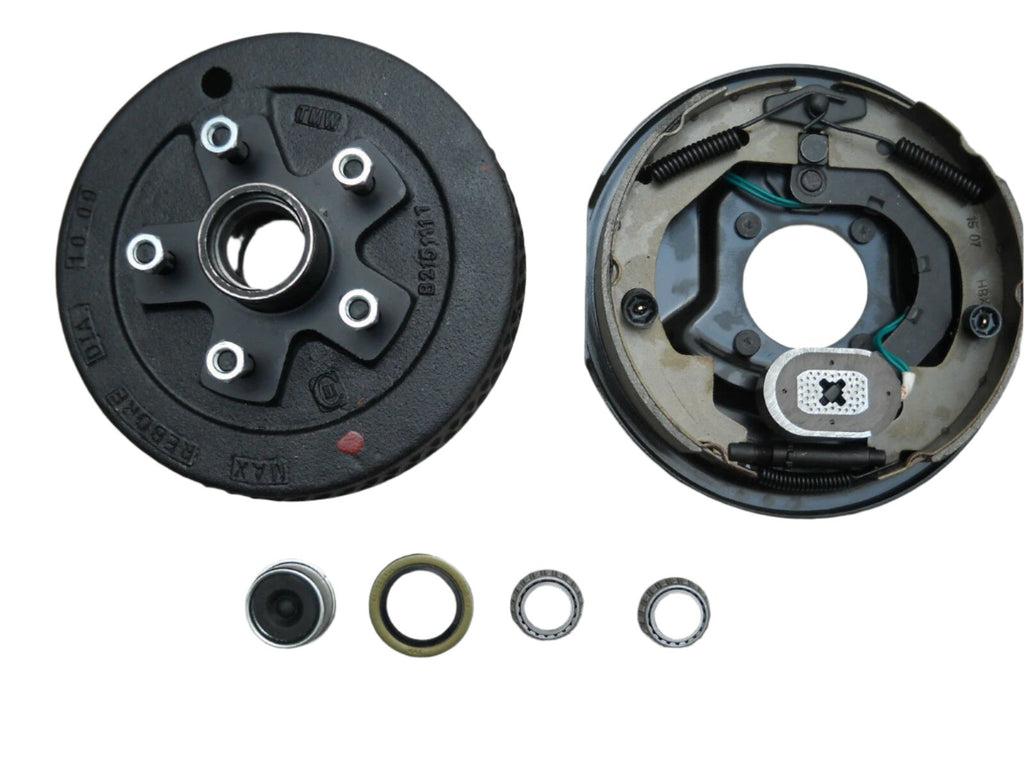

This Kit Includes:

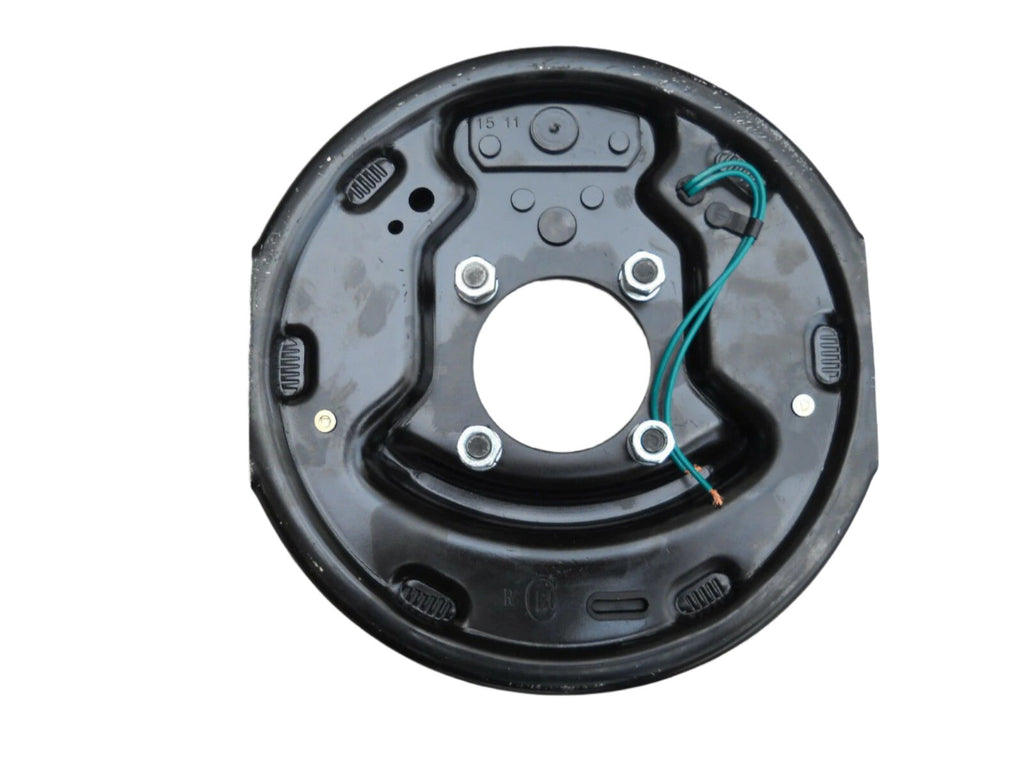

ONE- RIGHT Brake backing plate, 3500# per pair, 10" x 2.25

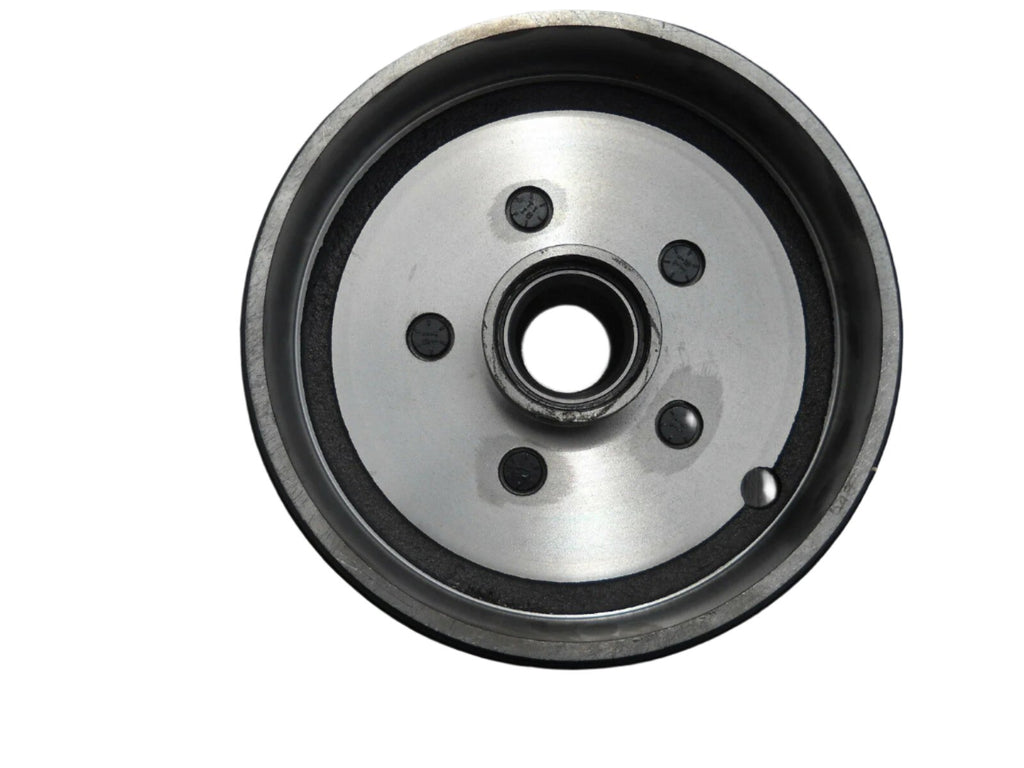

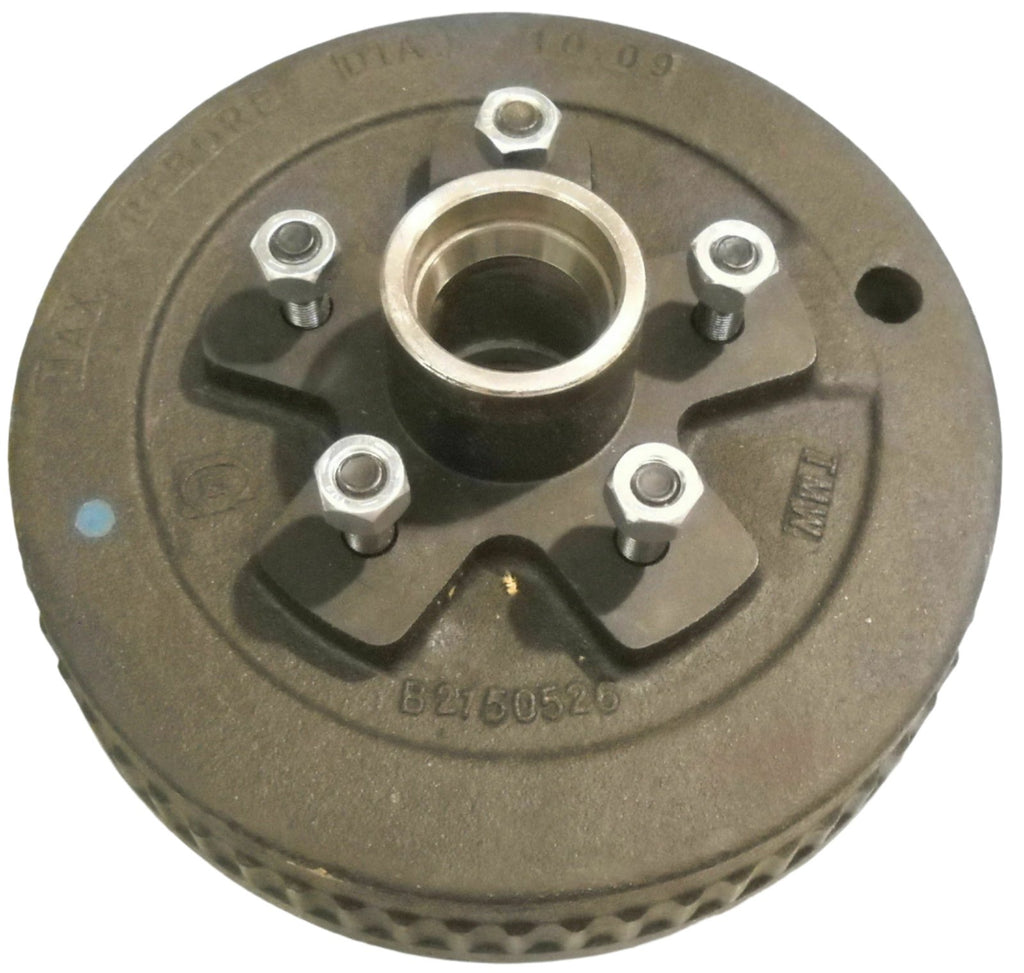

ONE - New 10" brake drum, 5.5" bolt pattern with races already pressed in (click here for other bolt patterns sizes)
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals

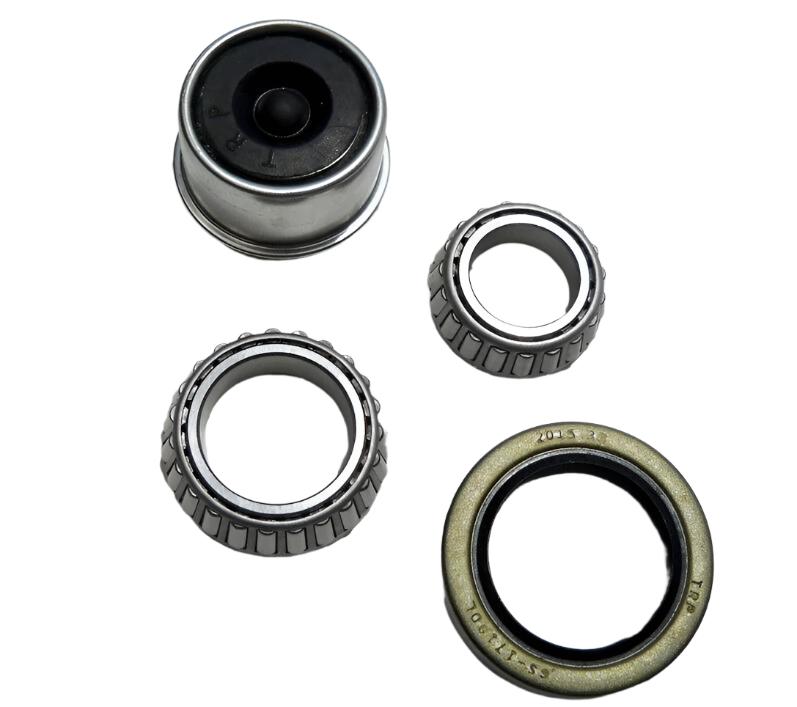

All New Wheel Bearings (Shipping loose with kit):
ONE- 1.7" 10-19 seal
ONE- L44649 bearing
ONE- L68149 bearing
FIVE- Matching lug nuts, 1/2-20
ONE- New EZ Lube Dust Cap

In addition, you should see a small square plate welded to the axle tube, with 4 holes, (to bolt the brake plate to) and your axle tube will be about 2 1/4" OD

If you have a 2.75" axle tube, it is the larger 5200, 6000, or 7000# axle

If you have the smaller 1-5/8" axle tube, it has the smaller 2000/2200# axle

This auction is for a trailer with a 5 bolt, 5.5" bolt pattern! I stock all sizes, so please check my other auctions or specify you want a different size!
