Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Tandem Trailer Axle Suspension Rebuild Kit with GREASE TYPE Wet Bolts and 2.562" Shackle Straps
Part Number: SRK-TA-WB-BB-458 We work on trailers in our facility every day! The number one problem we see is worn out suspension! There is now way to grease them! Now, with this NEW kit, the bolts actually pump grease right into the bushings! AMAZING!
This is a kit to change all the "wear parts" on a tandem axle trailer (4,000 # GVW up to 14,000# GVW) .
These equalizers are for double-eye leaf springs with 9/16" spring eyes and the center bolt hole diameter is 3/4" and the left and right bolt hole diameter is 9/16" This Kit includes GREASABLE WET BOLTS. Tired of replacing the suspension bolts on your trailer? With these wet bolts, you could add THOUSANDS of miles on to your trailer. And remember, we actually INSTALL what we sell, so if you have questions, just ask!
Kit consist of:
12 - 9/16" x 3" Hardened Greaseable Bolts 12- 9/16" Locking 9/16" Nuts 2 - 3/4" x 3-1/2" Greaseable Shackle Bolts
2 - 3/4" Nuts for Bolts

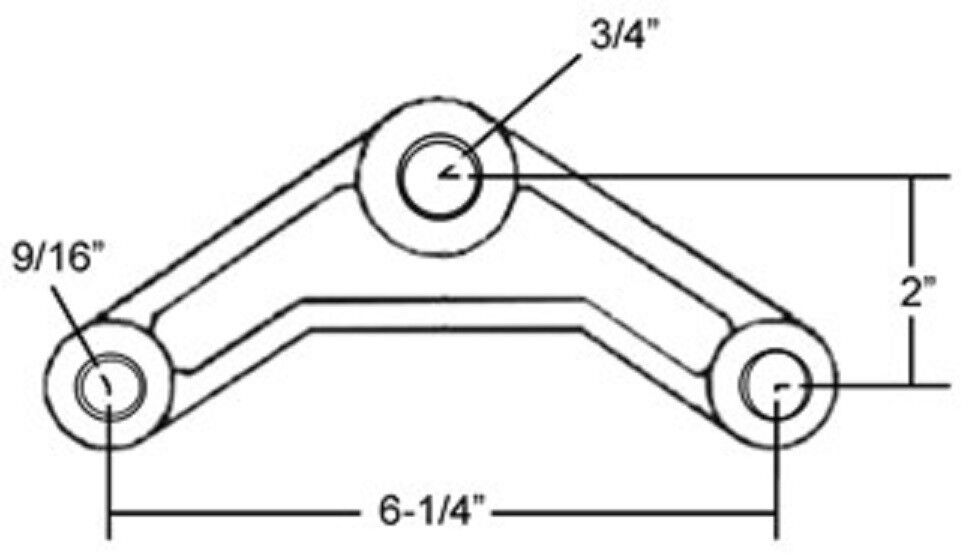

2 - Center Spring Pivot Equalizers, 6-1/2" x 2" Equalizer, 3/4" Top Hole 12 - New Bronze Spring Bushings (they will need to be pressed into the equalizer) 8 - New Spring Shackle Straps 2.562" on Centers Hole Center to Hole Center from Top Hole to either side hole is 4" Hole Center to Hole Center from Side Holes is 6.25" Please note that we do not supply the top 3/4" bushings as we do not carry them.
|
Selected from R&P customer feedback for Trailer Axle / Running Gear products and related trailer service.
“Got me the axle I needed right away with custom spring perch setting.”
“Had a trailer made to my needs.ken was able to get it done and at a price that was very acceptable.i have bought parts there for 2 other trailers and always in stock”
“Quality work. Staff is polite. Great job welding a project for me. Didn't even want to charge me, so I bought them a case of Corona. They were ecstatic. I ever need a welding or like that R&P Carriages is #1 !!!!!”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
