At a Glance
- >This kit raises your trailer height by 2-5/8" between trailer frame and axle
- >Holes are 8" on center
- >For use with #10 Torflex axles
- >2,300 - 4,000# axle capacity
- >#10 frame spacers
- Brand: Dexter
- SKU: K71-707-01
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Product Details
Torflex Lift Kit #10 3500# - Single Axle - 2-5/8" Lift Torsion
Part Number - K71-707-01
- This kit raises your trailer height by 2-5/8" between trailer frame and axle
- Holes are 8" on center
- For use with #10 Torflex axles
- 2,300 - 4,000# axle capacity

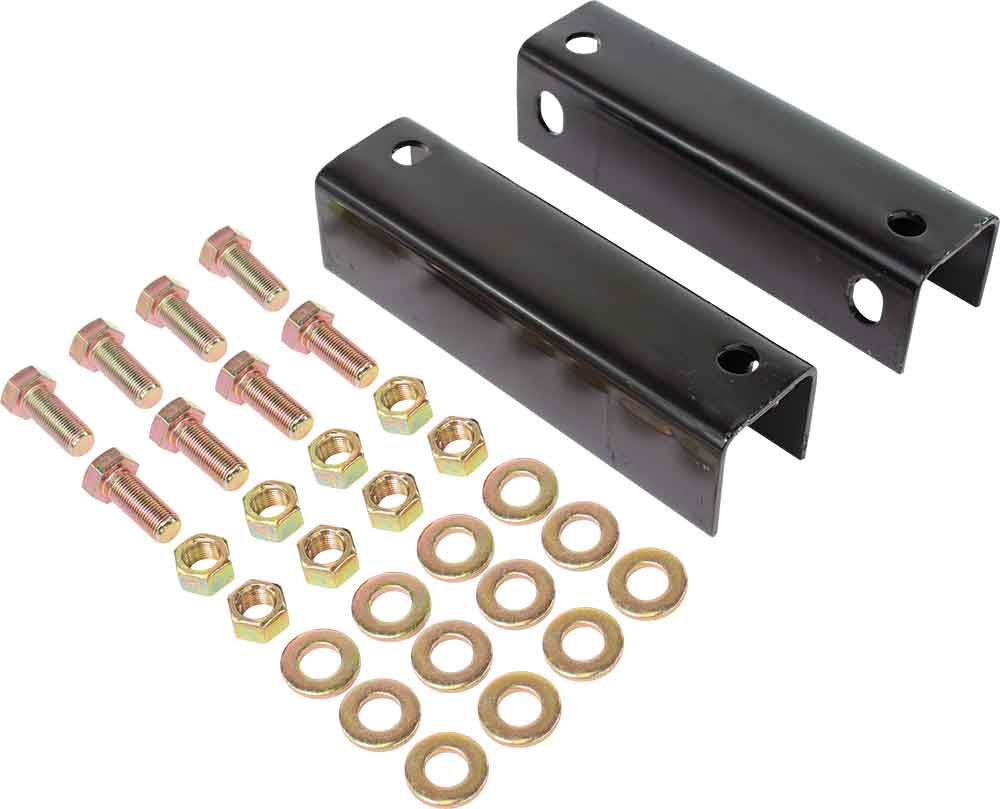

Included in this kit:
(2) 003-377-02
- #10 frame spacers

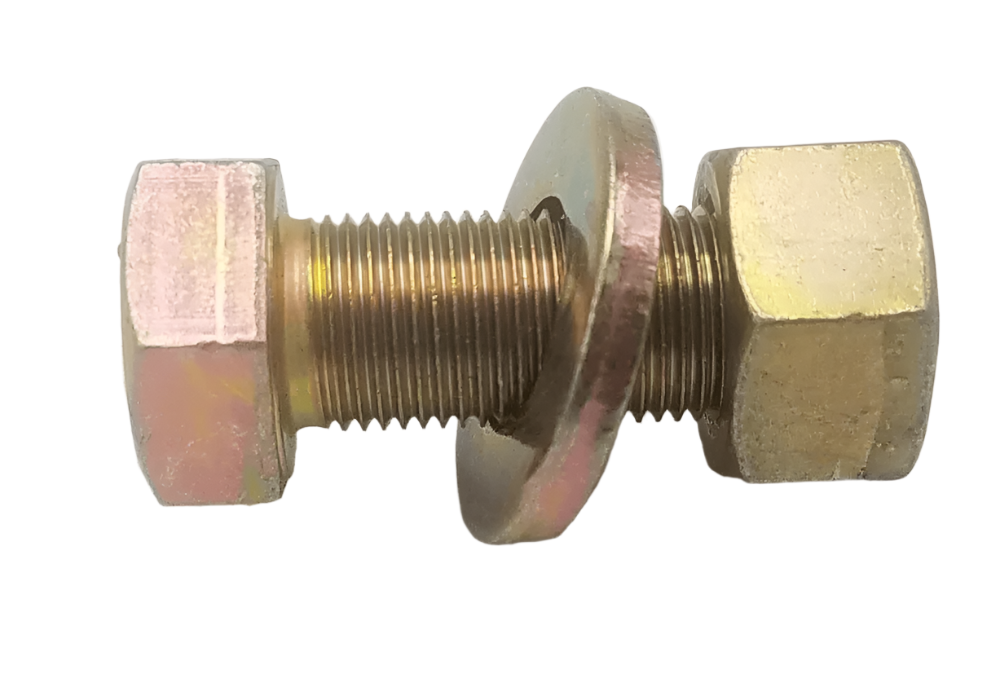

(16) 005-111-00
- Washers (Only Twelve Pictured, Kit WILL be sent W/16)
(8) 006-126-00
- Locking hex nuts
(8) 007-177-00
- Hex head bolts
- 1-1/2" long
NOTE: Lift kits cannot be used with Torflex axles produced with 3" high profile brackets.
If you have any questions, feel free to contact us. Our team has an abundance of knowledge and are ready to help.
