Match the part number, measurements and connection points that apply to your trailer.
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |

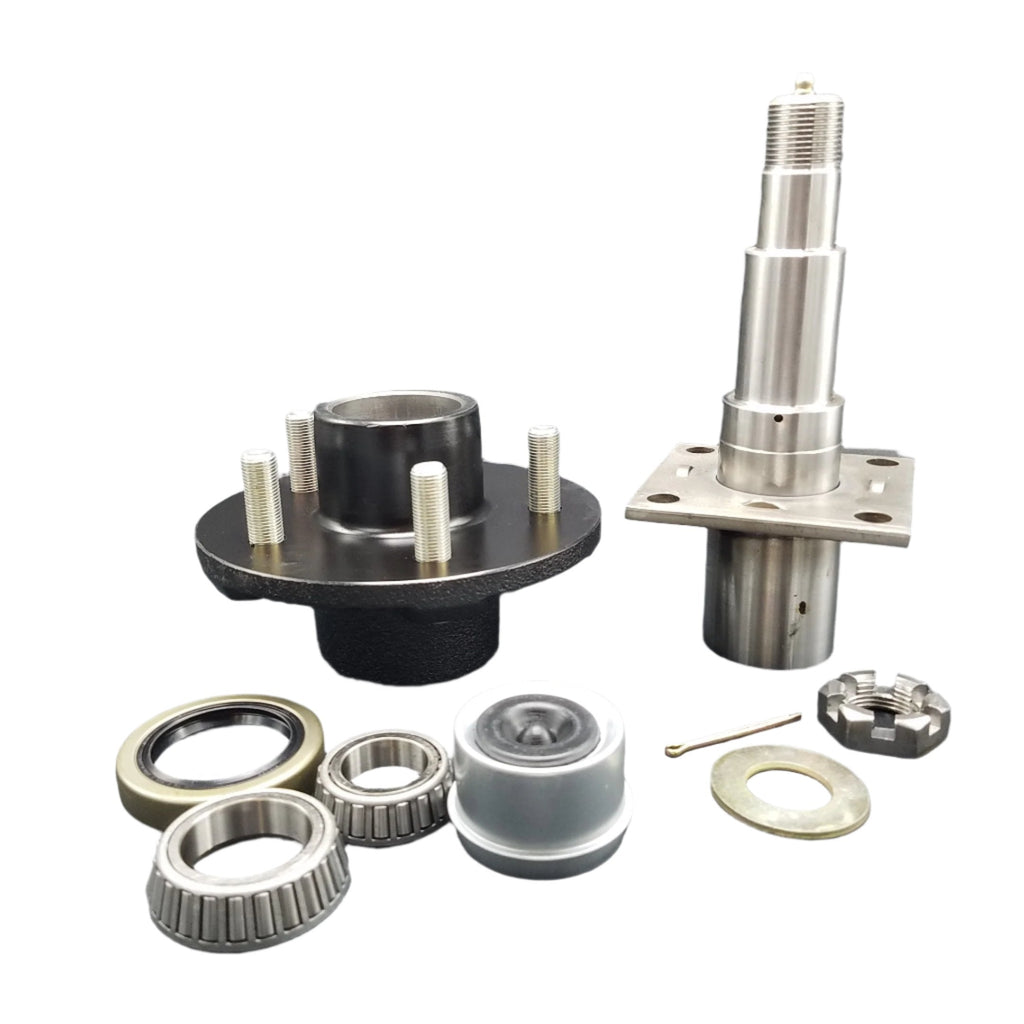

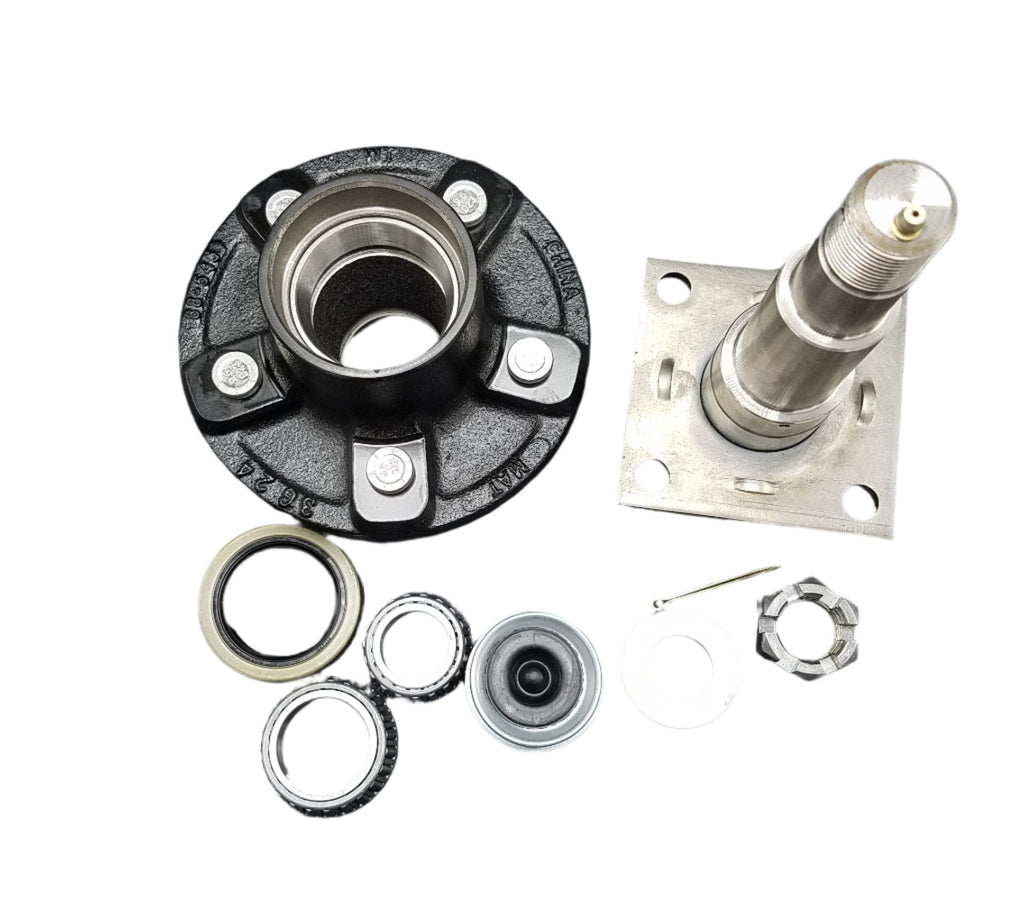

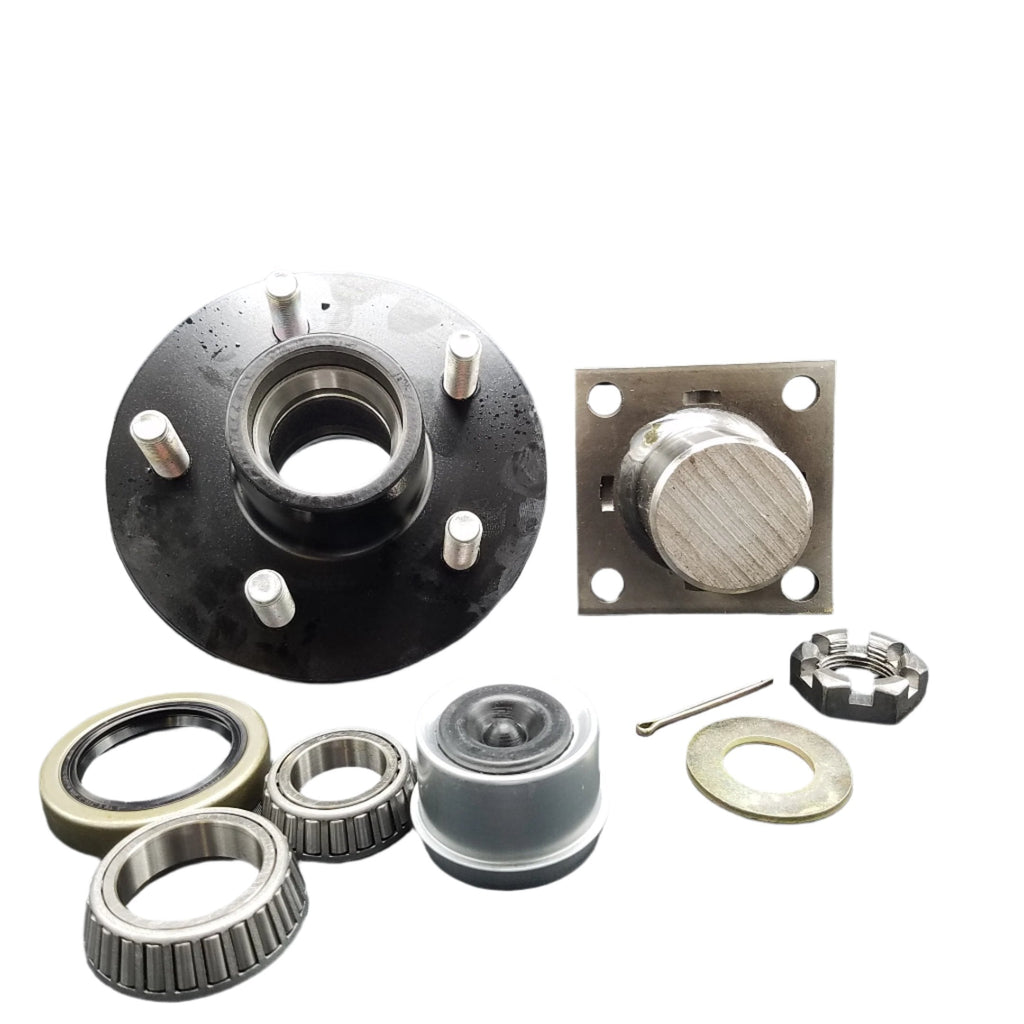

Pair of replacement spindle stub kits designed for 3,500 lb axles with a 5 x 4.5 bolt pattern. The #84 spindle in this kit features a 2.00" diameter x 3.37" long tail shaft and a 4-1/4" brake flange stud spacing. These spindles can be used with idler and brake drum applications. This kits fits many major brands including Dexter, AL-KO, Quality, Lippert, and others using standard #84 spindles.
Affordable Pricing
Quality Products
|
Fast Shipping
Ships from our warehouse
|
Fitment Help
Real trailer-parts experts
|
| ✓ | Fits 3,500 lb axles |
| ✓ | Standard #84 spindle style |
| ✓ | 4-1/4" brake flange stud spacing |

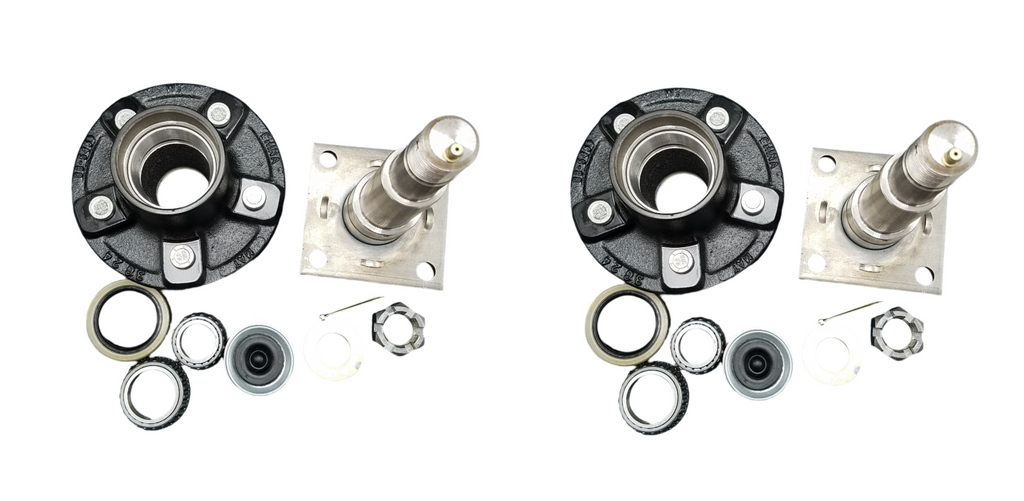

| ✓ | Two complete 5 on 4.5" Idler Hub and Spindle Assemblies |
| ✓ | Fits most major brands, including Dexter, AL-KO, Quality, Lippert, and others using standard #84 style spindles. |
 |
R&P Knowledge Hub

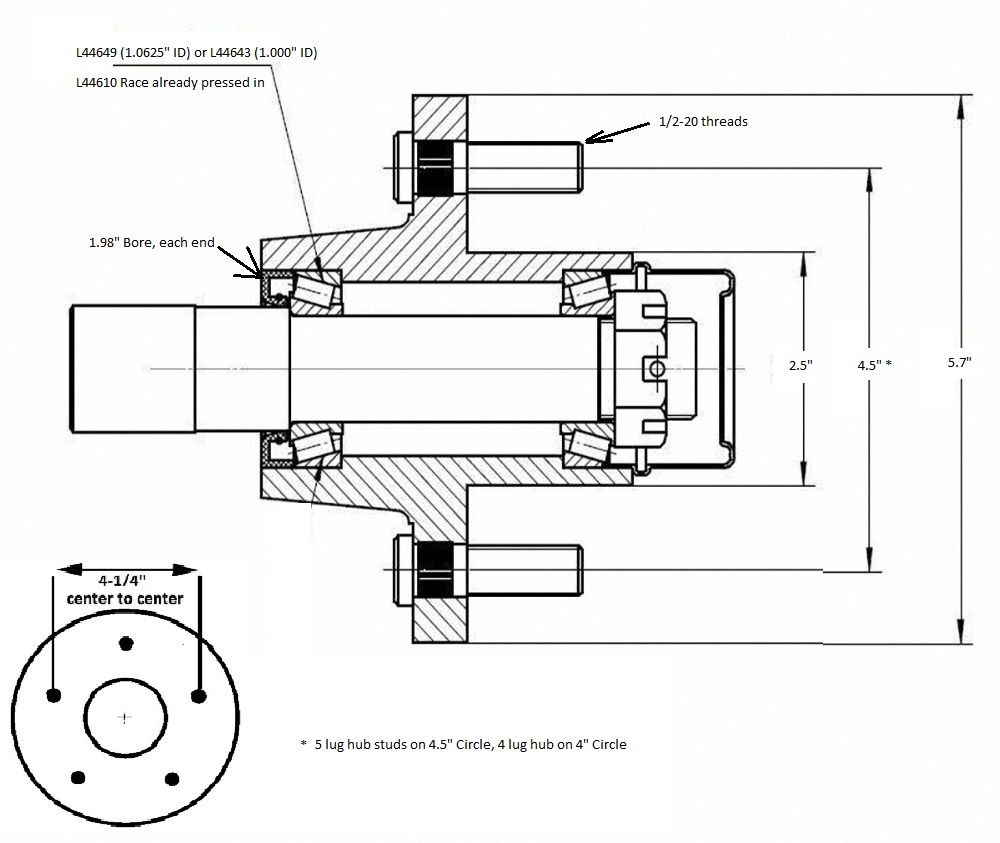

Spindle dimensions and bearing numbers can vary between applications. Always verify the existing spindle dimensions, bearing numbers, and overall axle specifications before ordering to ensure proper fitment. L68149 1.378" ID Inner Bearing - L44649 1.0625" ID Outer Bearing - 171255TB 1.719" ID x 2.56" OD Grease Seal - DC-200L 1.98" Dust Cap - 1" Spindle Hardware
|
|
