UFP Vault / Trailer Buddy Seal Service Kit

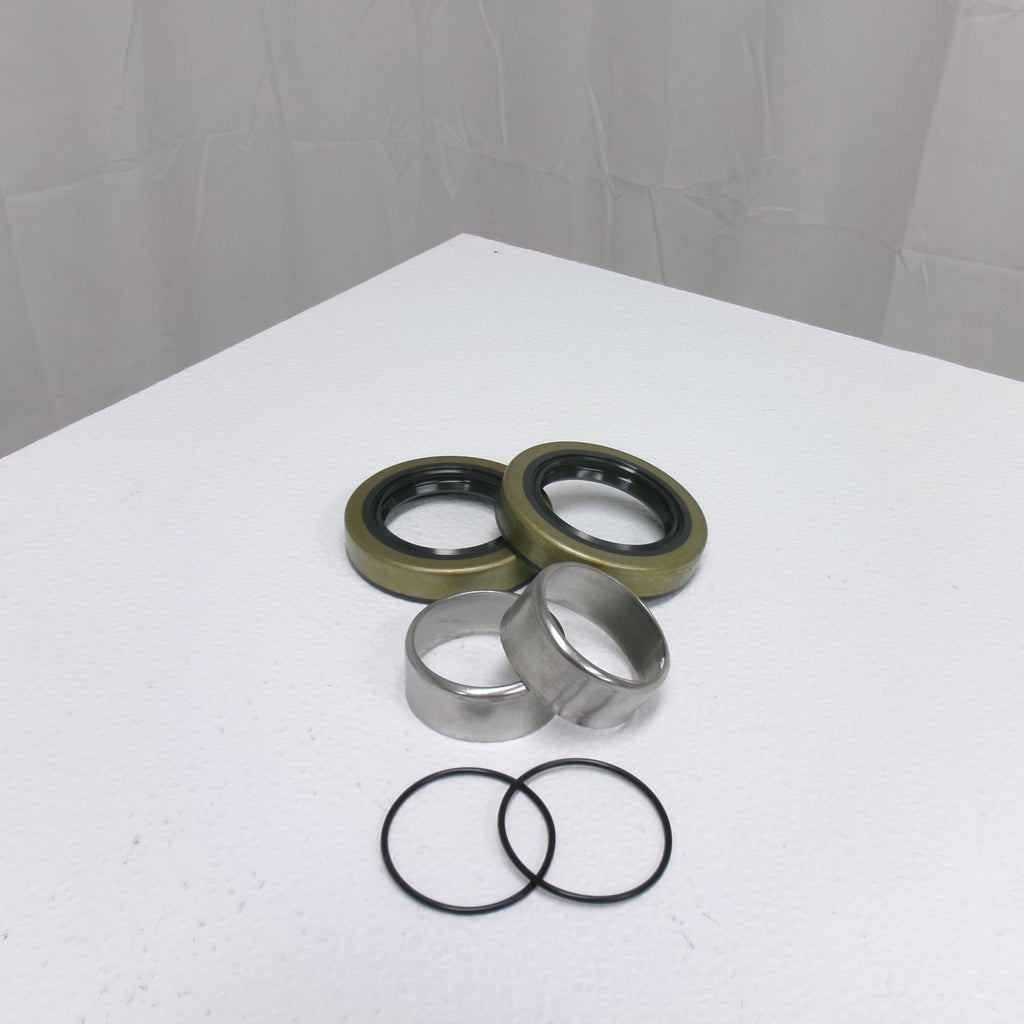

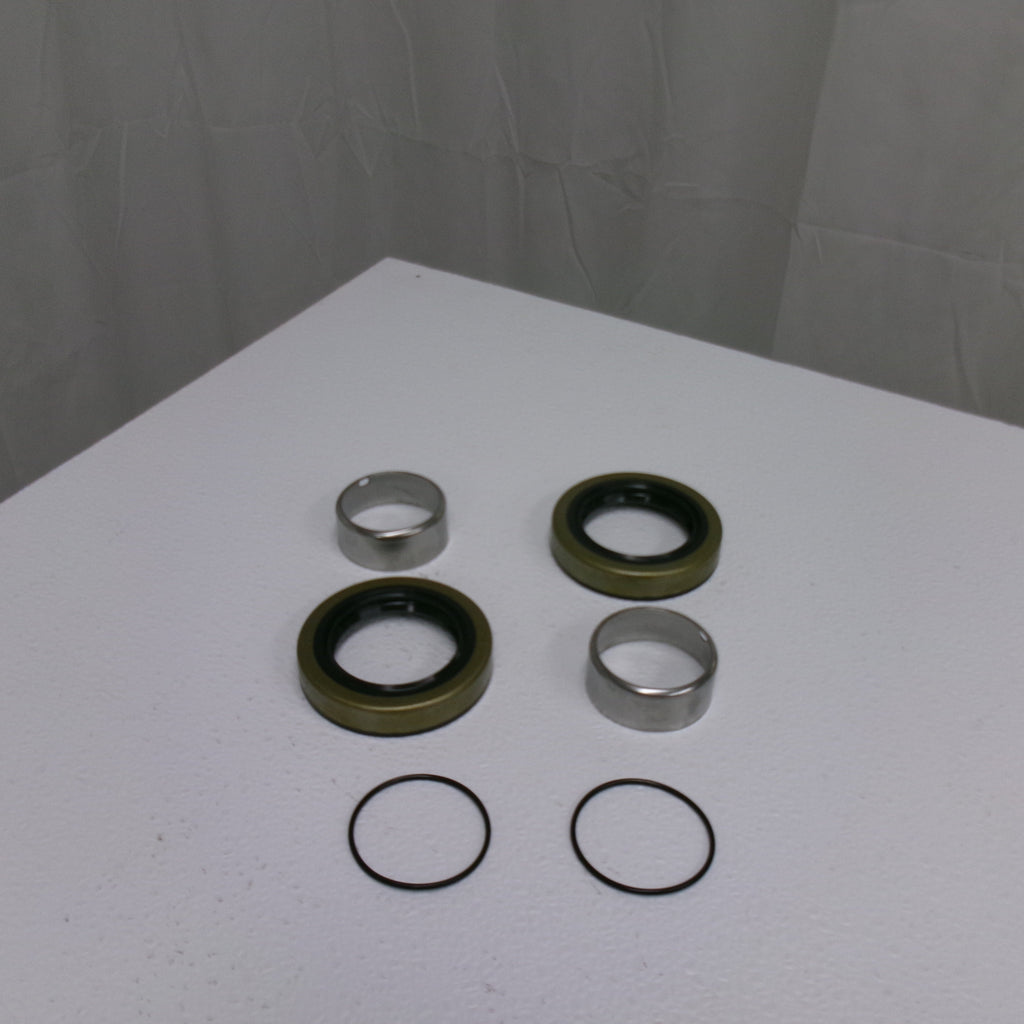

UFP Vault Trailer Axle Seal Kit – 2 Seals + 2 Stainless Wear Sleeves + 2 O-Rings
Part Number: 2x32123+2x33517U
A complete service kit for UFP Vault and Trailer Buddy style trailer axle setups using 32123 grease seals and 33517U stainless wear sleeves.
Includes 2 Seals Includes 2 Stainless Sleeves Marine Trailer Use
Overview
This kit includes two trailer axle grease seals, two stainless steel wear sleeves, and two O-rings designed for use with UFP Vault and Trailer Buddy systems. These components are commonly used on boat trailers and other applications where the hub seal rides against a durable, consistent sealing surface.
The double lip seal design helps retain lubrication inside the hub while helping keep water and debris out. The stainless wear sleeve provides a smooth sealing surface on the spindle, especially helpful when the original spindle surface has wear marks where the seal rides.
|
R&P Service Insight
When servicing Vault or Trailer Buddy style hubs, the seal and the surface it rides on should be checked together.
-
Seal Surface: A worn spindle surface can cause a new seal to leak prematurely.
-
Wear Sleeve: Stainless sleeves help restore a clean sealing surface.
-
Before Install: Confirm seal dimensions, spindle size, and hub style before ordering.
|
R&P Knowledge Hub
Seal Function: Grease seals retain lubrication inside the hub while helping prevent water, road grit, and debris from entering the bearing area.
Marine Trailer Use: Boat trailers place extra demand on hub seals because of repeated water exposure and ramp use.
Wear Sleeve Purpose: Wear grooves can form on the spindle where the seal rides. A stainless wear sleeve restores that sealing surface so the seal has a smooth, consistent contact area.
Fitment Reminder: Confirm the spindle size, seal inner diameter, seal outer diameter, and part numbers before installation.
Brand & Fitment Note
Selling Brand: R&P Carriages trailer parts listing for UFP Vault / Trailer Buddy compatible service components.
Application Reference: UFP Vault and Trailer Buddy axle hub systems using 32123 seals and 33517U stainless wear sleeves.
What This Listing Includes: Two double lip seals, two stainless wear sleeves, and two O-rings.
Before Ordering: Match by part number and measurement. Trailer manufacturers may use different hub, spindle, and seal combinations across similar trailer models.
R&P Repair Insight
A leaking hub seal is not always caused by the rubber seal alone. If the spindle surface has a groove, rust, pitting, or roughness where the seal rides, the new seal may not hold properly. Replacing the seal and sleeve together helps improve the chance of a clean, lasting repair.
-
Check the Spindle: Look for grooves, corrosion, or scoring at the seal contact area.
-
Check the Hub Bore: Make sure the seal seats squarely and securely in the hub.
-
Check the System: Verify the hub is compatible with UFP Vault or Trailer Buddy style components before installation.
|
Complete Two-Side Service Kit
Includes two seals, two stainless wear sleeves, and two O-rings for servicing both sides of a compatible axle setup.
|

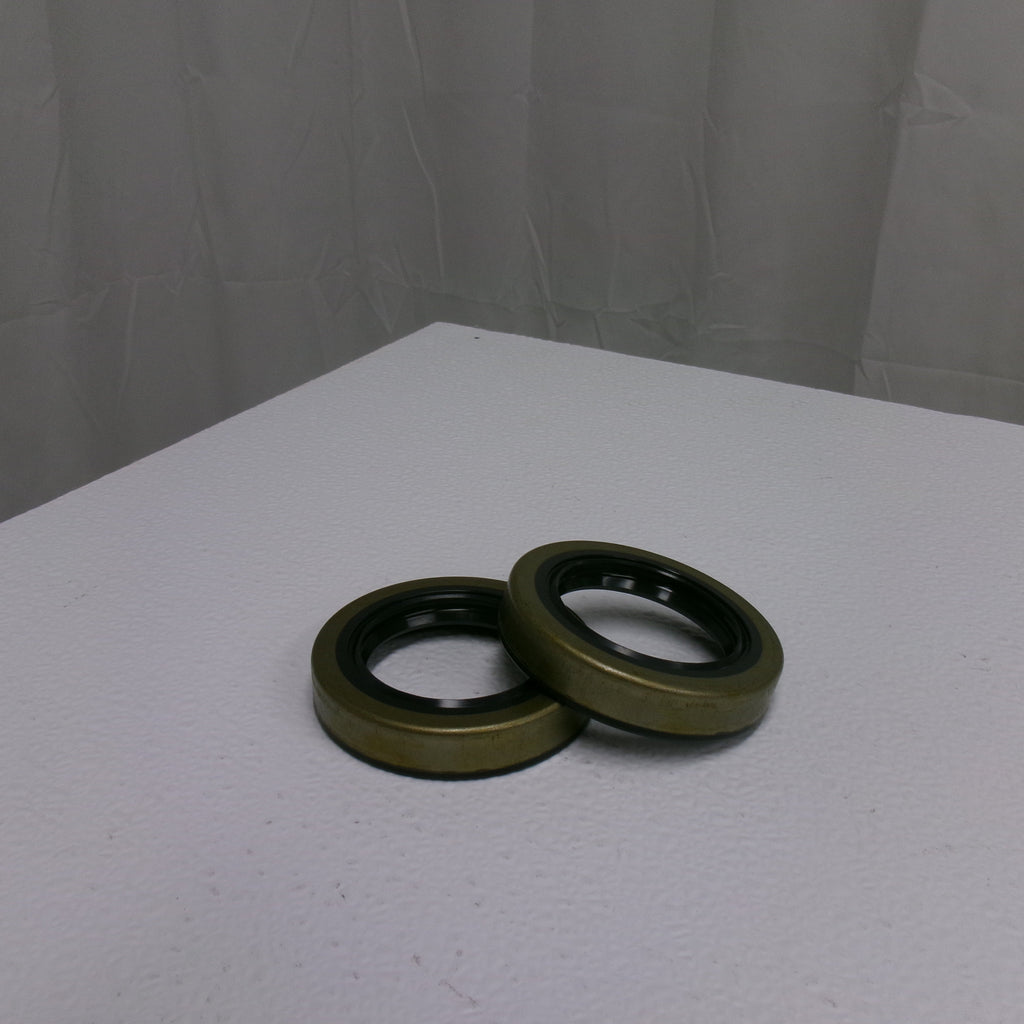

Double Lip Seal Design
Double lip construction helps retain lubrication while helping protect the hub interior from water and debris intrusion.
|
|

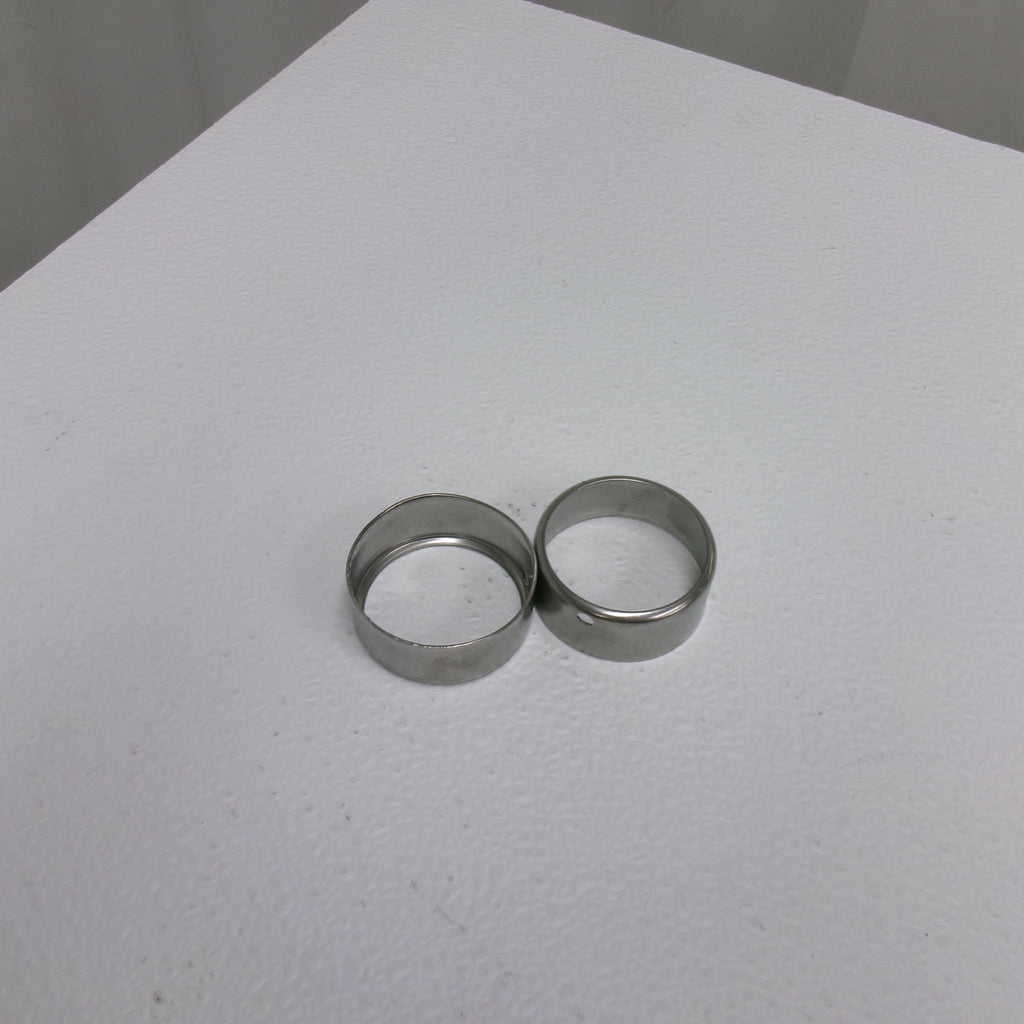

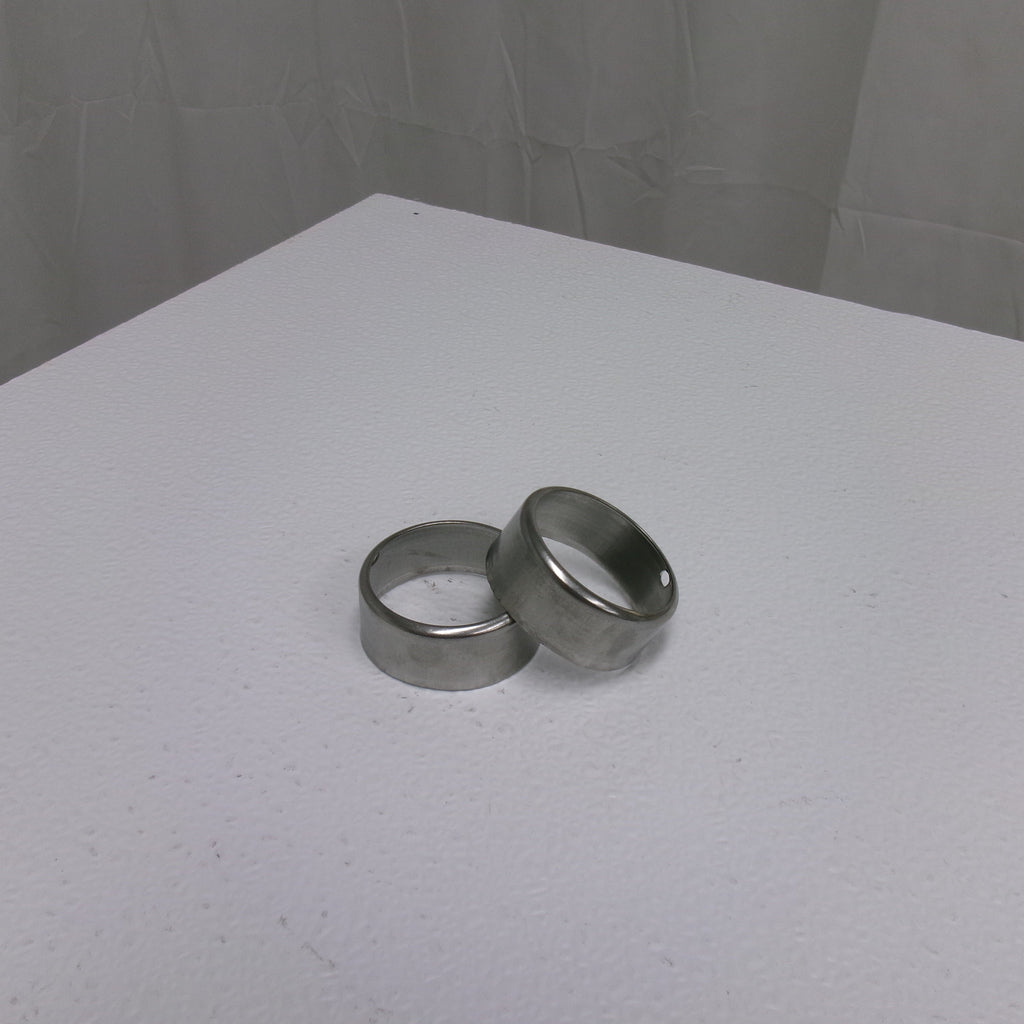

Stainless Wear Sleeves
Sleeves provide a smooth sealing surface where the seal rides, especially helpful when the spindle has wear marks.
|
Boat Trailer Application
Commonly used on marine trailer axles where hub sealing performance is especially important.
|
|
Specifications
| Specification |
Detail |
| Seal Part Number |
32123 |
| Wear Sleeve Part Number |
33517U |
| Kit Part Reference |
2x32123 + 2x33517U |
| Product Type |
Trailer axle seal and wear sleeve kit |
| Quantity Included |
2 seals, 2 stainless wear sleeves, 2 O-rings |
| Seal Type |
Double lip |
| Material / Finish |
Stainless wear sleeve |
| Application |
UFP Vault / Trailer Buddy axles |
|
Fitment / Application
| Category |
Details |
| Vehicle / System |
Boat trailer axle hub sealing system |
| Primary Fit |
UFP Vault systems using 32123 seals and 33517U sleeves |
| Secondary Fit / Common Uses |
Trailer Buddy style axle setups using the same seal dimensions |
| Notes |
Confirm part numbers and seal measurements before ordering. |
|
| Key Dimension |
Measurement |
| Seal Inner Diameter |
1.68" |
| Seal Outer Diameter |
2.56" |
| Seal Construction |
Double lip |
| Wear Sleeve Material |
Stainless steel |
| Quantity |
Item |
| 2 |
32123 double lip trailer axle grease seals |
| 2 |
33517U stainless steel wear sleeves |
| 2 |
O-rings |
| Not Included |
Hub, bearings, spindle, lubricant, installation tools, or other axle hardware |
Important Fitment Note: This listing is for the seal, sleeve, and O-ring components listed above. Match your existing part numbers and measurements before ordering. Similar trailers may use different axle, hub, spindle, or seal combinations.
