Slimline LED Trailer Tail Light Bars – Brake / Turn / Tail – Pair
This listing includes two slimline LED trailer tail light bars designed to function as brake, turn signal, and tail/running lights. The low-profile 15" design allows installation in tight channels while providing bright, clearly visible rear lighting.
Features
- Multi-function rear lights: brake, stop/turn, and tail/running light
- Red LEDs with clear lens cover
- Fully sealed polycarbonate light bar
- DOT and SAE compliant when installed properly
- Impact-resistant housing
- Channel- and space-saving slimline design
- Can be mounted vertically, horizontally, or at a 45° angle
Electrical & Wiring
| Operating Voltage | 9–16V DC |
| Current Draw | 250 milliamps |
| LED Configuration | 11 LEDs per light |
| Service Life | Rated up to 100,000 hours |

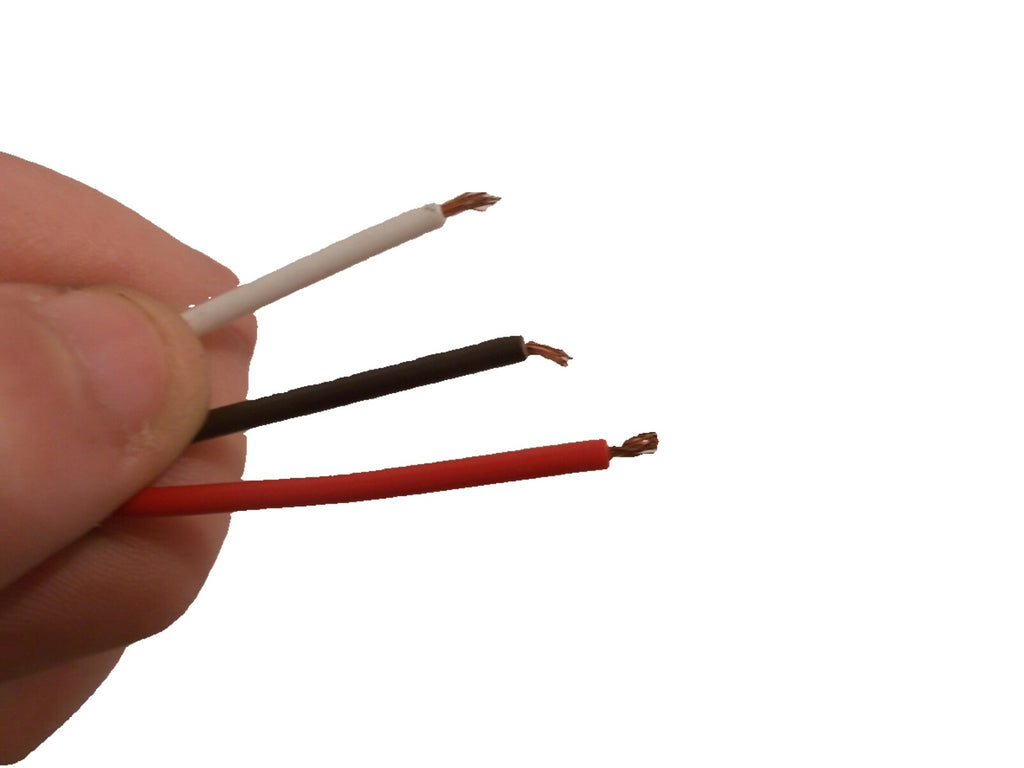

Wiring Guide
| White Wire | Ground |
| Brown or Black Wire | Tail / Marker Lights |
| Green or Red Wire | Stop / Turn Signal |
Dimensions
| Overall Length | 15.50" |
| Width | 1.60" |
| Depth | 0.80" |
Common Applications
Commonly used as rear lighting on utility trailers, enclosed cargo trailers, flatbeds, landscape trailers, equipment trailers, and similar applications requiring brake, turn, and tail light functions. Suitable for retrofitting existing trailers using standard 3-wire lighting systems.
