Kaper II 6-Inch Oval Red LED Trailer Tail Light Kit – 60 Diode, 3-Pin Plug & Rubber Grommet
Super-bright 12-volt LED trailer light kit with a rubber mounting grommet and standard 3-pin plug for compatible 6-inch oval lighting applications.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 1T-L16RI-KIT |
| Product Type | LED stop, tail and turn light kit |
| Dimensions | 6.50 in. L × 2.20 in. W × 1.00 in. D |
| Voltage | 12 VDC |
| Current Draw | 220 mA |
| LED Count | 60 diodes |
| Lens Style | Red lens with clear outer-lens styling |
| Quantity Included | 1 complete light kit |
Fitment / Application
| Category | Details |
|---|---|
| Application | Compatible truck and trailer stop, tail and turn lighting applications |
| Mounting Style | Rubber grommet mount |
| Electrical Connection | Standard molded 3-pin plug |
| Replacement Use | Designed to replace compatible 6-inch oval sealed-beam trailer lights |
| Fitment Check | Compare the light dimensions, mounting opening and connector style before ordering. |
| Important Note | Verify that the intended lighting system operates on 12 VDC. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 60 LED Diodes | Provides bright stop, tail and turn illumination. |
| Complete Installation Kit | Includes the light, rubber grommet and standard 3-pin plug. |
| Sealed Housing | Sonically sealed polycarbonate construction protects the internal lighting components. |
| LED Technology | Provides lower current draw than traditional incandescent lighting. |
Overview

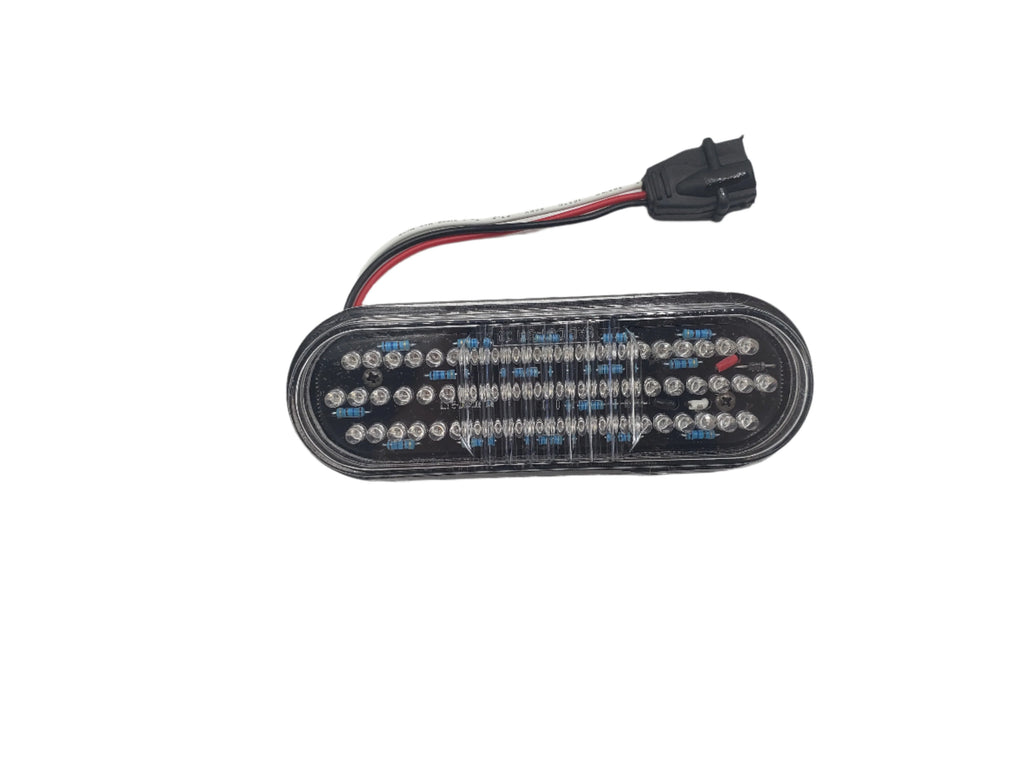

This listing includes one 6-inch oval LED stop, tail and turn light kit for compatible truck and trailer lighting applications. The light features 60 high-output LED diodes, red-and-clear lens styling and a sonically sealed polycarbonate housing. A rubber mounting grommet and standard 3-pin electrical plug are included.
R&P Service Insight
Oval trailer lights can appear similar while differing in dimensions, mounting style or electrical connection. Compare the existing light and mounting opening with the listed specifications before ordering.
- Measure First: Confirm the 6.50-inch × 2.20-inch light dimensions and available mounting depth.
- Check the Connector: Verify that the trailer uses a compatible standard 3-pin plug.
- Confirm Voltage: This light is designed for a 12 VDC electrical system.
R&P Knowledge Hub
Compatibility: The 6-inch oval format is commonly used for stop, tail and turn lighting on trucks, utility trailers and cargo trailers. Verify dimensions, mounting style and connector compatibility before ordering.
Lighting Functions: This combination light provides stop, tail and turn functions when correctly connected to a compatible trailer lighting circuit.
Installation Notes: The rubber grommet supports the light within a compatible mounting opening, while the included molded plug connects to the rear 3-pin terminal arrangement.
Performance Insight: LED lighting provides fast illumination, bright output and reduced current draw compared with traditional incandescent sealed-beam lights.
Brand & Fitment Note
Selling Reference: R&P Carriages part number 1T-L16RI-KIT.
Application Reference: Intended for compatible 6-inch oval truck and trailer stop, tail and turn light applications.
What This Means: Fitment should be determined using the listed dimensions, rubber-grommet mounting style, 12 VDC rating and standard 3-pin connector.
Before Ordering: Verify the existing light dimensions, mounting opening, available depth, voltage and electrical connection.
R&P Repair Insight
If a replacement trailer light does not operate correctly, inspect the wiring connection and trailer ground before assuming the new light is defective.

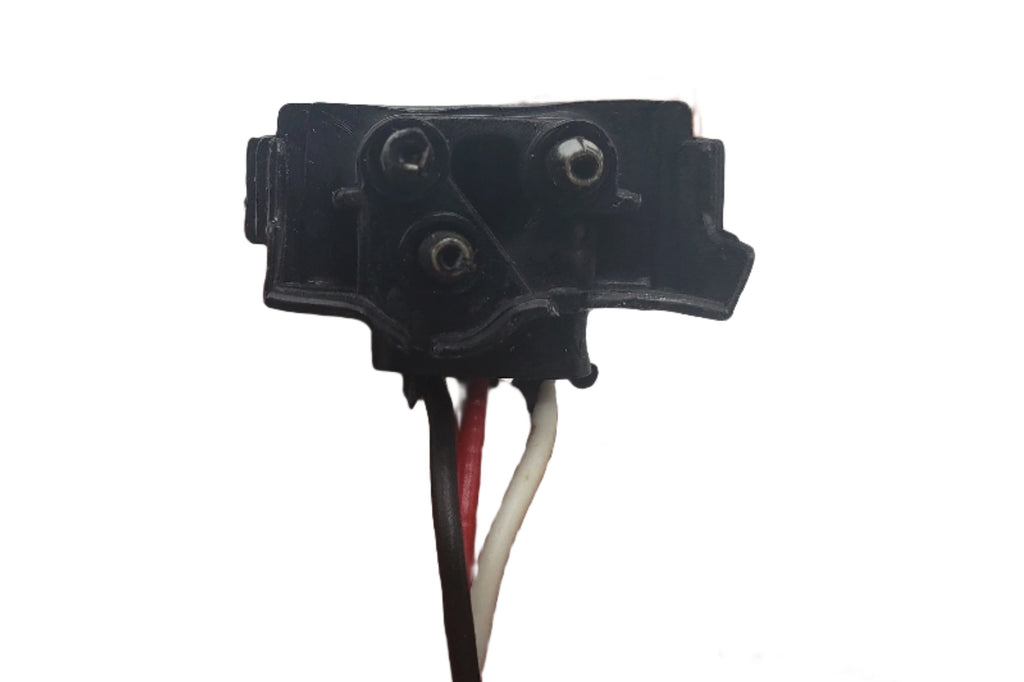

- Connector Check: Make sure the 3-pin plug is fully seated and connected to the correct terminals.
- Ground Check: Inspect the trailer lighting ground and related wiring connections.
- Function Check: Test the stop, tail and turn functions after installation and before returning the trailer to service.
Features

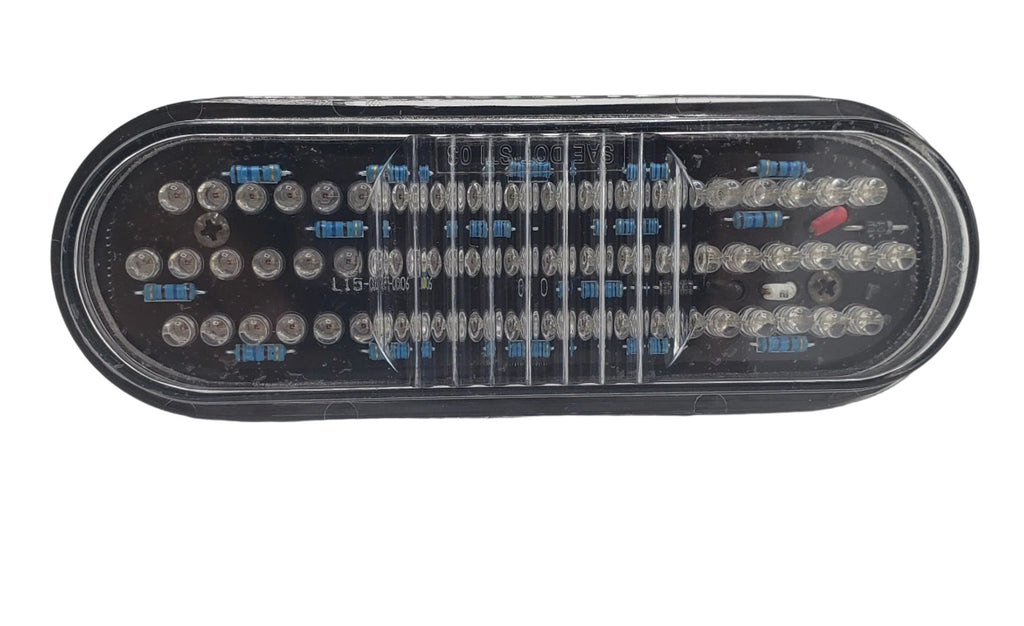

60 High-Output LED Diodes
Delivers bright illumination for stop, tail and turn lighting functions.
Red and Clear Lens Styling
Combines a red functional lens with clear outer-lens styling.

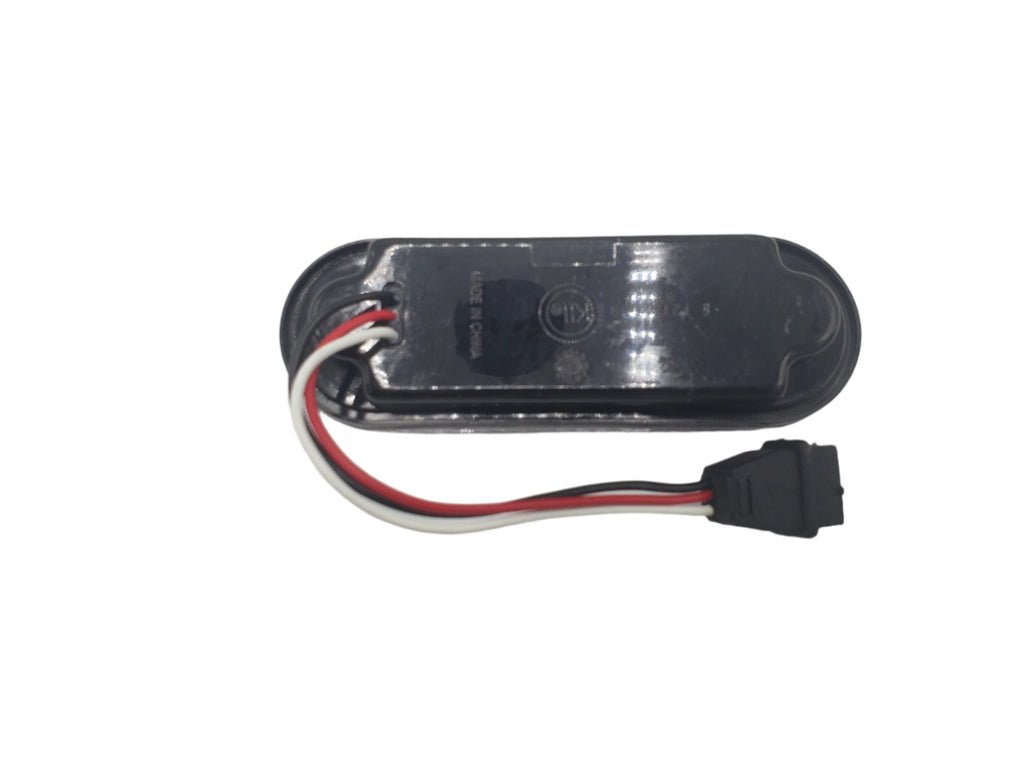

Sonically Sealed Housing
Features a sealed polycarbonate housing designed to protect the internal LED components.

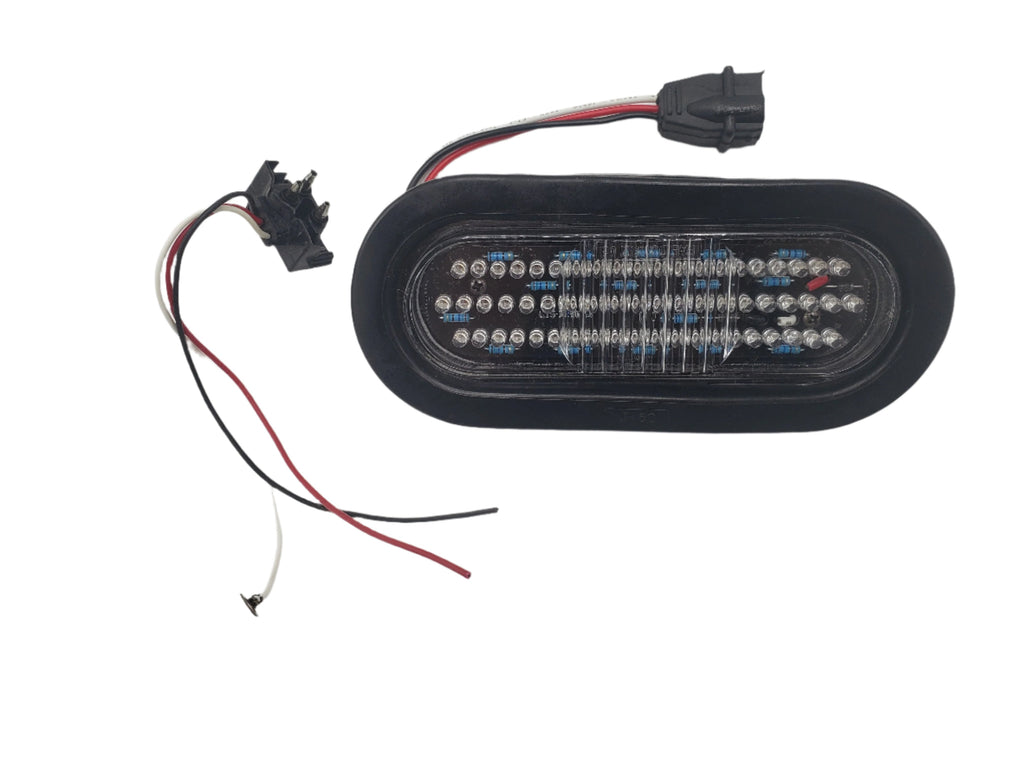

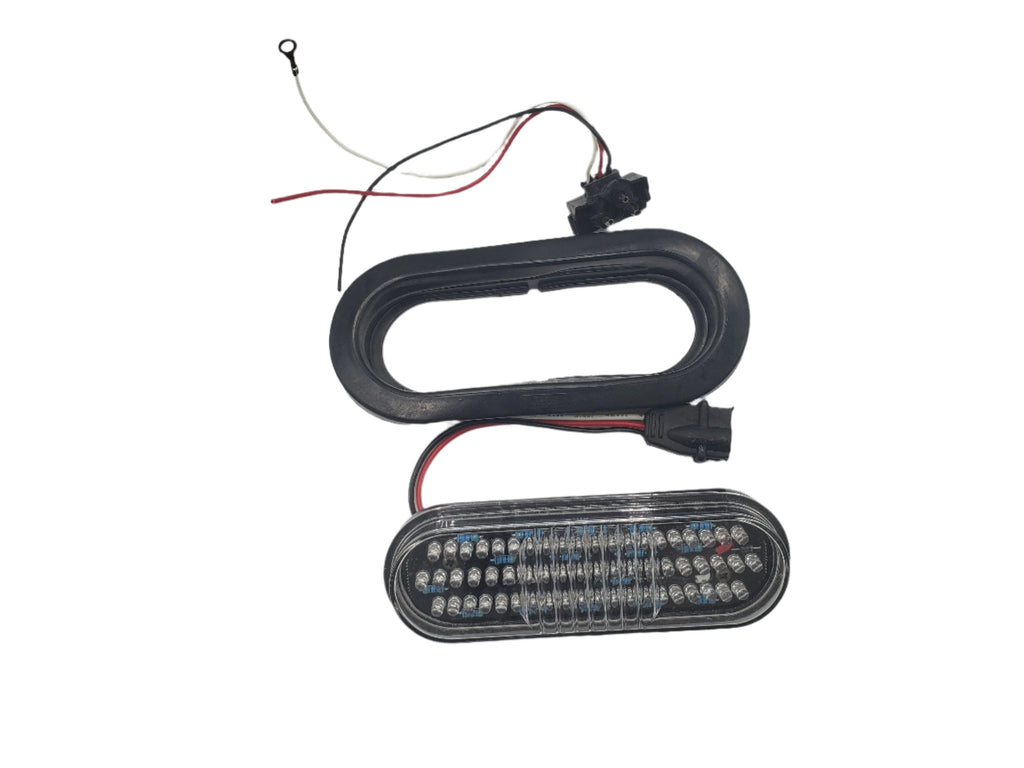

Ready-to-Install Kit
Includes the oval LED light, rubber mounting grommet and standard 3-pin plug.
Included Components
| Quantity | Item |
|---|---|
| 1 | 6-inch oval LED stop, tail and turn light (1T-L16RI) |
| 1 | Rubber mounting grommet (J-60-GM) |
| 1 | Standard 3-pin electrical plug (J-60-WH) |
